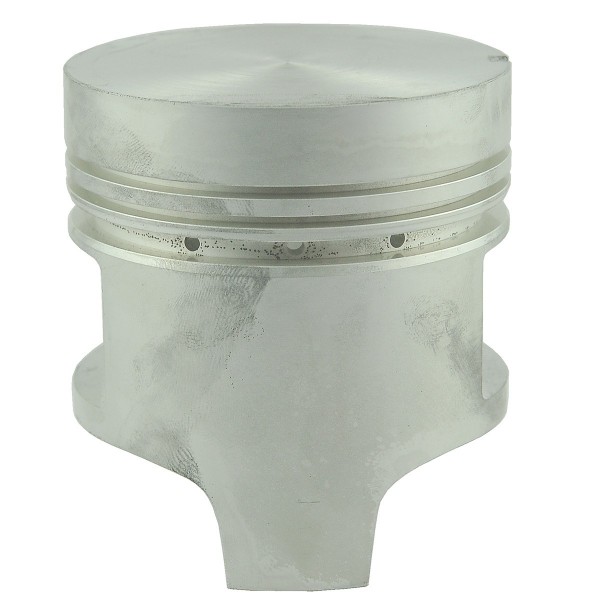

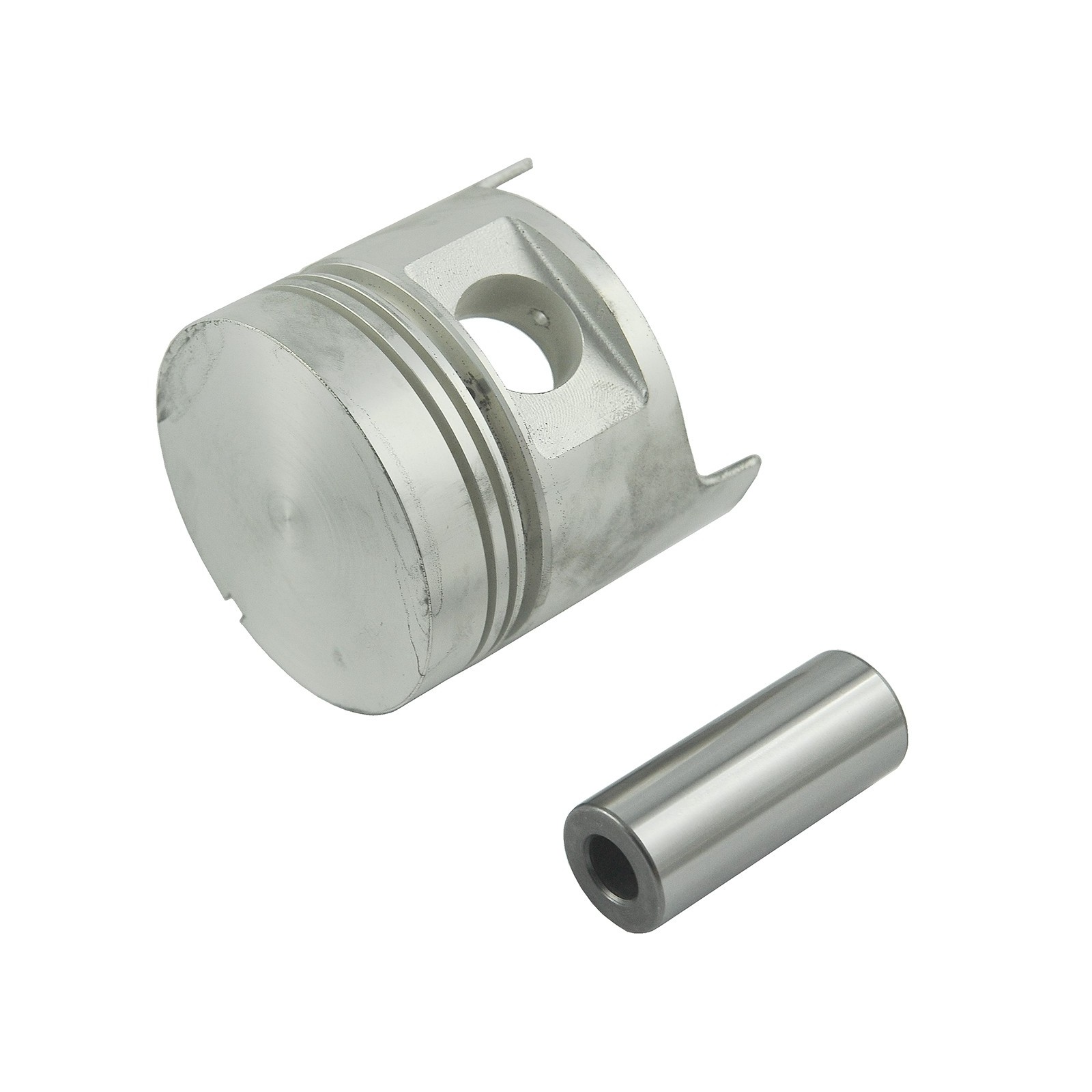

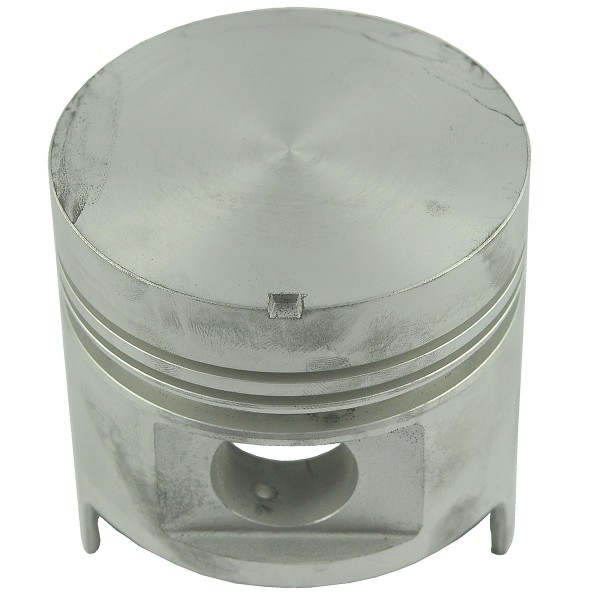

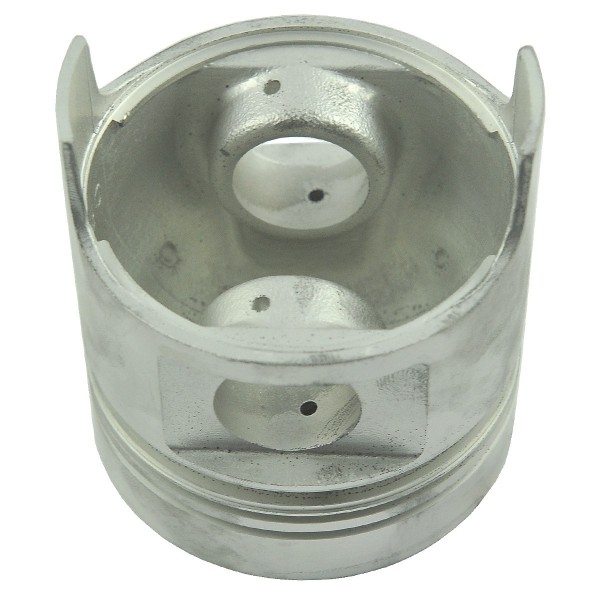

Engine piston / Ø 78 mm / Toyosha CS122 / Hinomoto E202 / E204 / E222 / E224

Engine piston ( %C5% 9Bcieni-78-mm-19x2x4mm-hinomoto-e222-e223.html">6-26-100-41 ) with an outer diameter of 78 mm and a total height of 82 mm for Hinomoto tractors of the Hinomoto E202, Hinomoto E204, Hinomoto E222, Hinomoto E224 series with Toyosha CS122 engines and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, which in turn translates into engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is the so-called bottom, which may have a different shape depending on the type of engine. Due to the operation in very difficult conditions, the pistons engine are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 78 mm,
• height: 62 / 82 mm,
• pin hole diameter: 24 mm.
• Pin diameter: 23.90 mm.
• pin length: 61 mm.
• distance from the end of the pin hole to the lower edge of the piston: 7.50 mm,
• distance from the edge of the pin hole to the top edge of the piston: 30 mm,
• ring groove width ( %C5% 9Bcieni-78-mm-19x2x4mm-hinomoto-e222-e223.html">6-26-100-41 ) from the top of the piston: 2.00 / 2.00 / 4.00 mm.
• original part number: -,
• part number: 5-23-201-27.

Engine models :

Toyosha :

• Toyosha CS122.

Tractor models :

Hinomoto :

• Hinomoto E202,
• Hinomoto E204,
• Hinomoto E222,
• Hinomoto E224.

Magazine : M01:A44

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
