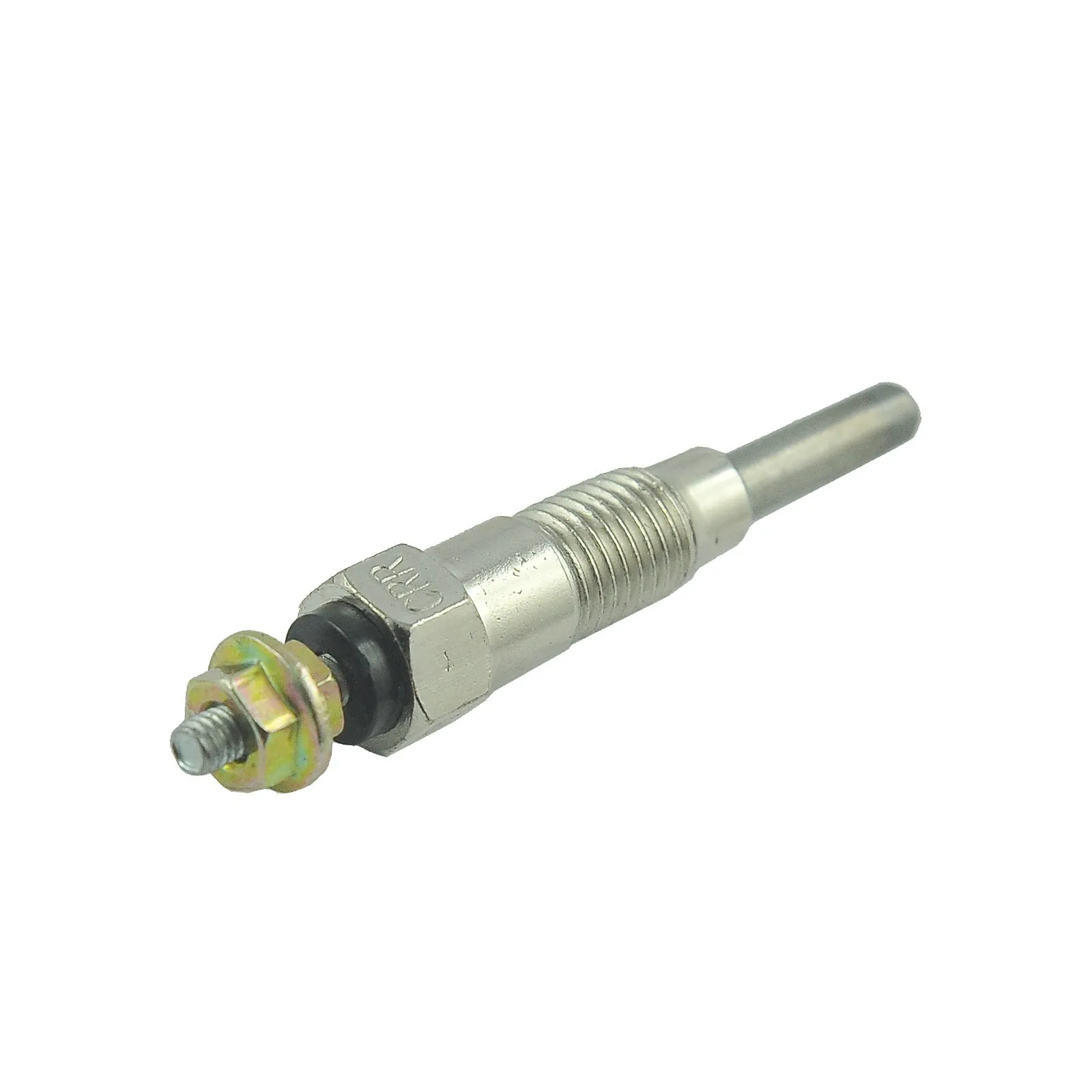

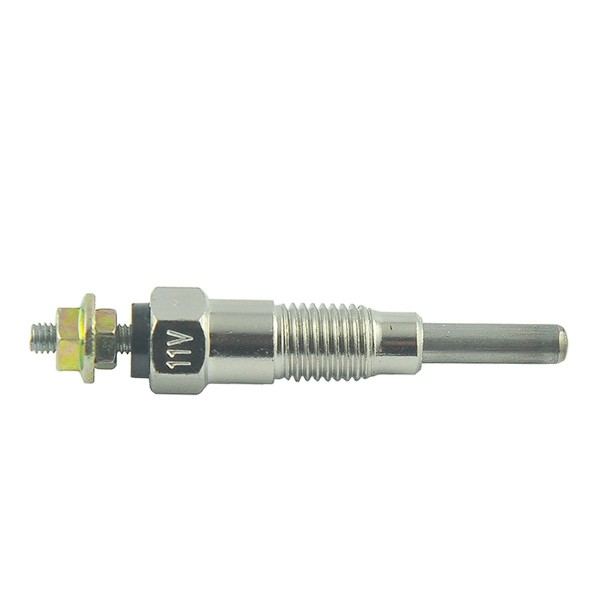

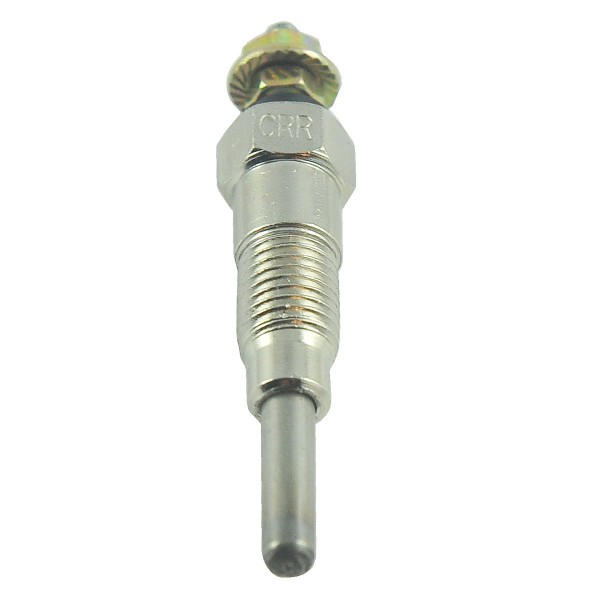

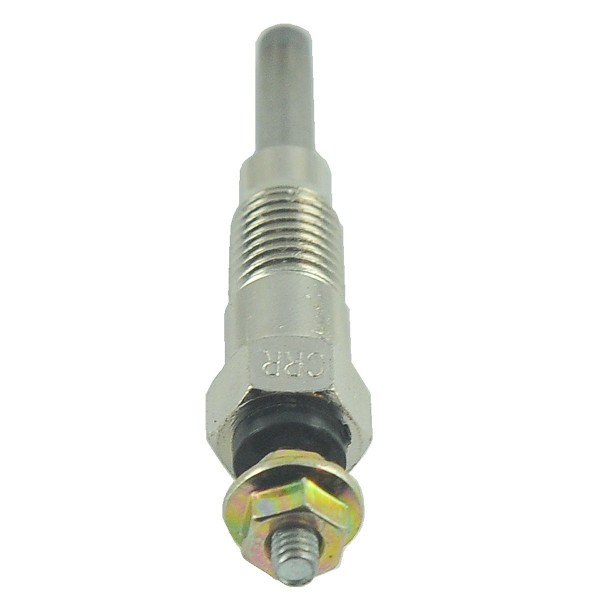

Glow plug / PN87 / 11V / 67mm / Kubota V1502 / V1702 / Kubota L185 / L245 / L2201 / L2202 / Toyosha CS112

Glow plug with a total length of 67 mm and a filament length of 18 mm with an M10x 1.25 thread for Kubota tractors of the Kubota L185, Kubota L245, Kubota L2201, Kubota L2202 series with Kubota V1502, Kubota V1702 engines, Hinomoto brands Hinomoto E204, Hinomoto E1804 series and others.

Glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions :

• current voltage: 11V,
• total length: 67 mm,
• filament length: 18 mm,
• thread length: 10 / 12 mm.
• thread 1: M10 x 1.25,
• thread 2: M4,
• key size: 12,
• original part numbers: PN-87,
• part numbers: 6-26-103-08.

Engine models :

Kubota :

• Kubota V1502,
• Kubota V1702.

Hinomoto :

• Toyosha CS112.

Tractor models :

Kubota :

• Kubota L185,
• Kubota L245,
• Kubota L2201,
• Kubota L2202.

Hinomoto :

• Hinomoto E204,
• Hinomoto E1804.

A faulty glow plug is a common cause of the engine not starting and the machine not being grounded. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : K18:A08:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
