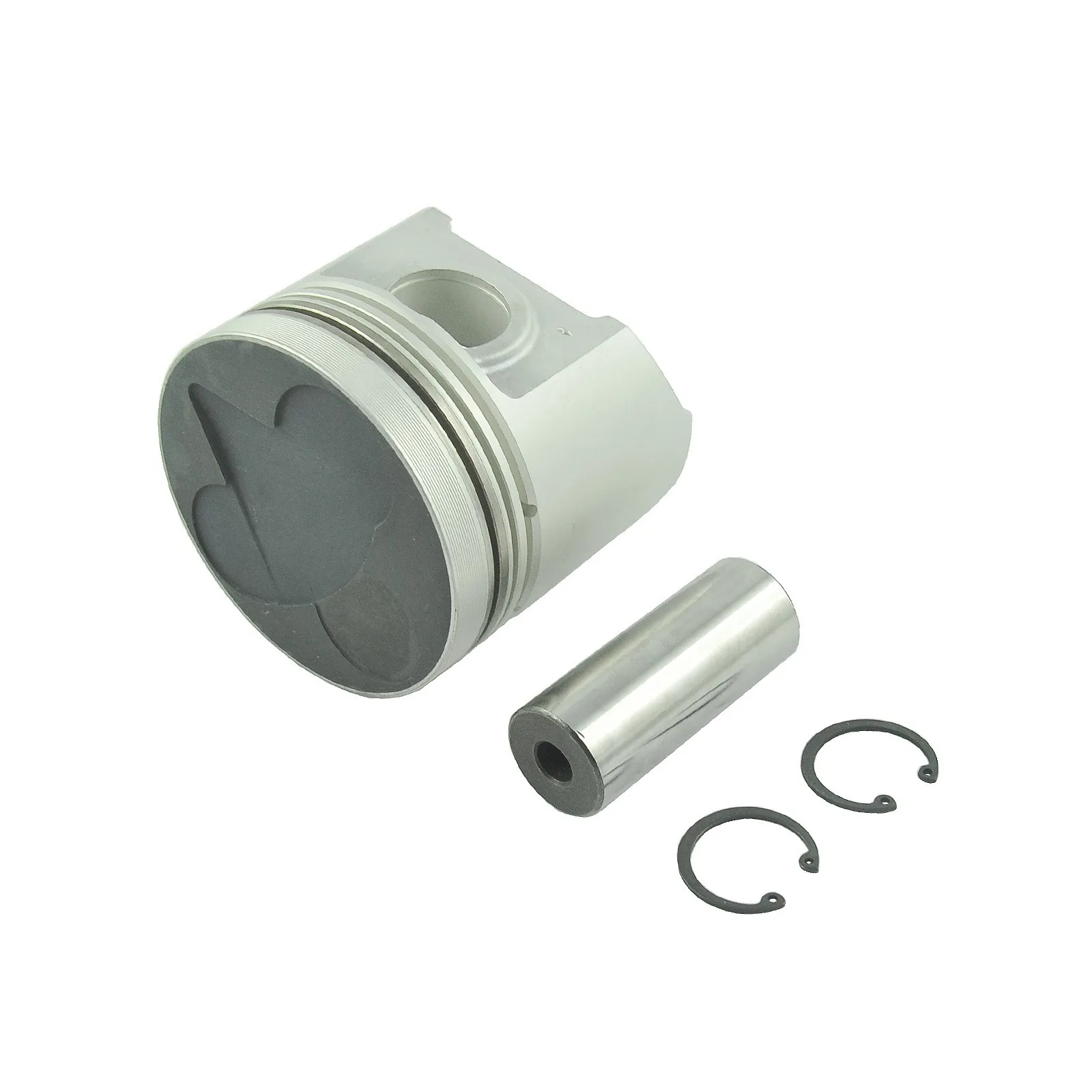

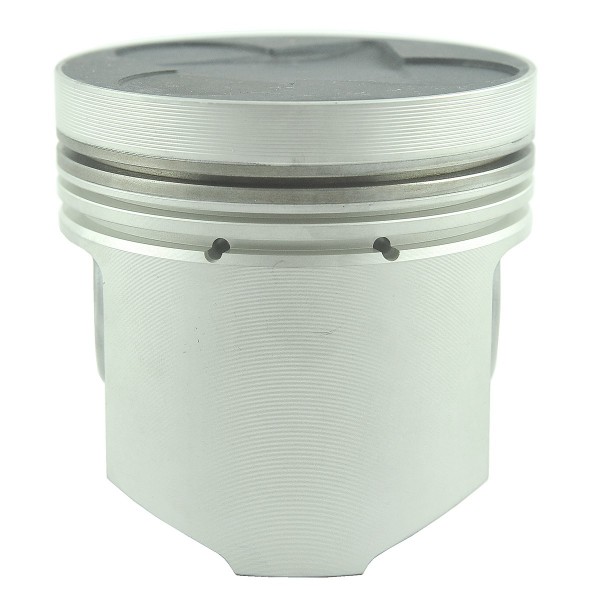

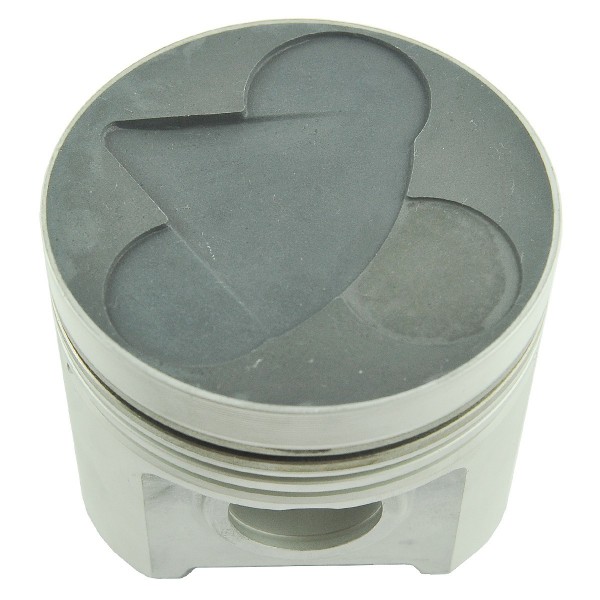

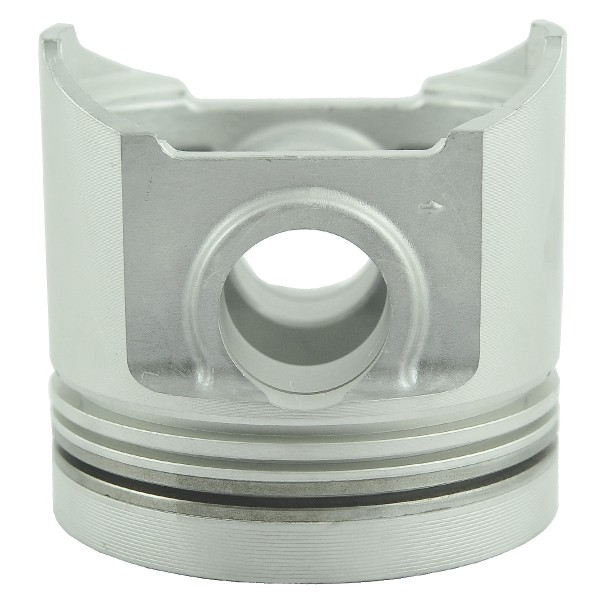

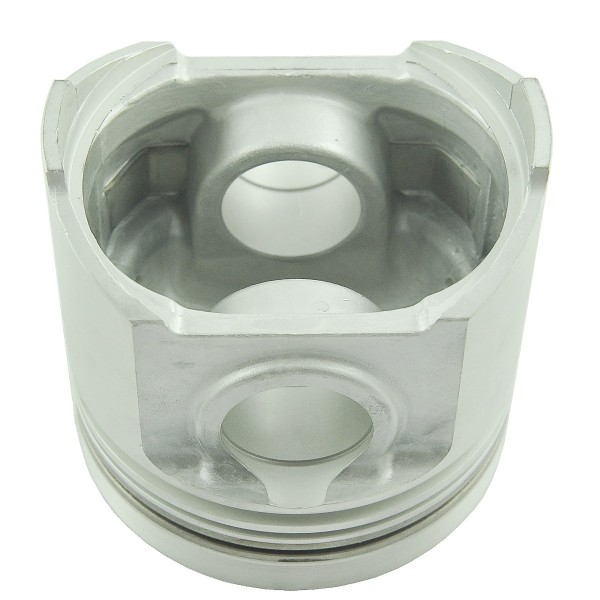

Engine Piston / 98mm / STD / Kubota V3300 / Kubota M8200 / M9000

Engine piston with an outside diameter of 98 mm and a total height of 91 mm for Kubota tractors of the Kubota M8200, Kubota M9000 series with Kubota V3300 engines and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, and further to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is the so-called bottom, which, depending on the type of engine, may have a different shape. Due to work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• diameter: 98 mm,
• height: 73 / 91.50 mm,
• pin hole diameter: 30 mm,
• pin diameter: 29.80 mm,
• pin length: 77 mm,
• Distance from end of pin hole to bottom edge of piston: 12.40 mm.
• Distance from edge of pin hole to top of piston: 31.30 mm.
• width of ring grooves from top of piston: 2 / 2 / 3 mm.
• valve seat depth: 2.00 mm,
• original part number: 1C041-21110,
• part number: 6-23-100-30.

Engine model :

• Kubota V3300.

Tractor models :

Kubota :

• Kubota M8200,
• Kubota M9000.

Magazine : K18:A32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
