Engine piston / Ø 80 mm / STD / Kubota D1403 / V1903 / Kubota GL19 / GL21 / GL200 / GL201 / L2500 / L3600 / L3710 / L4200

Product code: D1403_P
Brand 4FARMER
View other model
zł146.34 netto
zł180.00
Includes VAT 23%

Lowest price from 30 days: zł180.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
6 pieces
Delivery See details Leasing & financing for businesses See details

Product description

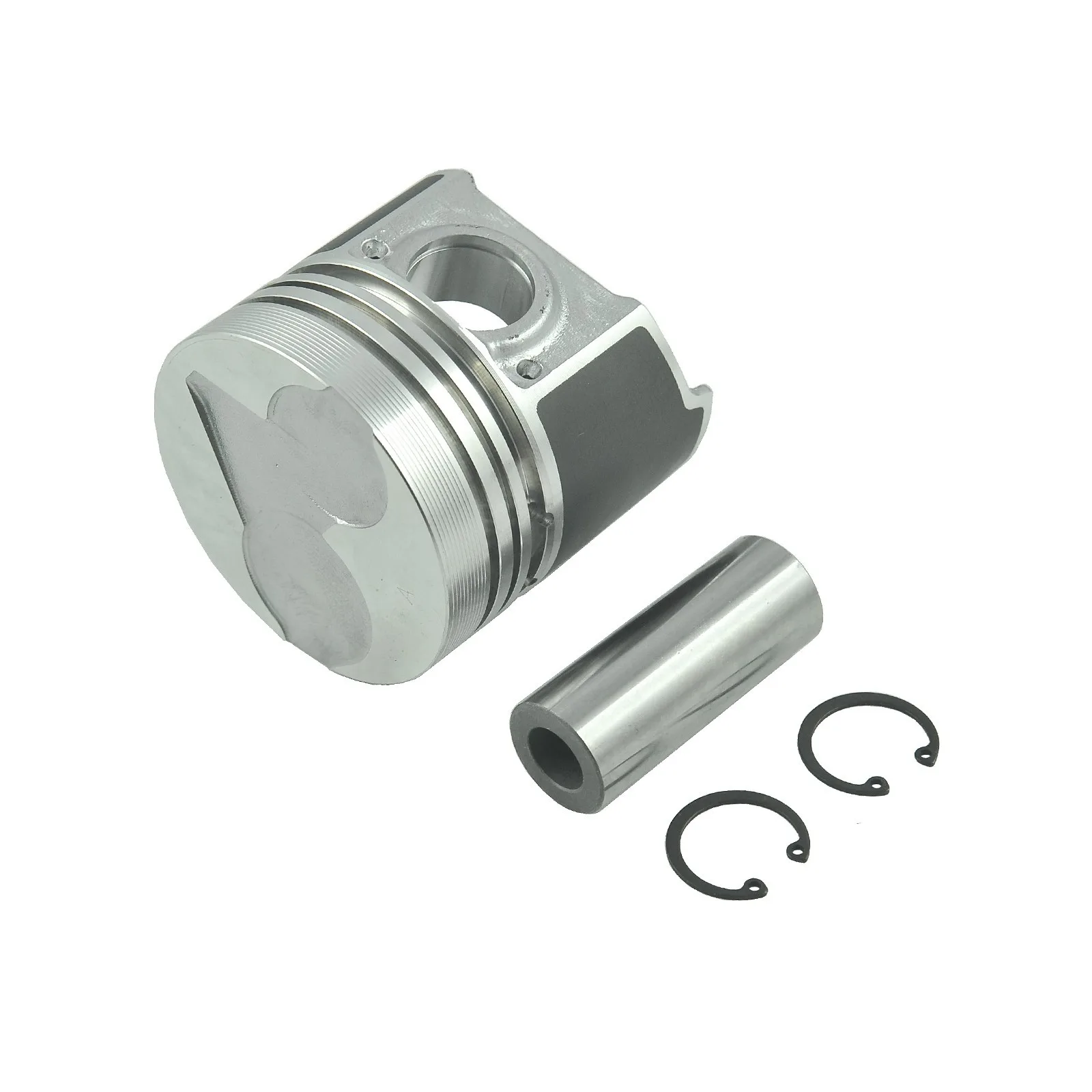

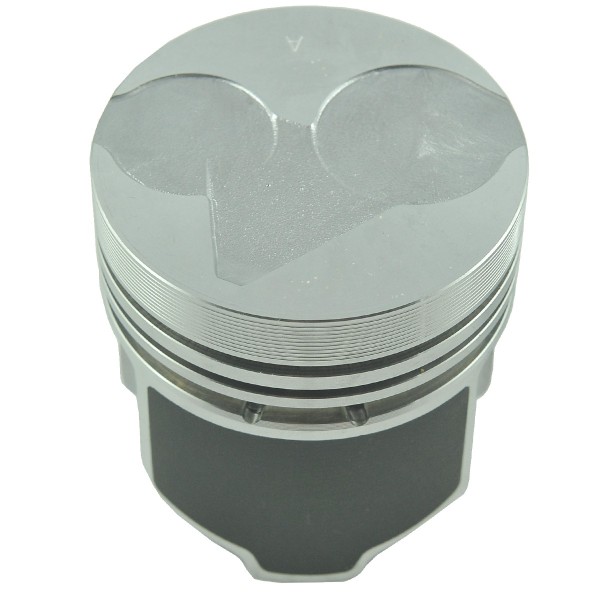

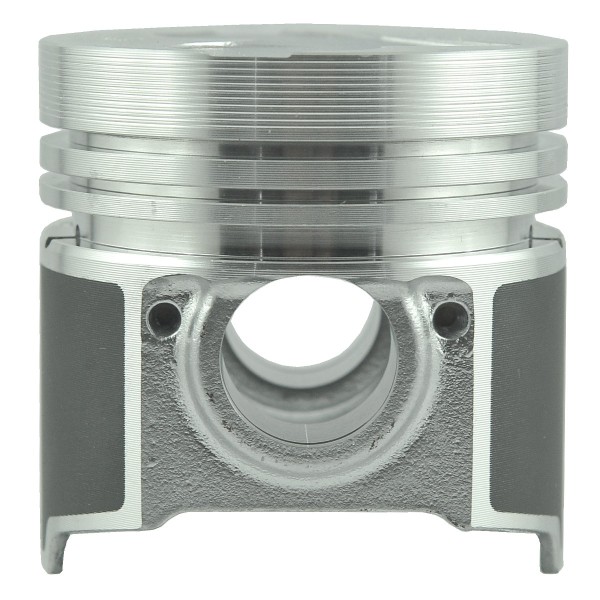

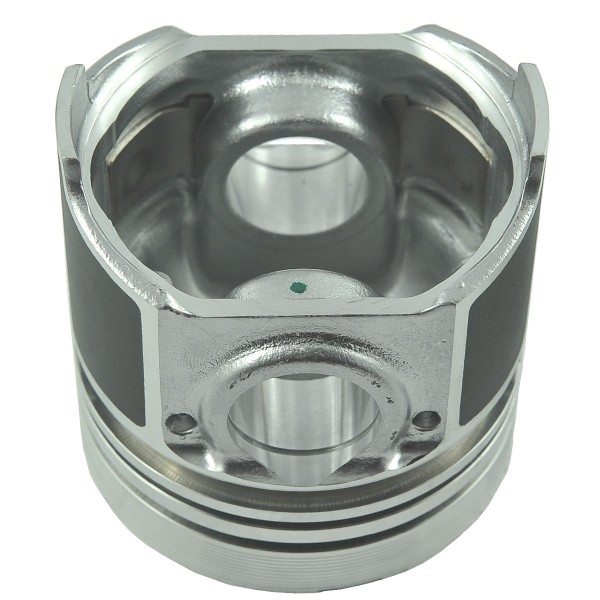

Engine piston (rings 16427-2105, 16108001-00, head gasket 16427-03310) with an outer diameter of 80 mm and a total height of 78 mm for Kubota tractors Kubota GT-19, Kubota GT-21 , Kubota GL19, Kubota GL21, Kubota GL200, Kubota GL201, Kubota L2500 , Kubota L3600, Kubota L3710, Kubota L4200 series with Kubota D1403 and Kubota V1903 engines. The engine piston is a moving element responsible for converting gas and energy produced during combustion to the crankshaft, and thus further into engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for seating the piston rings. Inside, there's a hub for connecting the connecting rod. At the top is the crown, which can vary in shape depending on the engine type. Due to the harsh operating conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

  • outer diameter: 80 mm,
  • height: 66 / 80 mm,
  • pin hole diameter: 25 mm,
  • pin diameter: 24.95 mm,
  • pin length: 64 mm,
  • distance from the end of the pin hole to the lower edge of the piston: 10 mm,
  • distance from the edge of the pin hole to the top edge of the piston: 31 mm.
  • ring groove width (16108001-00) from the top of the piston: 2.50 / 2.00 / 5.00 mm,
  • original part number: 16427-21110, 16427-21913,
  • comparative numbers: -,
  • part numbers: D1403.

Engine models :

Kubota :

  • Kubota D1403,
  • Kubota V1903.

Engine models :

Kubota :

  • Kubota GL19,
  • Kubota GL21,
  • Kubota GL200,
  • Kubota GL201,
  • Kubota GT-19,
  • Kubota GT-21,
  • Kubota L2500,
  • Kubota L3600,
  • Kubota L3710,
  • Kubota L4200.

Magazine : K18:F36:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Engine model
- Kubota D1403
Height (mm)
80
Width (mm)
5.00
Production
Substitute
Parts
Engine
Tractor models
- Kubota L2500, - Kubota L4200, - Kubota GL200, - Kubota L3600, - Kubota L3710, - Kubota GL19, Kubota GL21, Kubota GL201, Kubota GT21, Kubota GT19
Outer diameter (mm)
80
Pin diameter (a) (mm)
24.95
Pin length (a) (mm)
64
Original Part Number (OEM)
16427-21110, 16427-21913
