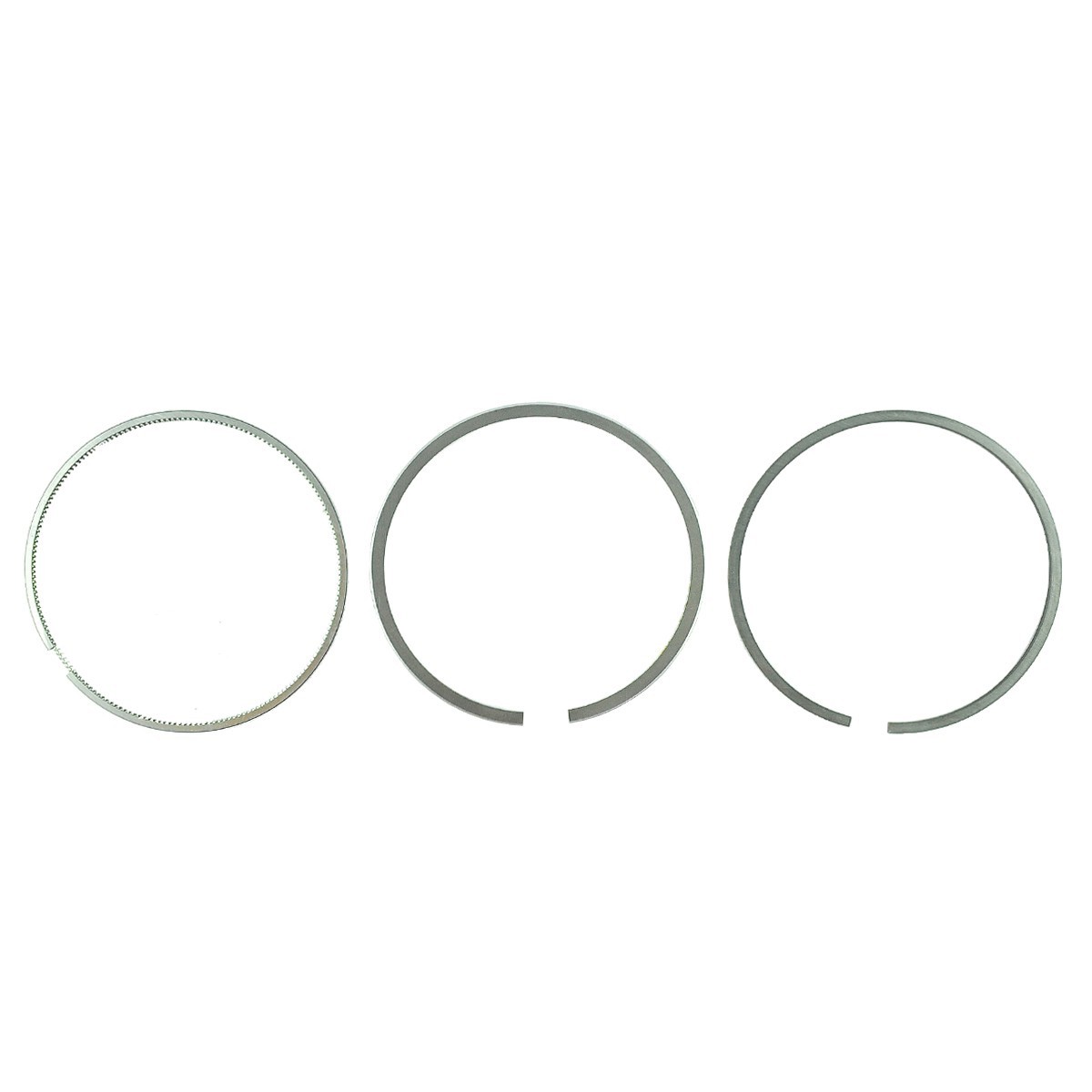

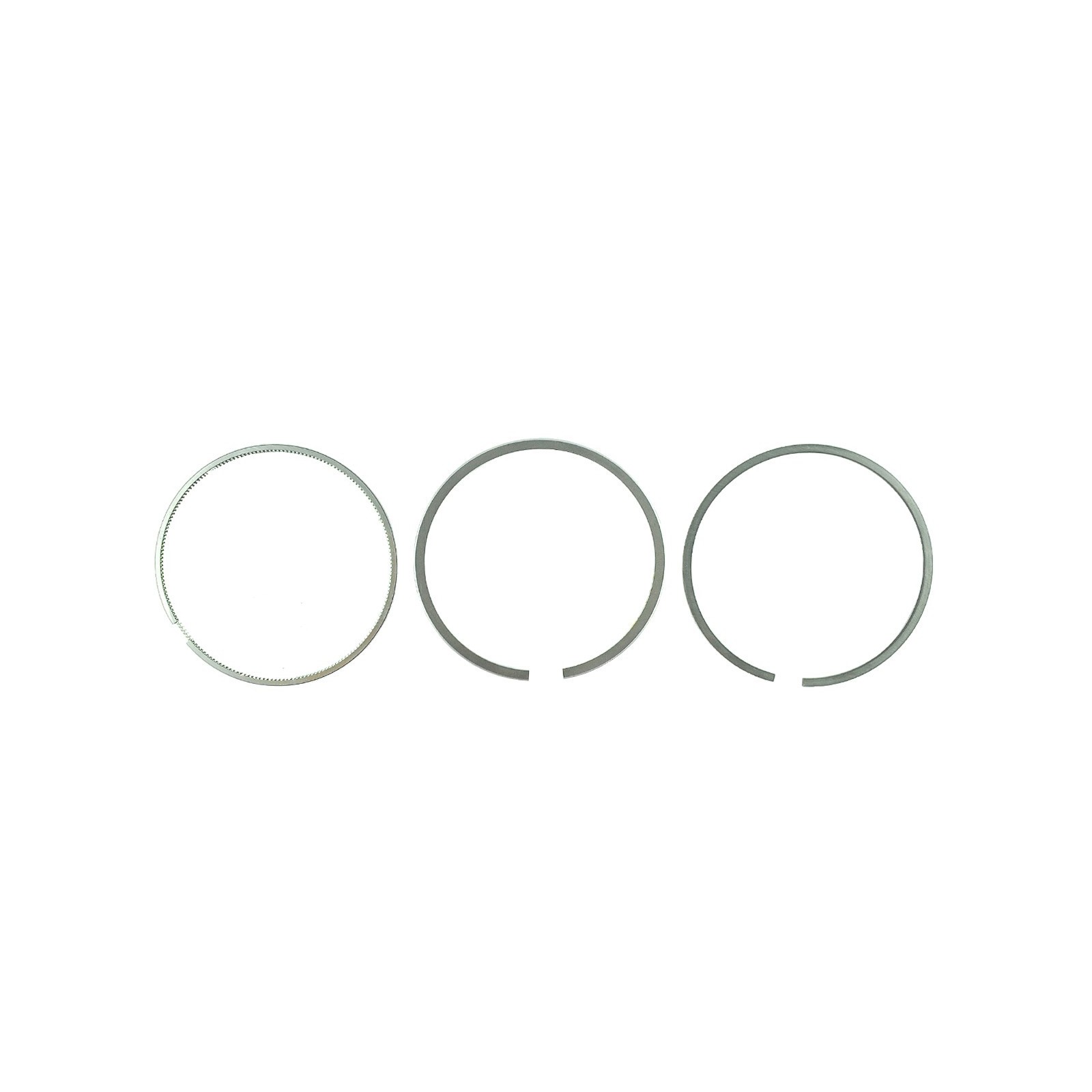

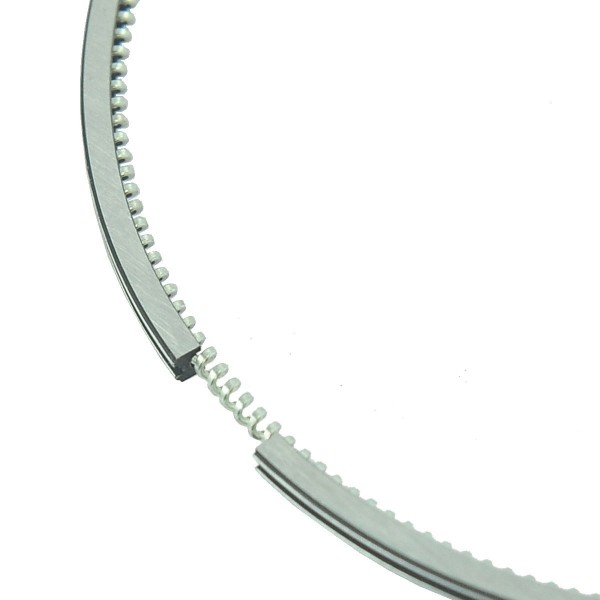

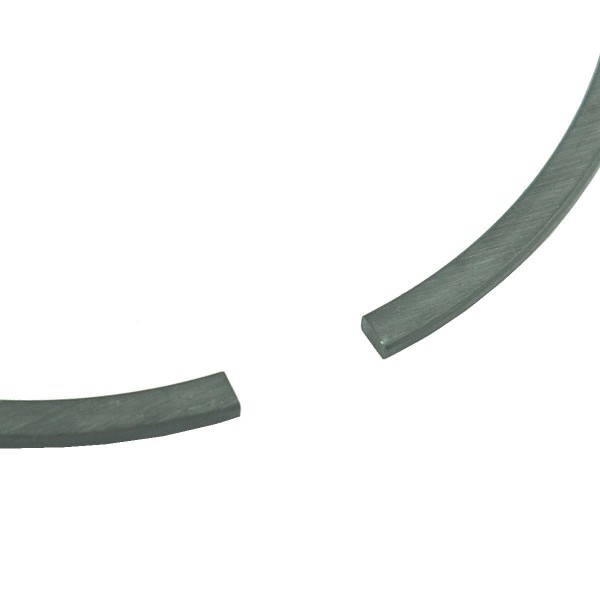

Piston rings / Ø68 mm / Kubota B5100 / B5200 / B7100

Engine piston rings with a diameter of 6 8 mm and a thickness of 2.00 x 1.50 x 4.00 mm for Kubota B5100, Kubota B5200, Kubota B7100 tractors with Kubota D750, Kubota Z500 and other engines.

Piston rings seal the space between the piston walls and the cylinder walls. During the combustion of the fuel mixture in the engine chamber, chemical energy is exchanged for mechanical energy, which is why we care about the tightness of these two elements. The second important role played by piston rings in the engine is to scrape excess oil from the cylinder walls during the piston's movement, thus ensuring proper lubrication. In combustion engines, we distinguish three basic types of rings:

• sealing rings,
• scraper rings,
• compression-scraper rings.

When replacing the rings, special attention should be paid to the order in which they are placed on the piston. The rings are installed in the correct order, the scraper ring is installed first, the sealing ring second and the oil ring is installed third.

Dimensions :

• diameter: 68 mm,
• thickness: 2.00 x 1.50 x 4.00 mm,
• size: nominal / standard,
• the set contains 3 pcs.
• set of rings for 1 piston,
• comparative numbers: 16106801-00 , %C4% 99 %C5% 9Bci-do-kubota/32313-pier %C5% 9Bcienie-t %C5% 82oka- %C3% B8-67-mm-2154-kubota-d750z500-kubota-b5100b5200b7100-16271-21050-s67709.html?adto ken=c716cd19c30c210f9bfee01f7b6c9fcc&ad=products&id_employee=13&preview=1">S.67709 ,
• original part numbers: %C5% 82okowych-kubota-15271-21050-b5100-b5200-b7100.html">15271-21050 ,
• part numbers: 6-26-100-63.

Tractor models :

Kubota :

• Kubota B5100,
• Kubota B5200,
• Kubota B7100.

Engine models :

Kubota :

• Kubota D750,
• Kubota Z500.

Magazine : M01:D95:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
