V-belt AV1500Li / AV1570La / 4FARMER

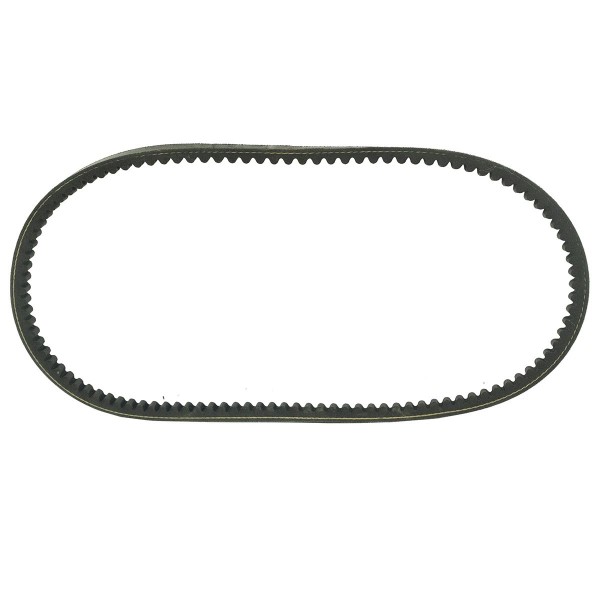

Drive belt with an internal length (Li) of 1500 mm , a width of 17 mm and a height of 11 mm for flail mowers and others.
A standard V-belt is marked with two length values Ld and Li. The length Li is the internal length, and the length Ld is the so-called pitch length, according to the ISO standard, in great simplification it can be called the external length, but it is the length measured at the strongest structural point of the belt. V-belt markings are most often a capital letter of the alphabet denoting the belt cross-section (mm) Z, A, B, C, D and lengths. The simplest division of belts available on the market is narrow-section belts, classic, narrow-section toothed and classic toothed.
V-belt length Li, Ld or La?
- Li - internal length,
- Ld /Lp - pitch length (measured at the height of 3/4 of the wedge cross-section, ISO dimension),
- La - external length.
Dimensions :
- pitch length (Ld): 1530 mm,
- internal length (Li): 1500 mm,
- external length (La): 1570 mm
- width: 17mm,
- height: 11 mm,

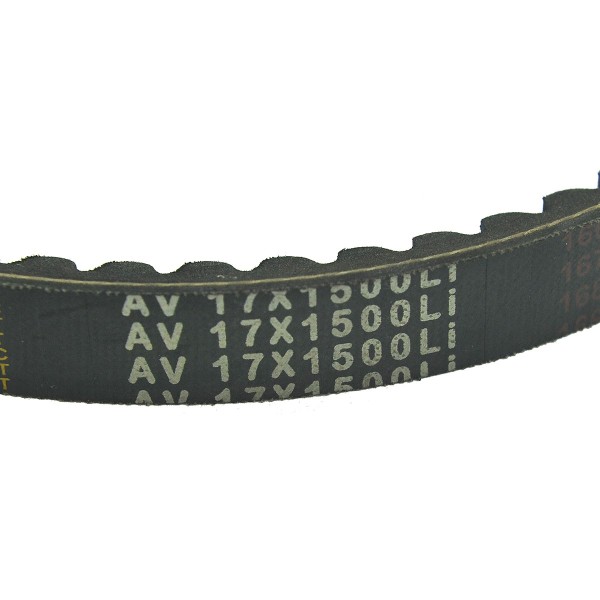

- part numbers: AV17x1500Li.
A V-belt is an element that is used to transfer drive from an engine or transmission to an accessory or device. V-belts are most often used to drive an alternator, coolant pump or compressor, and in agriculture, belts are used in agricultural devices and equipment that are subject to high rotational speeds. V-belts are the most frequently worn parts of agricultural machinery due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine. An incorrectly fitted V-belt or incorrectly set tensioner, too low or too high V-belt tension can cause faster wear. The first signs of V-belt wear (e.g. belt stretching) are a decrease in machine power or an unnatural sound during operation.
Warehouse :
M01:A83
Specification
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
