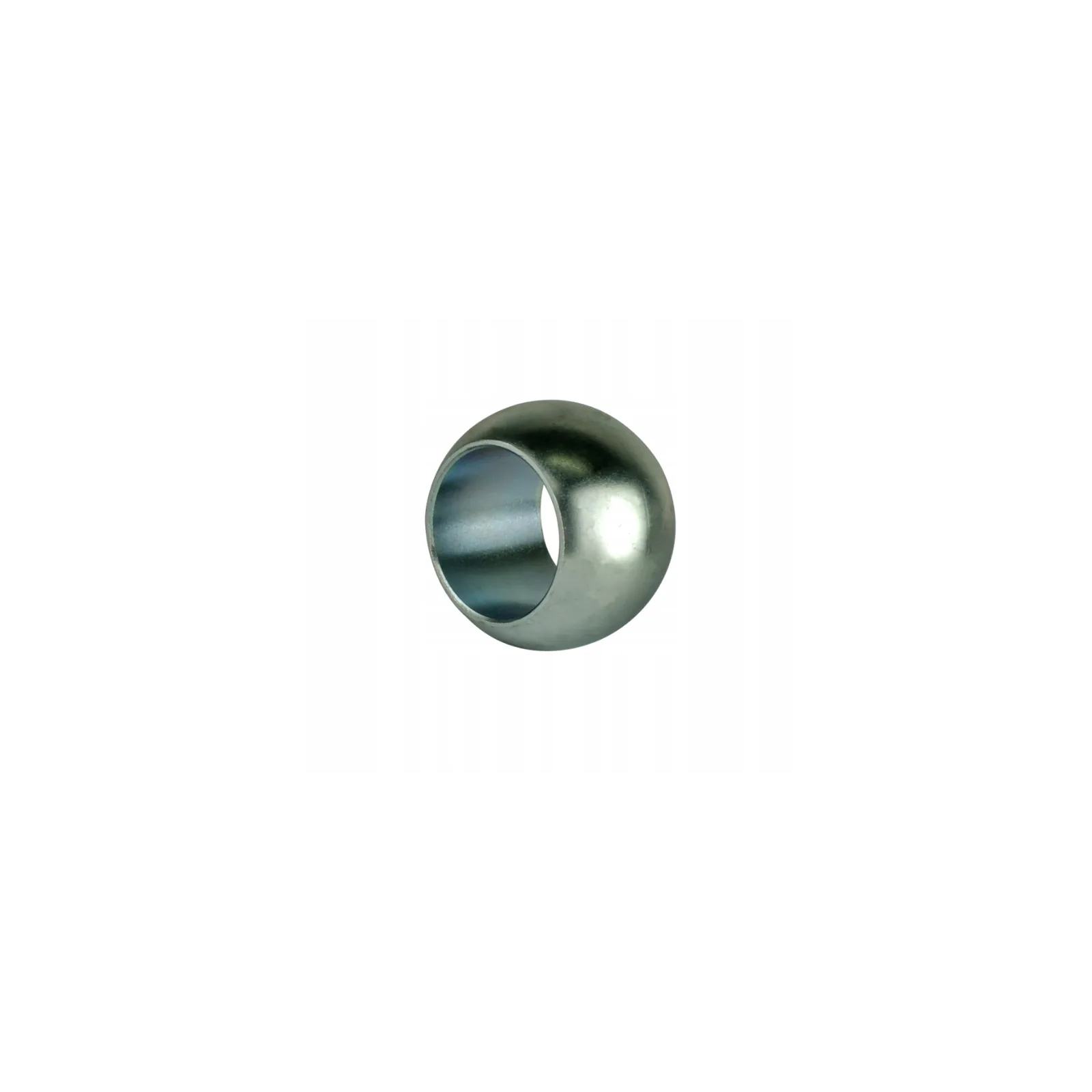

Ball for front linkage / Cat I/2S / 44 x 31 x 29 mm

Ball for the lower arms of the three-point linkage with an outer diameter of 44 mm , an inner diameter of 28.40 mm and a width of 35 mm .

A ball for links is an element that is used in both the front and rear three-point suspension system of the three-point linkage for the hooks of the lower beams and the upper links of the so-called turnbuckle. The swing end of the turnbuckle is the end of the turnbuckle of the three-point linkage used in agriculture as the upper connector of the tractor and agricultural machine or three-point linkage equipment. The turnbuckle is an element otherwise called a connector and is made of three elements, i.e. a body and two screws with ball ends , the threads of which are directed opposite to each other. The ball end , swinging with a sleeve for the coupling pin are available in various sizes from 19 to even 50 mm. The upper connector of the three-point linkage may have an end in the form of a hook, in which the swing ball is locked with a special latching lock.

Dimensions :

• outer diameter: 44 mm,
• inner diameter: 29 mm, (28.4)
• width: 31 mm,
• part numbers:

Transition from Cat 1 to Cat 2

Magazine : L01 / M01:B15 S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
