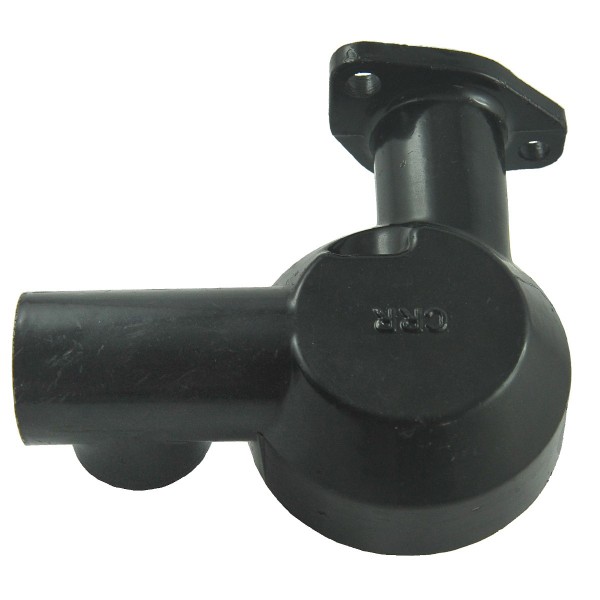

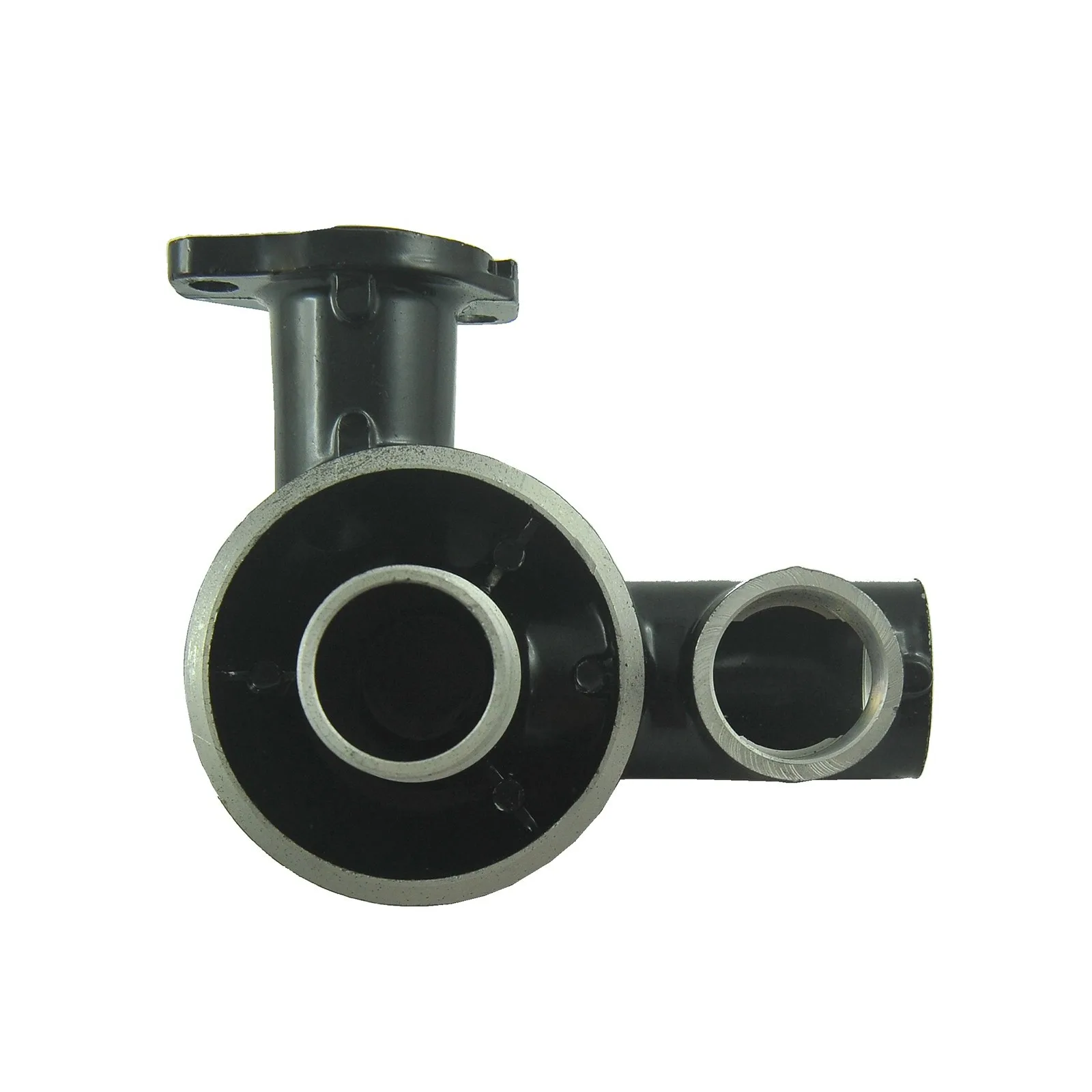

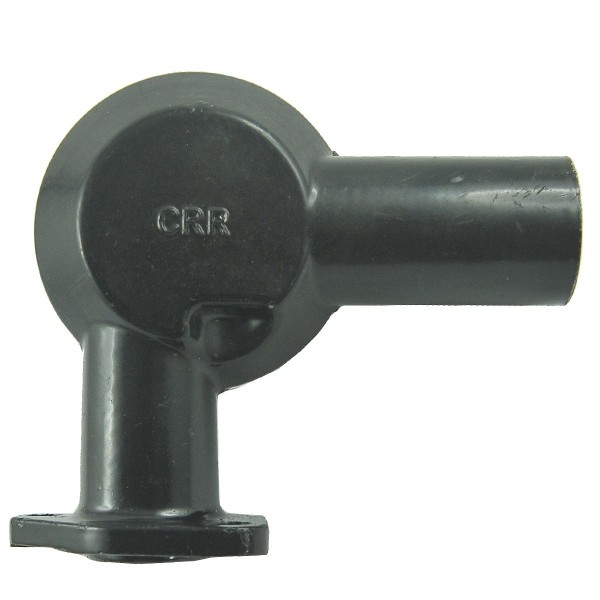

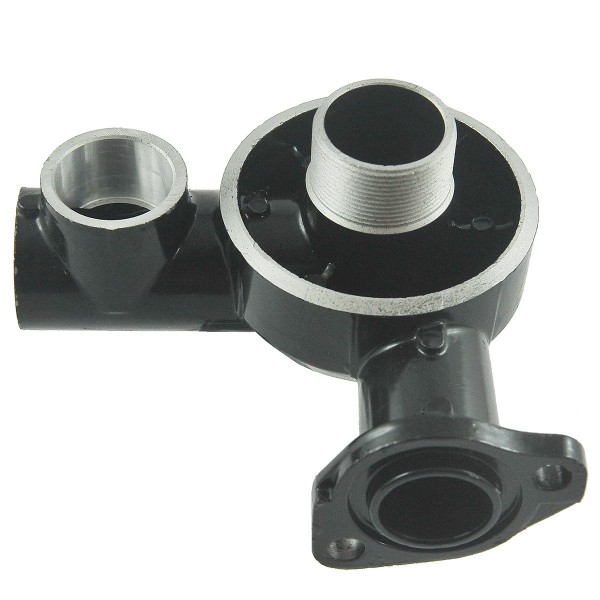

Hydraulic oil filter mount / 1"1/2-16UNF / Yanmar EF352T / 6-08-203-02

Hydraulic oil filter bracket (filter %C5% 9Bci-do-yanmar/160-hydraulic-oil-filter-158x98-mm-yanmar-ef-af-f-yanmar-ef-352-t-cp145l.html">5-01-123-24 , 198119-48310) with 1"1/2-16UNF thread for Yanmar tractors Yanmar EF352T series and others. The hydraulic oil filter mounting may vary depending on the machine model and manufacturer. However, hydraulic oil filters are usually attached using special brackets or clips that hold the filter in place. In some cases, the filters are also screwed on with bolts or nuts. To attach the hydraulic oil filter , you must first remove the old filter, clean the mounting surface and install a new filter according to the manufacturer's instructions. Then, carefully reinstall the filter, ensuring it is securely and firmly seated. To install the hydraulic oil filter , first remove the old filter , clean the mounting surface, and install the new filter according to the manufacturer's instructions. Then, carefully reinstall the filter , ensuring it is securely and firmly seated.

Dimensions :

• length: 142 x 130 mm,
• outer diameter: 87 / 40 / 36 mm,
• hole diameter: 32 / 32 / 32 / 28 mm,
• thread: 1"1/2-16UNF,
• spacing of mounting screw holes: 58 mm,
• part numbers: 6-08-203-02.

Tractor models :

• Yanmar EF352T.

Magazine : K18:F22

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
