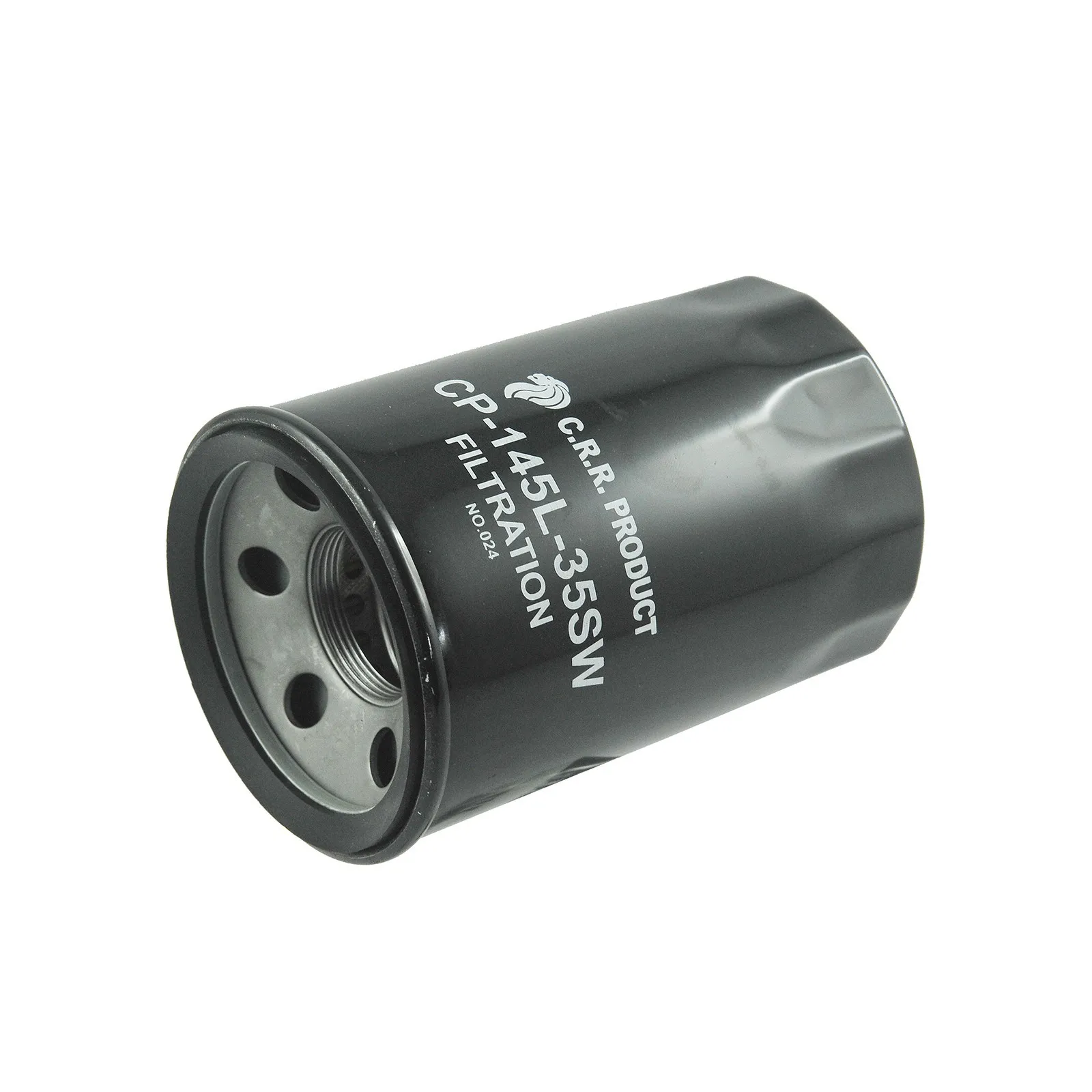

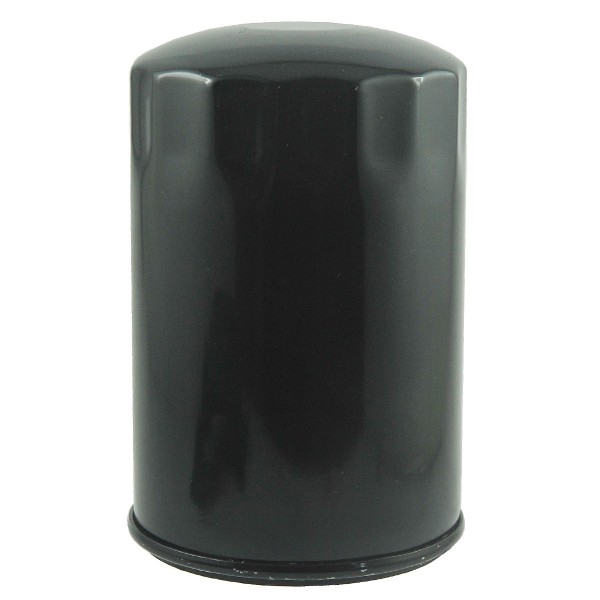

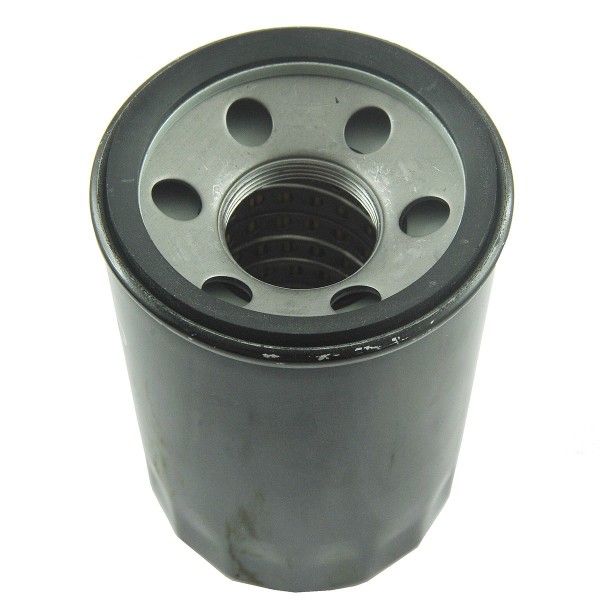

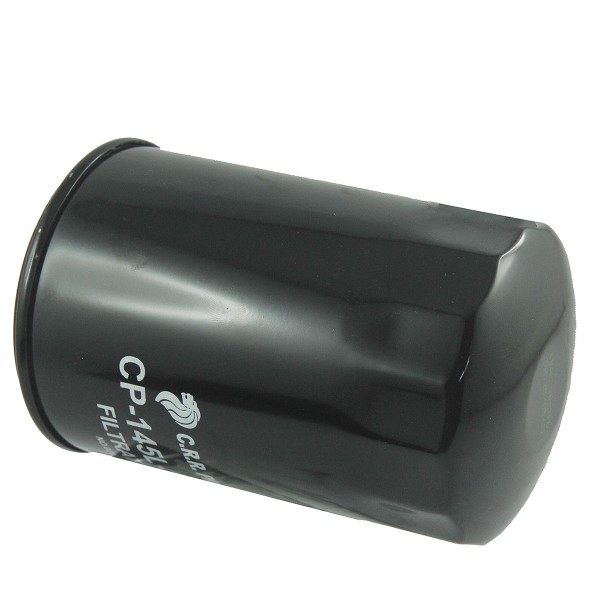

Hydraulic oil filter 95 x 145 mm / 1"1/2-16UNF / Yanmar EF352T / Yanmar 3TNE78A / CP145L-35SW / 198119-48310

Hydraulic oil filter with the symbol CP145L , dimensions 98 x 158 mm with 1"1/2-16UNF thread for Yanmar tractors Yanmar AF28 series, Yanmar AF26, Yanmar AF220, Yanmar AF230, Yanmar EF352T, Yanmar F14D, Yanmar F15D, Yanmar F16D, Yanmar F17D, Yanmar F155, Yanmar F180, Yanmar F210, Yanmar YM1802 with Yanmar 3TNE78A engines, Shibaura Shibaura P17F series and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that enter the hydraulic system , or are created during the use of the tractor, e.g. solid particles (minerals), which are created during the operation of the machine. The hydraulic filter is replaced every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, this is approximately every 100 operating hours in the case of used tractors. The principles of replacing the hydraulic filter in new tractors are described in detail in the machine's operating instructions and usually this is after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a seal , which is mounted near the tractor's box exactly in the flow path of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor.

Dimensions:

• height: 145 mm,
• outer diameter: 95 mm,
• seal diameter: inner 76 mm, outer 90 mm,
• thread: 1"1/2-16UNF,
• original part numbers: 198119-48310,
• reference numbers: SH 56670,
• part numbers: CP145L-35SW, 5-01-123-24.

Tractor models:

Yanmar:

• Yanmar AF26,
• Yanmar AF28,
• Yanmar AF220,
• Yanmar AF230,
• Yanmar EF352T,
• Yanmar F14D,
• Yanmar F15D,
• Yanmar F16D,
• Yanmar F17D,
• Yanmar F155,
• Yanmar F180,
• Yanmar F210,
• Yanmar YM1802.

Shibaura:

• Shibaura P17F.

Engine models :

• Yanmar 3TNE88A.

Regular replacement of the hydraulic filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.
