Product description

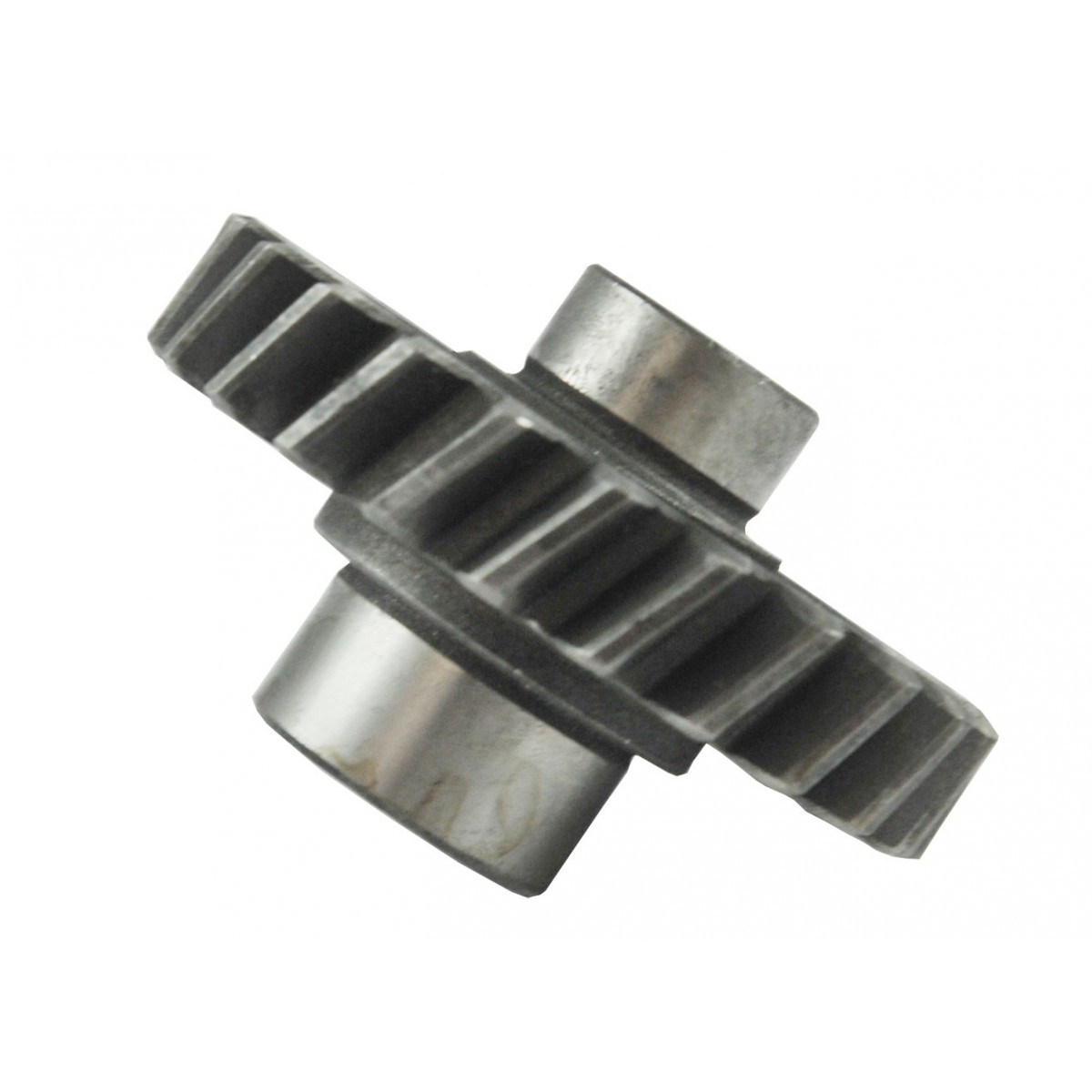

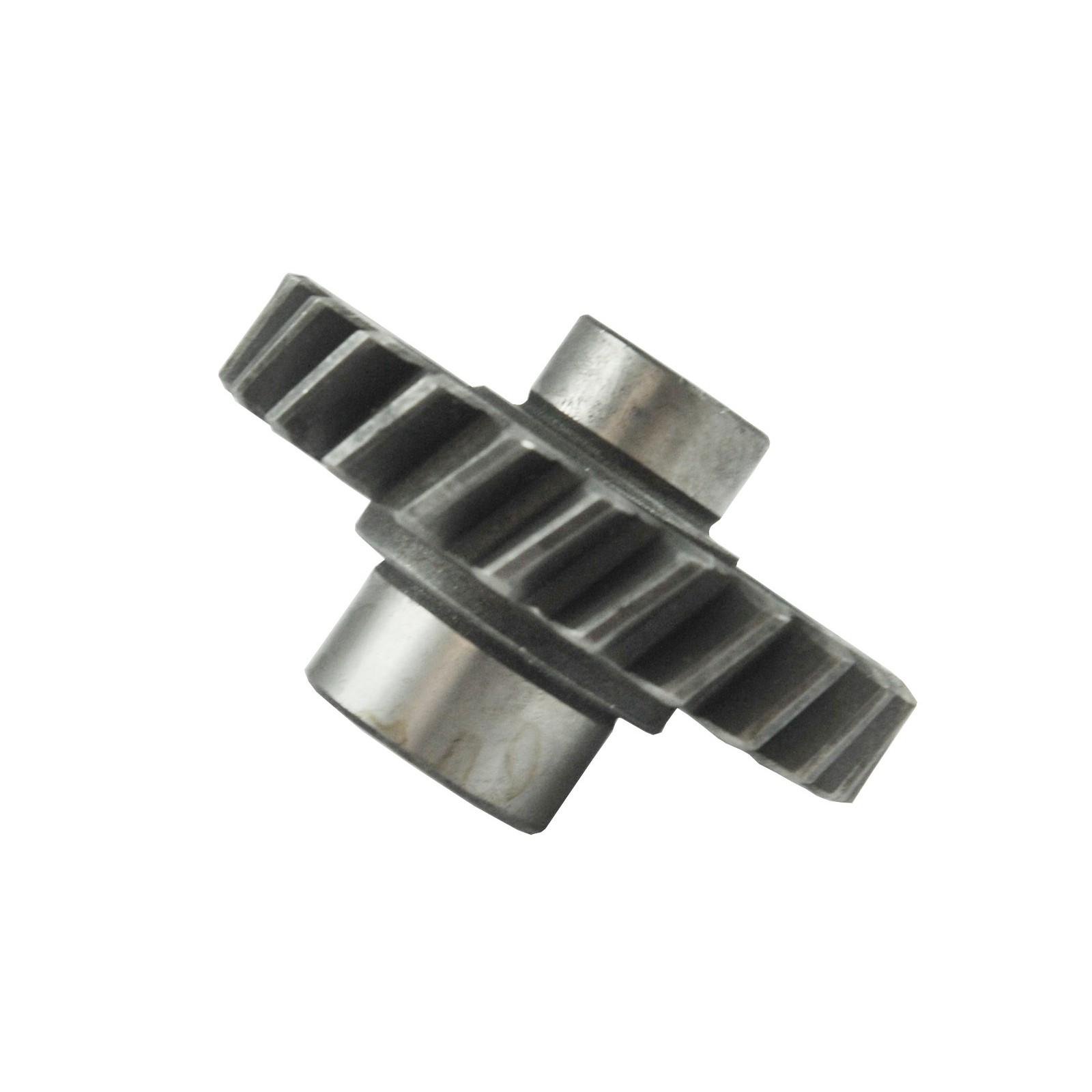

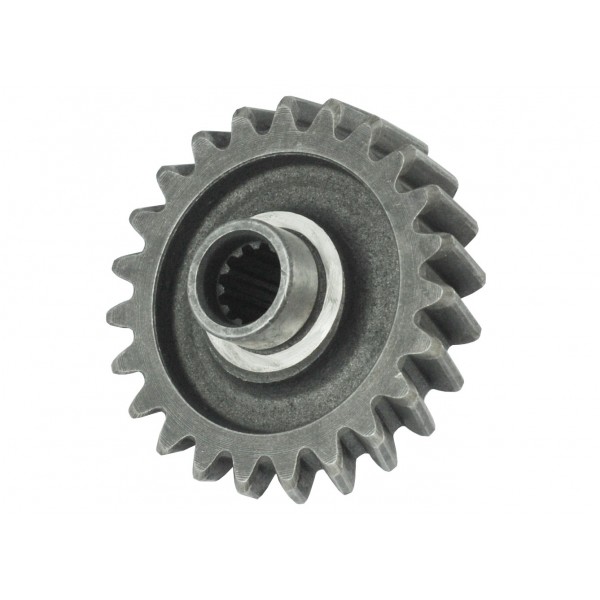

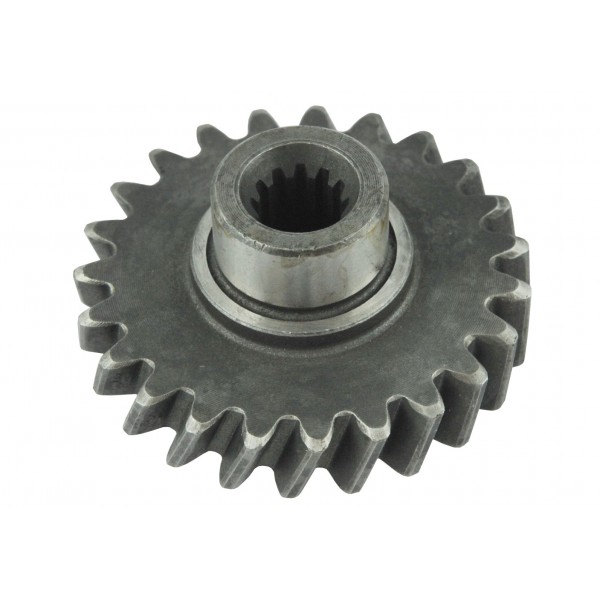

The oil pump sprocket is a key element of the lubrication system of Mitsubishi V3D and V4C engines, used in Mitsubishi VST tractors of the MT270, MT224 and MT180 models. It is responsible for the transmission of power in the oil pump, which ensures proper engine lubrication and its reliable operation. Made of high-quality materials, it guarantees durability and resistance to wear.
Dimensions:
- Outer diameter of the sprocket: 66 mm.
- Outer diameter of the sleeve: : 20 / 25 mm.
- Inner diameter: 13.80 mm (measured between the spline teeth).
- Sleeve height: 40 mm.
- Sprocket height: 12 mm.
- Number of teeth: outer: 23T, inner: 12T.
- Index: BCA01C00640A0, MM4072651

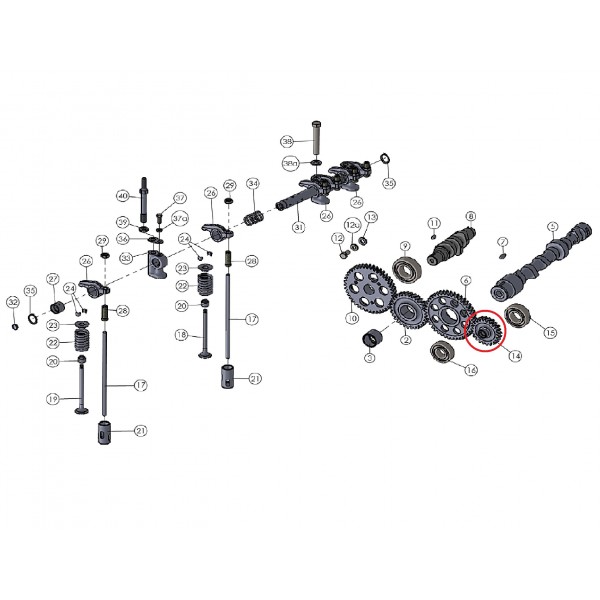

Number 14 marked on the graphic
Tractor model:
- Mitsubishi VST MT270,
- Mitsubishi VST MT224,
- Mitsubishi VST MT180,
Engine:
- Mitsubishi V3D,
- Mitsubishi V4C,
Magazine: M01:C35:S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
