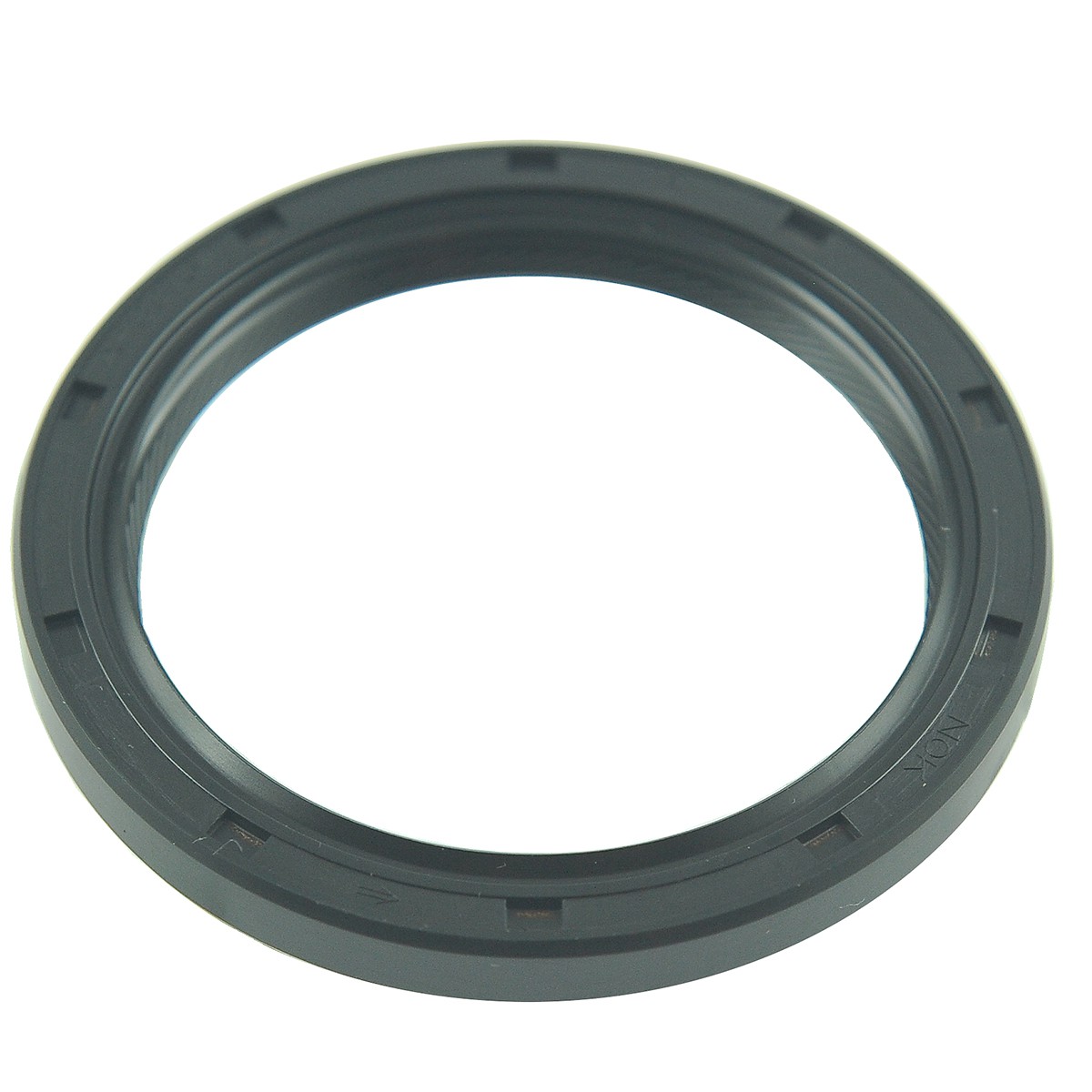

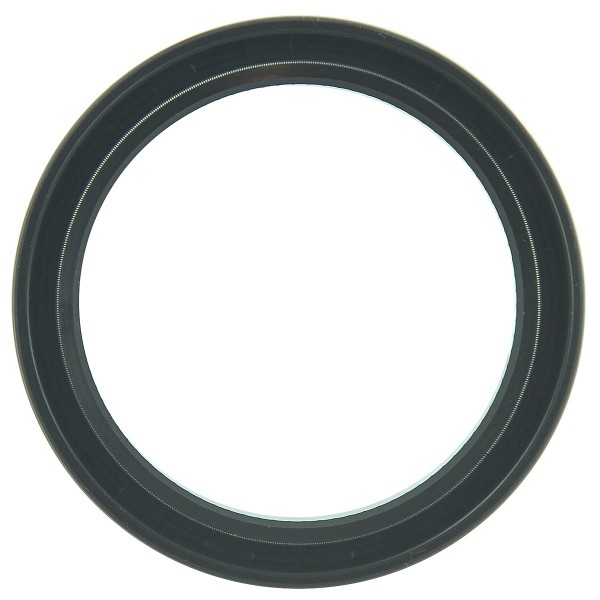

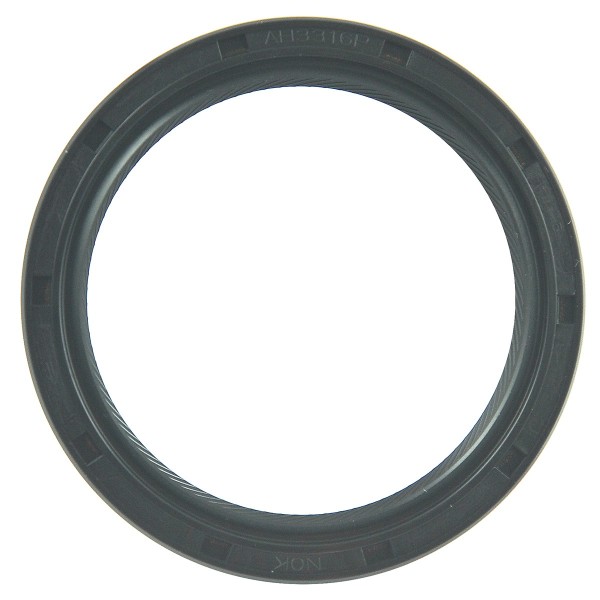

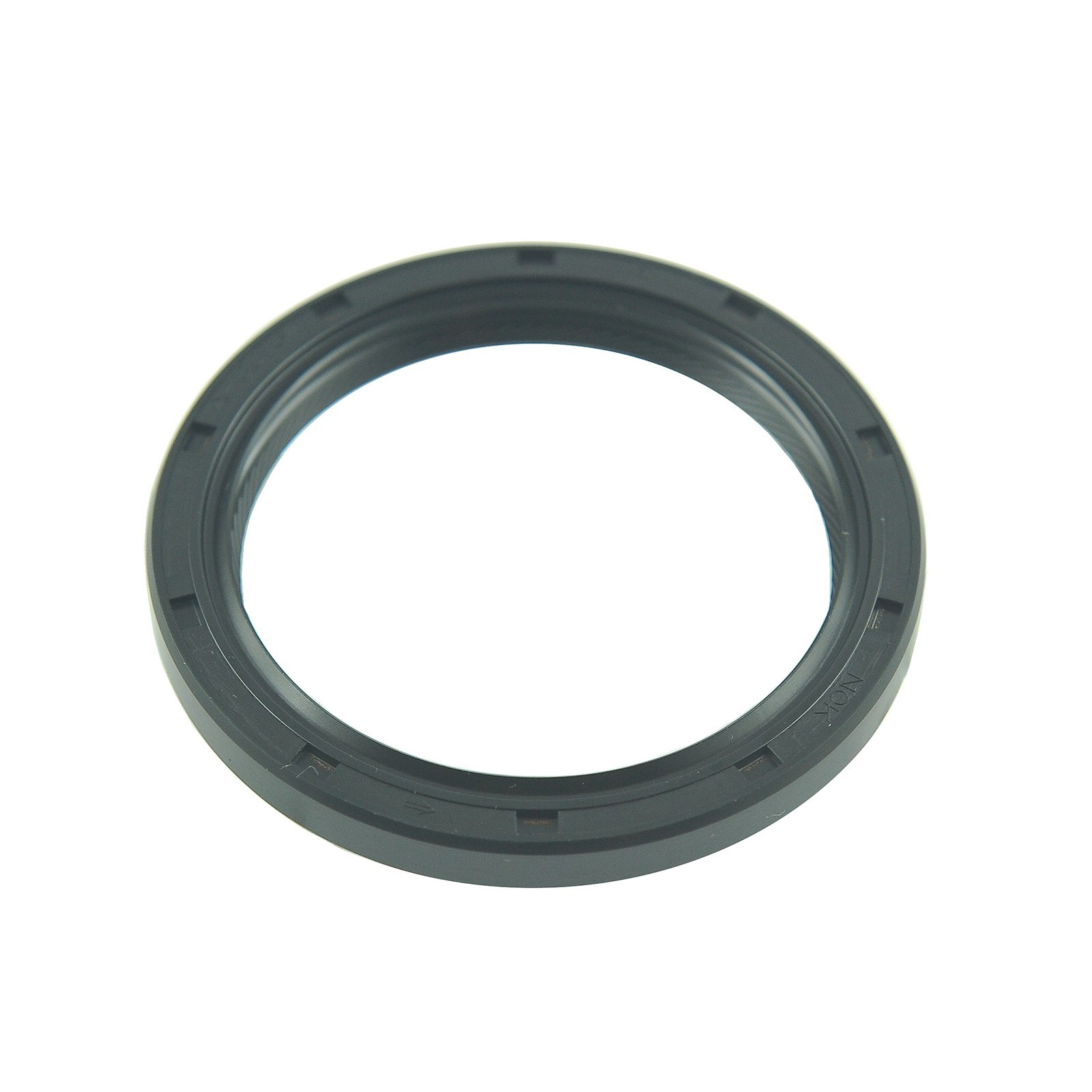

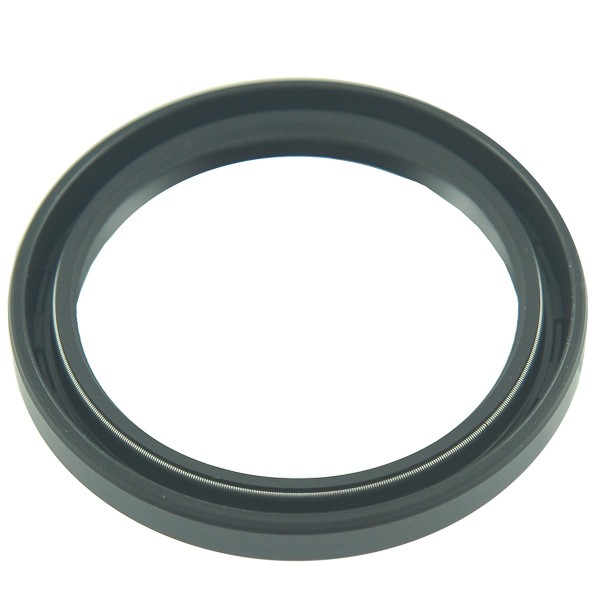

Crankshaft seal / Kubota D650 / D722 / D782 / D850 / D950 / Z500

Crankshaft seal 63x80x9 (rear, front seal %C5% 9Bci-do-kubota/33309-uszczelniacz-wa %C5% 82u-korbowego-35-x-47-x-7-mm-kubota-aste-a-14b1200gb14-kubota-d662d850d950z400-ah2140f-15877-04140.html">15877-04140 ), oil seal with an inner diameter of 63 mm , outer diameter of 80 mm, height of 9 mm and symbol AH3316P for Kubota tractors of the Kubota B5000, Kubota B5100, Kubota B6001 , Kubota B6100, Kubota B7100 series with Kubota engines D650, Kubota D722, Kubota D782, Kubota D850, Kubota D950, Kubota Z500 others.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. A simmering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover). Seals prevent leaks of oil or lubricant and prevent contamination from entering the system.

Dimensions :

• outer diameter: 80 mm,
• inner diameter: 63 mm,
• height: 9 mm,
• comparison numbers: -,
• part numbers: AH3316P, 09560-00007.

Engine models :

Kubota :

• Kubota D650,
• Kubota D722,
• Kubota D750,
• Kubota D782,
• Kubota D850,
• Kubota D950,
• Kubota Z500.

Tractor models: :

Kubota :

• Kubota B5000,
• Kubota B5100,
• Kubota B6001,
• Kubota B6100,
• Kubota B7100.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Magazine: M01:C62:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
