TUZ lifting arms, 20T, Kubota B7001 H6710-99200 + lifting shaft 67156-38203 + locking pins

Rear linkage arms (L/H) with a working length of 270 mm (measured from center to center of holes) with a 20T toothed cutter with a lifting shaft with a total length of 222 mm and a cutter with the number of teeth 20T (at the ends of the shaft), 23T (in the center) for Japanese tractors and mini tractors of the Kubota brand of the B7001 , B1400 series and others.

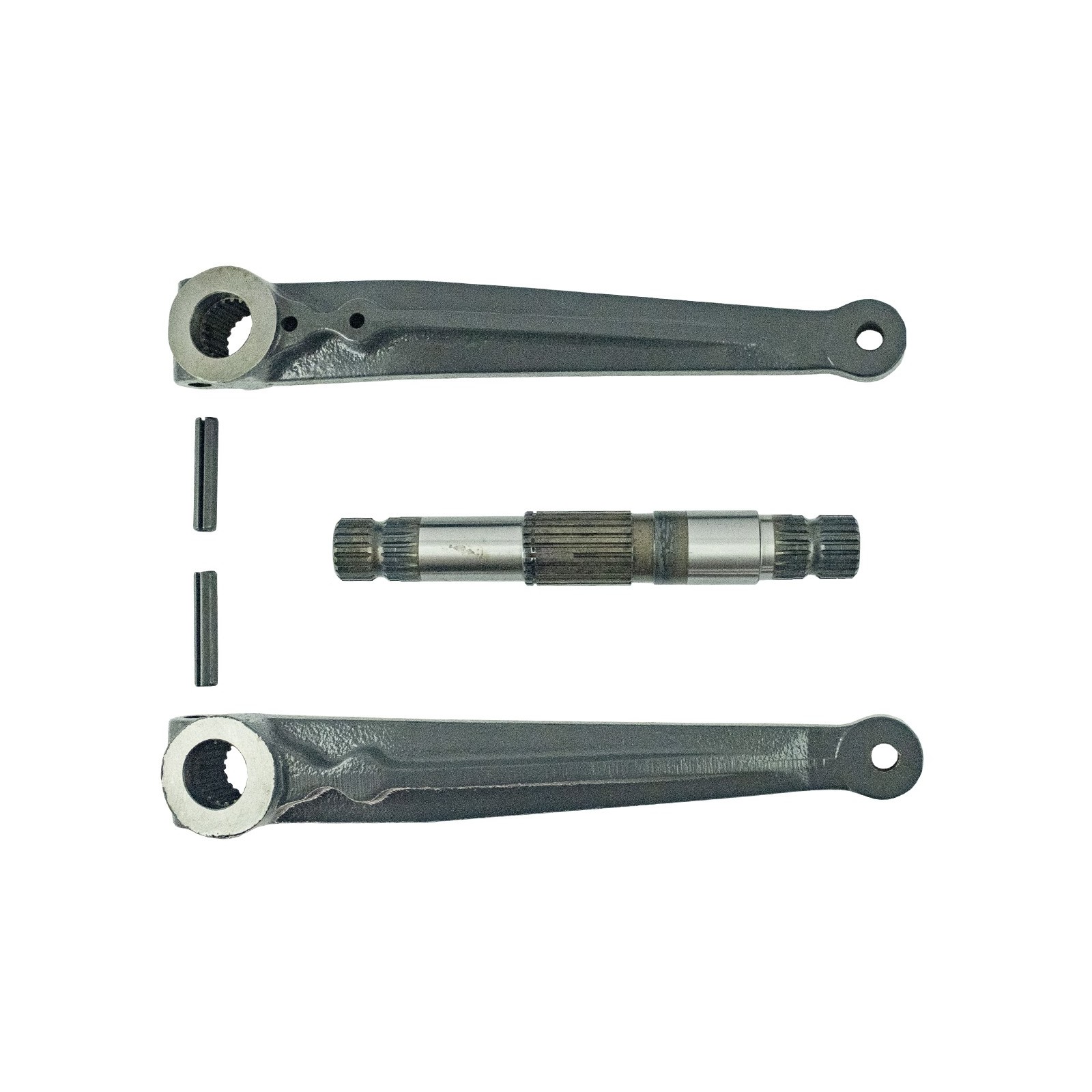

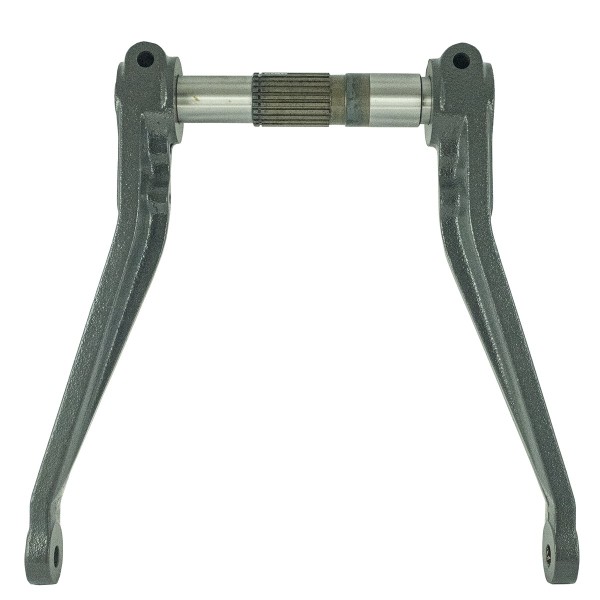

The TUZ lifting arms are solid and durable components designed for the Kubota B7001 tractor. The set includes a 67156-38203 lifting shaft and locking pins. The product has been designed to provide optimal stability and strength during lifting. Ideal for demanding agricultural tasks, it ensures long-term operation without the need for frequent replacement of parts.

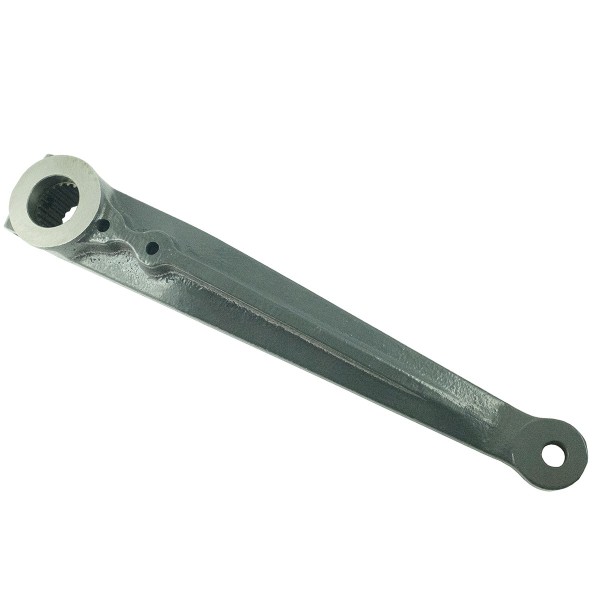

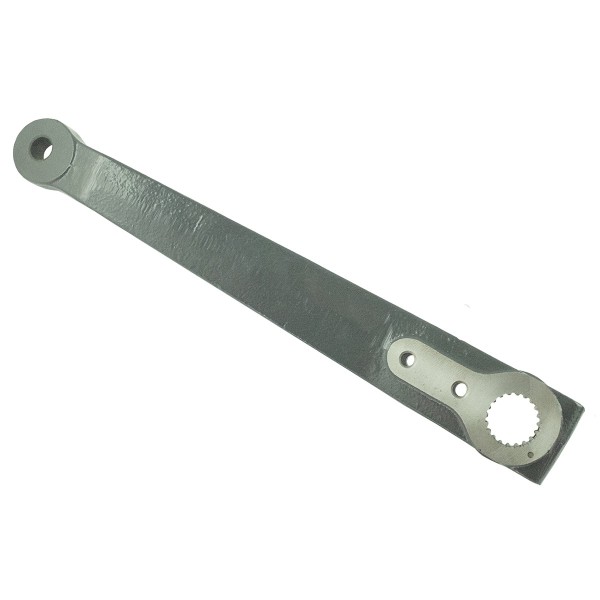

Arm dimensions (H6710-99200) :

• Total length: 320 mm.
• Outer diameter of round ends: 35 / 51 mm.
• Inner diameter: 28.30 mm (measured between teeth) / 12 mm.
• Number of teeth: 20T. Thickness: 36 / 14 mm.

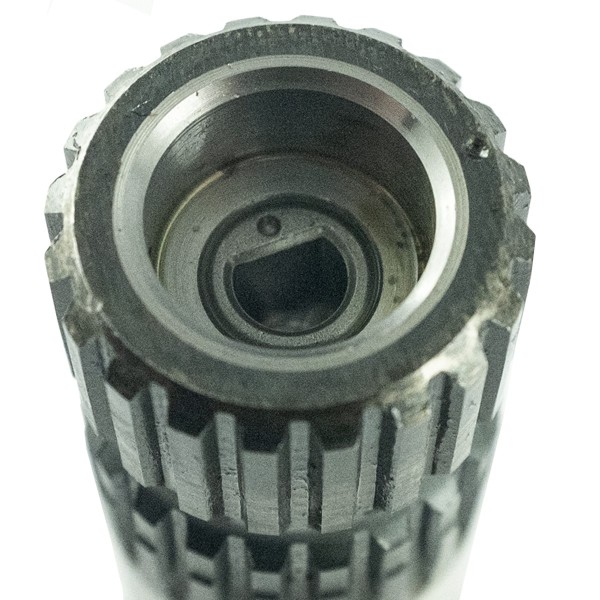

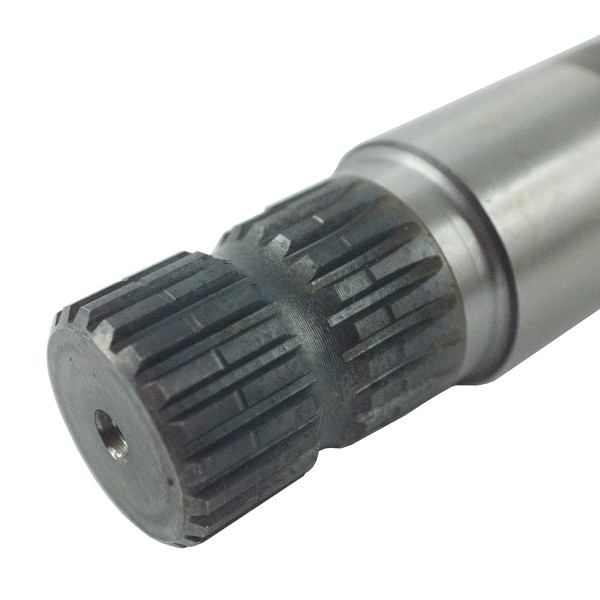

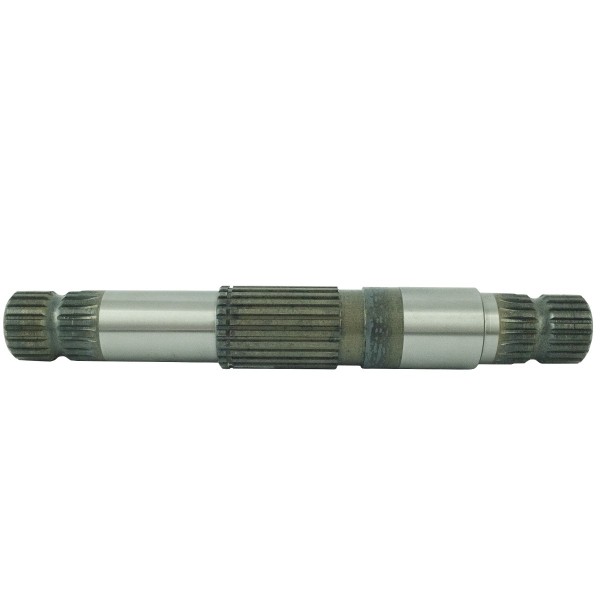

Dimensions of the roller (67156-38203) :

• Total length: 222 mm.
• Diameter: 24.60 / 24.60 mm (measured at the ends between the teeth). 31.60 mm (center of the shaft measured with the cutter),
• Number of teeth: 20T / 23T.

Dimensions of locking pins :

• Length: 50.30 mm.
• Diameter: 10.30 mm.

KUBOTA ORIGINAL PART.

Warehouse :
M01:C45:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
