Product description

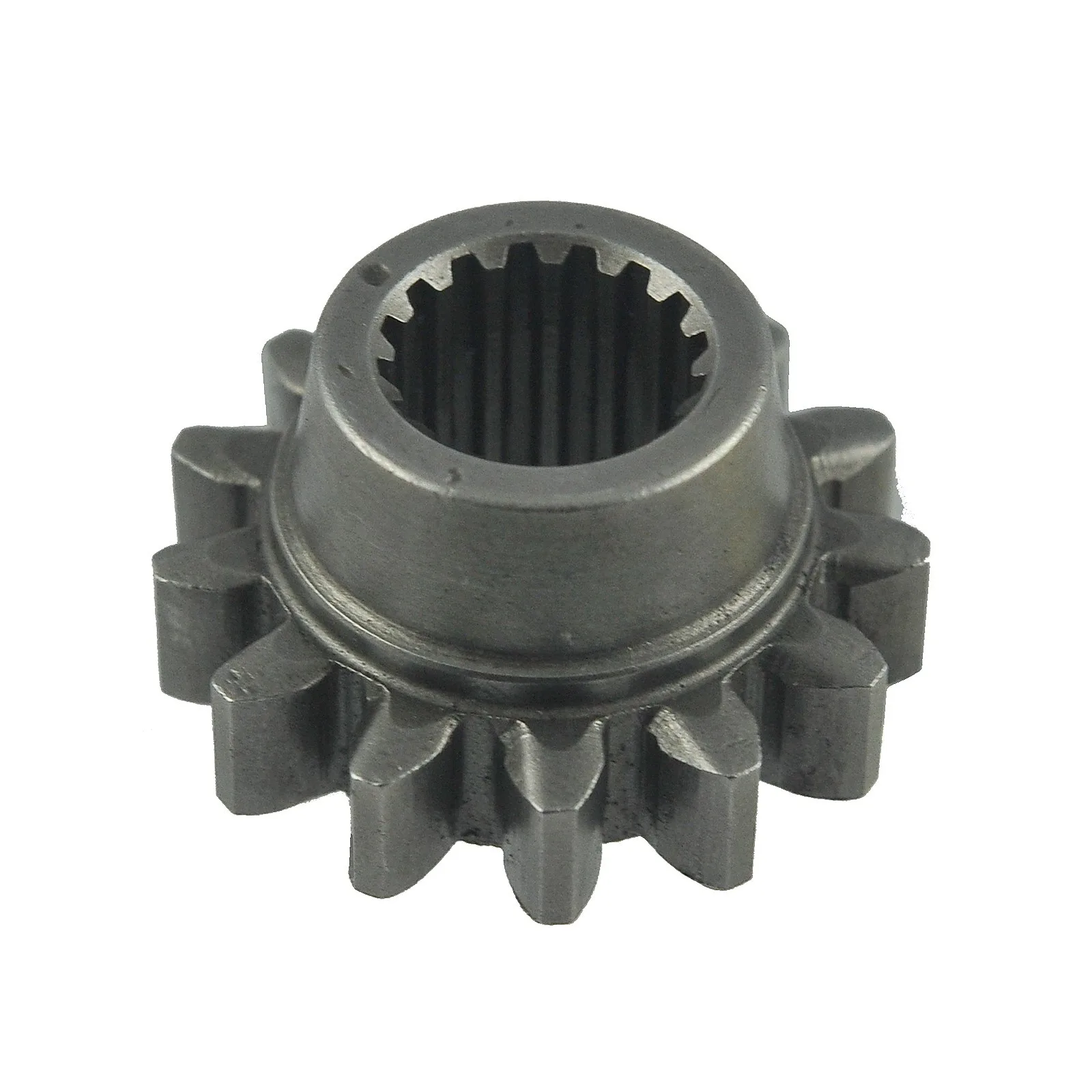

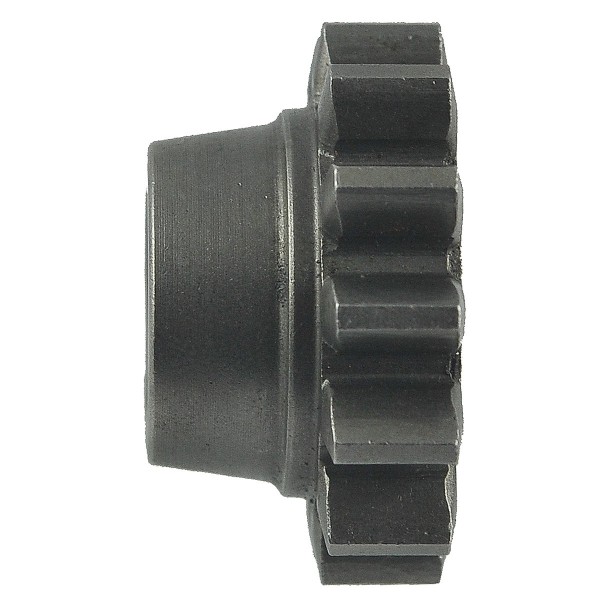

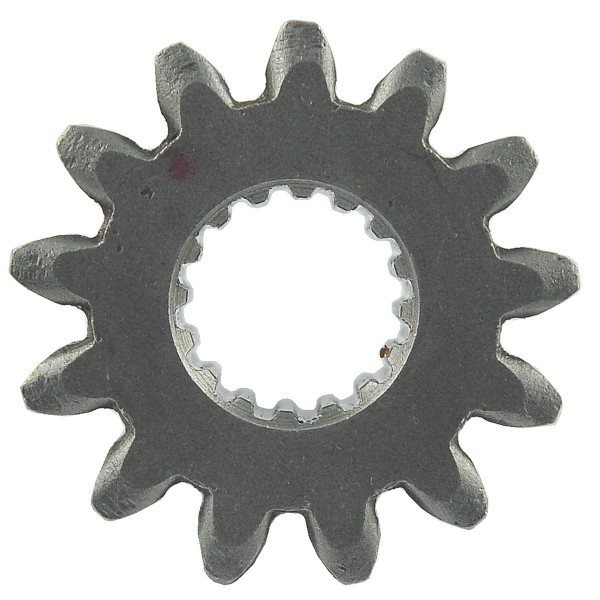

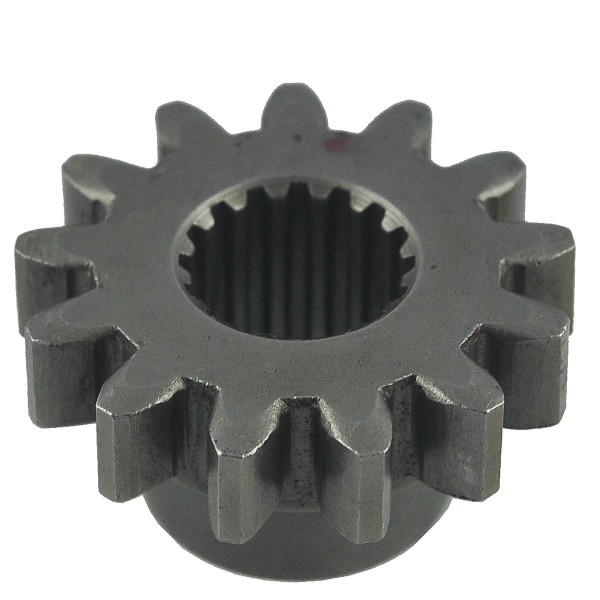

13T / 16T PTO/PTO shaft drive sprocket with an outer diameter of 54.40 mm (measured together with the teeth), 41 mm (measured between the teeth), inner diameter of 22.50 mm (measured between the cutter teeth), 20 mm (measured together with the cutter) and a total height of 29 mm for Kubota tractors of the Kubota B1-14, Kubota B1200, Kubota B1400, Kubota B1402, Kubota B1500, Kubota B1502, Kubota B6001, Kubota B7001 series and others.
Dimensions :
- diameter: external: 54.40 mm (measured together with teeth), 41 mm (measured between teeth),
- diameter: internal: 22.50 mm (measured between cutter teeth), 20 mm (measured together with cutter),
- sprocket width: 13 mm,
- total height: 29 mm,
- number of teeth: 13T / 16T,
- original part numbers: 66704-14240 , 66704-14242 , 67211-14250, 67211-14252, 67211-14253,
- part numbers: 42015.
Tractor models :
Kubota :
- Kubota B1-14,
- Kubota B1200,
- Kubota B1400,
- Kubota B1402,
- Kubota B1500,
- Kubota B1502,
- Kubota B6001,
- Kubota B7001.
Warehouse :
M01:D53
Specifications
Podobne produkty
Reviews of Sprocket /..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
