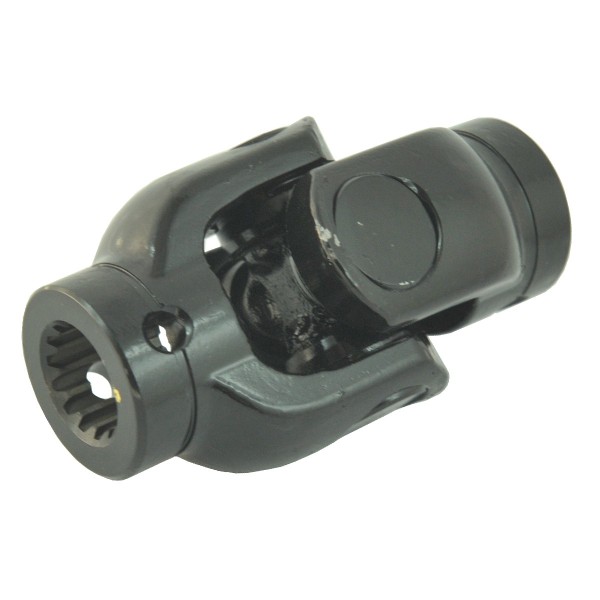

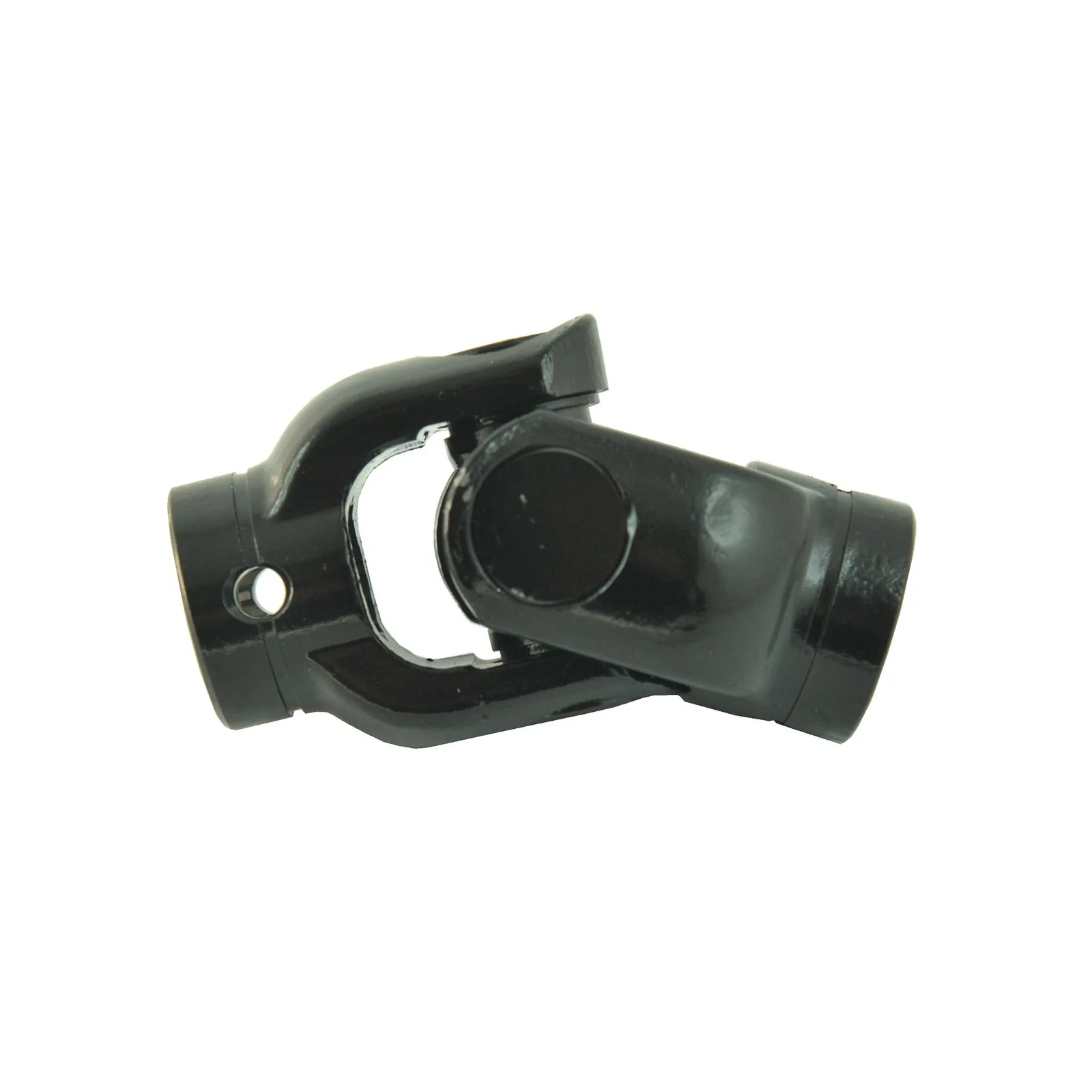

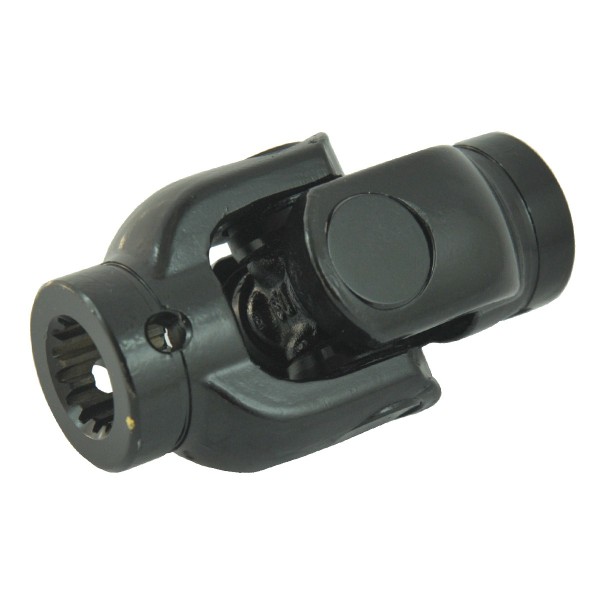

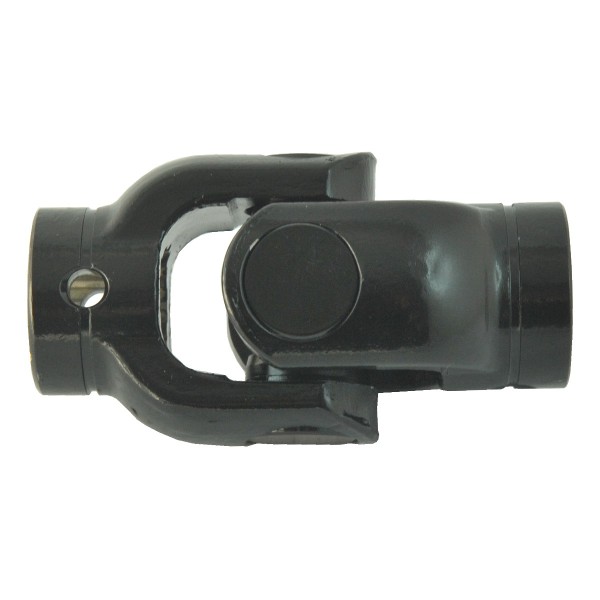

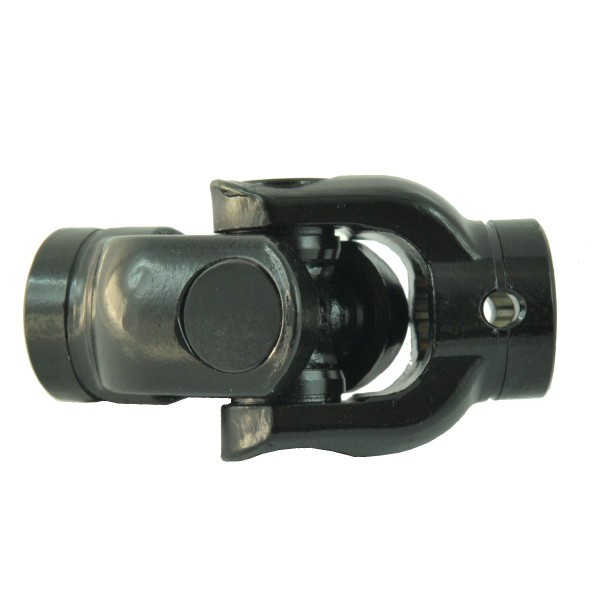

Cardan shaft 14T/14T / joint / LS XJ25 / LS MT1.25 / TRG380 / 40196061

Cardan joint with an overall length of 94 mm and a cutter with the number of teeth of 14T / 14T and an internal diameter of 19.90 mm measured between the teeth of the cutter for LS Tractors LS MT1.25, LS XJ25 series and others for:

• drive shaft,
• flywheel,
• 4 x 4 drive,

Cardan joint , universal joint or swing joint is an element whose main task is to transmit drive, torque from the active shaft to the passive shaft, which can be at a significant angle to each other. Cardan coupling , cross coupling , or swing coupling are all correct names for a joint that consists of two fork-like elements joined together by a cross connection. Cardan joints come with shafts, with ends with a milling cutter or a fork locked with a wedge.

Dimensions :

• total length: 94 mm,
• cross: 49 x 49 mm,
• internal diameter: 19.90 mm (measured between the teeth of the cutter),
• diameter of the cross: 20 mm,
• cutter length: 22 / 22 mm,
• number of teeth: 14T / 14T ,
• part numbers: 40196061.

Tractor models:

LS Tractor:

• LS MT1.25,
• LS XJ25.
