Screw M8 x 1.25 x 20 / LS XJ25 / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S153082033 / 40028921
search
2 osoby oglądają ten produkt
  • Screw M8 x 1.25 x 20 / LS XJ25 / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S153082033 / 40028921
  • Screw M8 x 1.25 x 20 / LS XJ25 / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S153082033 / 40028921

Screw M8 x 1.25 x 20 / LS XJ25 / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S153082033 / 40028921

Product code: 40028921
Brand LS Tractor
View other model
zł6.27 netto
zł7.71
Includes VAT 23%

Lowest price from 30 days: zł7.71

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
79 pieces
Delivery See details Leasing & financing for businesses See details

Product description

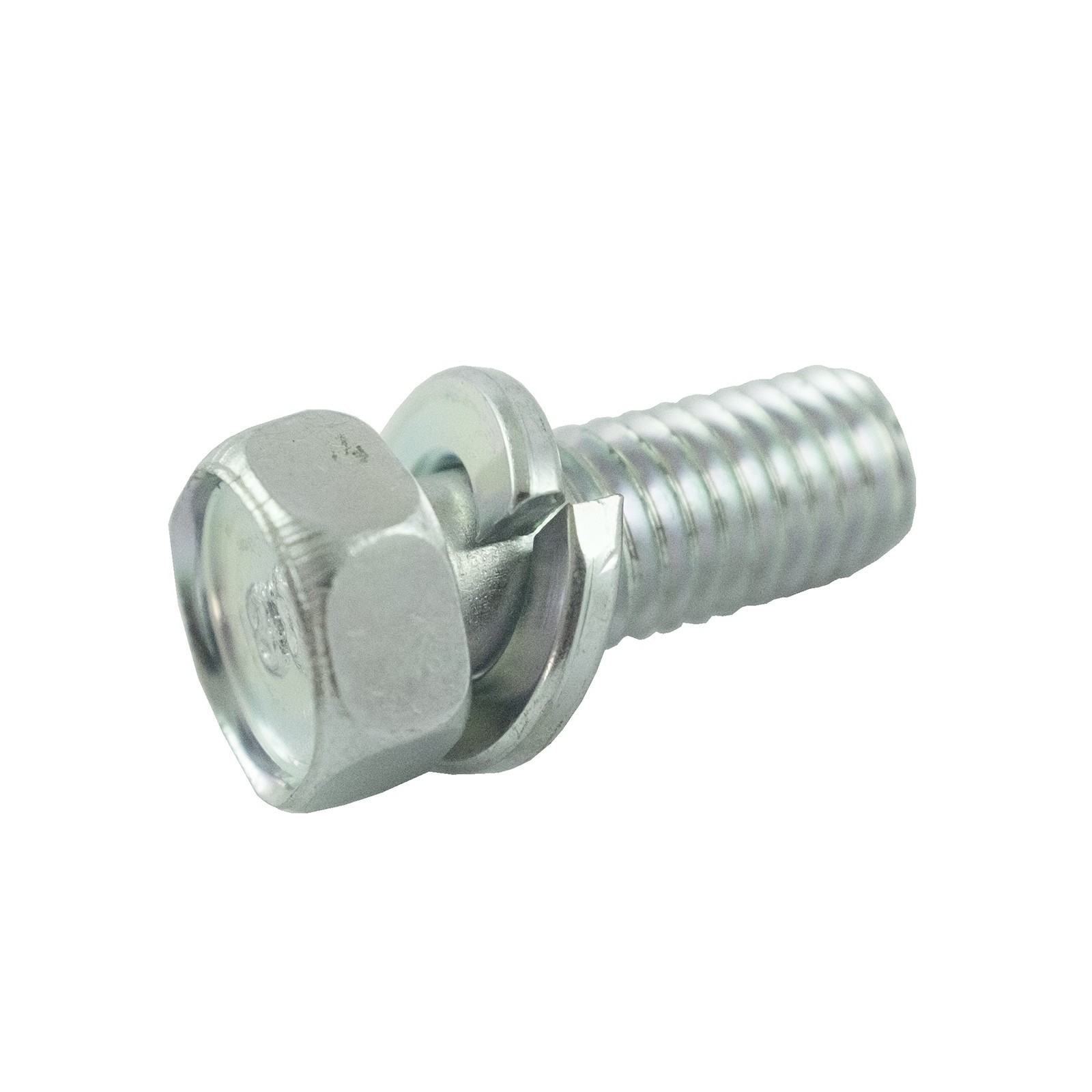

M8 screw with 1.25 thread, overall length 25.50 mm and hardness 8.8 . Universal screw for LS Tractor of the LS XJ25, LS MT1.25, LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series and others for:

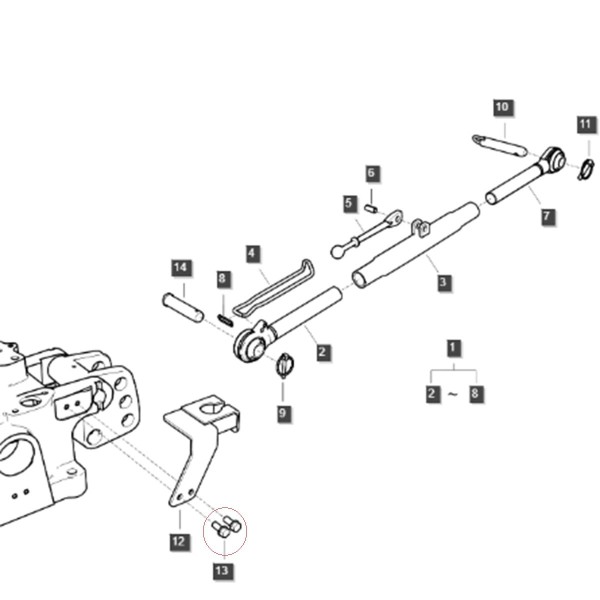

  • levers, lever for changing the position of the arms of the rear three-point linkage,
  • lever, gear lever,
  • lever lever for changing the speed of the PTO / PTO shaft,
  • levers, 4 x 4 drive change lever,
  • toolbox mounting on the fender,
  • steering column mounts,
  • fuel filler mounts,
  • hydraulic hoses,
  • front loader hydraulic hoses,
  • frame bracket,
  • plate mounting, HST drive adjustment bracket,
  • camshaft holder,
  • cylinder head, eyelet,
  • catalyst holder,
  • clutch disc fasteners,
  • drive shaft covers,
  • HST magnetic sensor mounting,
  • engine mount bracket,
  • flywheel mounts,
  • WOM / PTO center shaft hubs,
  • hydraulic pump mounts,
  • side mirrors,
  • operator's platform mountings,
  • brake bracket,
  • and others.

Appropriate selection of the bolt in terms of strength should be made before starting the assembly, because the shape of the bolt and technical parameters may have a direct impact on the safety and durability of the connection. We distinguish 3 classes of bolt accuracy , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength: 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9 where the first number denotes the tensile strength limit and the second, the yield strength with respect to the first value (percentage). The higher the values, the greater the strength of the bolt, and so 3.6 is the lowest quality bolt (low carbon steel) and 12.9 is the highest strength class (low alloy steel).

Dimensions :

  • total length: 25.50 mm,
  • working length: 20 mm,
  • thread length: 14 mm,
  • thread: M8 x 1.25,
  • spanner size: 12,
  • standards and strength classes: 8.8,
  • comparative numbers: S153082033.

Tractor models :

LS Tractor :

  • LS XJ25,
  • LS MT1.25,
  • LS MT3.35.
  • LS MT3.40,
  • LS MT3.50,
  • LS MT3.60,
  • and others.

Warehouse :
M01: M25S07

Specifications

Condition
New
