Hydrauliczna pump / Iseki TX2140E / TX2140T / TX 2160F / 1434-503-200-00

S.67465
zł1,020.00
Tax included PL 23%

829,27 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

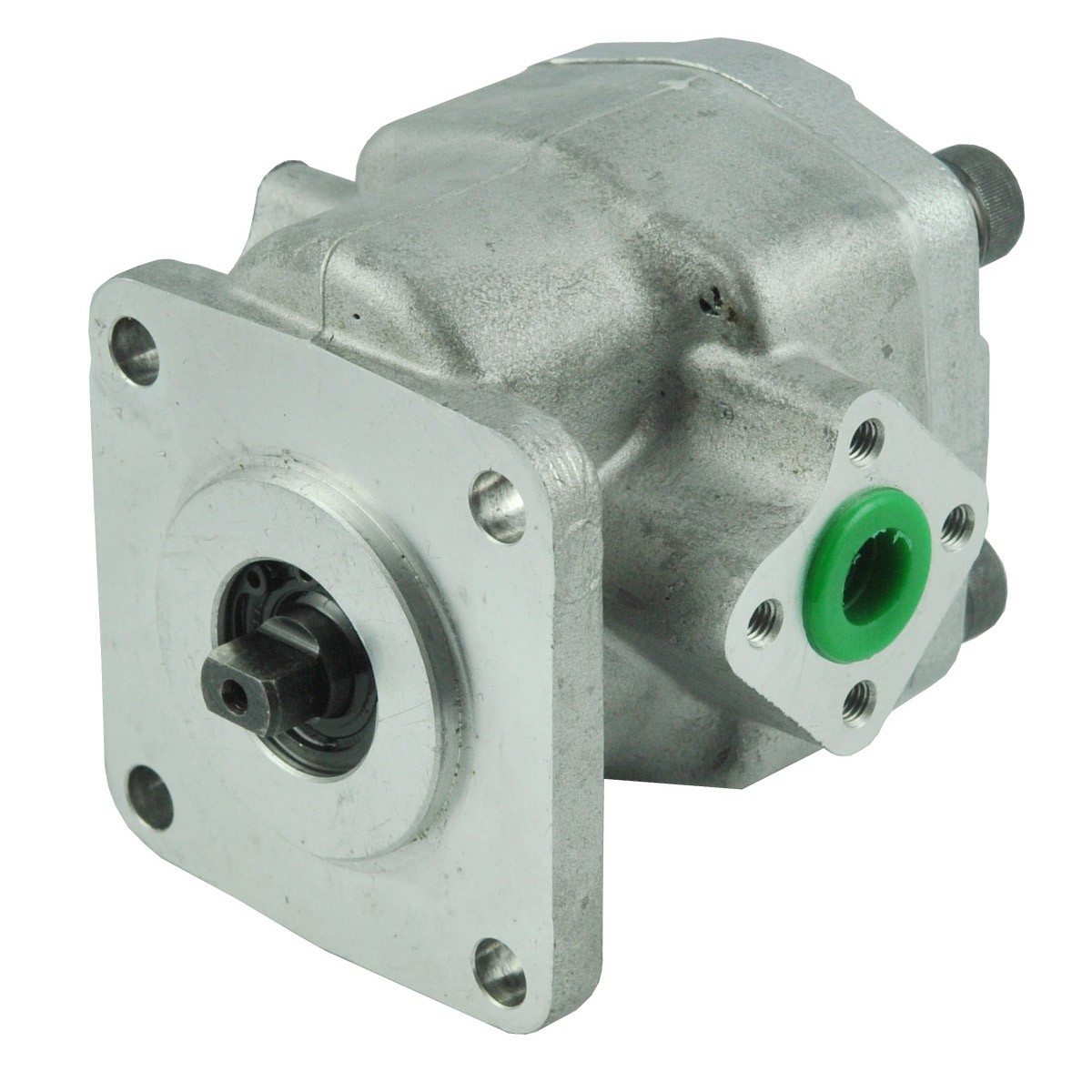

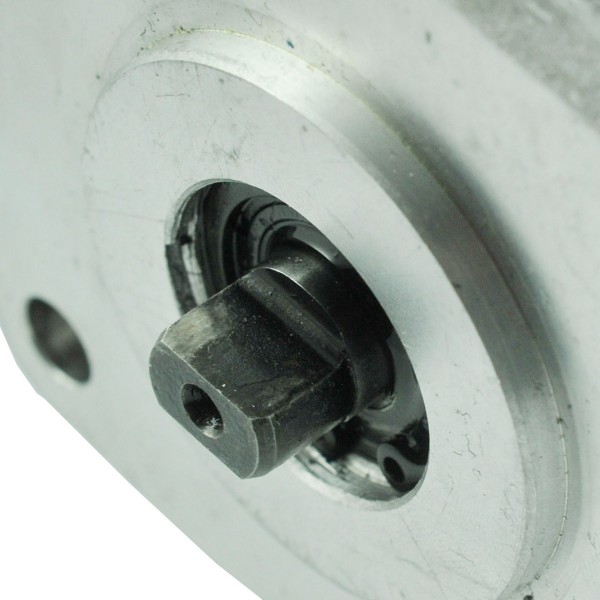

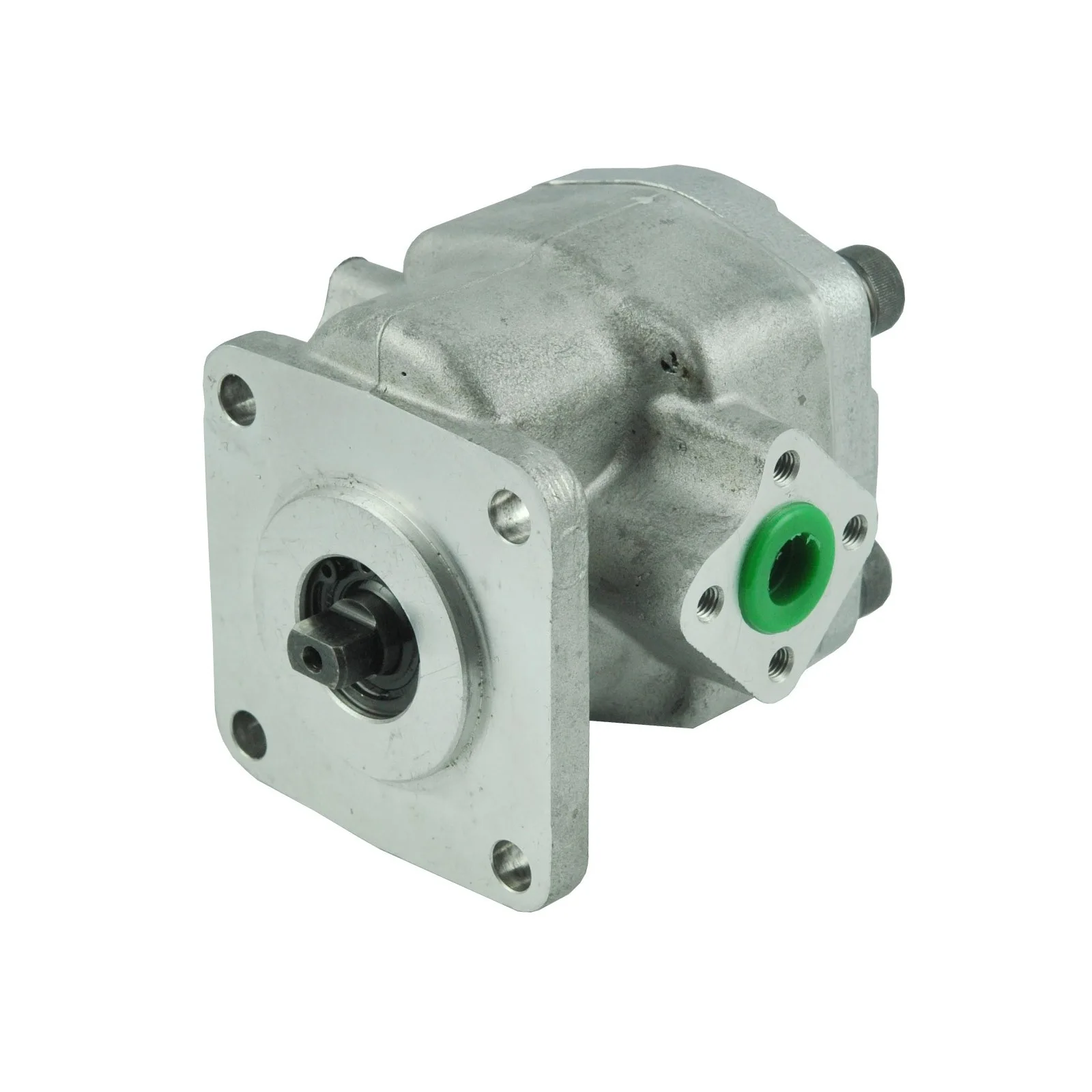

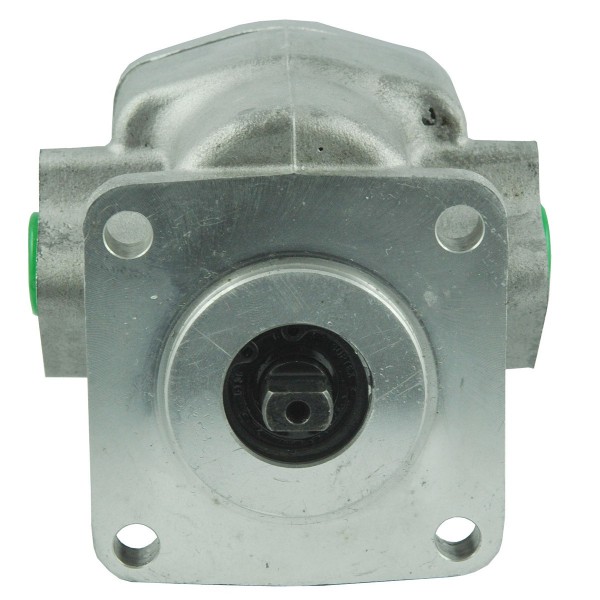

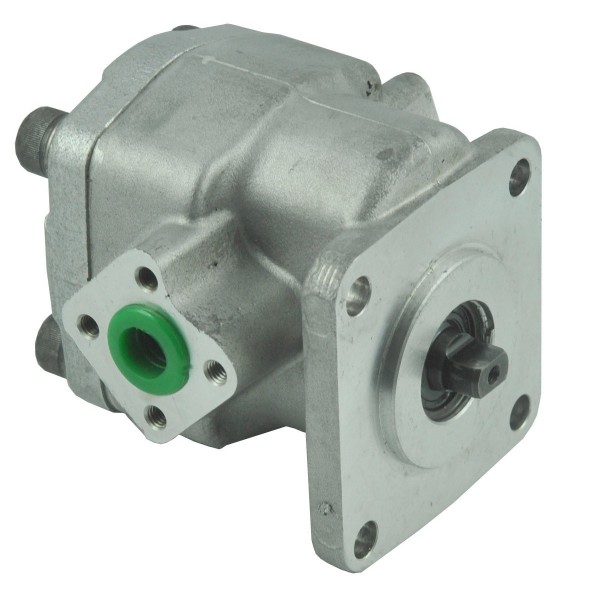

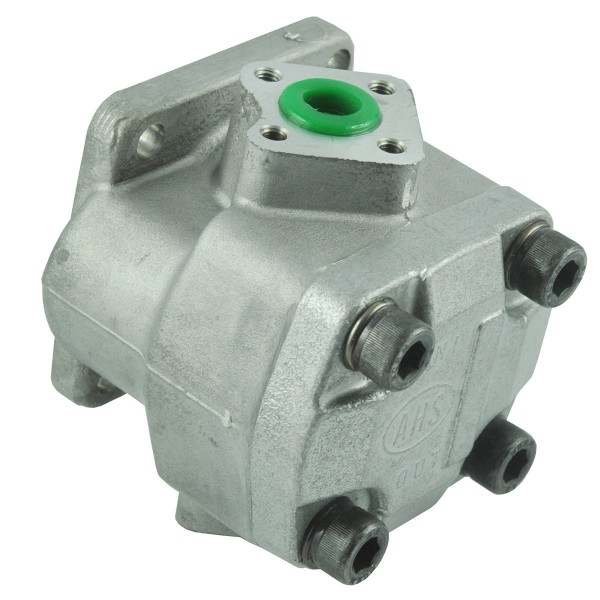

Hydrauliczna pump / Iseki TX2140E / TX2140T / TX 2160F / 1434-503-200-00

Hydraulic pump with dimensions 100 x 90 x 100 mm for Iseki TX series tractors and others.

A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.

Technical data :

  • dimensions: 100 x 90 x 100 mm,
  • diameter of mounting screw holes: 8.80 mm,
  • mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
  • diameter of hydraulic holes: 16 / 16 mm,
  • mounting screw hole spacing: inlet (IN) 36 mm (measured diagonally), 25 mm (measured from each other),
  • spacing of mounting screw holes: outlet (OUT) 35.6 mm (diagonally), 25 mm (measured from each other),
  • pump rotation: counterclockwise,
  • weight: 1.65 kg,
  • reference numbers: 187-4050, 1434-503-200-00 , 1912 2451000, 19152451000, 1915-2451-000,
  • part numbers: p.67465.

Tractor models :

  • Iseki TX2140E,
  • Iseki TX2140T,
  • Iseki TX 2160F.

The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.

Warehouse : K18 E13

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: Magazyn:M01 B73
Condition
New
Production
Substitute
Parts
Hydraulic system
Tractor models
Iseki TX2140E
Iseki TX2140T
iseki TX 2160F
Length (mm)
100
Height (mm)
100
Hole diameter (mm)
16
Width (mm)
90
Mounting bolt(s) hole diameter (mm)
8,80
Bolt hole spacing (mm)
63
90
Comparison numbers
187-4050
1434-503-2000-0
1912 2451000
1915-2451-000
19152451000
Direction of rotation
Right
Spacing of mounting holes for hydraulic outlets (mm)

25
35.60
