Hydraulic pump / 12T / Yanmar F20 / FX20 / F22 / FX22 / F24 / FX24 / F255 / FX255 / 15A10X883

Product code: 15A10X883
Brand 4FARMER
Country of production 4FARMER
View other model
zł1,390.00
Includes VAT 23%

Lowest price from 30 days: zł1,390.00

Product description

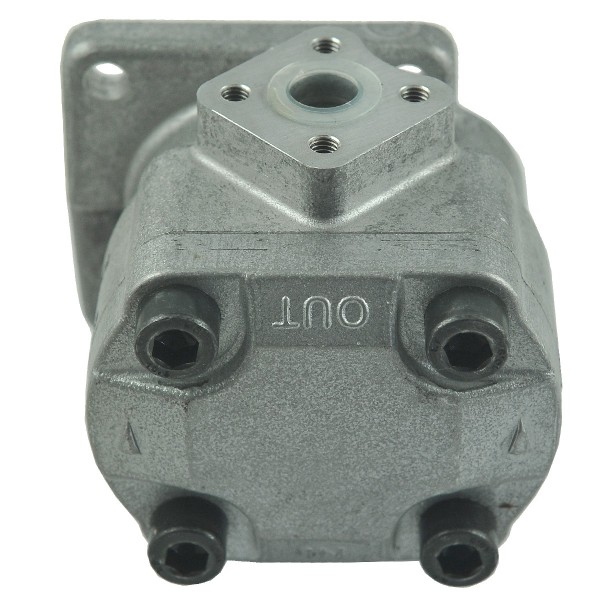

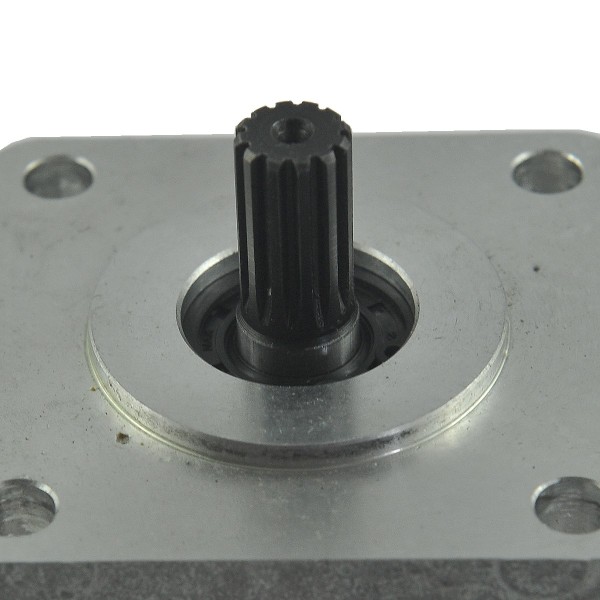

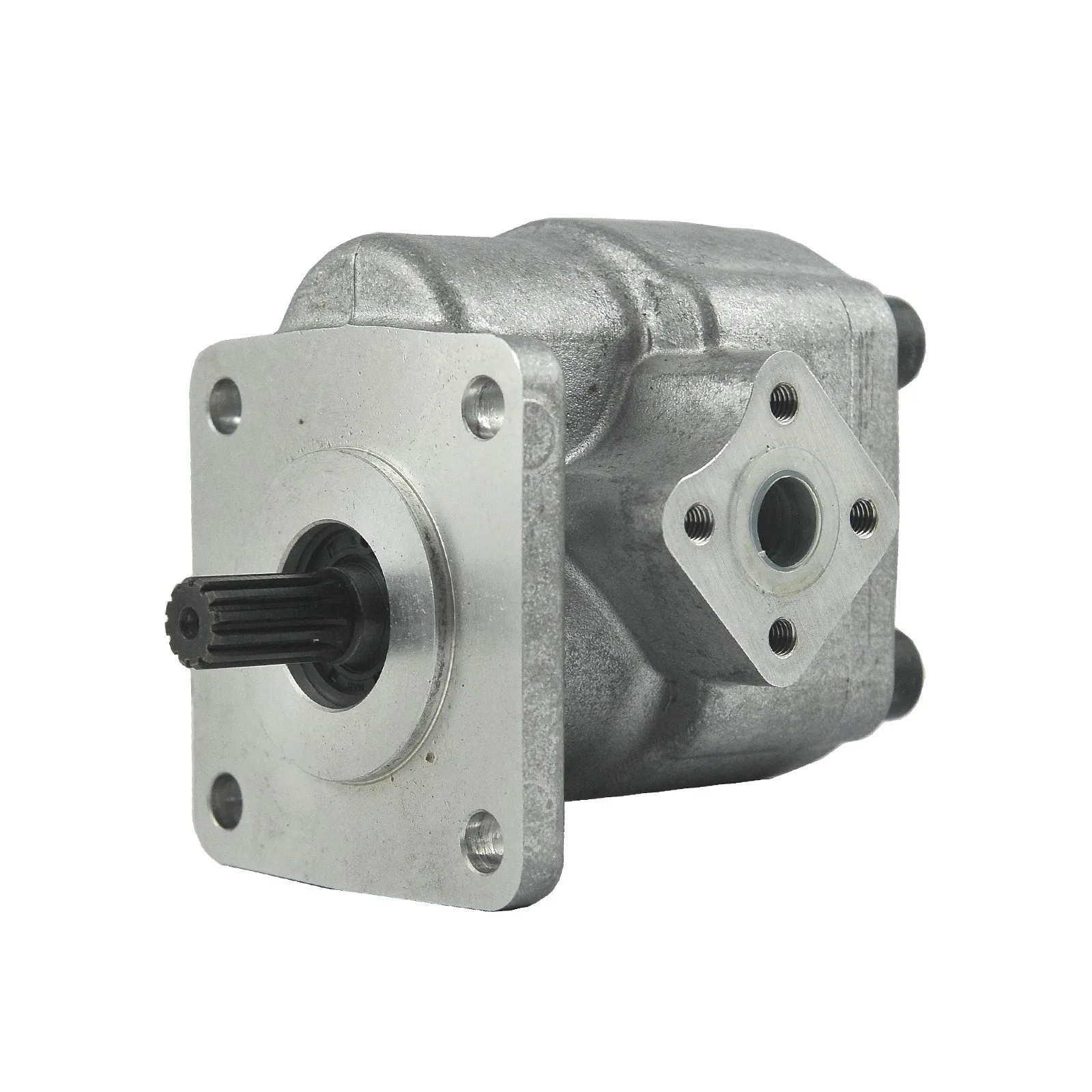

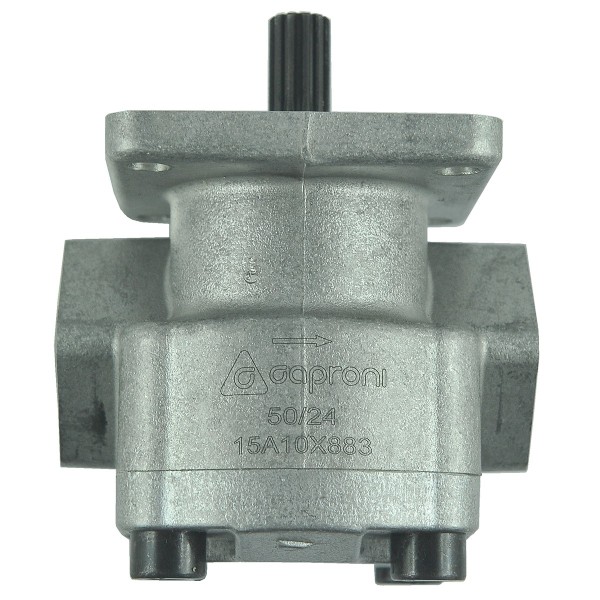

Hydraulic pump with dimensions 100 x 100 x 100 mm for Yanmar tractors of the Yanmar F20, Yanmar F22, Yanmar F24, Yanmar FX20, Yanmar FX22, Yanmar FX24, Yanmar F255, Yanmar FX255 series with Yanmar 3TN82, Yanmar 3TN84, Yanmar 3TNB84 and other engines.

A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.

Technical data :

  • length: 100 mm,
  • width: 100 mm
  • height: 100 mm,
  • cutter diameter: 11.50 mm (measured between cutter teeth), 13.70 mm (measured together with the cutter),
  • diameter of mounting screw holes: 8.50 mm,
  • mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
  • diameter of hydraulic holes: 15 mm (OUT), 15 mm (IN),
  • spacing of holes for mounting screws of hydraulic outlets: 25 mm (measured from each other), 35 mm (measured diagonally),
  • pump rotation movement: LEFT,
  • flow: 14.12-28.20 l/min,
  • pressure: 180 bar,
  • rotational speed: 3000 rpm,
  • original part numbers: 194555-41120,
  • reference numbers: Kp0588ASSS ,
  • part numbers: 15A10X883.

Tractor models :

  • Yanmar F20,
  • Yanmar F22,
  • Yanmar F24,
  • Yanmar FX20,
  • Yanmar FX22,
  • Yanmar FX24,
  • Yanmar F255,
  • Yanmar FX255.

Engine models :

  • Yanmar 3TN82,
  • Yanmar 3TN84,
  • Yanmar 3TNB84.

Magazine : K18:F15

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
63
Spacing of mounting holes for hydraulic outlets (mm)
35
Rotation speed (rpm)
3000
