Hydraulic pump / Kubota L35 / L2050 / L2250 / L2350 / L2550 / 31351-76102

Product code: 31351-76102
Brand 4FARMER
Country of production 4FARMER
View other model
zł2,040.00
Includes VAT 23%

Lowest price from 30 days: zł2,040.00

Product description

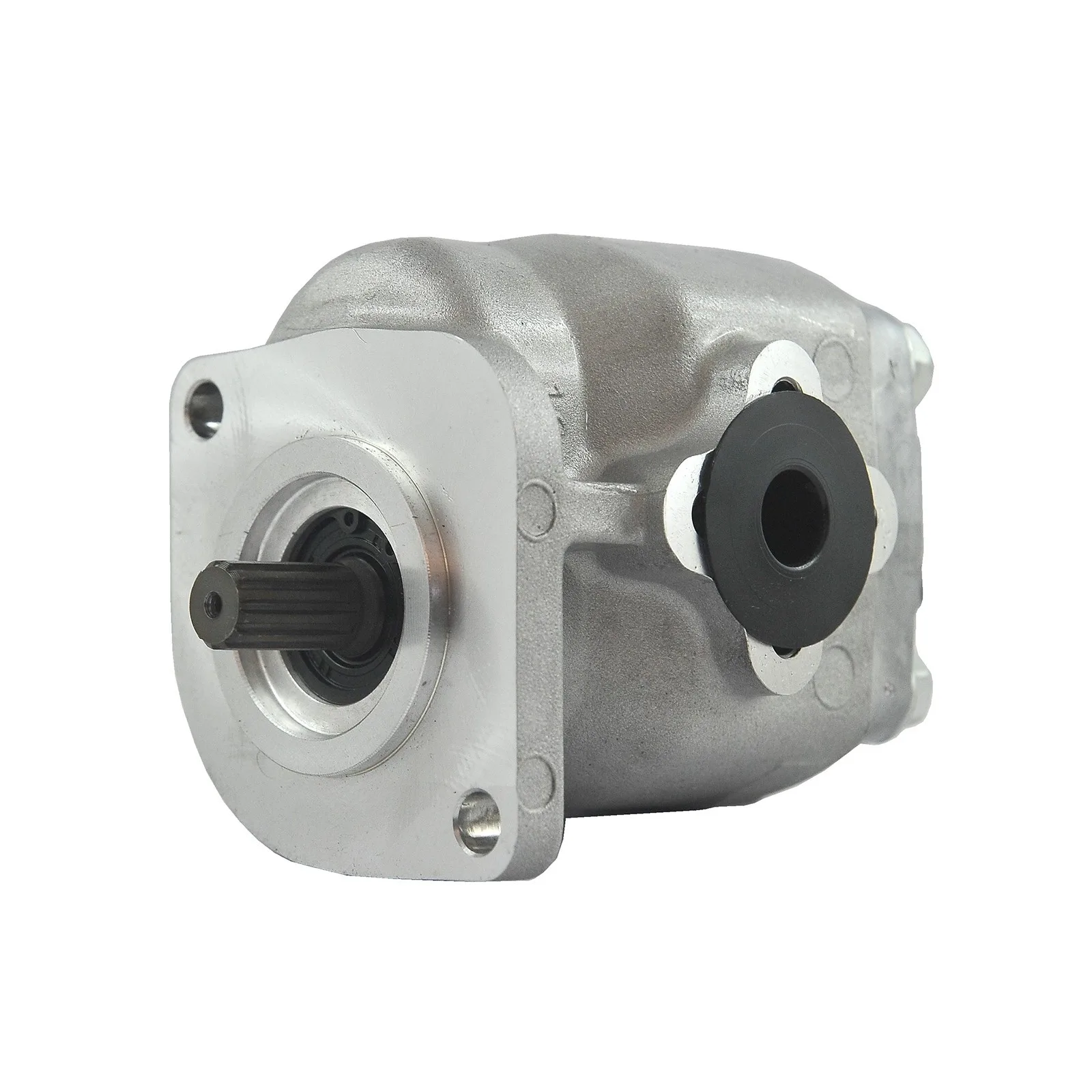

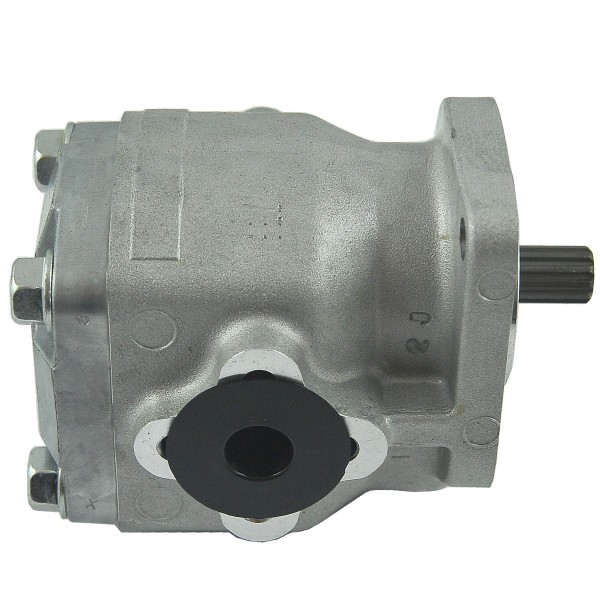

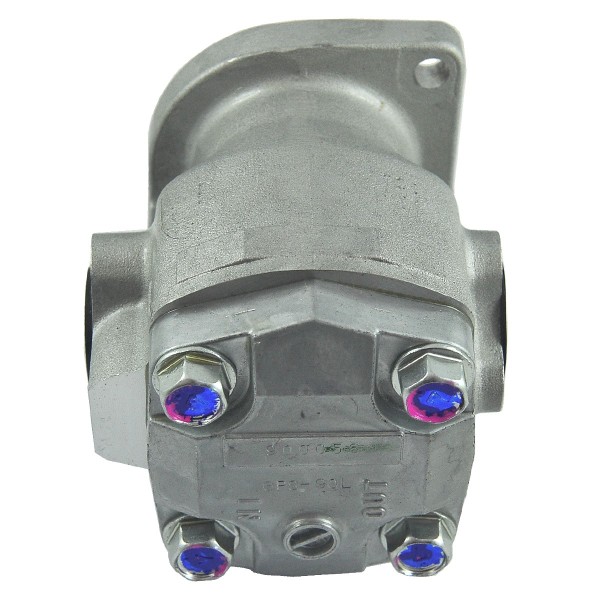

12T hydraulic pump with dimensions of 110 x 90 x 100 mm for Kubota tractors of the Kubota L35, Kubota L2050, Kubota L2250, Kubota L2350, Kubota L2550, Kubota L2650, Kubota L3000 series, and others. The hydraulic gear pump is responsible for the operation of the rear linkage and additional hydraulically operated implements. In modern tractors, the hydraulic pump is responsible for the power steering. Using the hydraulic pump , we can control additional functions of agricultural trailers, flail mowers, tillers, or TUR front loaders. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess oil is returned to the gearbox and then to the main distributor. Some hydraulic pumps may have additional sections that supply oil under increased pressure to the steering system.

Technical data :

  • dimensions: 110 x 90 x 100 mm,
  • shaft diameter (12T): 11 mm (measured between cutter teeth), 13.50 mm (measured together with cutter),
  • spacing of mounting screw holes: 88 mm,
  • diameter of mounting screw holes: 9 mm,
  • spacing of mounting holes for hydraulic outlets: 35 mm (measured diagonally), 25 mm (measured from each other),
  • diameter of holes for mounting screws of hydraulic outlets: 5 mm,
  • pressure: - Bar (max),
  • rotational speed: - r/min,
  • flow: - l/min,
  • direction of rotation: -,
  • INLET/OUTLET diameter: 16 mm,
  • reference numbers: 31351-76100 , 31351-76102,
  • part numbers: 31351-76102.

Tractor models :

  • Kubota L35,
  • Kubota L2050,
  • Kubota L2250,
  • Kubota L2350,
  • Kubota L2550,
  • Kubota L2650,
  • Kubota L3000.

The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.

Magazine : K18:B19:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
88
Spacing of mounting holes for hydraulic outlets (mm)
35
