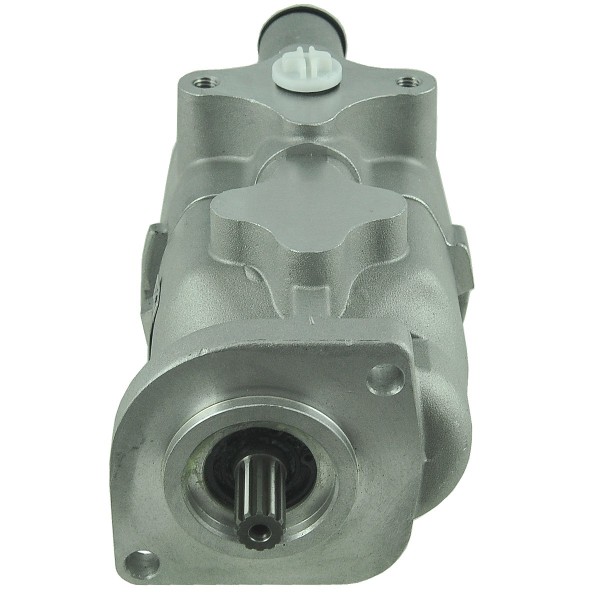

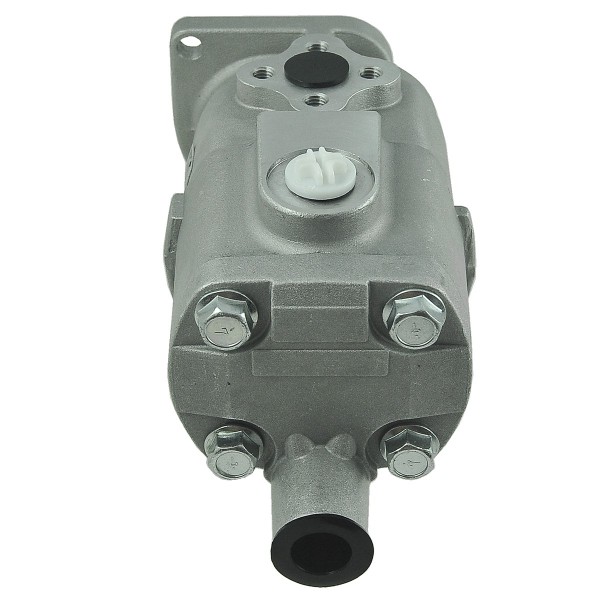

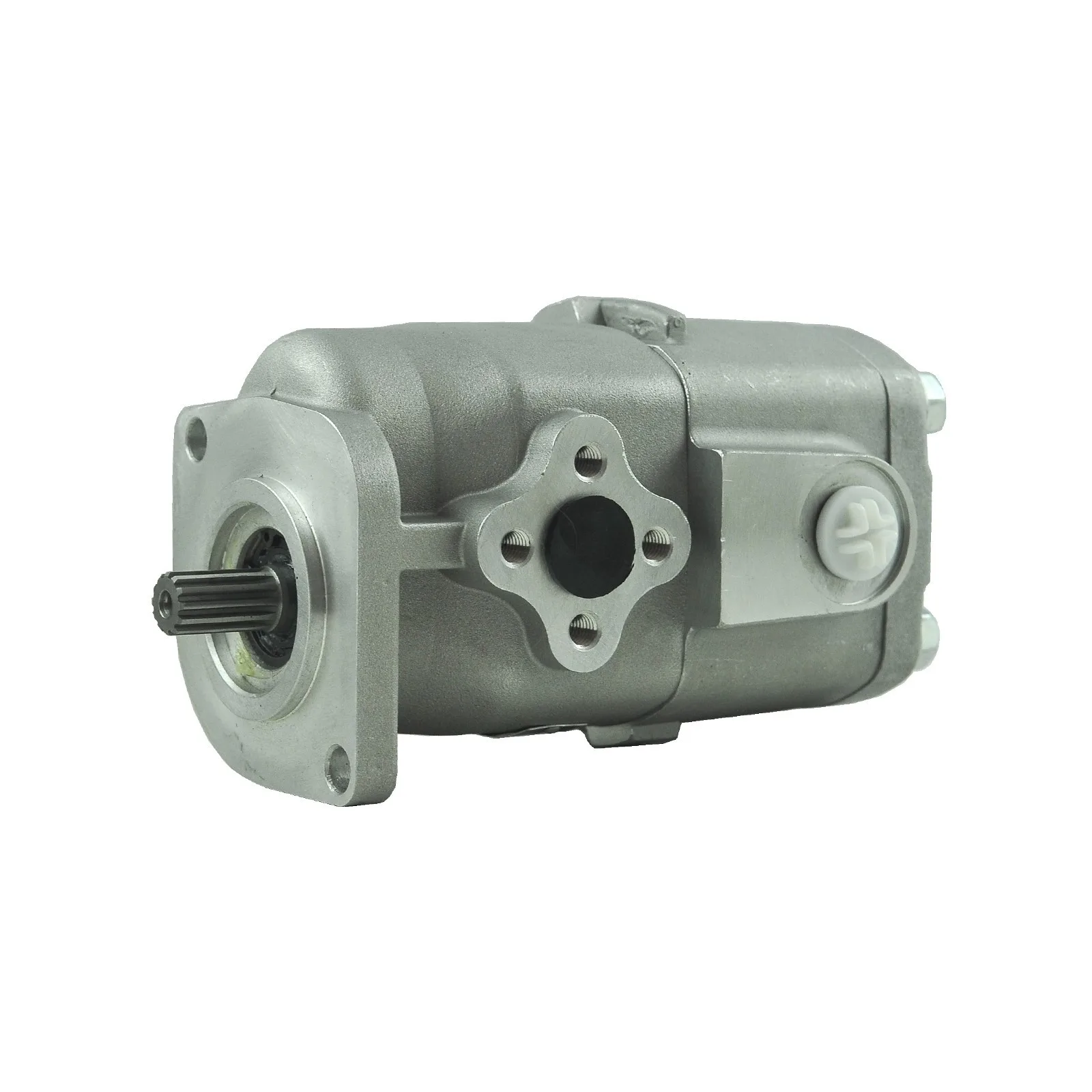

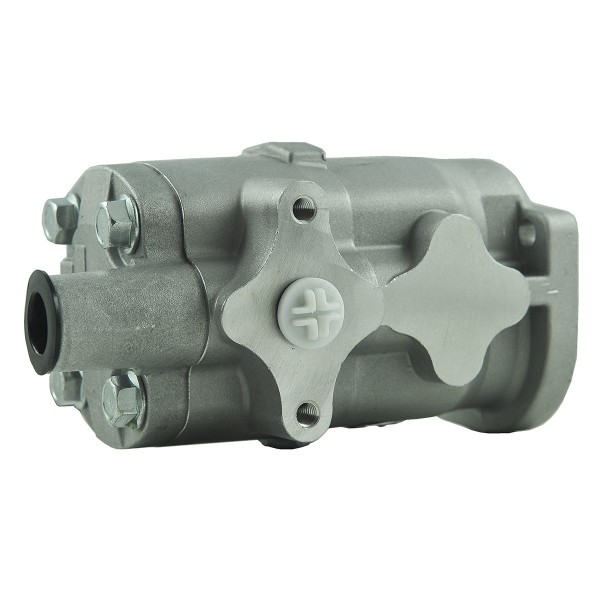

Hydraulic pump with dimensions 187 x 120 x 100 mm for Kubota tractors Hinomoto series Hinomoto NX19, Hinomoto NX21, Hinomoto NX23, Hinomoto NX25, Hinomoto NX26, Hinomoto NX27, Hinomoto NX29, Hinomoto NX32, Hinomoto NX33, Hinomoto NX200, Hinomoto NX201, Hinomoto NX220, Hinomoto NX221, Hinomoto NX240, Hinomoto NX241, Hinomoto NX260, Hinomoto NX261, Hinomoto NX268, Hinomoto NX277, Hinomoto NX280, Hinomoto NX281, Hinomoto NX300, Hinomoto NX321, Hinomoto NX337, Hinomoto NX338 , Kubota brands series Kubota GL19, Kubota GL21, Kubota GL23, Kubota GL25, Kubota GL26, Kubota GL27, Kubota GL29, Kubota GL32, Kubota GL33, Kubota GL200, Kubota GL201, Kubota GL220, Kubota GL221, Kubota GL240, Kubota GL241, Kubota GL260, Kubota GL261, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GL321, Kubota GL337, Kubota GL338, Kubota L3600, Kubota L4610 and others.
A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.
Technical data :
- dimensions: 187 x 120 x 100 mm,
- diameter of mounting screw holes: 9 mm,
- spacing of mounting screw holes: 89 mm,
- diameter of hydraulic holes: M16 (IN) / M16 (OUT),
- spacing of mounting screw holes: inlet (IN) 60 mm,
- spacing of mounting screw holes: outlet (OUT) 26 mm (measured from each other), 35 mm (measured diagonally) mm,

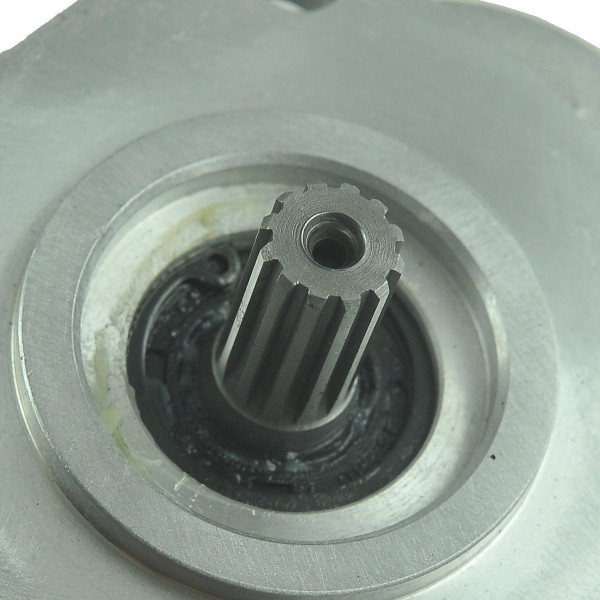

- number of teeth: 12T,
- reference numbers: TA020-36400, 34070-36400, 34550-36400,
- part numbers: GPS90-48L, 34070-36400.
Tractor models :
Kubota :
- Kubota GL19,
- Kubota GL21,
- Kubota GL23,
- Kubota GL25,
- Kubota GL26,
- Kubota GL27,
- Kubota GL29,
- Kubota GL32,
- Kubota GL33,
- Kubota GL200,
- Kubota GL201,
- Kubota GL220,
- Kubota GL221,
- Kubota GL240,
- Kubota GL241,
- Kubota GL260,
- Kubota GL261,
- Kubota GL268,
- Kubota GL277,
- Kubota GL280,
- Kubota GL281,
- Kubota GL300,
- Kubota GL301,
- Kubota GL320,
- Kubota GL321,
- Kubota GL337,
- Kubota GL338,
- Kubota L3600,
- Kubota L4610.
Hinomoto :
- Hinomoto NX19,
- Hinomoto NX21,
- Hinomoto NX23,
- Hinomoto NX25,
- Hinomoto NX26,
- Hinomoto NX27,
- Hinomoto NX29,
- Hinomoto NX32,
- Hinomoto NX33,
- Hinomoto NX200,
- Hinomoto NX201,
- Hinomoto NX220,
- Hinomoto NX221,
- Hinomoto NX240,
- Hinomoto NX241,
- Hinomoto NX260,
- Hinomoto NX261,
- Hinomoto NX268,
- Hinomoto NX277,
- Hinomoto NX280,
- Hinomoto NX281,
- Hinomoto NX300,
- Hinomoto NX321,
- Hinomoto NX337,
- Hinomoto NX338.
The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.
Warehouse : K18 E13
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
