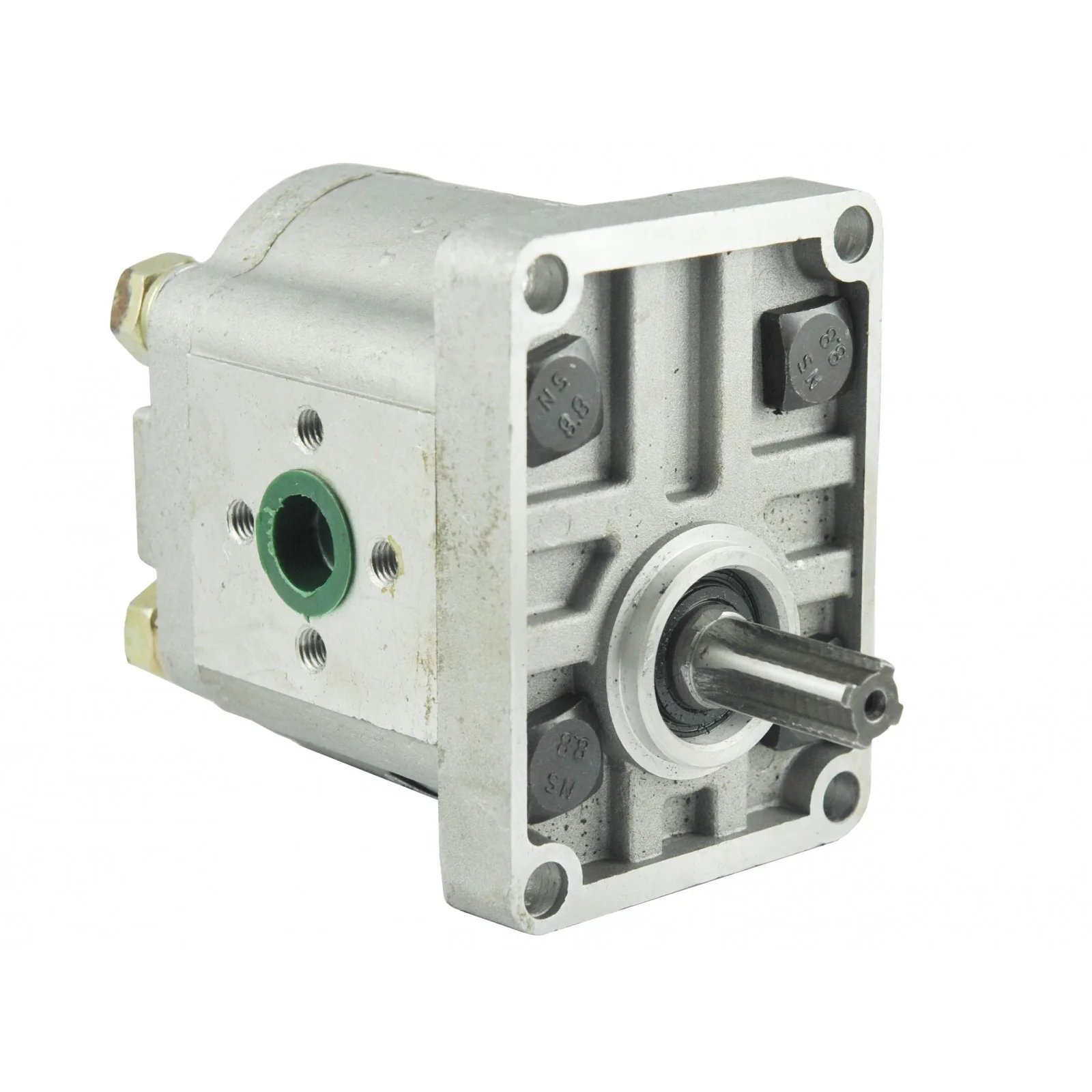

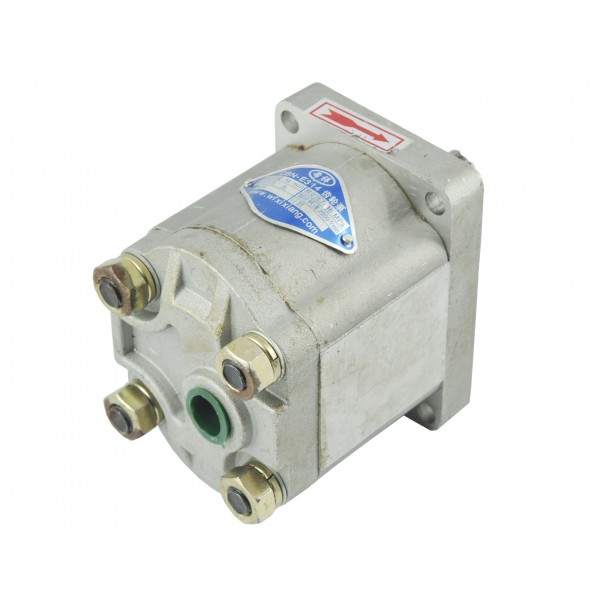

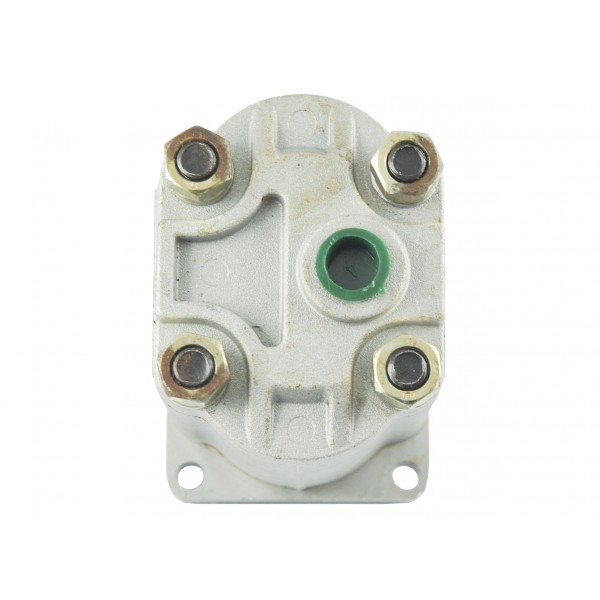

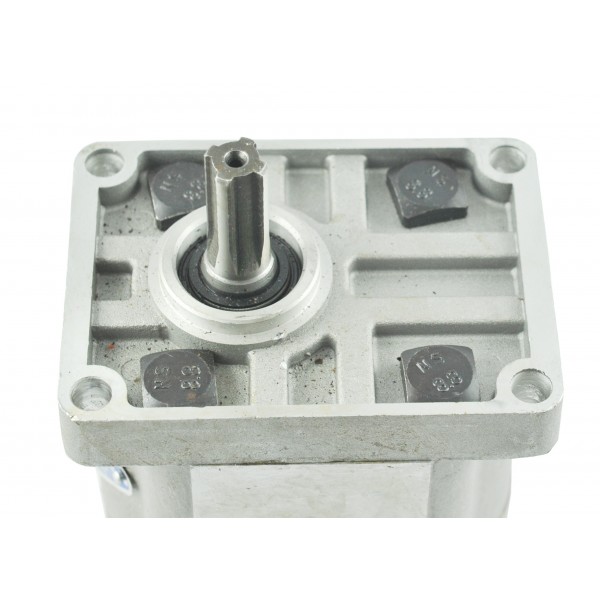

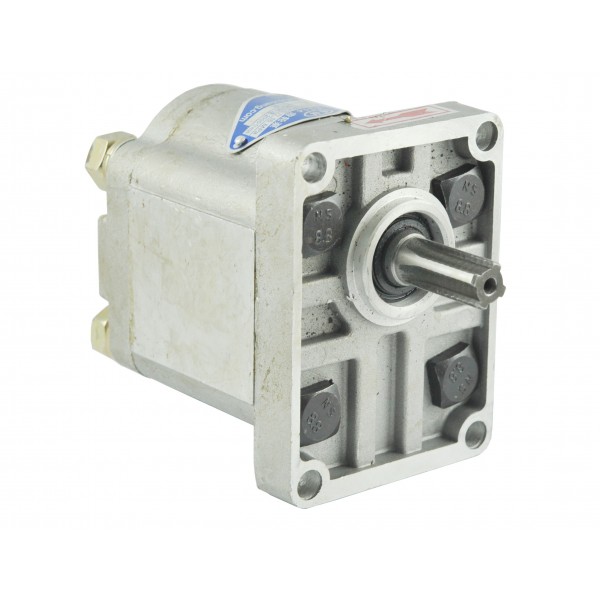

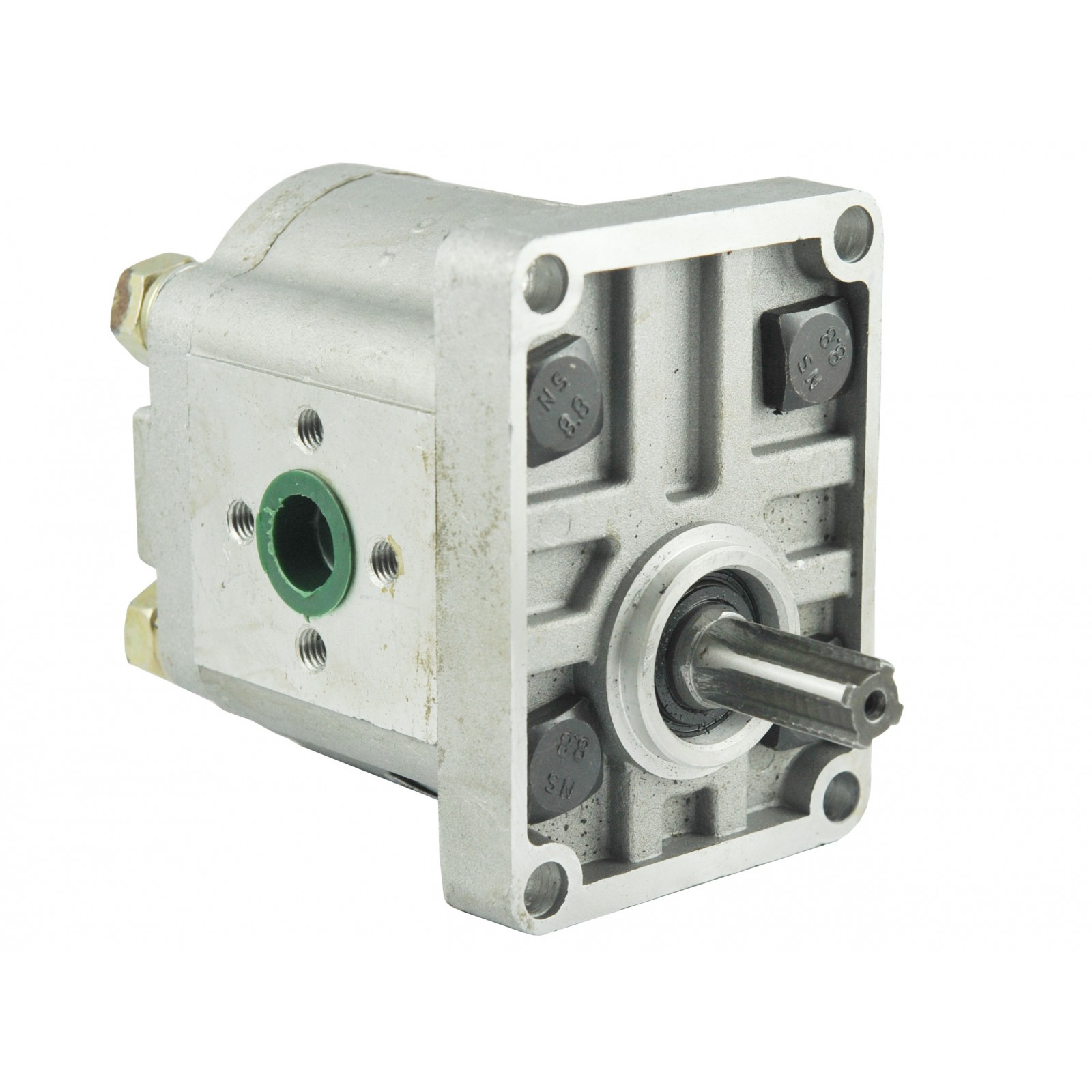

Hydraulic pump / Jinma JM 244E / JM 354E / CBN-E314

Product code: CBN-E314
Brand 4FARMER
Country of production 4FARMER
View other model
3 people purchased this product
zł669.00
Includes VAT 23%

Lowest price from 30 days: zł669.00

Ask for availability

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Unavailable
0 pcs
On order See details Leasing & financing for businesses See details

Product description

This hydraulic pump is a robust component for Jinma tractor hydraulic systems. It offers a capacity of 14 ml/rev at an operating pressure of up to 16 MPa and a speed of up to 2000 rpm. Compact and durable, it ensures reliable operation in harsh conditions. Ideal for upgrading hydraulic systems or quickly replacing a worn pump.

Dimensions:

  • Length: 155 mm,
  • Width: 87 mm,
  • Height: 115 mm,
  • Spacing of mounting screw holes: 70 / 100 mm,
  • Diameter of mounting screw holes: 9 mm,
  • Inlet/outlet hole diameter: 16/18 mm,
  • Spacing of holes for mounting screws of hydraulic outlets: 38 mm (measured diagonally),
  • Roller dimensions: 15 x 35 mm,
  • Index: CBN-E314.

Machine models:

  • Jinma JM 244E,
  • Jinma JM 354E.

Magazine: M01:A42

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
70

Reviews of Hydraulic..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
