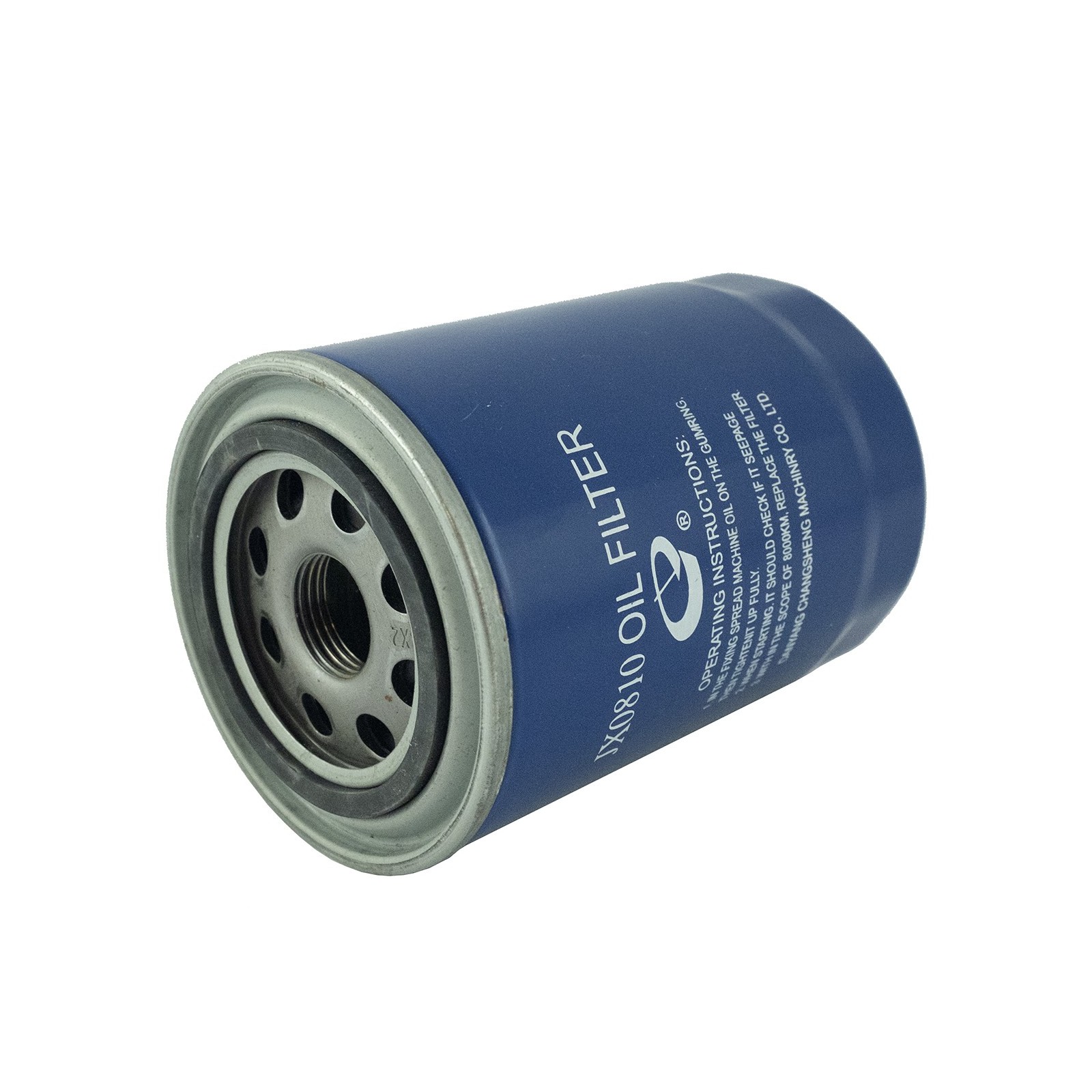

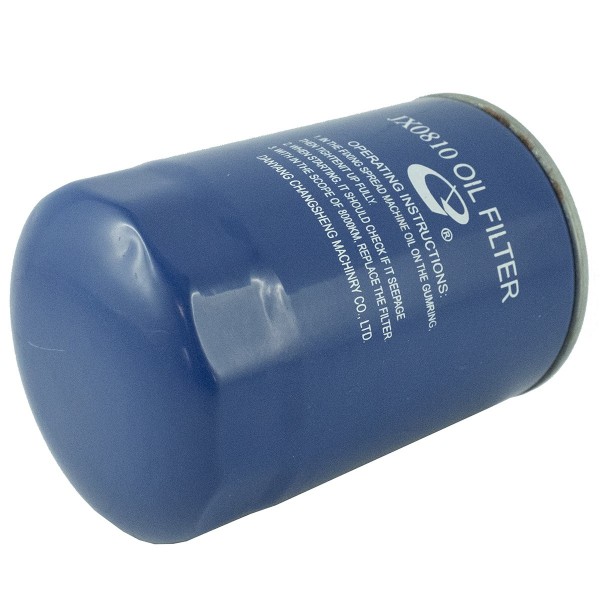

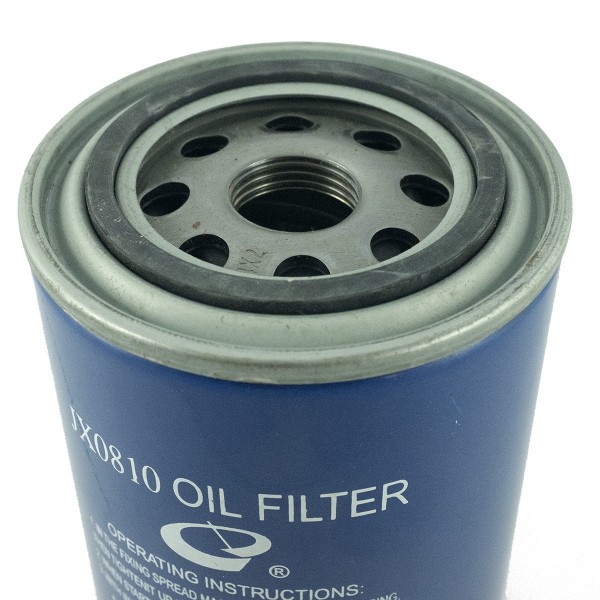

Hydraulic oil filter M24 x 2, 138 x 93 mm, Jinma JX0810

Engine oil filter with M24 X 2 thread, dimensions 93 x 138 mm for mini tractors and mini tractors of the Jinma brand and others.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual, and it is usually done after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor's gearbox, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of failure-free operation of the machine and the certainty that in there are no foreign bodies in the hydraulic system that could damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Dimensions :

• Height: 138 mm.
• Diameter: 93 mm.
• Base diameter: 94 mm.
• Seal diameter: external: 71 mm, internal: 61 mm.
• Thread: M24 x 2.
• Weight: 0.450 kg.
• Reference number: SO 6159,

Tractor models :

Jima :

• Jinma 244E,

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
