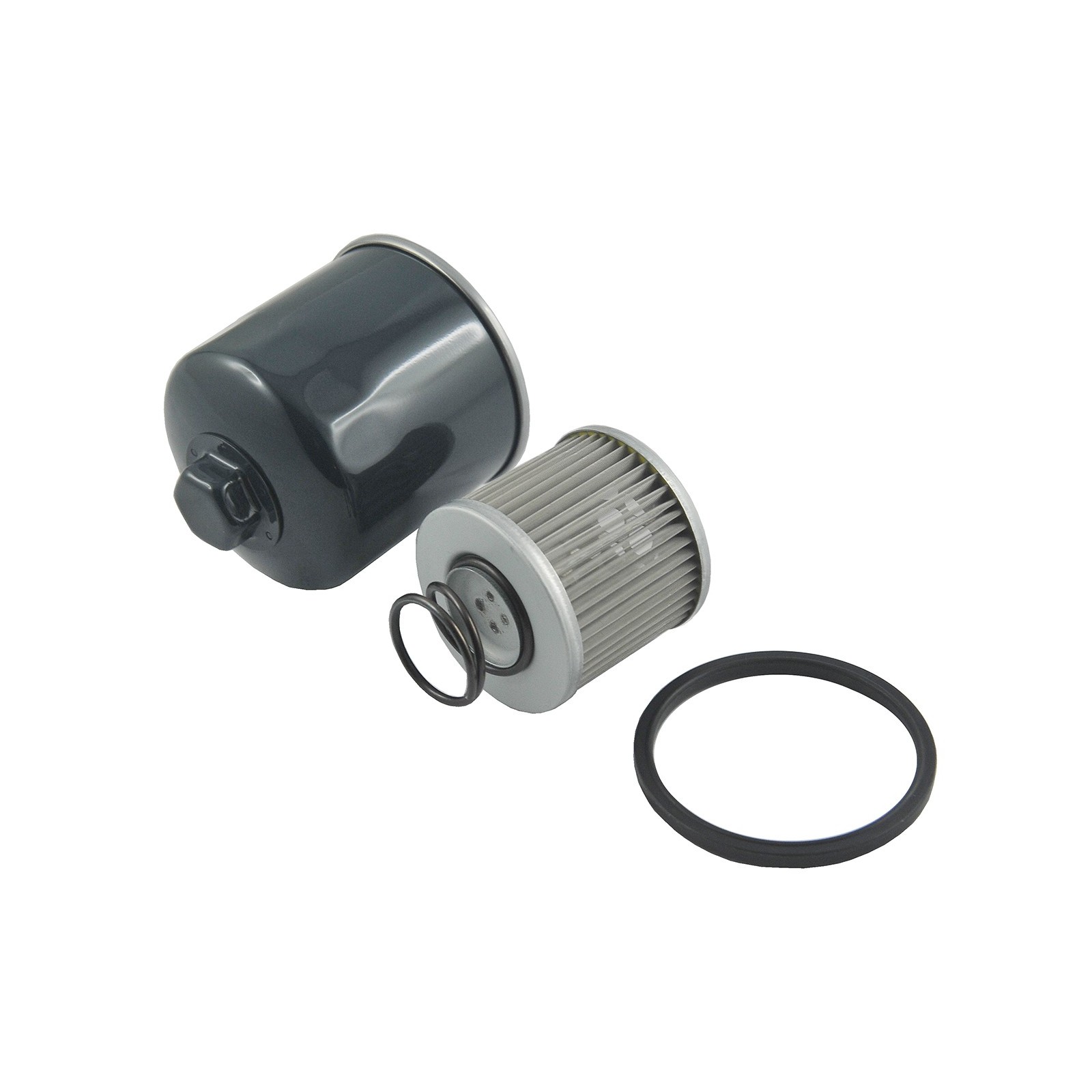

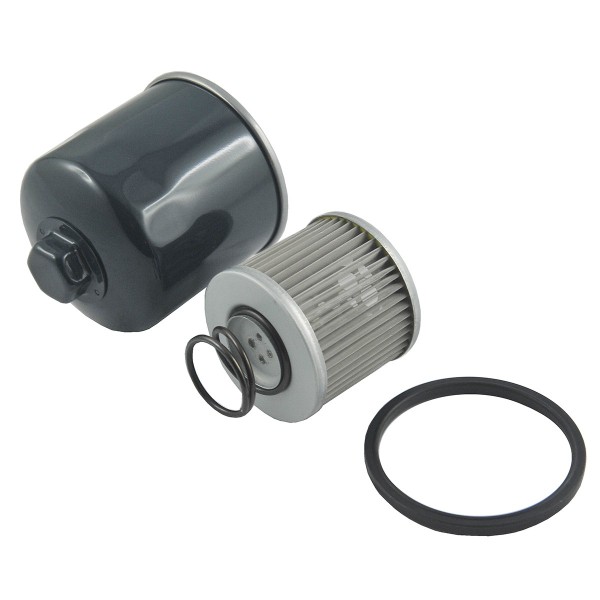

Hydraulic filter with an internal diameter of 26 mm, an external diameter of 81 mm, a total height of 9-4 mm for Kubota tractors of the Kubota GT3, Kubota GT5 , Kubota GT8 , Kubota ST30 and other series.
The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor.

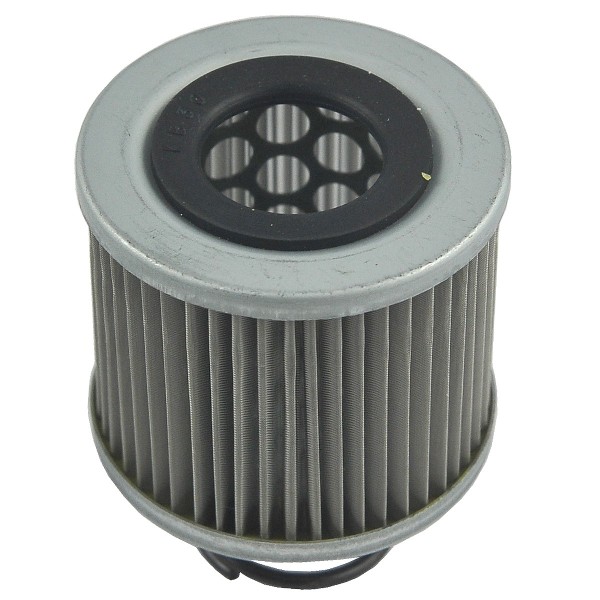

Insert dimensions :
- height: 54 mm.
- inner diameter: 30 mm.
- outer diameter: 60 mm,
- weight: 0.120 kg.
- original part numbers: -,
- comparison numbers: 3741038550, SH60069 , SH60532 ,
- part numbers: 37410-38550 .

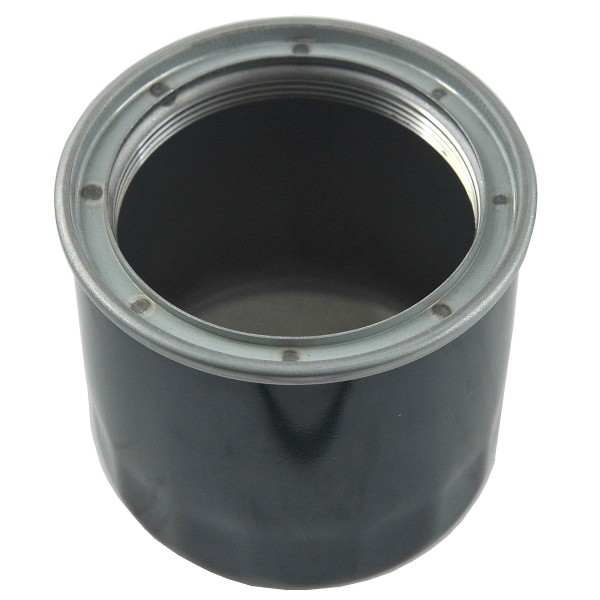

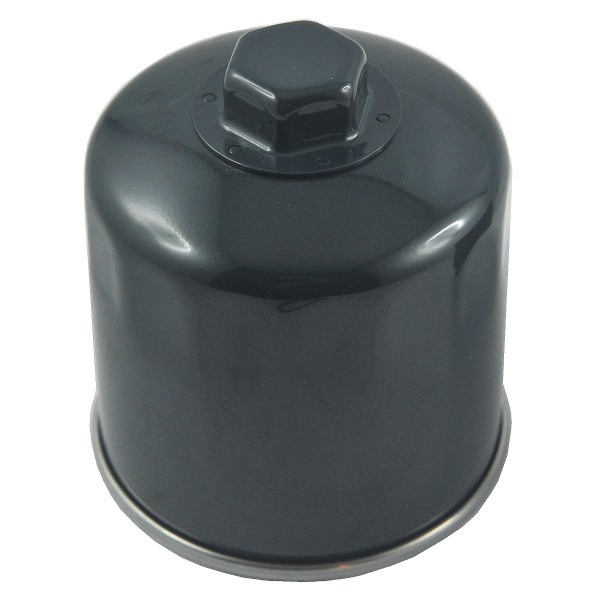

Filter housing dimensions :
- total height: 94 mm,
- outer diameter: 81 mm,
- base diameter: 84 mm,
- thread: M65,
- part numbers: 37410-38520.
Tractor models :
Kubota:
- Kubota GT3,
- Kubota GT5,
- Kubota GT8,
- Kubota ST30.
A hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor.
Regular replacement of the hydraulic filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
Warehouse :
M01: K23
