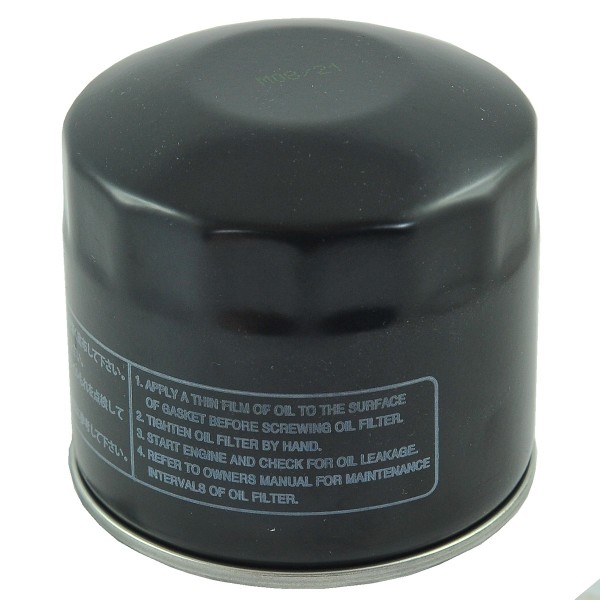

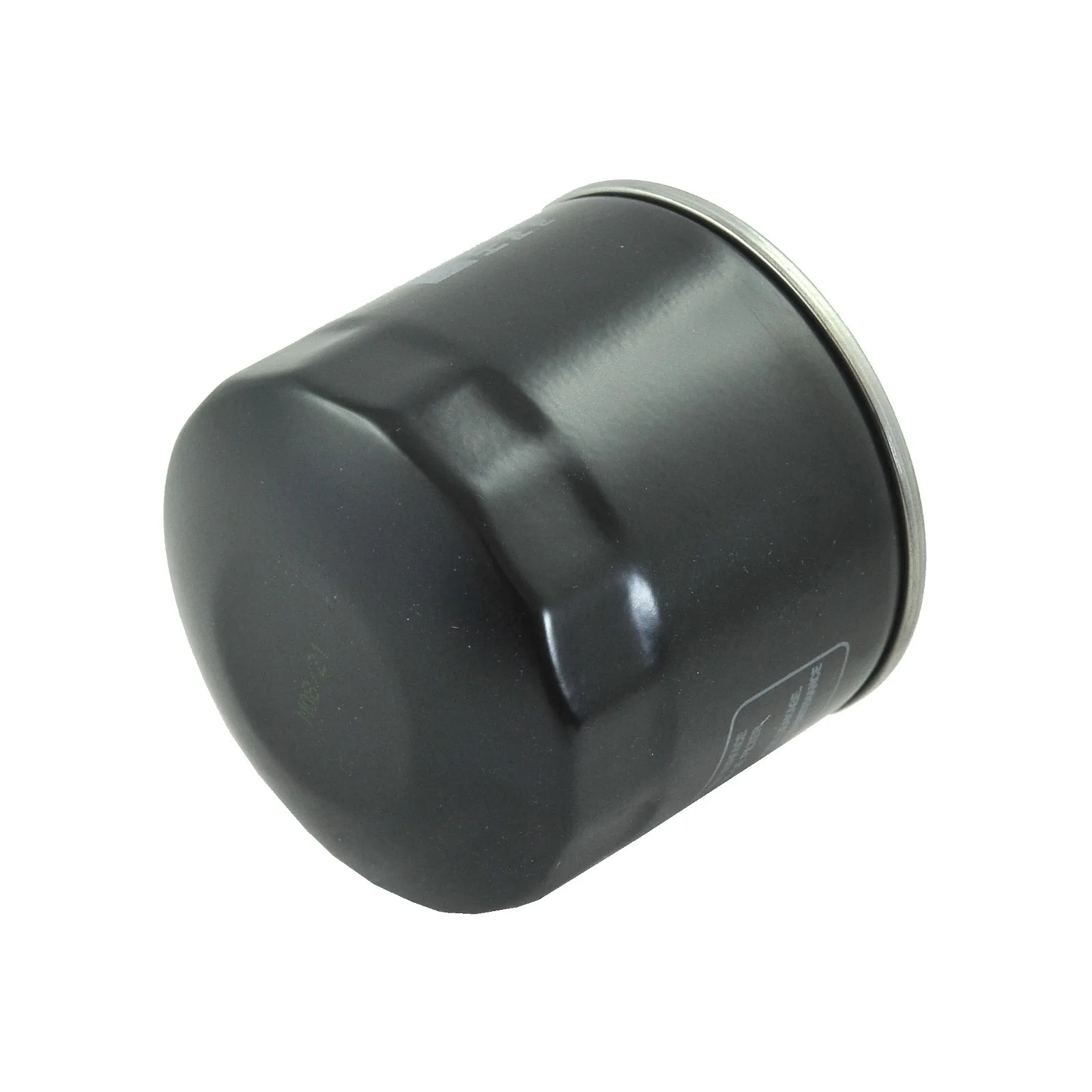

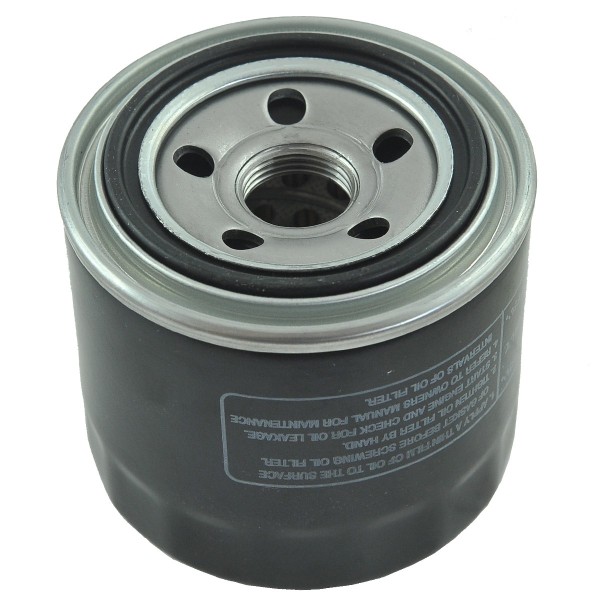

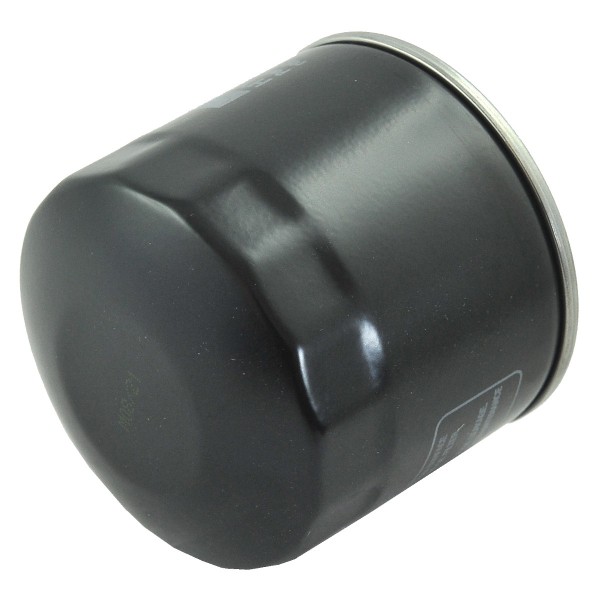

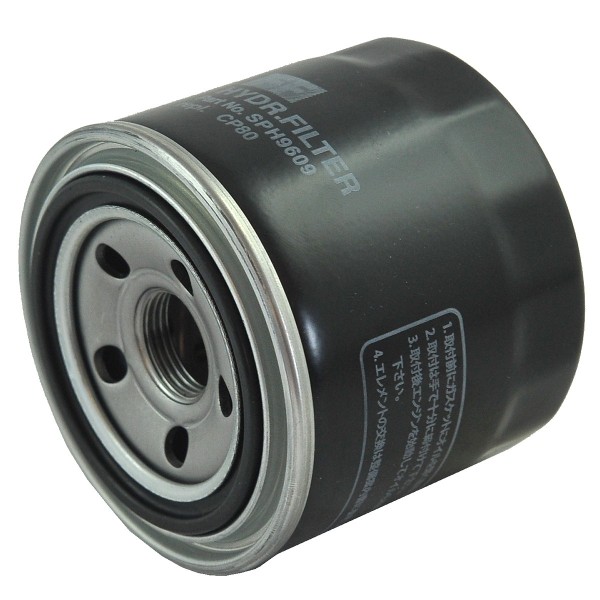

Hydraulic oil filter M20 x 1.5 / 73 x 83 mm / Kubota / Iseki / Hinomoto / SPH9609

Engine oil filter with a diameter of 83 mm , height 73 mm and M20 with 1.5 thread for Japanese tractors of Kubota , Iseki SF series, Hinomoto C series and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Dimensions :

• height: 73 mm,
• diameter: 81 mm,
• base diameter: 83 mm,
• seal diameter: external: 62 mm, internal: 52 mm,
• thread: M20 x 1.5,
• weight: 0.340 kg,
• Comparison numbers: SH60033 , SH 60033 , SPH9609, SPH 9609, 3748-185-1010-0, 21S-60-11150, 12514-11020.

Tractor models:

Hinomto :

• Hinomoto C144,
• Hinomoto C174.

Iseki:

• Iseki SF 200,
• Iseki SF 230,
• Iseki TM217,
• Iseki SXG 22.

Machine models :

• Kubota T2400

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
