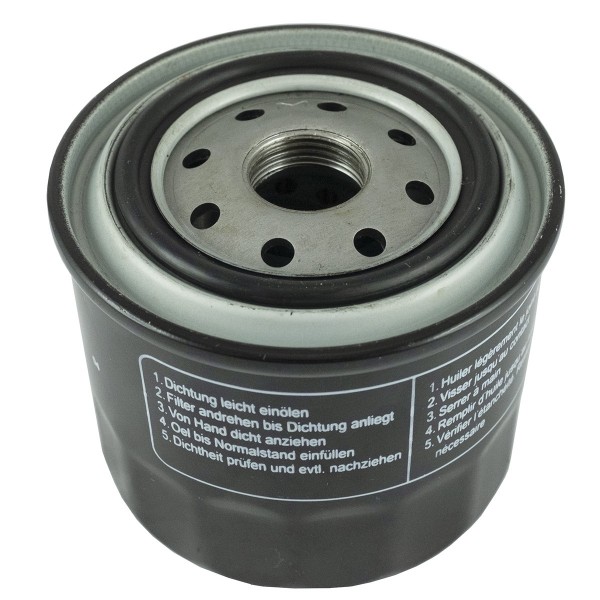

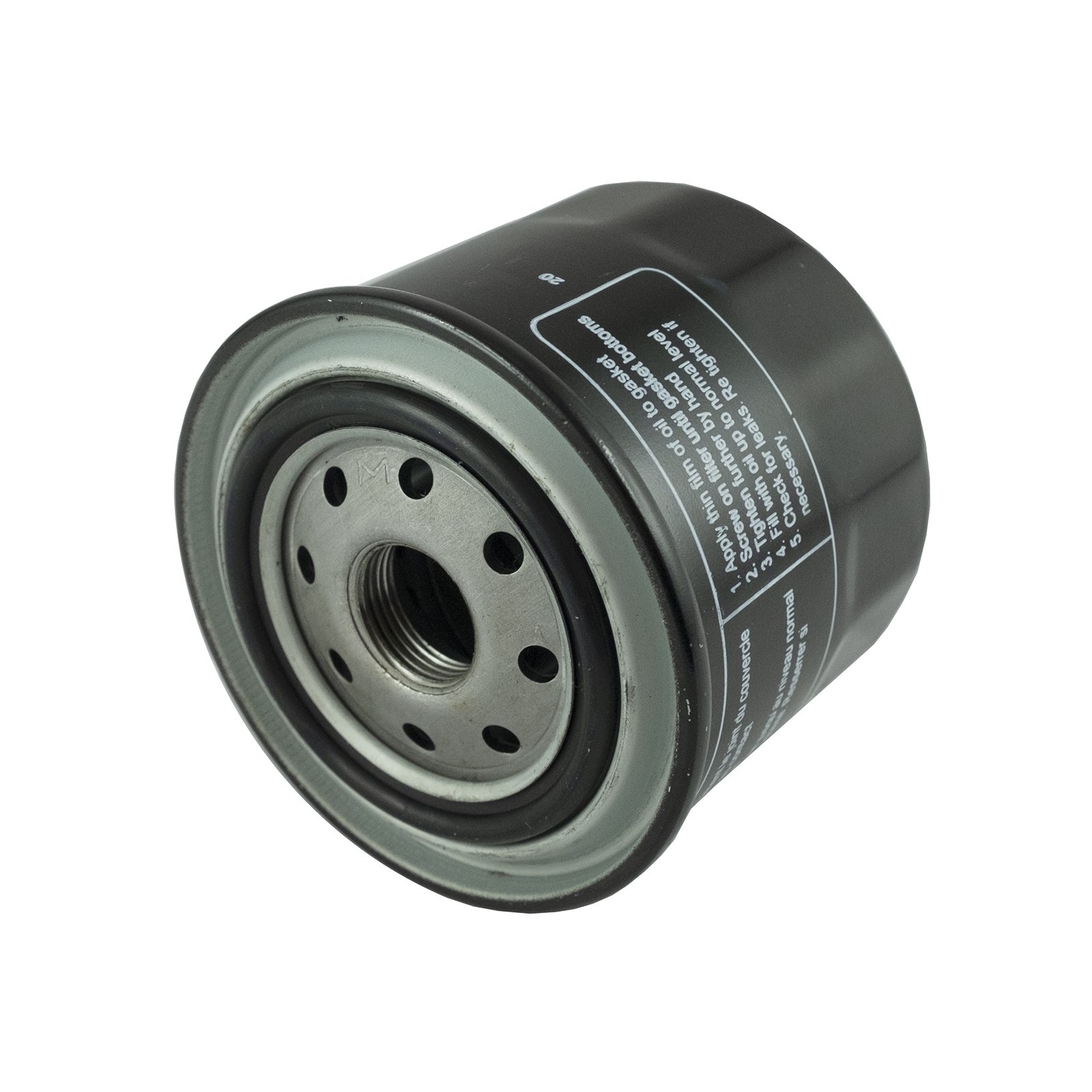

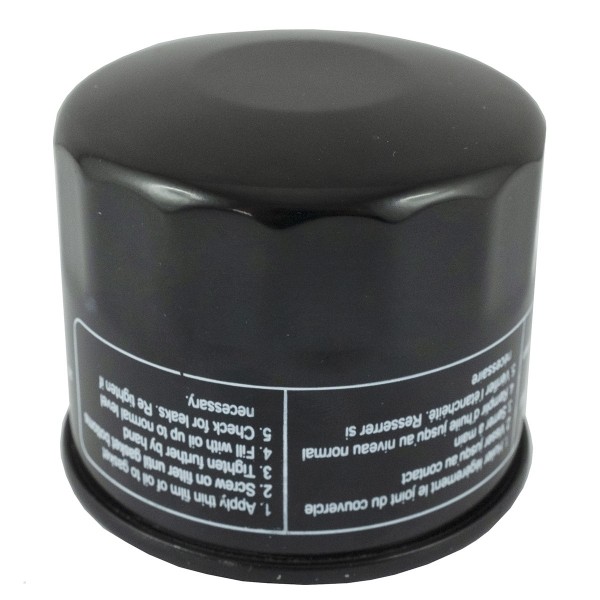

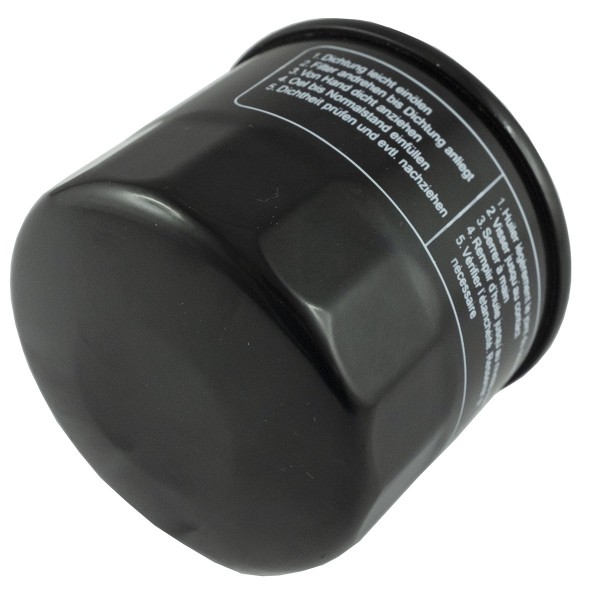

Hydraulic oil filter M20X1.5, 72 x 80 mm, Iseki, Yanmar
SHP 94063
Do you have any questions?
Hydraulic oil filter M20X1.5, 72 x 80 mm, Iseki, Yanmar
Hydraulic oil filter M20 X1.5, 72 x 80 mm, Iseki.
The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor.
Dimensions :
- Height: 72 mm.
- Diameter: 80 mm.
- Base diameter: 84 mm.
- Seal diameter: external: 62 mm, internal: 50 mm.
- Thread: M20X1.5, 18.70 mm.
- Weight: 0.280 kg.
Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
Warehouse :
M01: F54
Specification
Magazyn: M01: F54
Condition
New
Production
Substitute
Parts
Filtry
Height (mm)
72
Diameter (mm)
80
Base diameter (mm)
84
Weight (kg)
0.280
Thread
M20 x 1.5
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
50
Outer seal diameter (mm)
62
Iseki is the third largest manufacturer of agricultural machinery in Japan. It is characterized primarily by a continuous optimization process drawing energy from the combination of Japanese precision and German inventiveness. Since 1961, the company has been producing tractors, which quickly gained recognition not only in Japan. This is evidenced by the fact that ISEKI & Co., Ltd tractors have been and are sold all over the world under various names, including: AGCO, Bolens, Massey Ferguson and White. Several models that were sold in Japan were manufactured by the Italian Landini or French Massey Ferguson plants.
From the beginning of its activity , Iseki has focused primarily on the needs of users. It is currently described as one of the core suppliers in Japan and Europe and as a specialized manufacturer with a complete system solution for many customers. Iseki is associated with: competence, longevity, sustainable development and maximum efficiency.
When producing tractors, they use only high-quality materials and tools. Before releasing the product to the market, Iseki thoroughly tests the product in terms of careful design, reliability and manufacturing quality. Nowadays, Iseki invests in development and modernization, as evidenced by the opening in 2009 of a new training center for technical employees and dealers.
