Product description
Hydraulic directional valve, 3-section, with one float section and a latch function. A solid monoblock unit with a parallel circuit and a cushioning chamber, designed for intensive use in hydraulic machinery. It is characterised by reliability, ease of installation and high durability, which is why it is widely used in agriculture, forestry, fruit growing, construction and industry.
Detailed technical specification:
Maximum flow: 40 l/min.
Number of sections: 3 monoblock.
Working pressure (P): maximum 250 bar.
Return pressure (T): maximum 50 bar.
Pressure at the sections (A, B): up to 300 bar.
Safety valve: factory set to 180 bar, adjustable with a screw on the side of the housing.
Temperature range: oil from -15°C to +80°C; ambient from -40°C to +60°C.
Section functions and lever operation:
The valve code defines the characteristics of each of the three sections:
1. Two standard sections (C1ST1D1):
Positions: 1 - 0 - 2.
Operation: Fitted with a spring that automatically returns the lever to the neutral position (0) when released, stopping the cylinder.
2. One float section (C1ST6D5):
Positions: 1 - 0 - 2 - 3 (float).
Operation: Positions 1 and 2 are spring-operated (as in the standard sections). The fourth position (3) is a float function with a latch.
Float function: Allows the cylinder to move freely in both directions under the influence of external forces (e.g. a plough blade following the terrain).

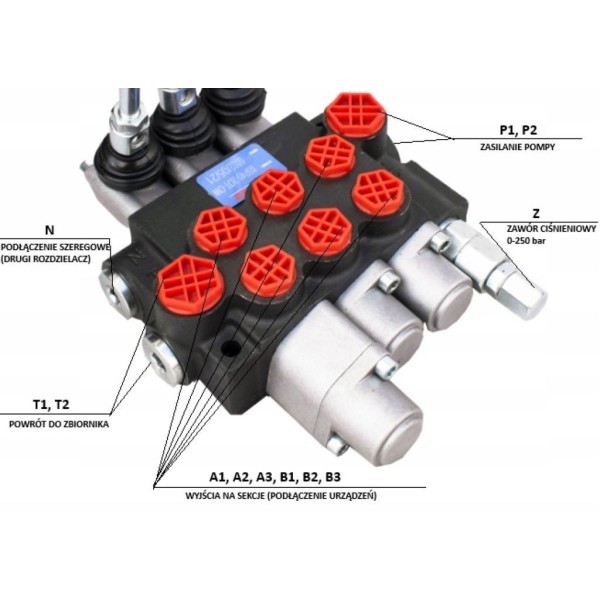

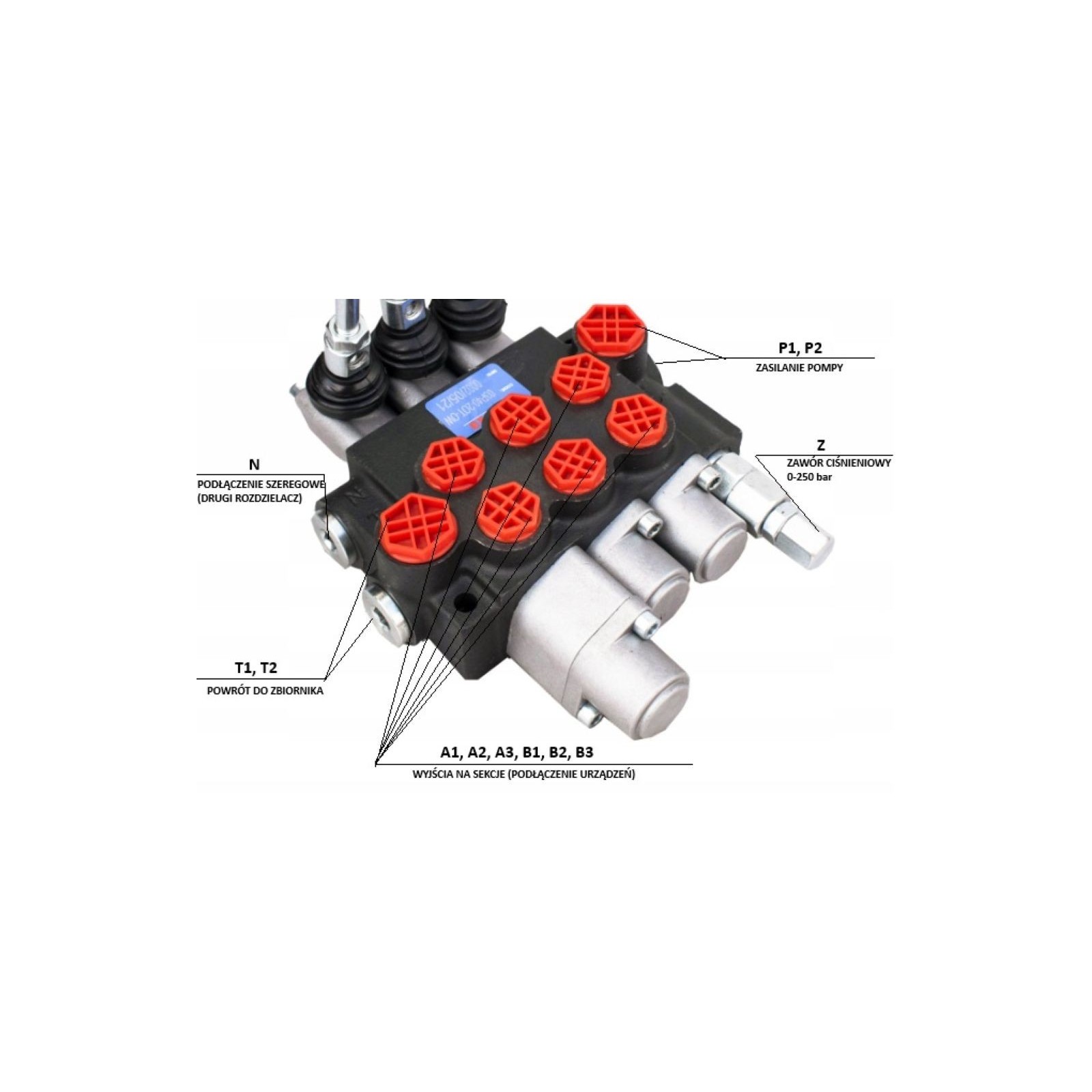

Connection instructions (ports):
P (Supply): Female thread 1/2" BSP. The line from the hydraulic pump is connected here.
T (Return): Female thread 1/2" BSP. The line carrying oil back to the tank.
A and B (Section outlets): Female threads 3/8" BSP. Pairs of ports leading to the cylinders (each section has one A+B pair).
N (Pressure carry-over): Allows another valve to be connected in series using a special pressure sleeve.
Practical applications:
Thanks to the unique combination of sections, this model is ideal for:
Front loaders: Two sections for lifting and tilting, the third (float) for working with attachments that follow the ground.
Snow ploughs: The float section protects the blade from damage on uneven ground.
Construction machinery: Provides precise control while maintaining safety thanks to the relief valve.
Warehouse: (M01:M11)
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
