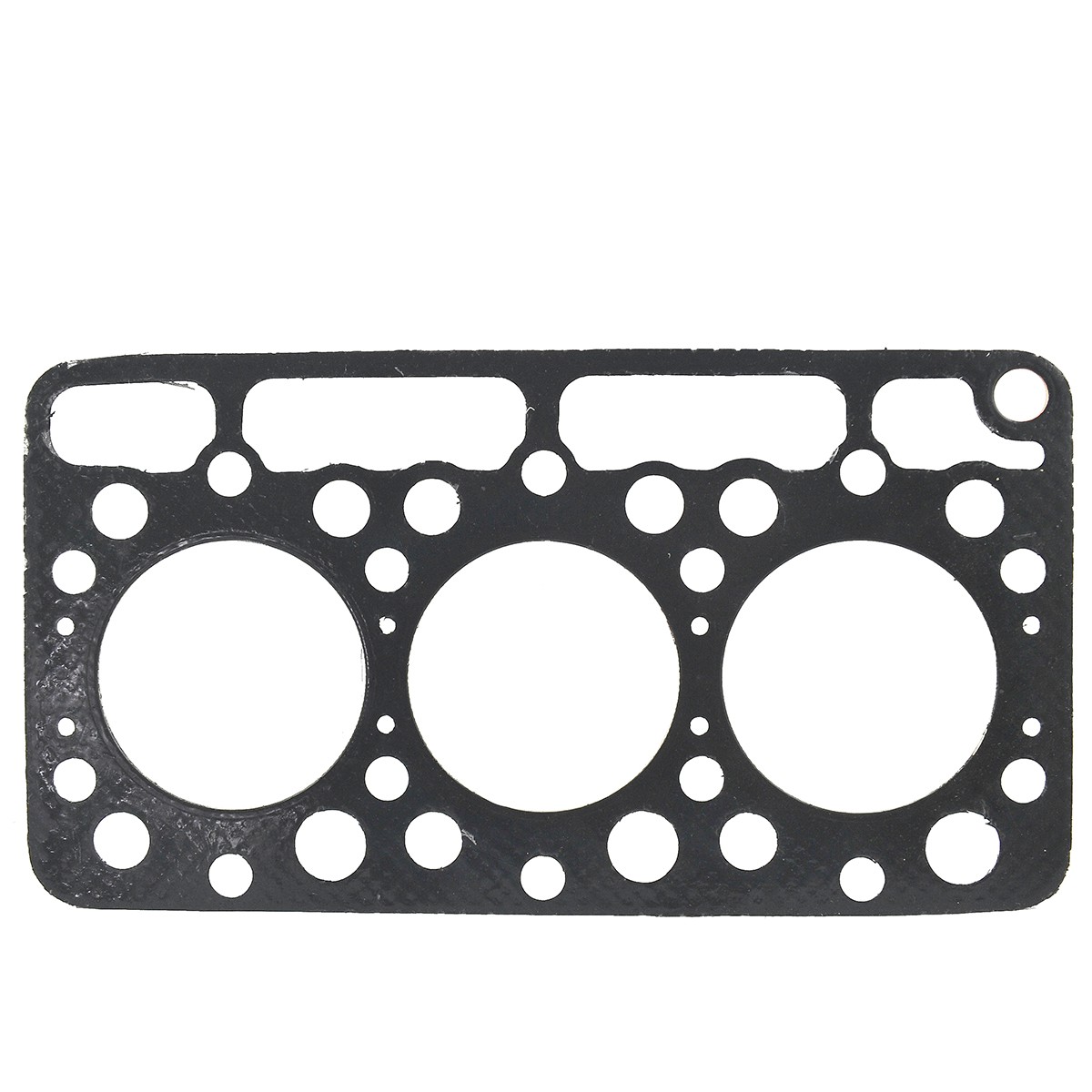

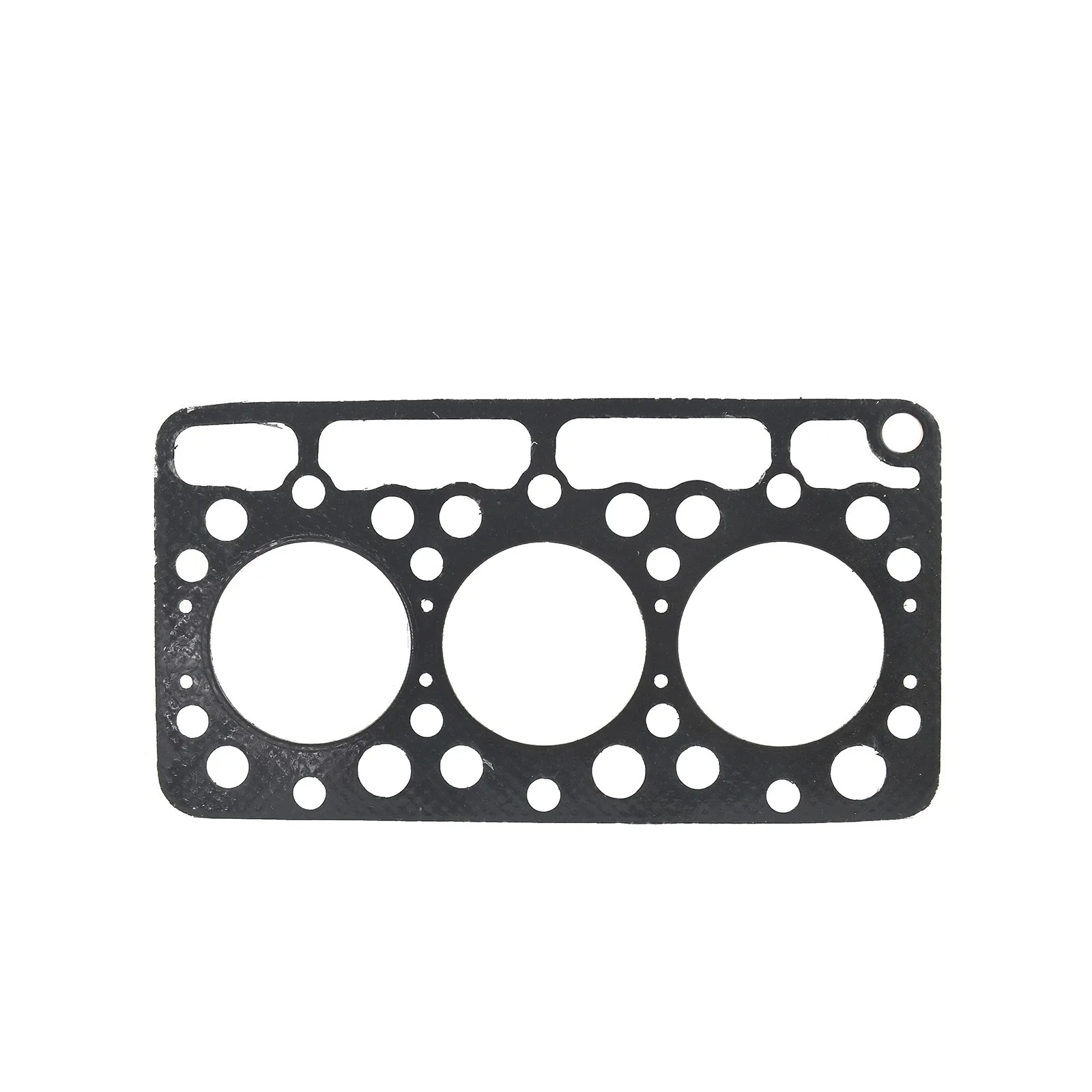

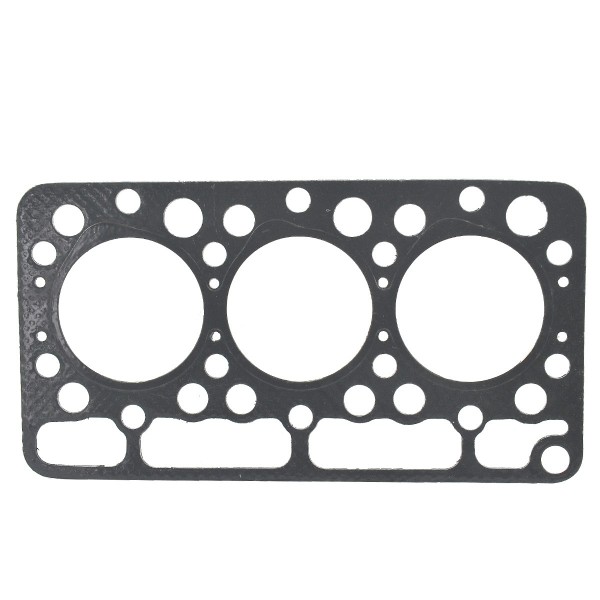

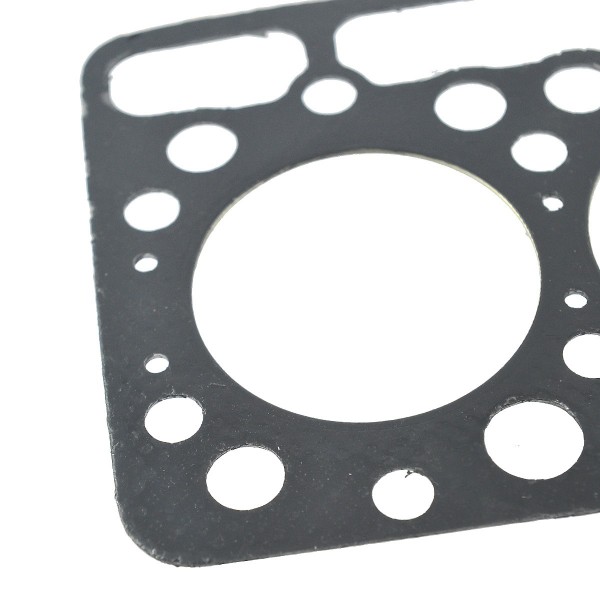

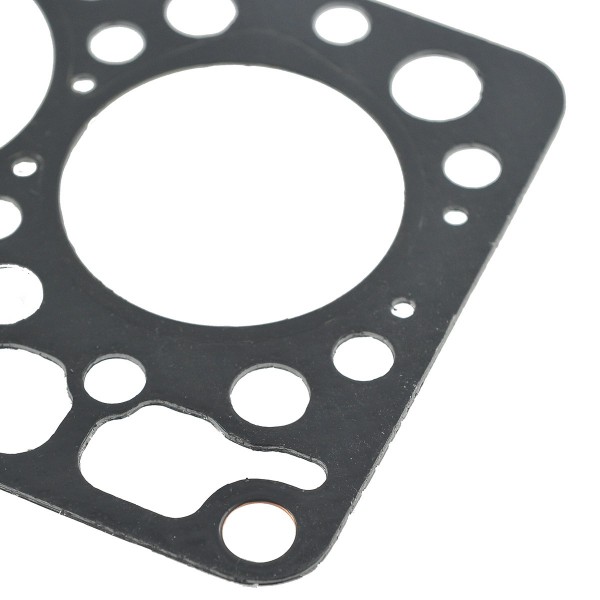

Head gasket / Kubota D750 / Kubota B7001 / B1200 / XB1

Gasket (head CH-D750) with dimensions 273 x 145 mm , piston hole diameter 70 mm and thickness 1.60 mm for Kubota tractors of the Kubota B7001, Kubota B7100, Kubota XB1 series with Kubota D750 engines and others.

The cylinder head gasket is a gasket installed at the junction between the cylinder head and the engine block. The connection between the block and the cylinder head must be airtight for the engine to function properly. The cylinder head gasket seals the cylinders, coolant passages, and lubrication channels, and prevents the two fluids from mixing. The gasket's second purpose is thermal insulation, as part of the engine block can heat up to 2000 degrees Celsius from the combustion chambers.

Dimensions :

• length: 273 mm,
• width: 145 mm,
• thickness: 1.60 mm,
• piston hole diameter: 70 mm,
• original part numbers: 15371-03310, 15371-03311, 15371-03312, 15975-03310,
• comparison numbers: HU HG D750/70,
• part numbers: HP31785.

Tractor models :

• Kubota B7001,
• Kubota B7100,
• Kubota XB1.

Engine models :

• Kubota D750.

The first signs of head gasket wear, gasket burnout, or gasket blowout are uneven operation of the warm engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank).

Magazine : M01:D14:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
