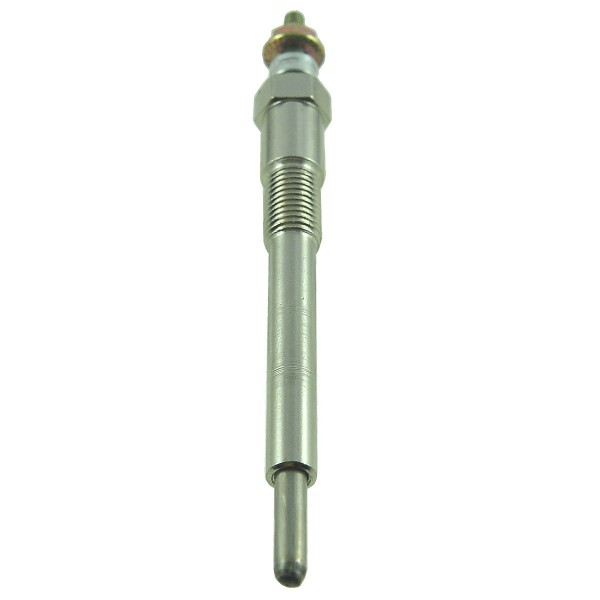

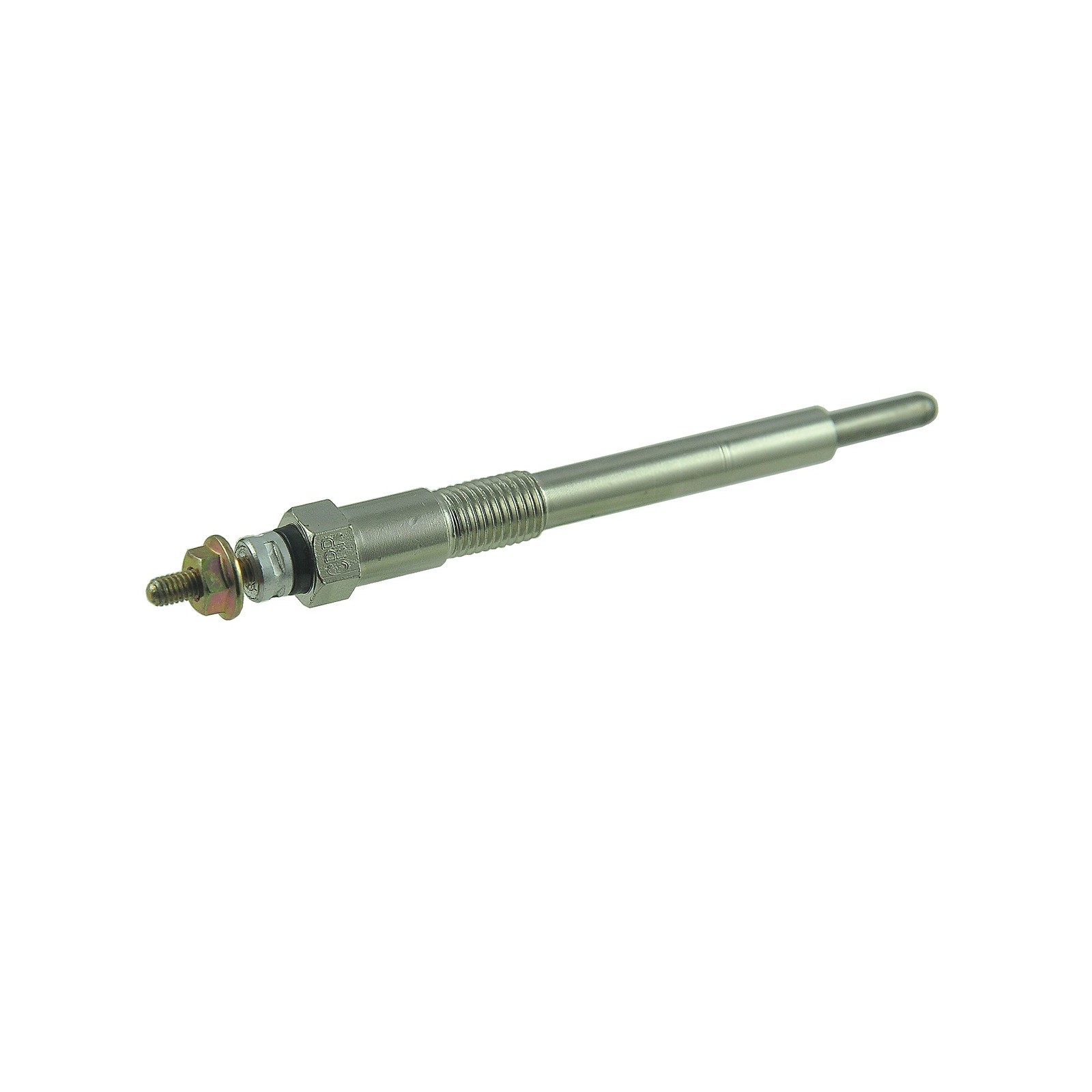

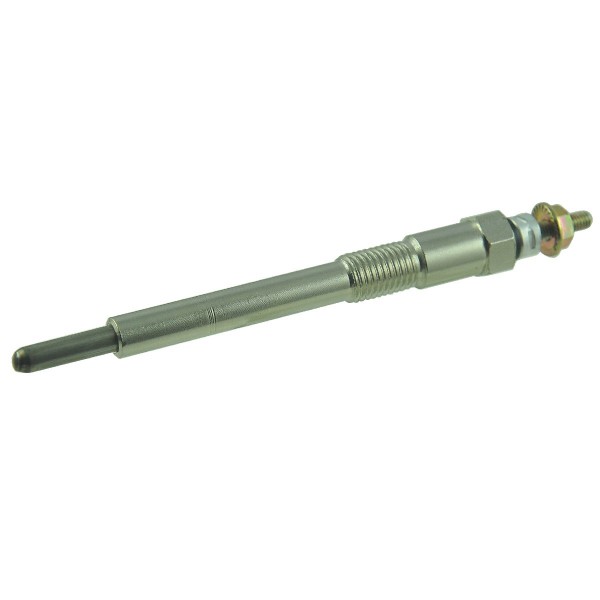

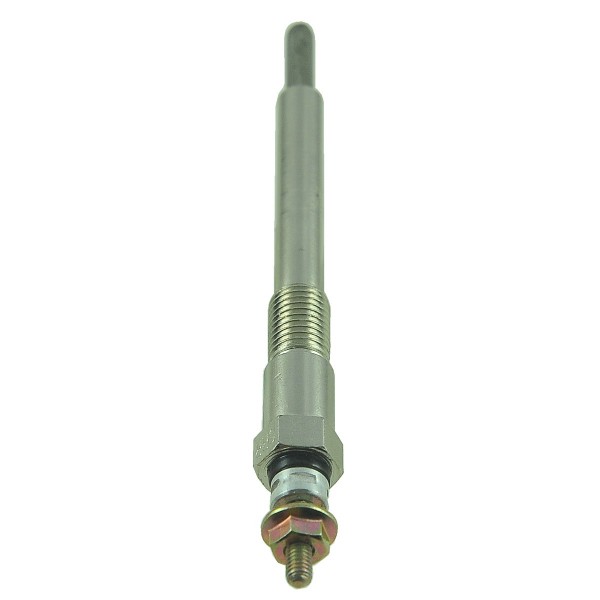

Glow plug / 10.5V / M10 / 123mm / Kubota F2302 / F2303 / F2402 / S2602 / S2802 / V2003 / V2203 / V2403

Glow plug with a total length of 123 mm and a filament length of 19.50 mm with M10 x 1.25 thread for tractors and other Kubota brands of the Kubota KX121-2, Kubota KX121-3 series with engines Kubota F2302, Kubota F2303, Kubota F2402, Kubota F2802, Kubota S2602, Kubota S2802, Kubota V2003, Kubota V2203, Kubota V2403 and others.

The glow plug is mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions ;

• total length: 123 mm,
• filament length: 19.50 mm.
• thread 1: M10 x 1.25,
• thread 2: M4 x 0.75,
• thread length: 14 / 14 mm,
• key size: 12,
• original part numbers: 17331-65510 ,
• comparison numbers: 17331-65511,
• part numbers: B1VPF3718, 5-26-107-16.

Engine models :

Kubota :

• Kubota F2302,
• Kubota F2303,
• Kubota F2402,
• Kubota F2802,
• Kubota S2602,
• Kubota S2802,
• Kubota V2003,
• Kubota V2203,
• Kubota V2403.

Machine models :

Kubota :

• Kubota KX121-2,
• Kubota KX121-3.

A faulty glow plug is a common cause that prevents the engine from starting and the machine from grounding. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C64:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
