Product description

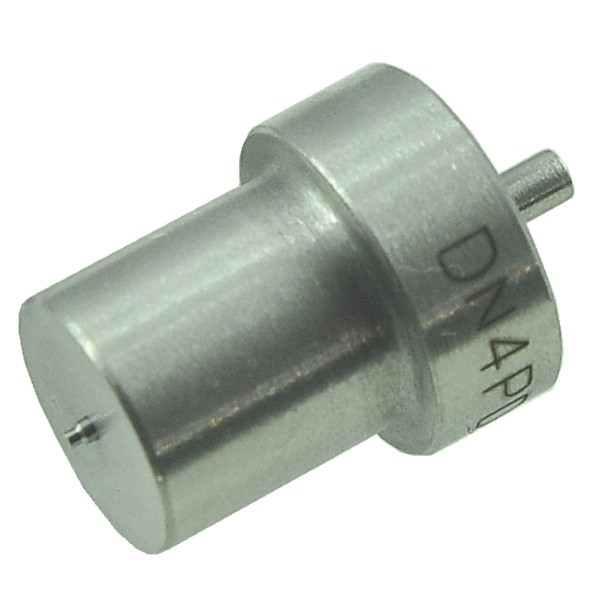

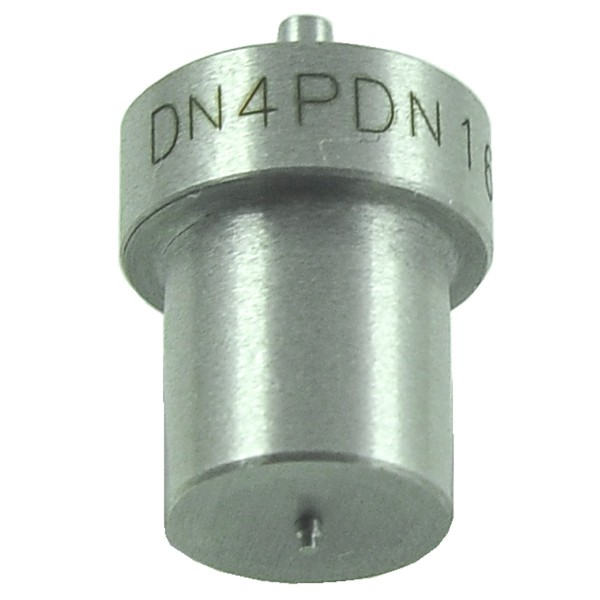

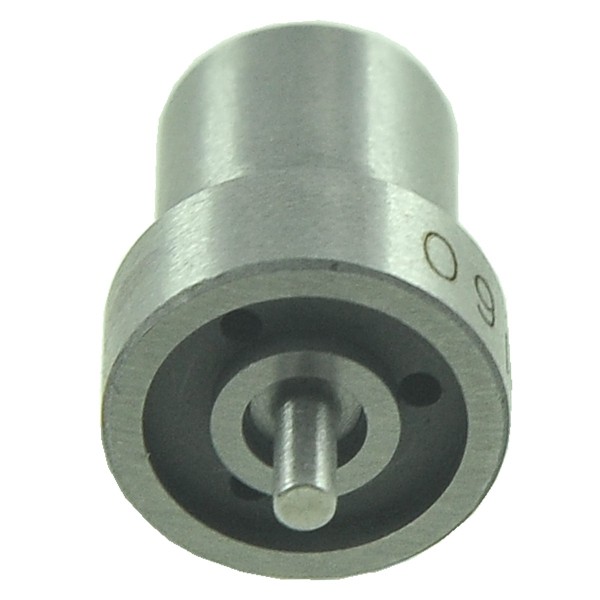

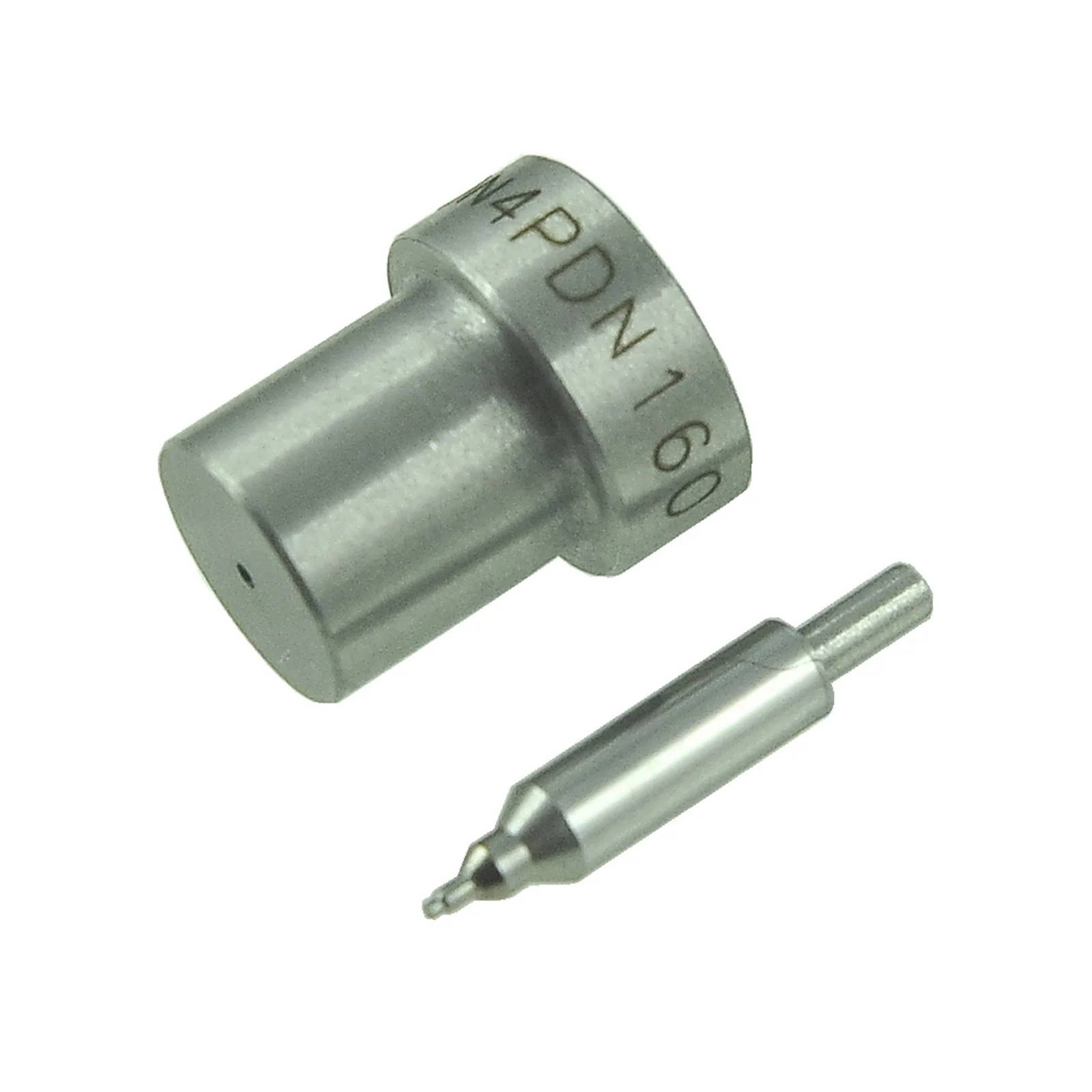

Injector nozzle (injector 105007-1690, MD196607) with an overall length of 22.30 mm and a diameter of 2/10.50/14 mm for Kubota tractors with Kubota D1005, Kubota D1302, Kubota V1405, Kubota V1512 engines, and others. A fuel injector is a mechanism whose task is to very precisely deliver fuel at the appropriate pressure to the cylinder head near the intake valves (spark plugs) or to the intake manifold. Injectors are highly precise and fast-acting valves that open for a predetermined time, generating the appropriate fluid pressure. Fuel mixed with air in the intake system or cylinder, delivered via fuel injection, burns properly, directly contributing to optimal or higher engine performance. Properly functioning fuel injectors have a direct impact on engine operation, fuel consumption, and reduced exhaust emissions.
Dimensions :
- Total length: 22.30 mm,
- Diameter: 2 / 10.50 / 14 mm,
- Pressure: 142 - 150 bar,
- Original part numbers: 1G67753612, 1G96253611, 1687153611, 105007-1690,
- Reference numbers: DN4PDN166, DN4PDN169,
- Part numbers; DN4PDN160.
Engine model:
- Kubota D1005,
- Kubota D1302,
- Kubota V1405,
- Kubota V1512.
Magazine : K18:F37:S03
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Injection..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
