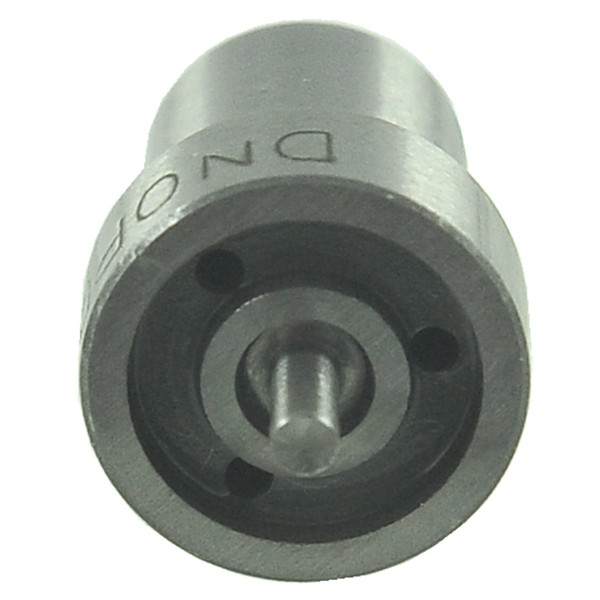

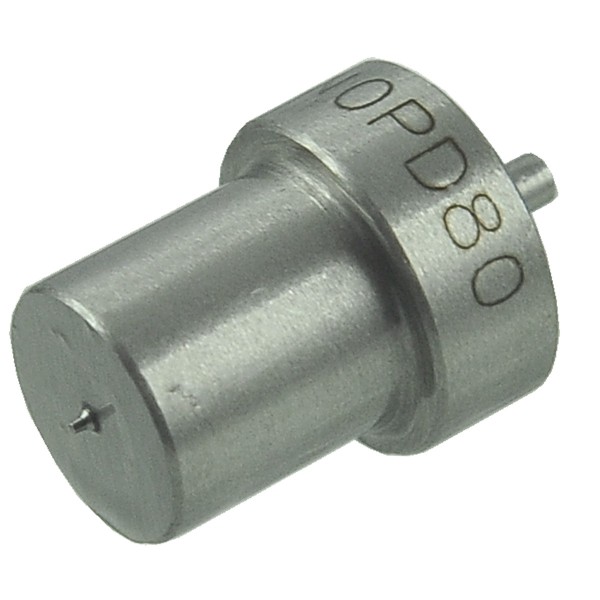

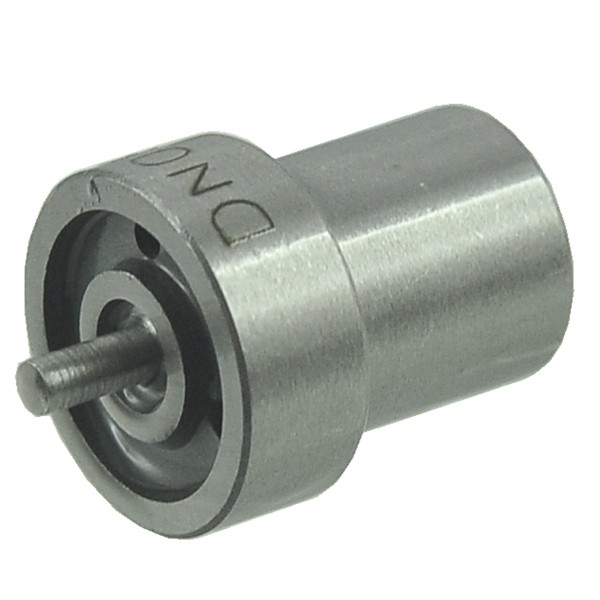

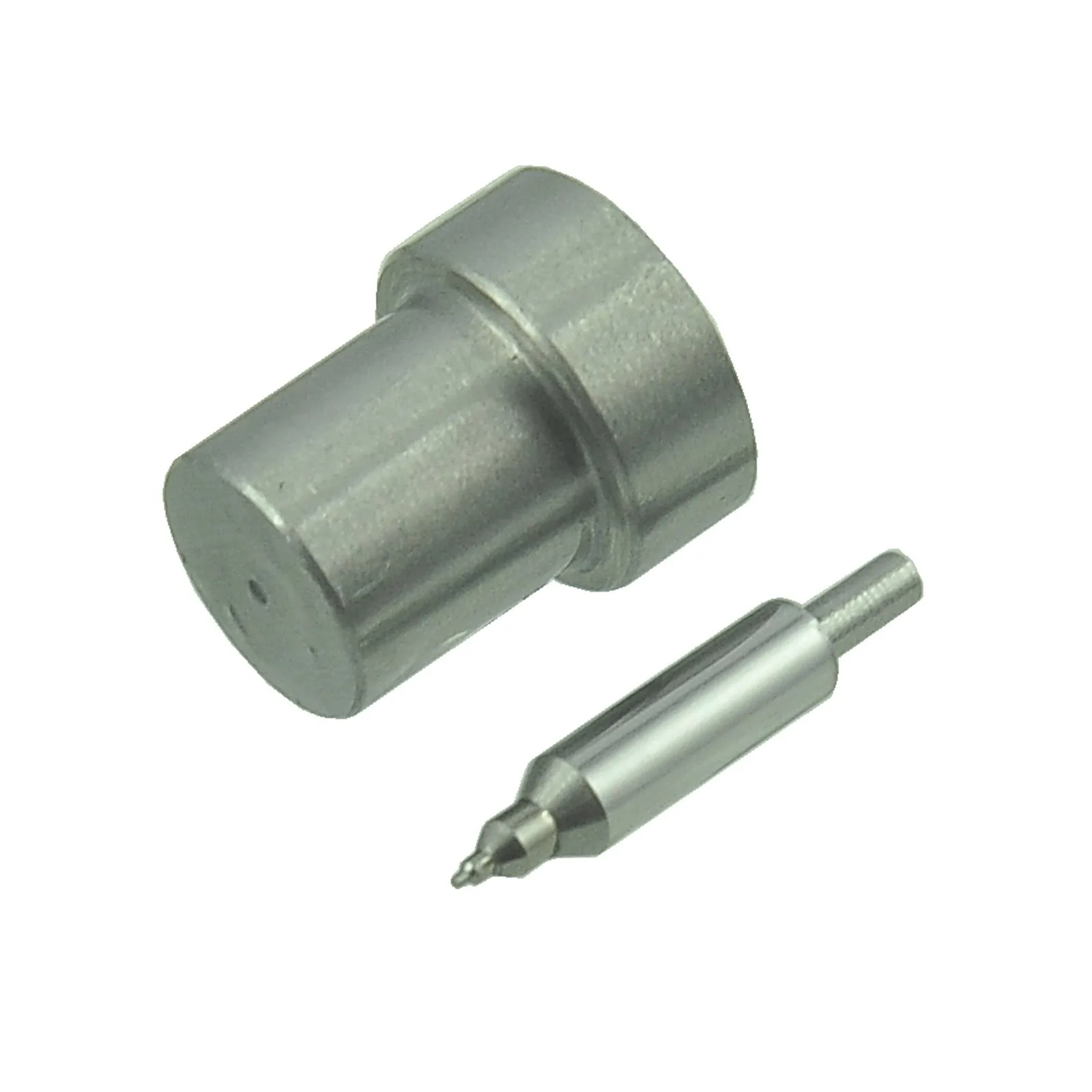

Injector nozzle / Kubota D1403 / D1503 / D1703 / V2003 / V2203 / DN0PD80 / 093400-5800

Injector nozzle with an overall length of 22.20 mm and a diameter of 2.00 / 10.50 / 14 mm for Kubota tractors and other machines with Kubota D1403, Kubota D1503, Kubota D1703, Kubota V2003, Kubota V2203 engines, and others. A fuel injector is a mechanism whose task is to very precisely deliver fuel at the appropriate pressure to the cylinder head near the intake valves (spark plugs) or to the intake manifold. Injectors are very precise and fast-acting valves that open for a predetermined time, generating the appropriate fluid pressure. Fuel mixed with air in the intake system or cylinder, delivered via fuel injection, burns properly, directly contributing to optimal or higher engine performance. Properly functioning fuel injectors have a direct impact on engine operation, fuel consumption, and reduced exhaust emissions.

Dimensions :

• Total length: 22.20 mm,
• Diameter: 2.00 / 10.50 / 14 mm,
• Original part numbers: 093400-5800,
• Part numbers: DN0PD80.

Engine models :

• Kubota D1403,
• Kubota D1503,
• Kubota D1703,
• Kubota V2003,
• Kubota V2203.

Magazine : K18:F37:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
