Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Filtry
Height (mm)
67
Diameter (mm)
34
Hole diameter (mm)
12
Mounting bolt(s) hole diameter (mm)
12.70
Go to full specification >

Fuel filter / Kubota M8540 / M9540 / 1G410-43350

6-01-120-02
zł250.00
Tax included PL 23%

203,25 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

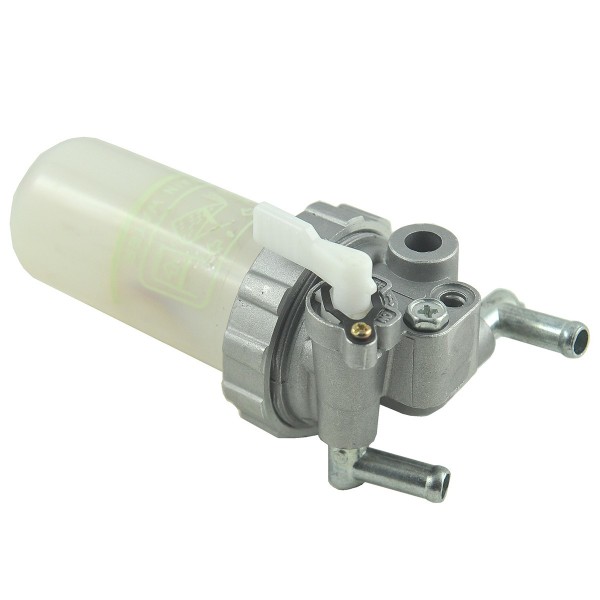

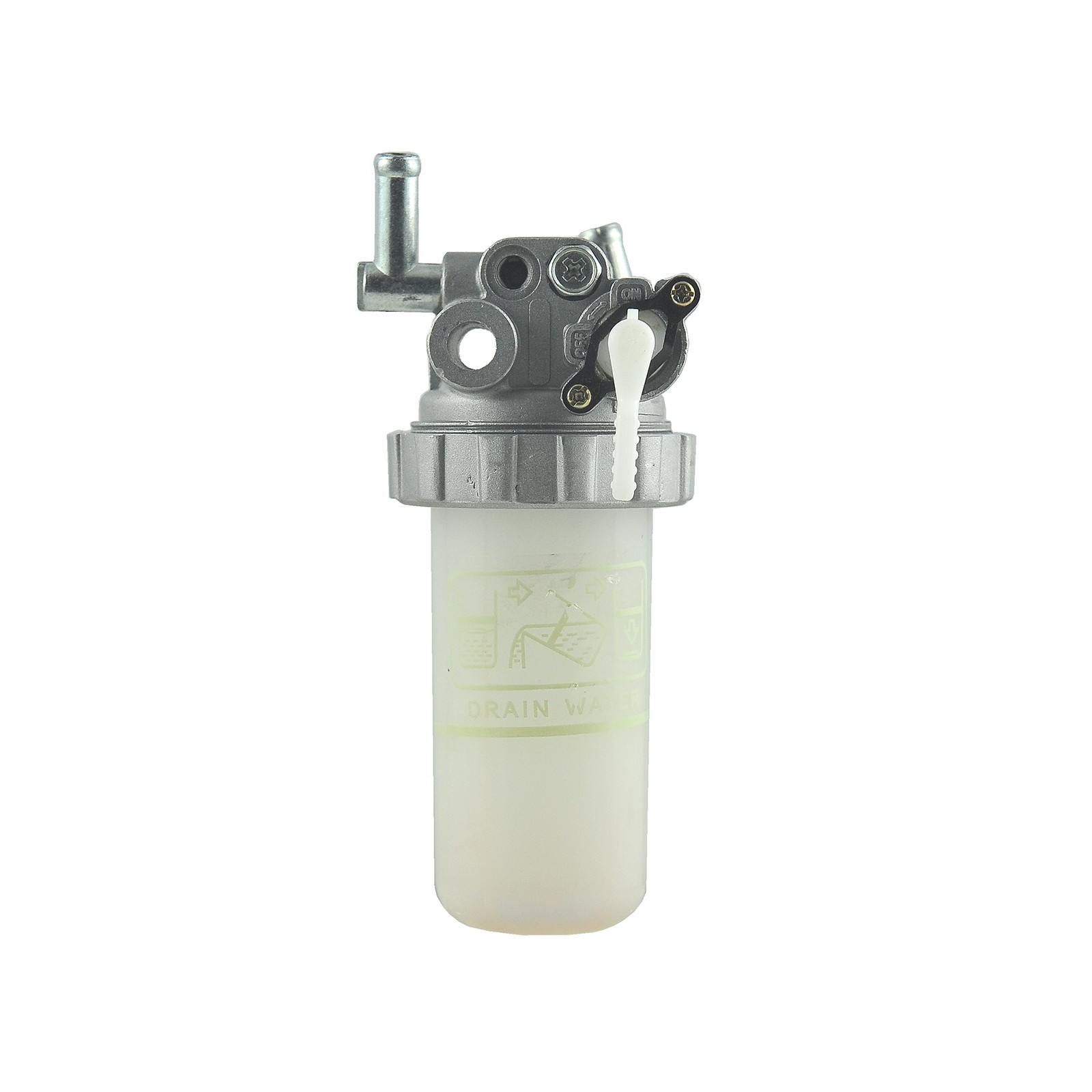

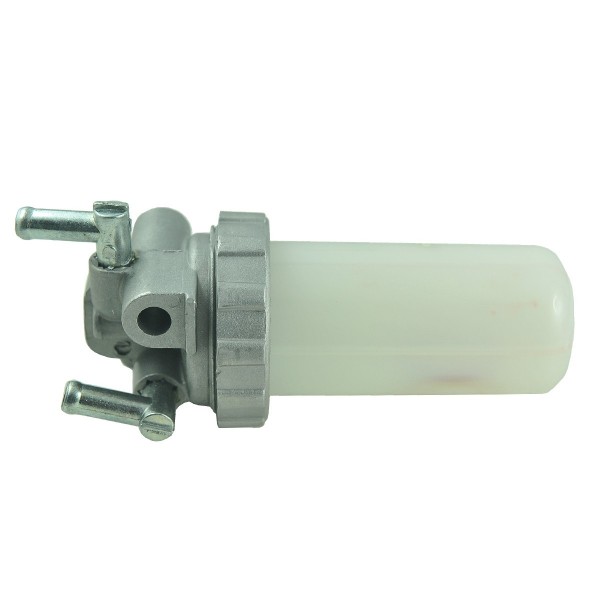

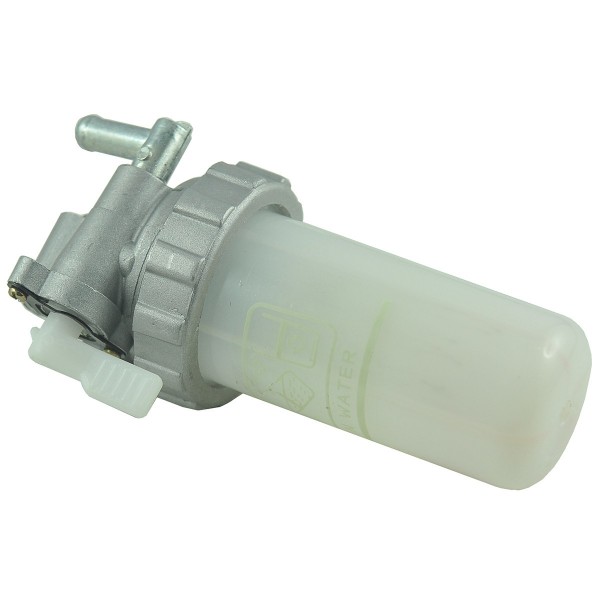

Fuel filter / Kubota M8540 / M9540 / 1G410-43350

Water separator without filter (filter 6-14-205-04 ) with a height of 140 mm for Kubota tractors of the Kubota M8540, Kubota M9540 series and others.

The fuel filter is one of the most important elements of the fuel system, which directly affects the correct operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro organic impurities. Fuel filters are divided into two main groups due to their application, and so for an engine with petrol fuel we will use a different type of filter than for an engine powered by diesel fuel. Regardless of the type of fuel, the filtering material is various types of paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Dimensions:

  • height: 140 mm.
  • inner diameter of the glass: 42.50 mm.
  • Outer diameter of the glass: 45 mm.
  • glass height: 98 mm.
  • original part numbers: 1G410-43350 ,
  • reference numbers: 6-01-100-01, 3K021-43350, RA238-51400, TC422-25740 ,
  • part numbers: 6-01-120-02.

Tractor models:

Kubota:

  • Kubota M8540,
  • Kubota M9540.

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems when starting the engine or cause the engine to misfire. Sometimes a clogged fuel filter causes a loss of rated engine power or affects higher fuel consumption.

Warehouse:
K18:A33:S01

Specification

Magazyn: M01:D73
Condition
New
Production
Substitute
Parts
Filtry
Height (mm)
67
Diameter (mm)
34
Hole diameter (mm)
12
Mounting bolt(s) hole diameter (mm)
12.70
Connection diameter (a) (mm)
inner: 7.20 mm, outer: 9 mm
Total height (mm)
140
Filter type
Fuel filter
Housing height (mm)
140
Housing inner diameter (mm)
42.50
Housing outer diameter (mm)
45
