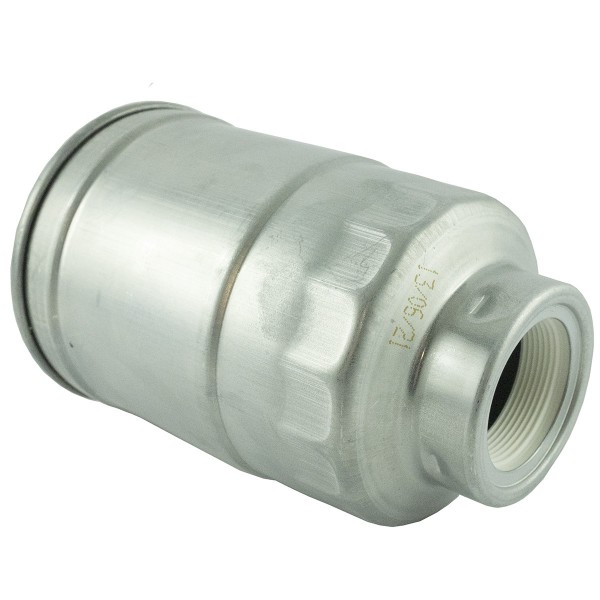

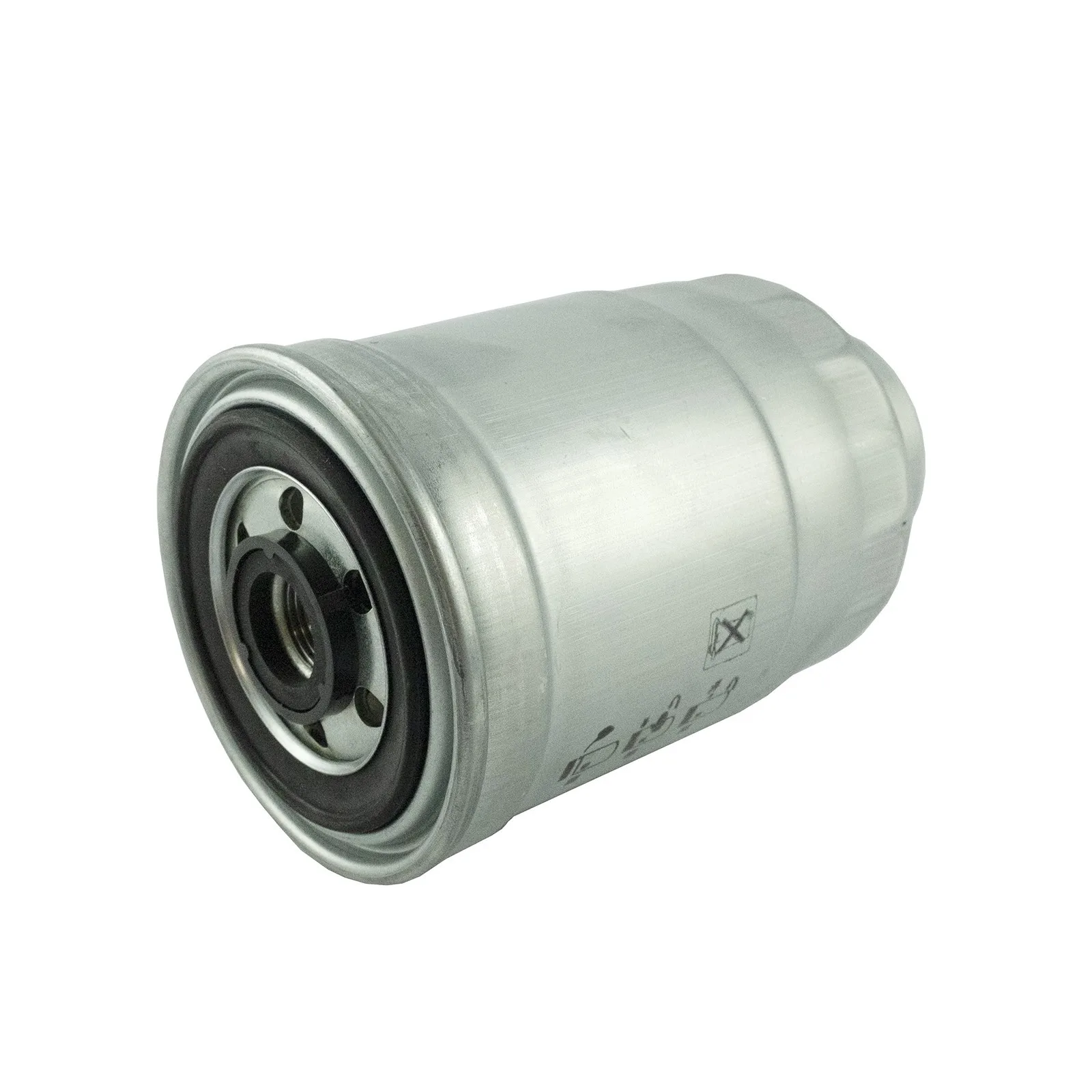

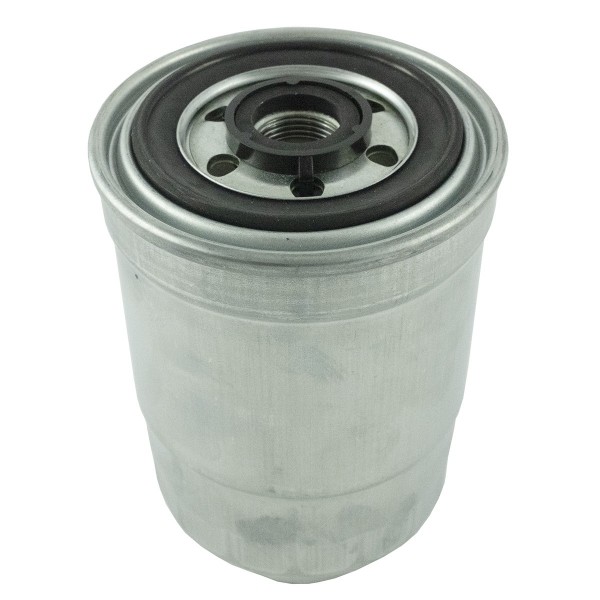

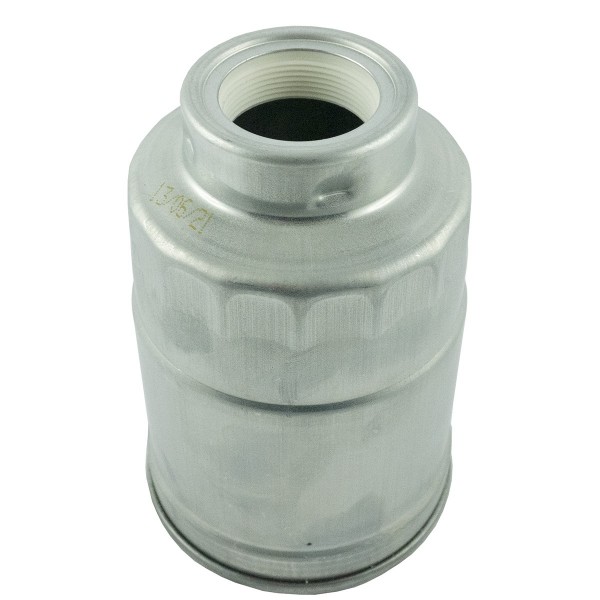

Fuel filter M20x1.5 / M36x1.5 / 143 x 93 mm / New Holland / Mitsubishi / Mazda / Isuzu

Metal screw-on filter with an outer diameter of 93 mm , a total height of 143 mm with a thread diameter of M20 x 1.5 and M36 x 1.55 for Japanese tractors and other brands, min. LS Tractor , New Holland and other machines such as forklifts with Mazda, Isuzu engines and others.

The fuel filter is one of the most important elements of the fuel system that directly affects the proper operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro-organic impurities. Fuel filters are divided into two main groups due to their application and so we will use a different type of filter for a gasoline engine than for a diesel engine. Regardless of the type of fuel, the filtering material is made of various types of blotting paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Dimensions :

• height: 143 mm,
• outer diameter: 90 mm,
• base diameter: 93 mm,
• gasket diameter: outer: 74 mm, inner: 54 mm,
• thread: M20x1.5, 18.40 mm / M36x1.5, 34.40 mm,
• weight: 0.540 mm,
• comparative numbers: 40006997, 40369073, 40319765.

Tractor models :

LS Tractor :

• LS U5020,
• LS U60.

New Holland :

• New Holland 35 Workmaster,
• New Holland 40 Workmaster,
• New Holland BOOMER 40,
• New Holland BOOMER 50.

Engine Models :

Kubota :

• Kubota V3600 T-E3BV,
• Kubota V3800Di.

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems when starting the engine or cause the engine to run intermittently. Sometimes a clogged fuel filter will cause the engine to lose nominal power or result in higher fuel consumption.
