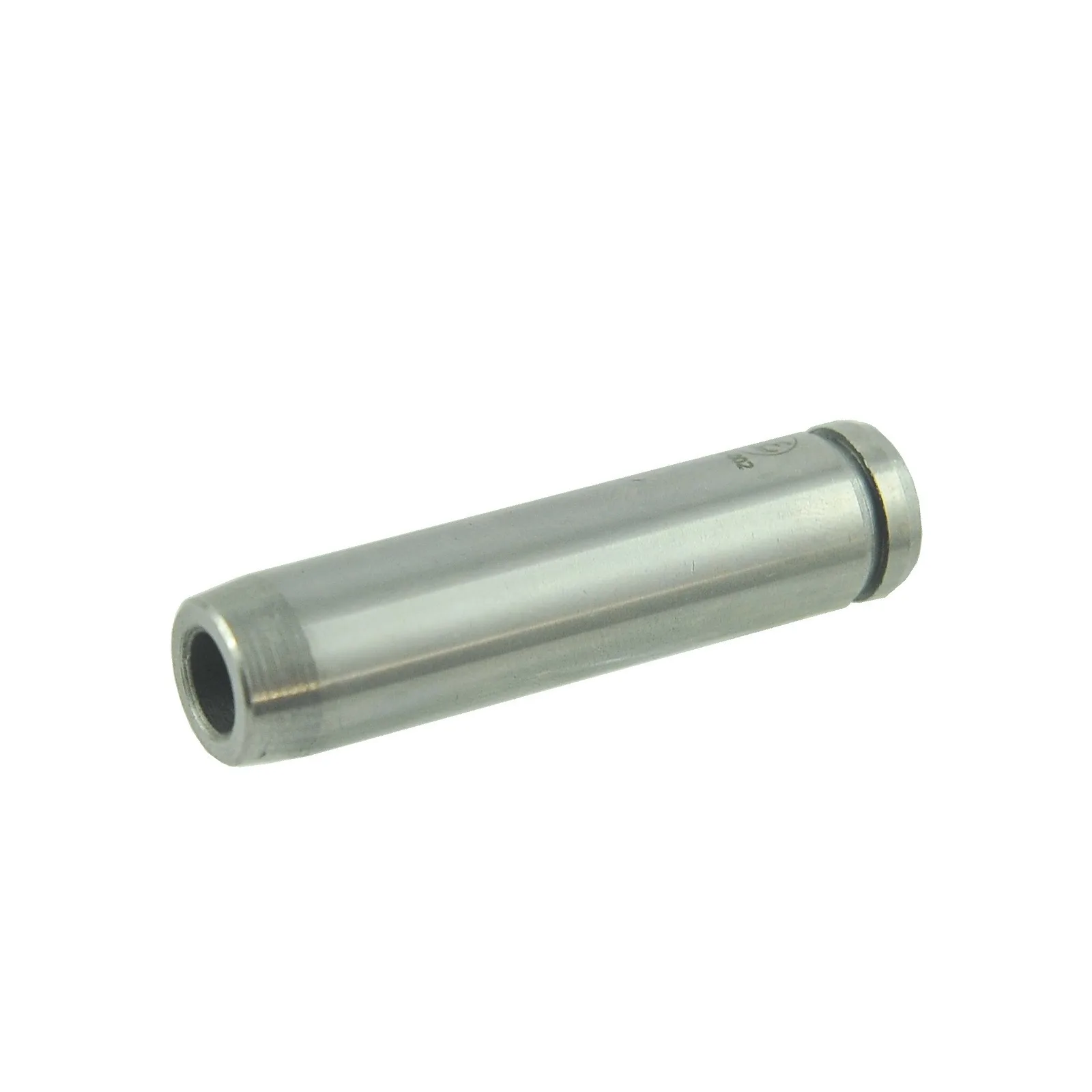

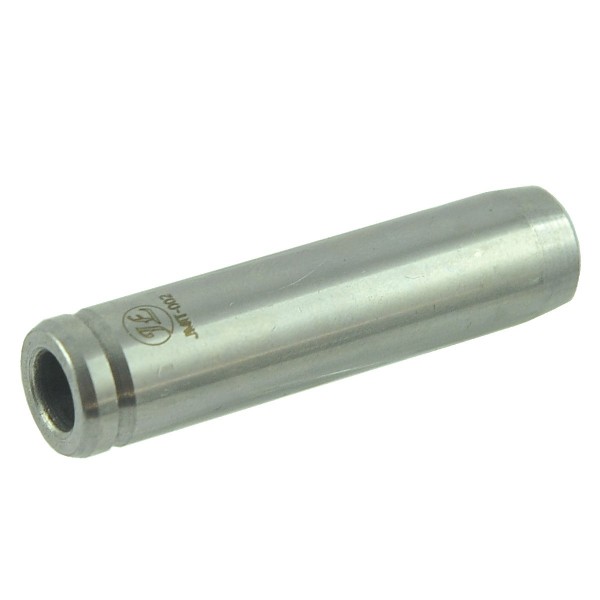

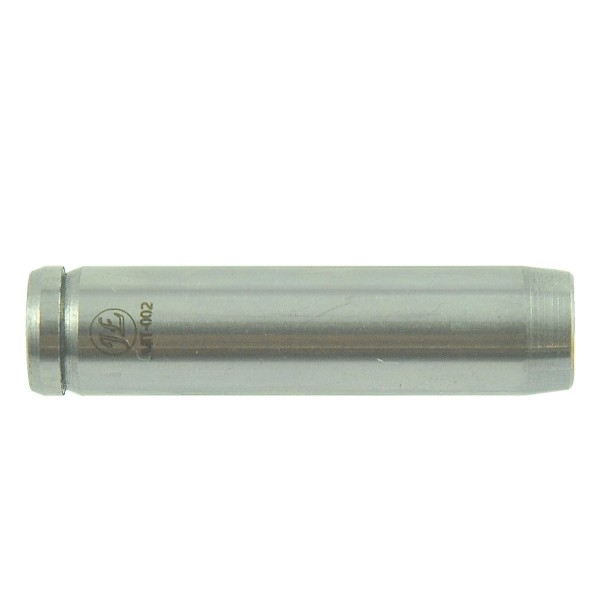

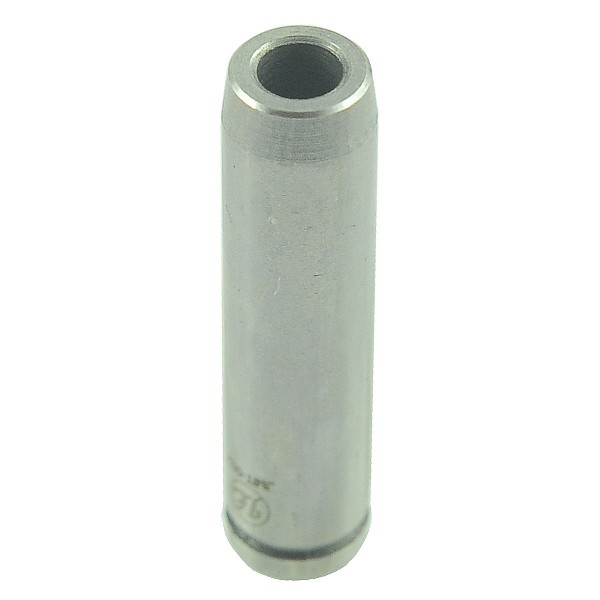

Valve Guide / EX / Mitsubishi 4G11

EX exhaust valve guide with a total length of 50.05 mm, an outer diameter of 12.05 mm , an inner diameter of 6.6 mm for Mitsubishi 4G11 engines and others. The valve guide is an element whose main task is to guide the valve stem and remove some of the heat from the valve head to the cylinder head. The valve guide holds the valve in the correct position during engine operation and provides the appropriate pressure for correct valve operation. The correct position of the valve relative to the valve seat and the greatest possible accuracy of this fit is desirable, but it should also be remembered that too small a clearance can cause the valve to seize.

Dimensions :

• total length: 50.05 mm,
• inner diameter: 6.60 mm,
• outer diameter: 12.05 mm
• original part numbers: MD-016445,
• reference numbers: VAG92047, 01-1890, 81-75001,
• part numbers: JMIT-002.

Engine models:

Mitsubishi:

• Mitsubishi 4G11.

The first signs of valve guide wear are increased fuel or oil consumption, reduced engine power or uneven engine operation. Damaged guides should be replaced with new ones as soon as possible, because damaged guides can damage the valve system.

Magazine : M01:A23:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
