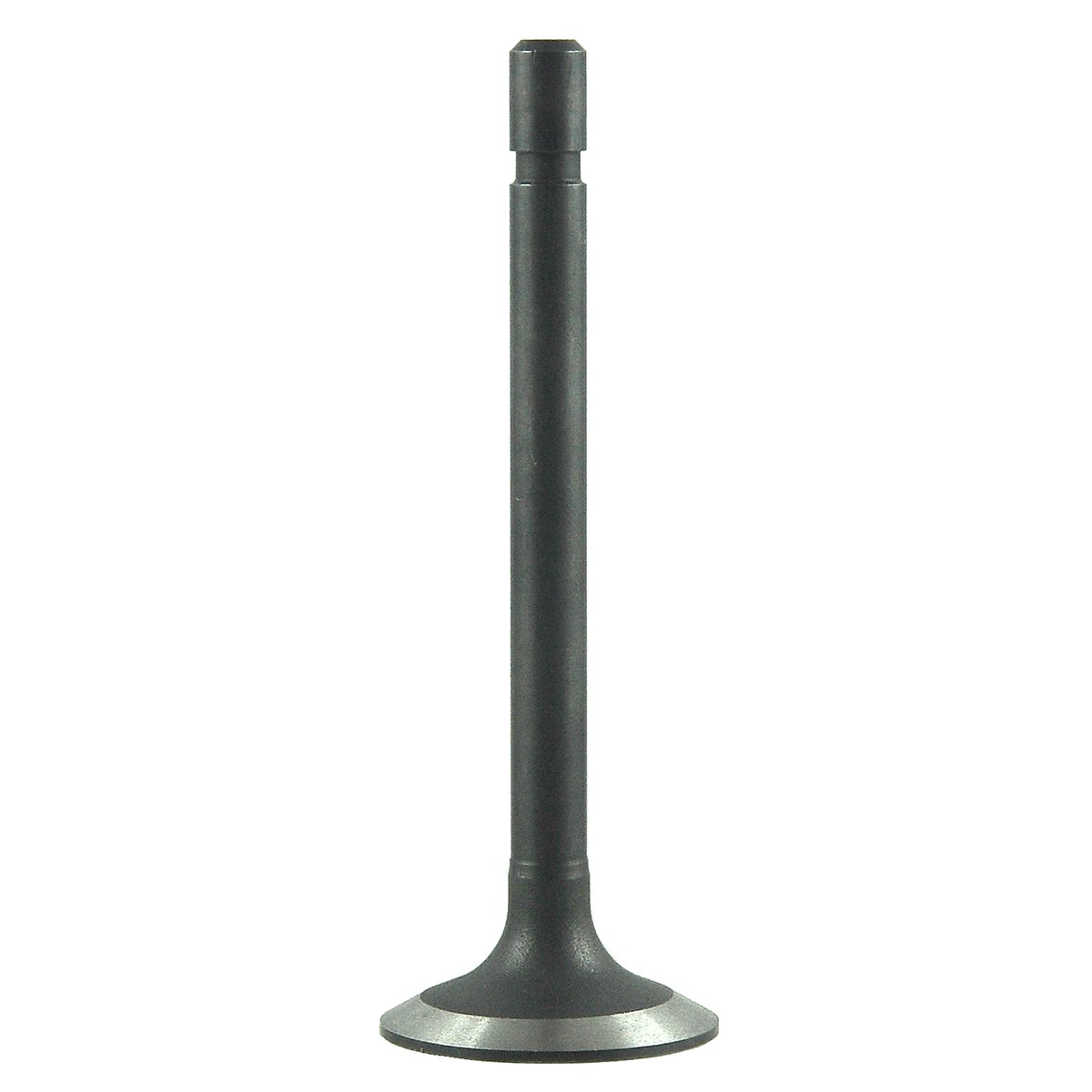

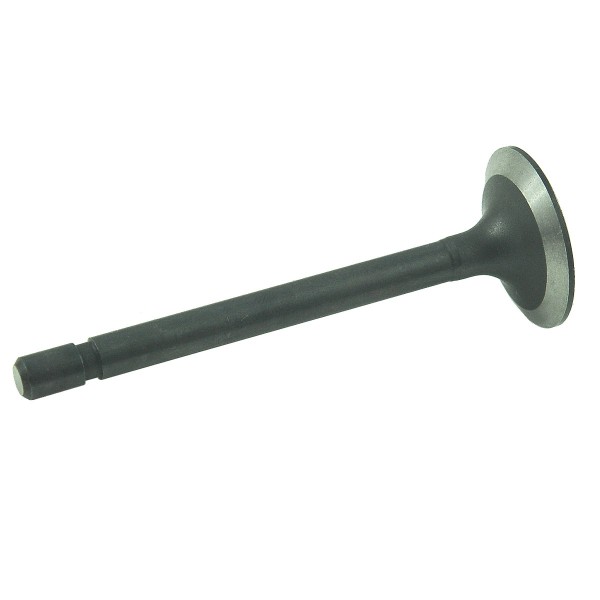

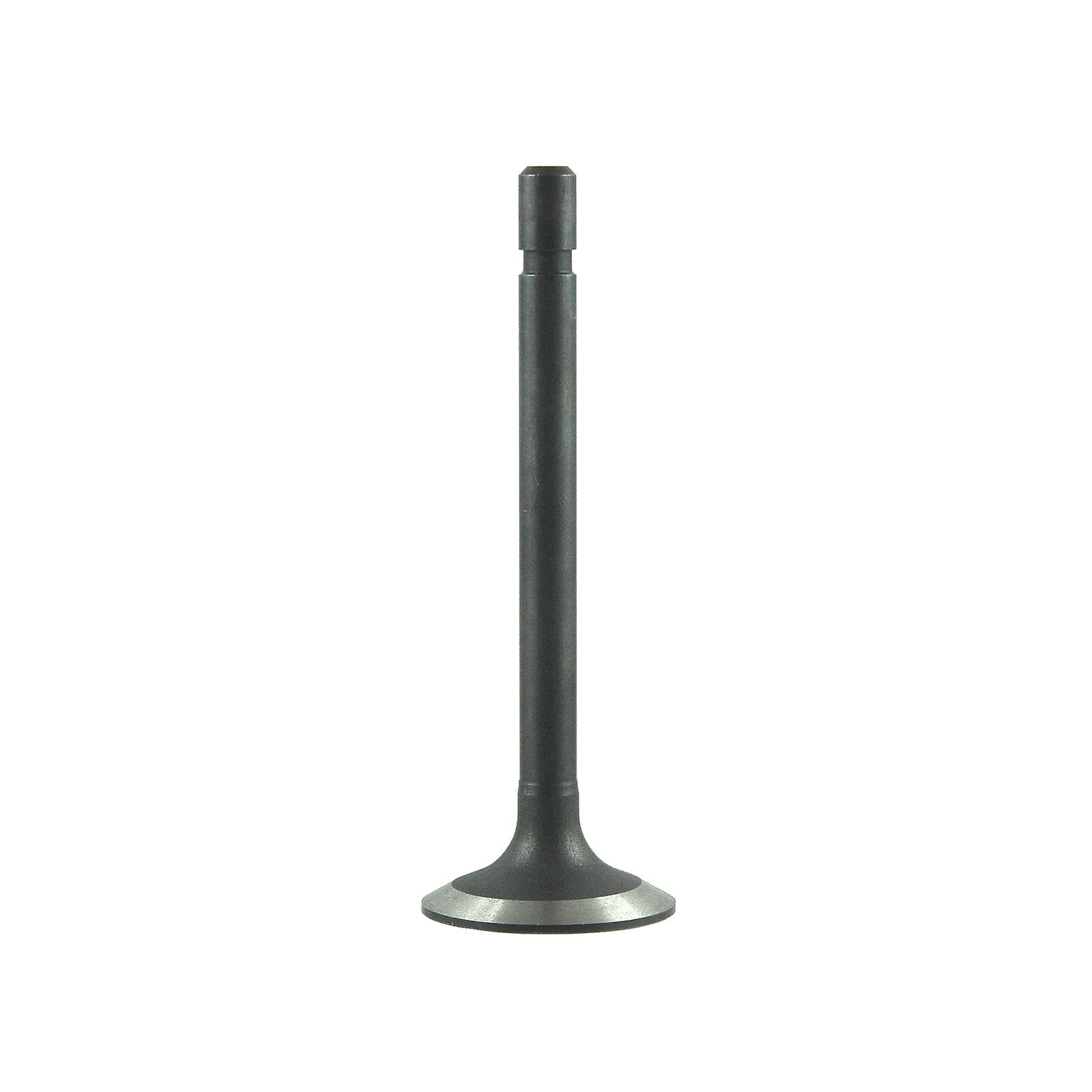

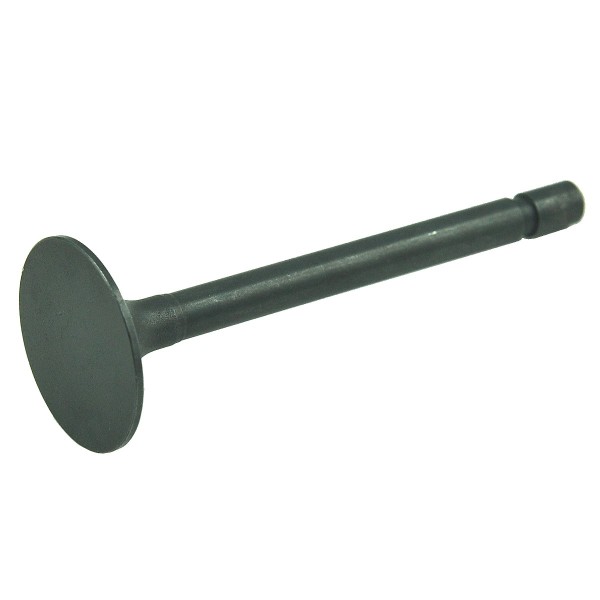

Inlet valve / IN / Kubota B1-15 / B1-16 / B1-17 / B1400 / Kubota D950 / D905 / D1005 / D850

IN inlet valve ( %C3% B3r-outlet-ex-7-x-2750-x-8970-mm-kubota-b1-15b1-16b1-17b1400-kubota-d950d905d1005d850v1200v1505.html">16241-13123 ) for Kubota engine with total length 89.90 mm and head diameter 31 mm for Kubota tractors of Kubota B1-14, Kubota B1-15, Kubota B1-16, Kubota B1-17, Kubota B1400, Kubota B1402, Kubota B1500, Kubota B1550, Kubota B1502, Kubota B6200 series with Kubota D850, Kubota D905, Kubota engines D950, Kubota D1005, Kubota D1105, Kubota V1200, Kubota V1505 and others.

Engine valves are components that are located in the head (overhead valve engine) or engine block (bottom valve engine) and their main task is to properly control the flow of air, fuel-air mixture and exhaust gases. We distinguish two types of valves:

• intake valves are responsible for opening the chamber in order to draw in the appropriate amount of fuel mixture,
• exhaust valves, responsible for removing gases generated during engine operation from the chamber.

The valves consist of a rod with a plate at the end and are cast in one piece. The engine valves are made of special steel resistant to extremely high temperatures created during fuel combustion, so-called heat-resistant steel.

Dimensions :

• height: 89.70 mm,
• mushroom diameter: 31.50 mm,
• shaft diameter: 7 mm,
• original part numbers: 16241-13110, 16241-13112, 16241-13115.

Tractor models :

Kubota :

• Kubota B1-14,
• Kubota B1-15,
• Kubota B1-16,
• Kubota B1-17,
• Kubota B1400,
• Kubota B1402,
• Kubota B1500,
• Kubota B1550,
• Kubota B1502,
• Kubota B6200.

Engine models :

Kubota:

• Kubota D850,
• Kubota D905,
• Kubota D950,
• Kubota D1005,
• Kubota D1105,
• Kubota V1200,
• Kubota V1505.

Engine valves are components that wear out when working in difficult conditions and under the influence of high temperatures. The most common valve damage is valve stem abrasion and carbon deposits. Valve deposits are the result of using low-quality oil, and valve head wear causes leaks in the system and loss of engine power.

Magazine: M01:A63

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
