Engine Oil Filter / 3/4"-16UNF / Caterpillar / Parkins

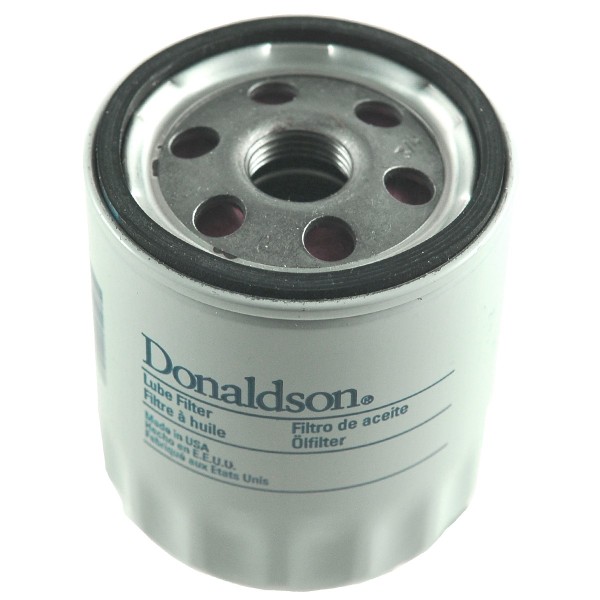

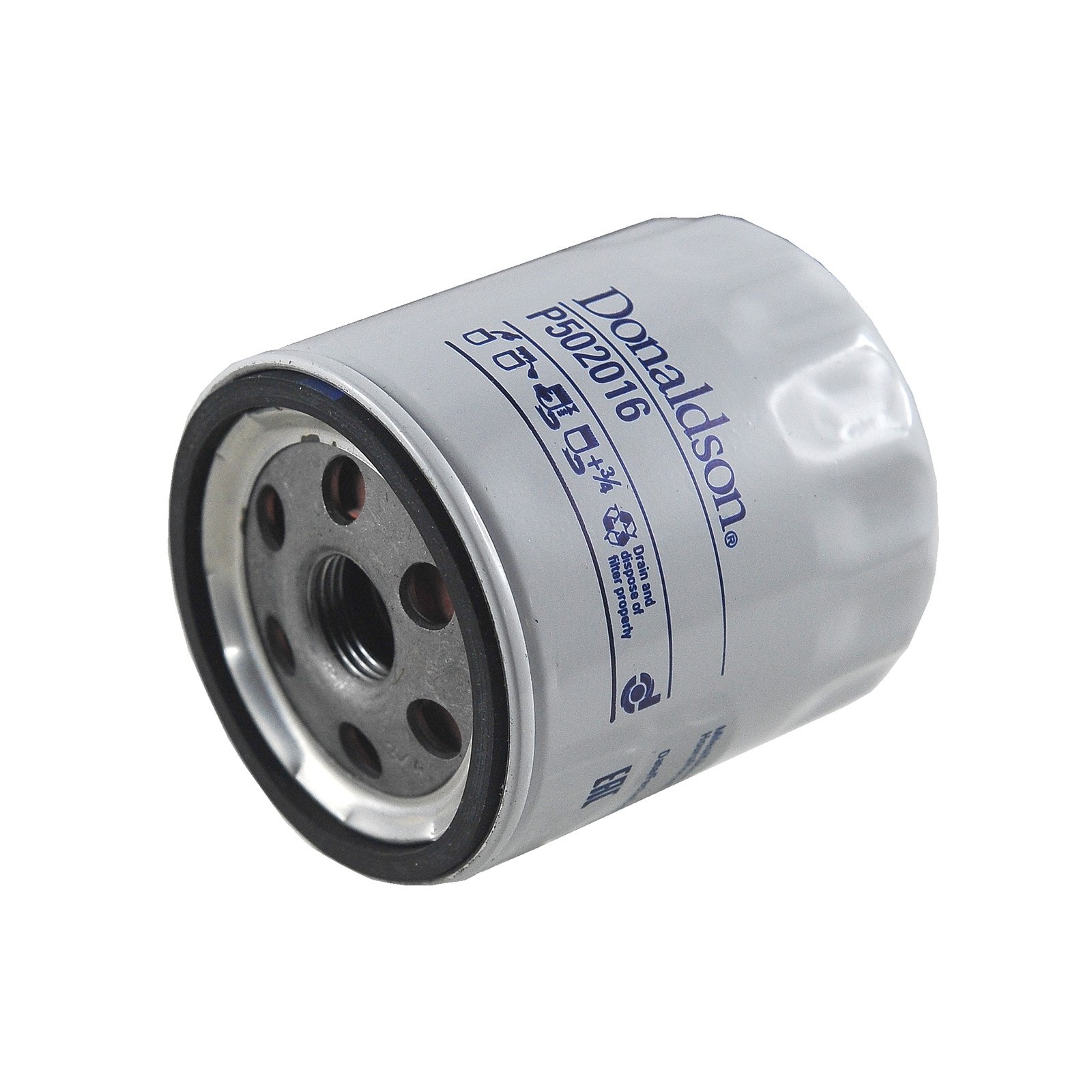

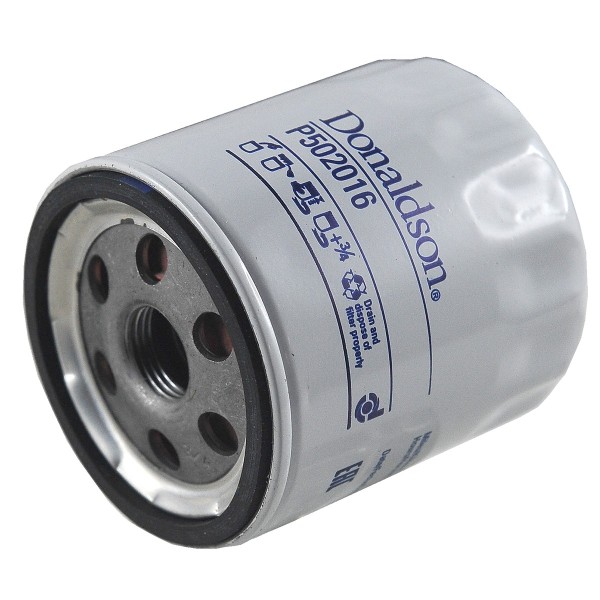

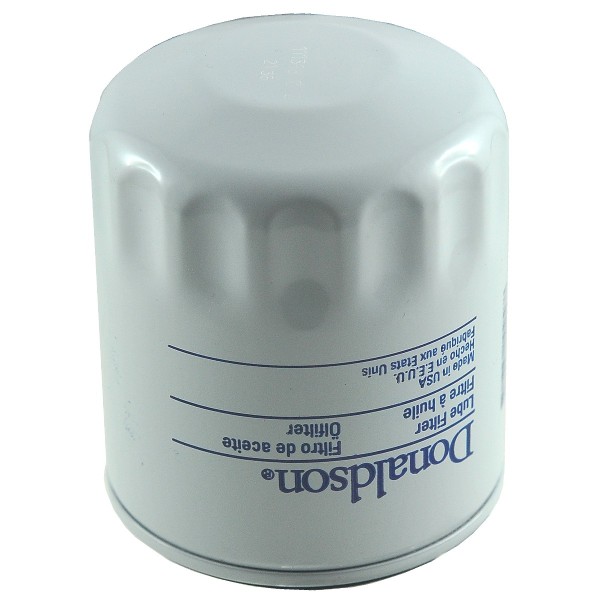

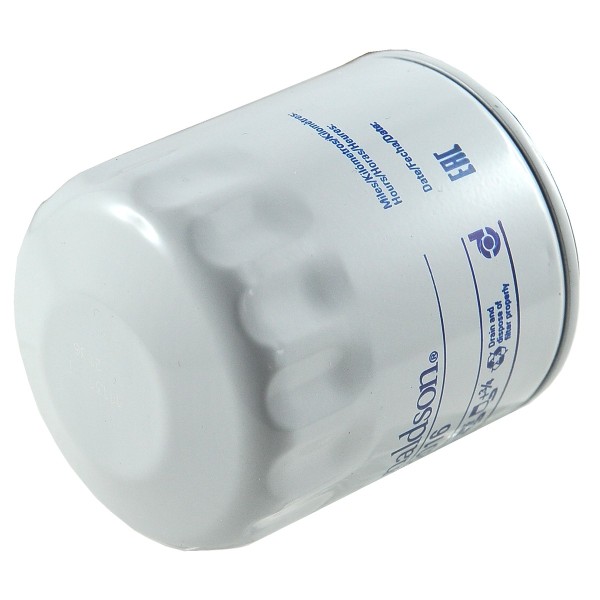

Engine oil filter with 3/4"-16UN thread, 74 mm diameter and 85 mm height for tractors and machines with Caterpillar , Parkins and other engines.
The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal oil filter , screw-on, is a filter whose main task is to remove the smallest impurities from the oil, even 1/50 mm in size. The filter construction is very simple and consists of a metal can with a thread and a paper insert inside arranged in a so-called accordion to increase the filtration surface. Contamination of the oil for which we use the filter is most often caused by organic impurities, from the breakdown of the oil itself during operation, from fuel residues or are by-products of oxidation. Mineral impurities are air pollutants and metal particles that appear in the engine during operation. The non-return valve is a filter element whose task is to prevent impurities caught by the filter from getting back into the engine from the oil while the engine is turned off.
Dimensions :
- height: 85 mm,
- diameter: 74 mm,
- base diameter: 75 mm,
- gasket diameter: 70 mm (outer), 62 mm (inner),
- thread: 3/4"-16UNF,
- weight: 0.330 kg,
- original part number: 140517050,
- reference numbers: SO 11110, SP951,
- part numbers: P502016.
Machine models:
Caterpillar:
- Caterpillar CC24,
- Caterpillar CC34.
The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases a clogged oil filter can lead to engine overheating and damage to the head gasket. The oil filter should always be replaced together with the oil change at the frequency specified in the machine's operating instructions.
Warehouse :
M01:F52
Specification
Caterpillar CC34
SP951
