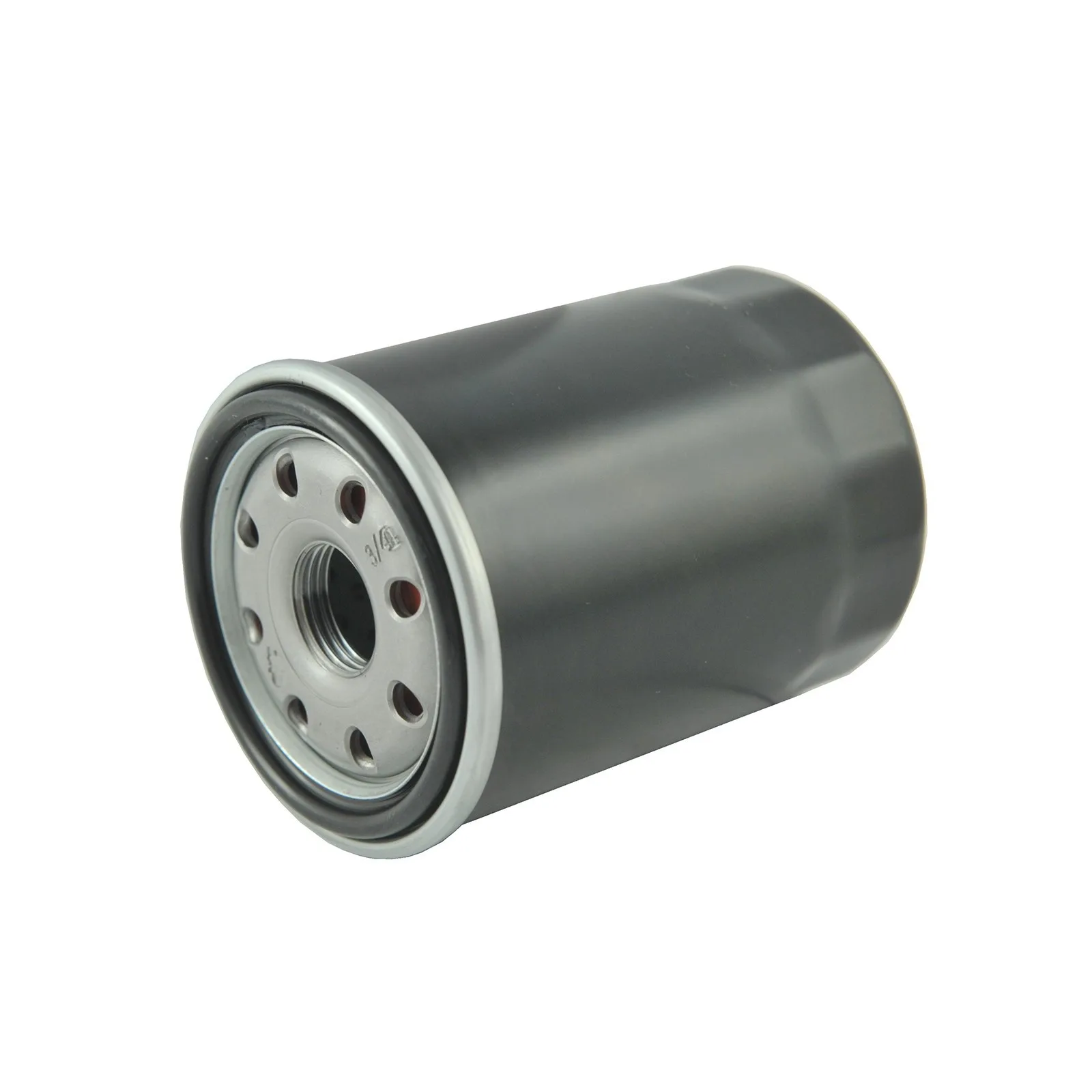

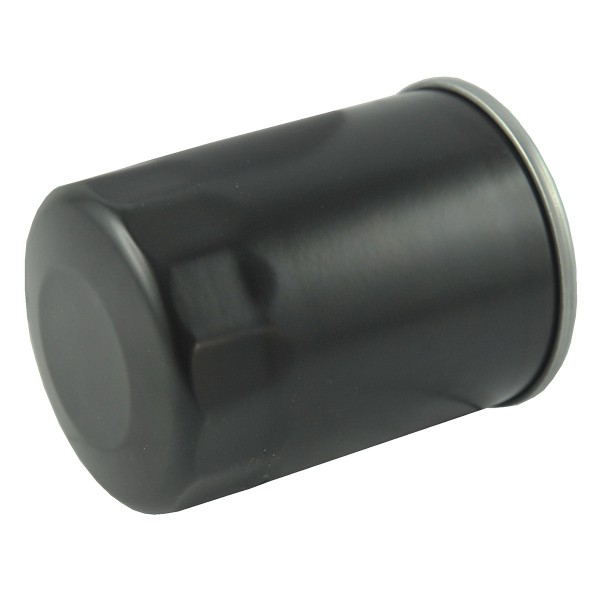

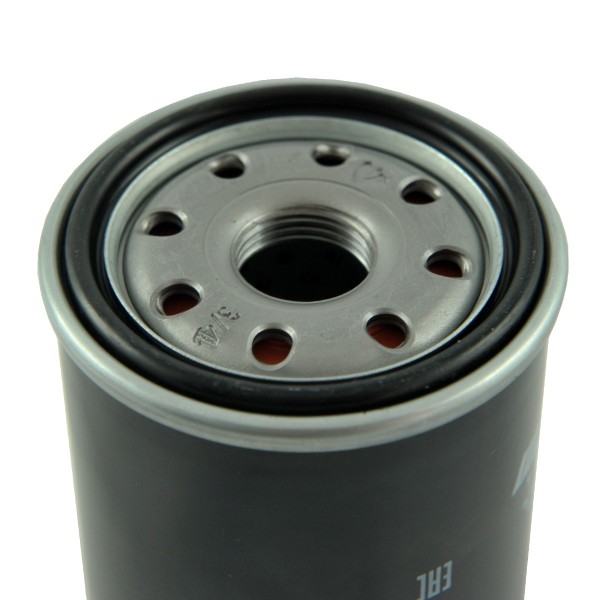

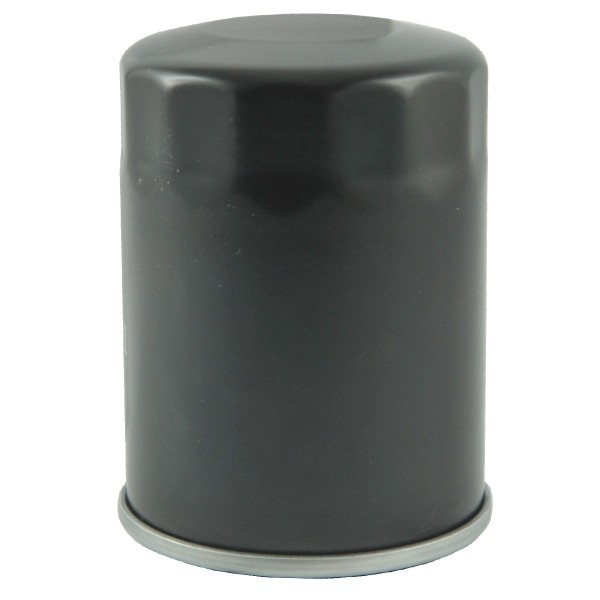

Yanmar Engine Oil Filter / 65 x 92 mm / 3/4"-16UNF / 16500-15360 / T 1639

Engine oil filter 92 mm high and 69 mm in diameter with 3/4"-16UNF thread for Japanese tractors and mini tractors Yanmar and others. .

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest impurities from the oil, up to 1/50 mm in size. The construction of the filter is very simple and consists of a metal can with a thread and a paper insert inside arranged in the so-called. accordion to increase the filtration surface. Contamination of the oil for which we use the filter is most often created, in the case of organic contamination, from the breakdown of the oil itself during operation, from fuel residues, or from oxidation by-products. Mineral impurities are air pollutants and metal particles that appear in the engine during operation.

Dimensions :

• height: 92mm.
• diameter: 65mm.
• base diameter: 69 mm.
• gasket diameter: external 50 mm, internal 62 mm.
• thread: 3/4"-16UNF,
• weight: 0.260 kg.
• comparative numbers: T 1639, T1639, 16500-15360 , 90915-03004, 140516250.

The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases, a clogged oil filter can lead to engine overheating and head gasket damage. Always replace the oil filter together with the oil change at the interval specified in the machine's operating instructions.
