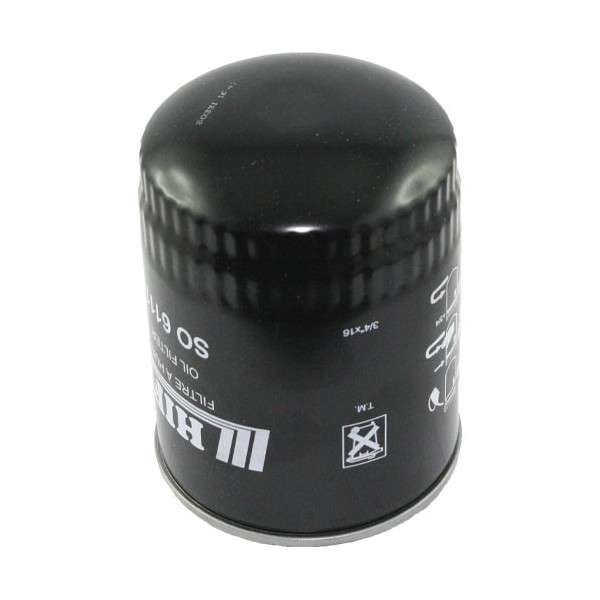

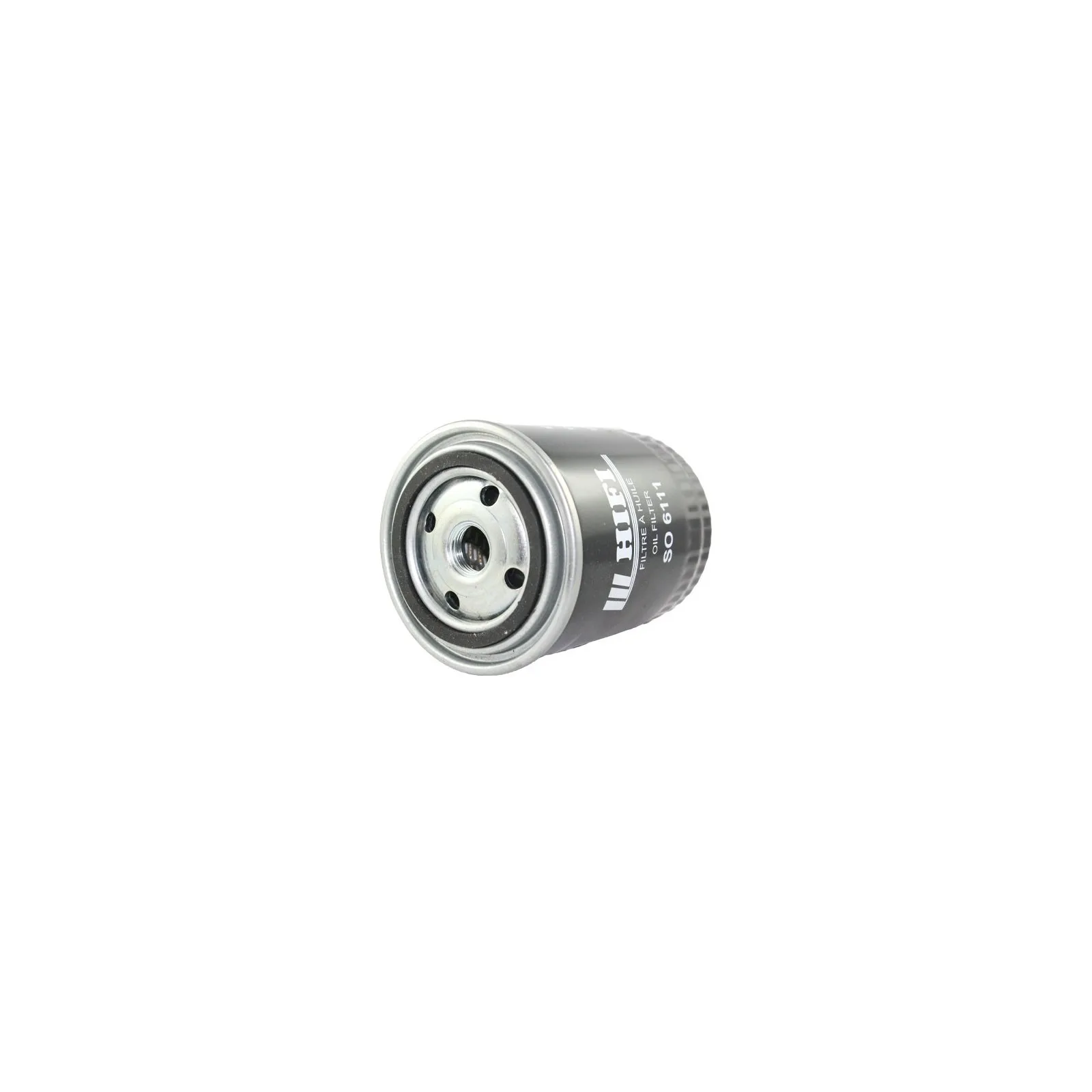

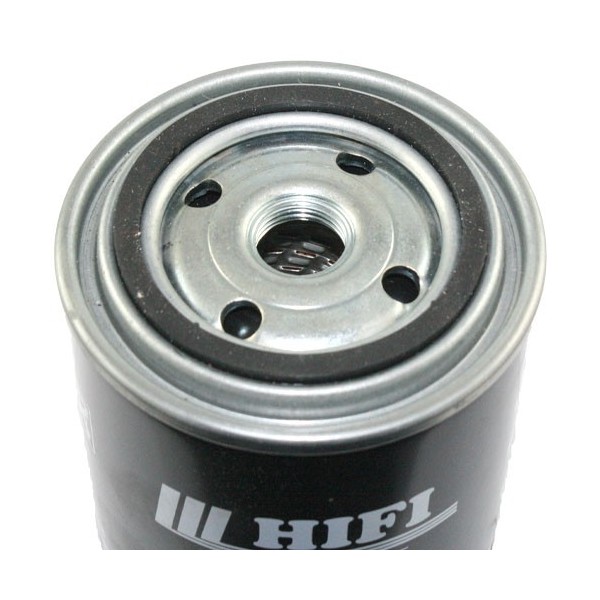

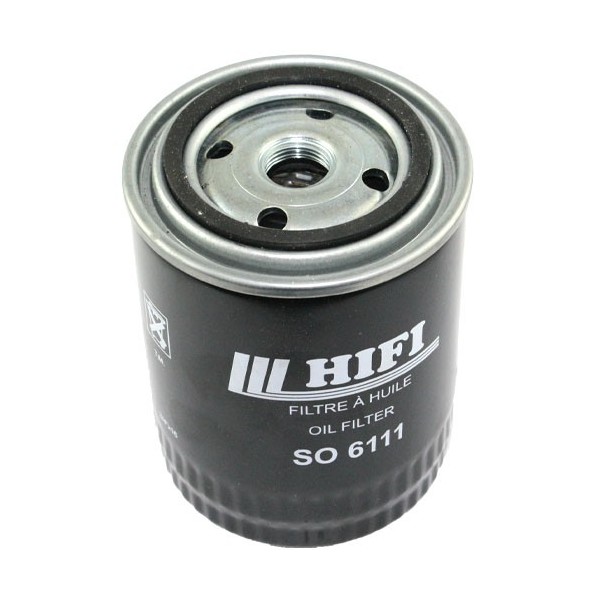

3/4 "Engine Oil Filter -16UNF / 93x130mm / 3707442 / 15208-7F400 / 15208-43G00 / SO 6111

130mm high 63mm diameter motor oil filter with 3/4 "-16UNF thread for Japanese Shibaura SD Series tractors and mini tractors and others .

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral contamination. A metal, screw-on oil filter is a filter whose main task is to remove the smallest impurities from oil, even 1/50 mm in size. The construction of the filter is very simple and consists of a metal can with a thread and a paper insert inside arranged in the so-called accordion to increase the filter surface. The contamination of the oil for which we use the filter is most often created, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or they are by-products of oxidation. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Dimensions:

• height: 130 mm,
• diameter: 93 mm,
• base diameter: 96 mm,
• gasket diameter: outer 72 mm, inner 62 mm,
• thread: 3/4 "-16UNF,
• comparative numbers: 3707442, 15208-7F400, 15208-43G00, SO 6111.

Tractor models :

Shibara :

• Shibaura SD1643.
