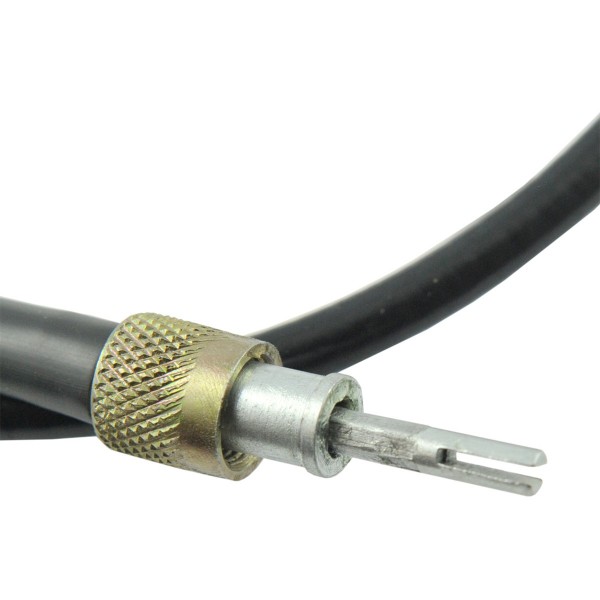

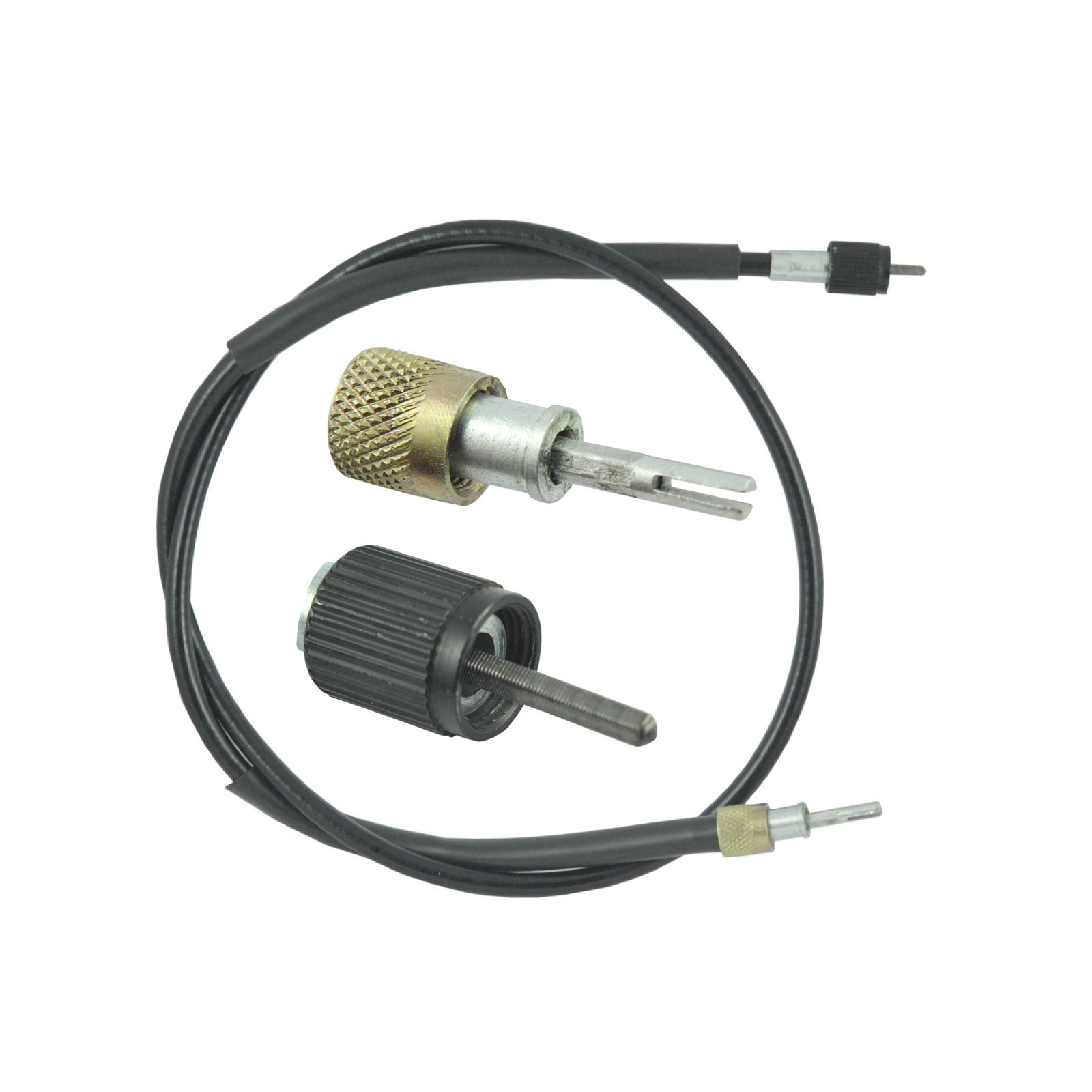

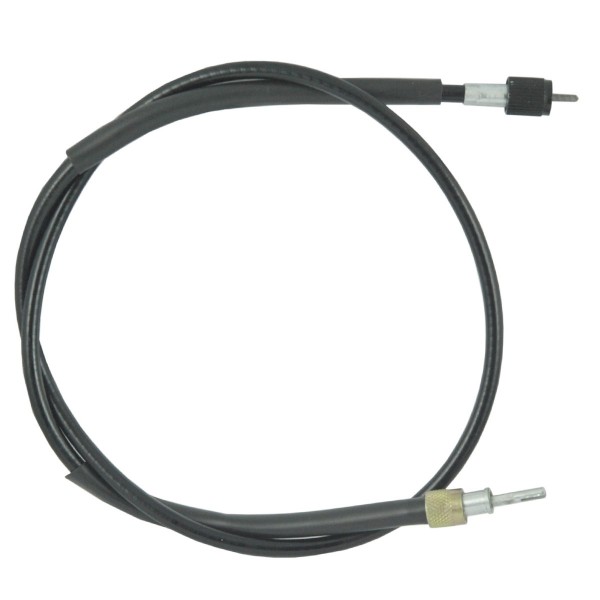

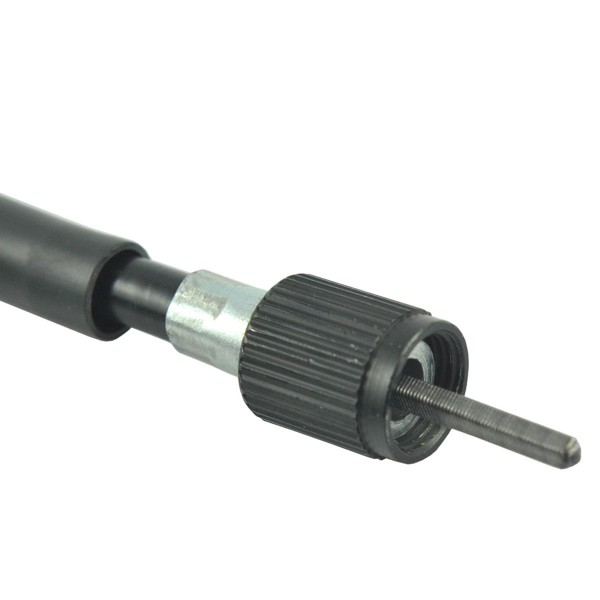

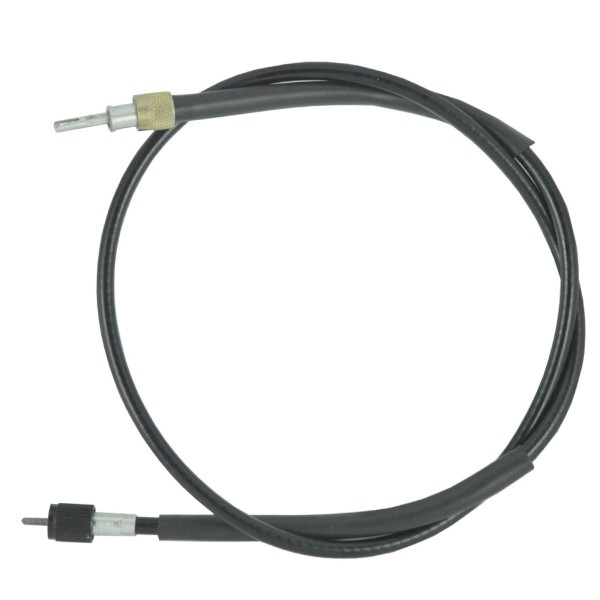

Tachometer cable 970 mm - Kubota GL19/GT3/L3408

Counter cable with a total length of 930 mm for Kubota tractors of the Kubota GL19, Kubota GL21, Kubota GL23, Kubota GL25, Kubota GL26, Kubota GL27, Kubota GL29, Kubota GL32, Kubota GL33, Kubota GL200, Kubota GL201, Kubota GL220, Kubota GL221, Kubota GL240, Kubota GL241, Kubota GL260, Kubota GL261, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GL321, Kubota GL337, Kubota GL338, Kubota GT-3, Kubota GT-5, Kubota GT-8, Kubota GT-19, Kubota GT-21, Kubota GT23, Kubota L2250, Kubota L2350, Kubota L2500, Kubota L2550, Kubota L3200DT, Kubota L3408, Kubota L3408DI and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

• length of the armour with rivets: 940 mm,
• working length: 940 mm,
• rope length: 970 mm,
• armor diameter: 7 mm,
• rope diameter: 3 mm,
• cylindrical tip diameter: 4.30 mm,
• square tip: 2.50 x 2.50 mm,
• thread: M10 / M12,
• original part numbers: 31341-34654,
• comparison numbers: 5-25-123-13 ,
• part numbers: OBMT12.

Tractor models :

Kubota :

• Kubota GL19,
• Kubota GL21,
• Kubota GL23,
• Kubota GL25,
• Kubota GL26,
• Kubota GL27,
• Kubota GL29,
• Kubota GL32,
• Kubota GL33,
• Kubota GL200,
• Kubota GL201,
• Kubota GL220,
• Kubota GL221,
• Kubota GL240,
• Kubota GL241,
• Kubota GL260,
• Kubota GL261,
• Kubota GL268,
• Kubota GL277,
• Kubota GL280,
• Kubota GL281,
• Kubota GL300,
• Kubota GL301,
• Kubota GL320,
• Kubota GL321,
• Kubota GL337,
• Kubota GL338,
• Kubota GT-3,
• Kubota GT-5,
• Kubota GT-8,
• Kubota GT-19,
• Kubota GT-21,
• Kubota GT23,
• Kubota L2250,
• Kubota L2350,
• Kubota L2500,
• Kubota L2550,
• Kubota L3200DT,
• Kubota L3408,
• Kubota L3408DI.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.

Warehouse :
M01:A36:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
