zł59.00
To order
Condition
New
Production
Substitute
Parts
Links
Tractor models
- Kubota L3600
- Kubota L4200
- Kubota L4310
- Kubota L4610
Kubota L4508
- Kubota L4200
- Kubota L4310
- Kubota L4610
Kubota L4508
Overall length (mm)
1145
working length (mm)
1125
Armor length (mm)
1110

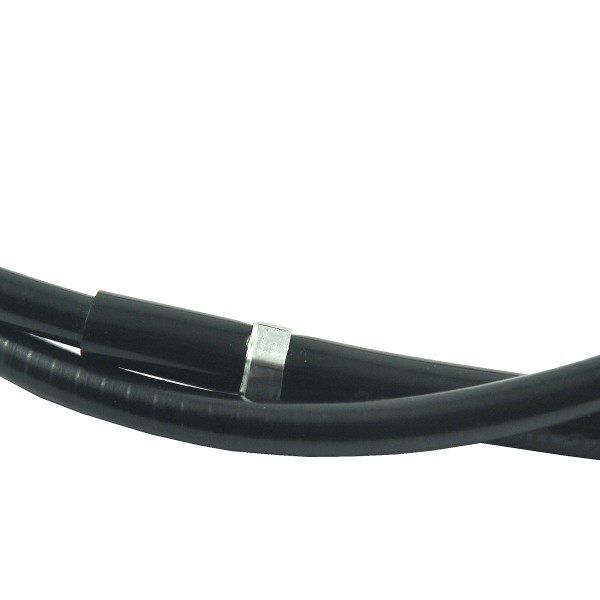

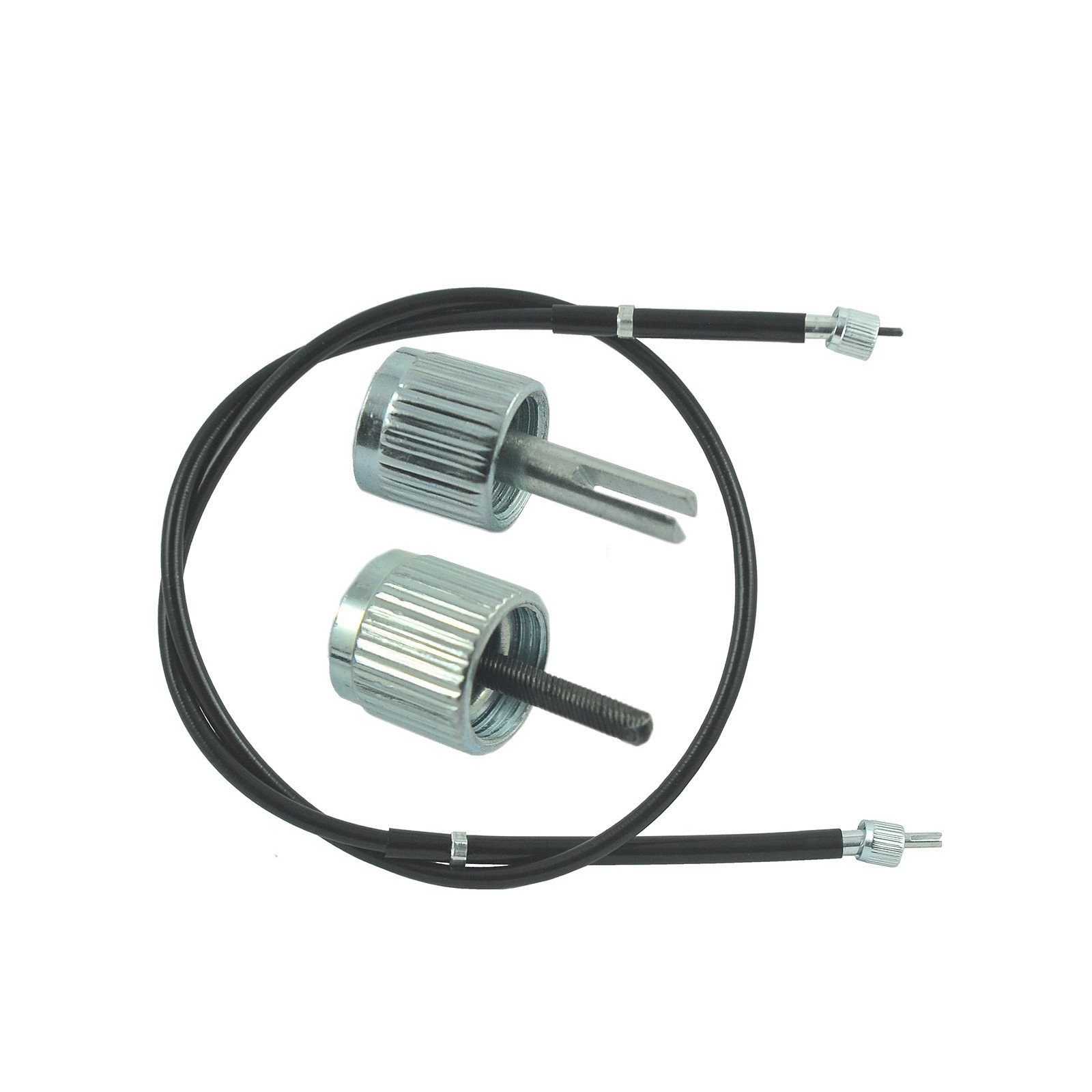

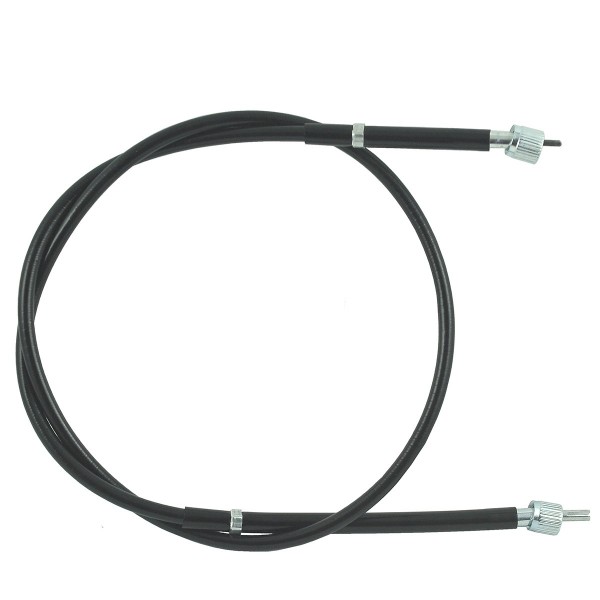

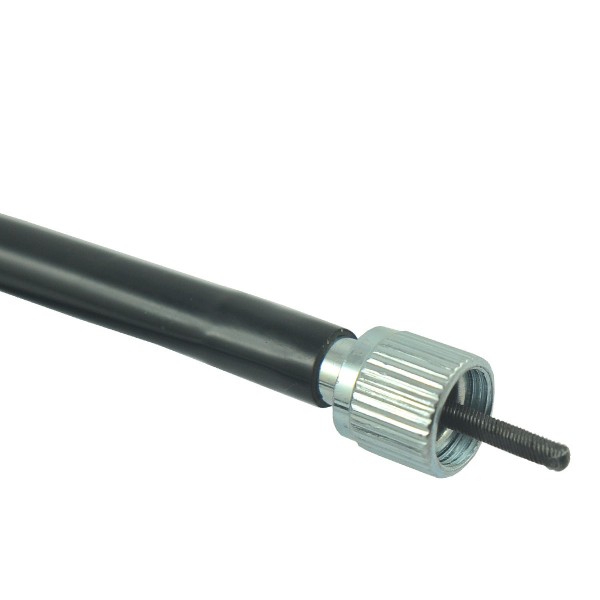

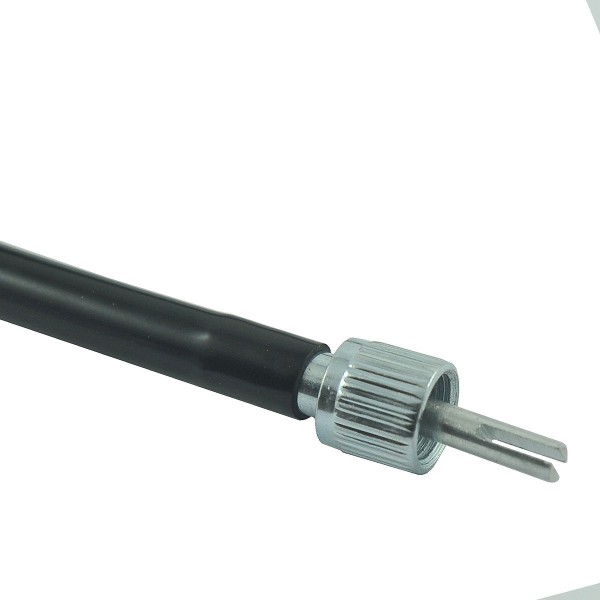

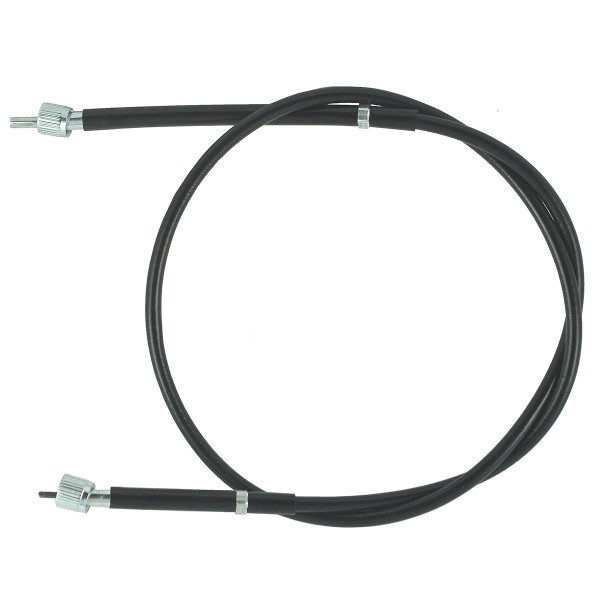

Tachometer cable 1145 mm - Kubota L3600/L4200/L4310/L4508/L4610
5-25-123-14
Do you have any questions?
Tachometer cable 1145 mm - Kubota L3600/L4200/L4310/L4508/L4610
Tachometer cable with a total length of 1145 mm with a "cut" end for Kubota tractors of the Kubota L3600, Kubota L4200, Kubota L4310, Kubota L4508, Kubota L4610 series and others.
The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.
Dimensions:
- total length: 1145 mm,
- working length: 1125 mm,
- rope length: 1145 mm,
- length of the armour with rivets: 1110 mm,
- armor diameter: 7 mm,
- rope diameter: 3.00 mm,
- cylindrical tip diameter: 4.50 mm,
- square tip: 2.30 x 2.30 mm,
- thread: M12 / M12,
- original part numbers: TA040-30610, W9501-45001,
- comparison numbers: -,
- part numbers: 5-25-123-14.
Tractor models :
Kubota :
- Kubota L3600,
- Kubota L4200,
- Kubota L4310,
- Kubota L4508,
- Kubota L4610.
The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.
Warehouse :
M01:A34:S03
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
Specification
Magazyn: M01:A34:S03
Condition
New
Production
Substitute
Parts
Links
Tractor models
- Kubota L3600
- Kubota L4200
- Kubota L4310
- Kubota L4610
Kubota L4508
- Kubota L4200
- Kubota L4310
- Kubota L4610
Kubota L4508
Overall length (mm)
1145
working length (mm)
1125
Armor length (mm)
1110
Cable length (mm)
1145
Armor diameter (mm)
7
Cable diameter (mm)
3.00
Original Part Number (OEM)
TA040-30610
W9501-45001
W9501-45001
Part number
5-25-123-14
Type of rope
Tachometer cable
Thread 1
M12
Thread 2
M12
Cylindrical tip diameter (mm)
4.50
Square tip diameter (mm)
2.30
