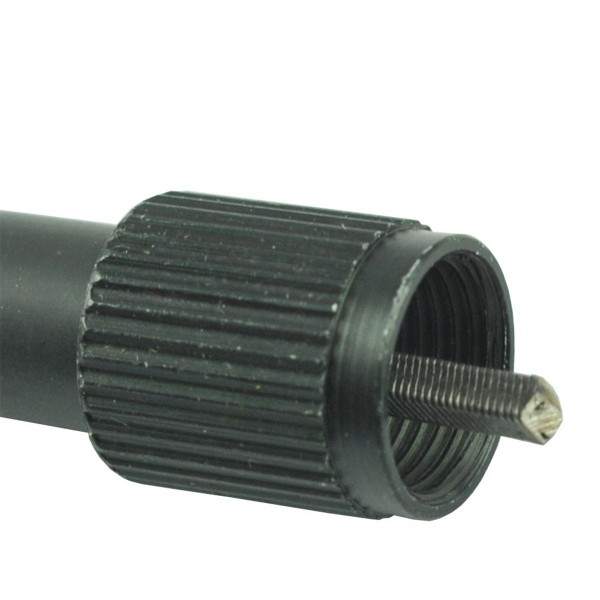

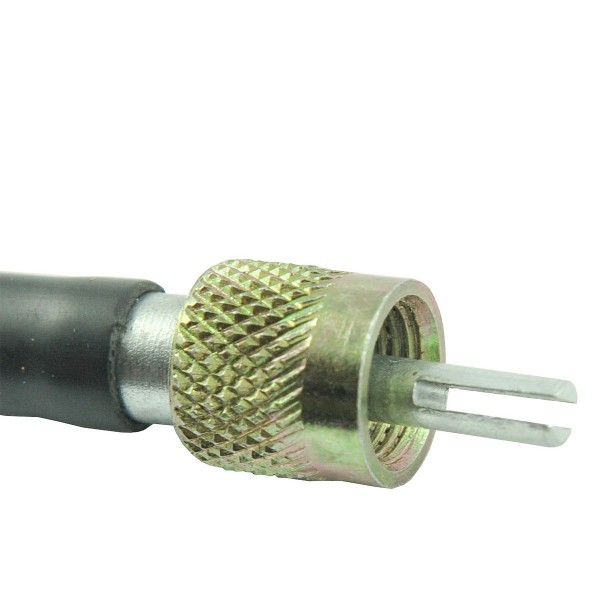

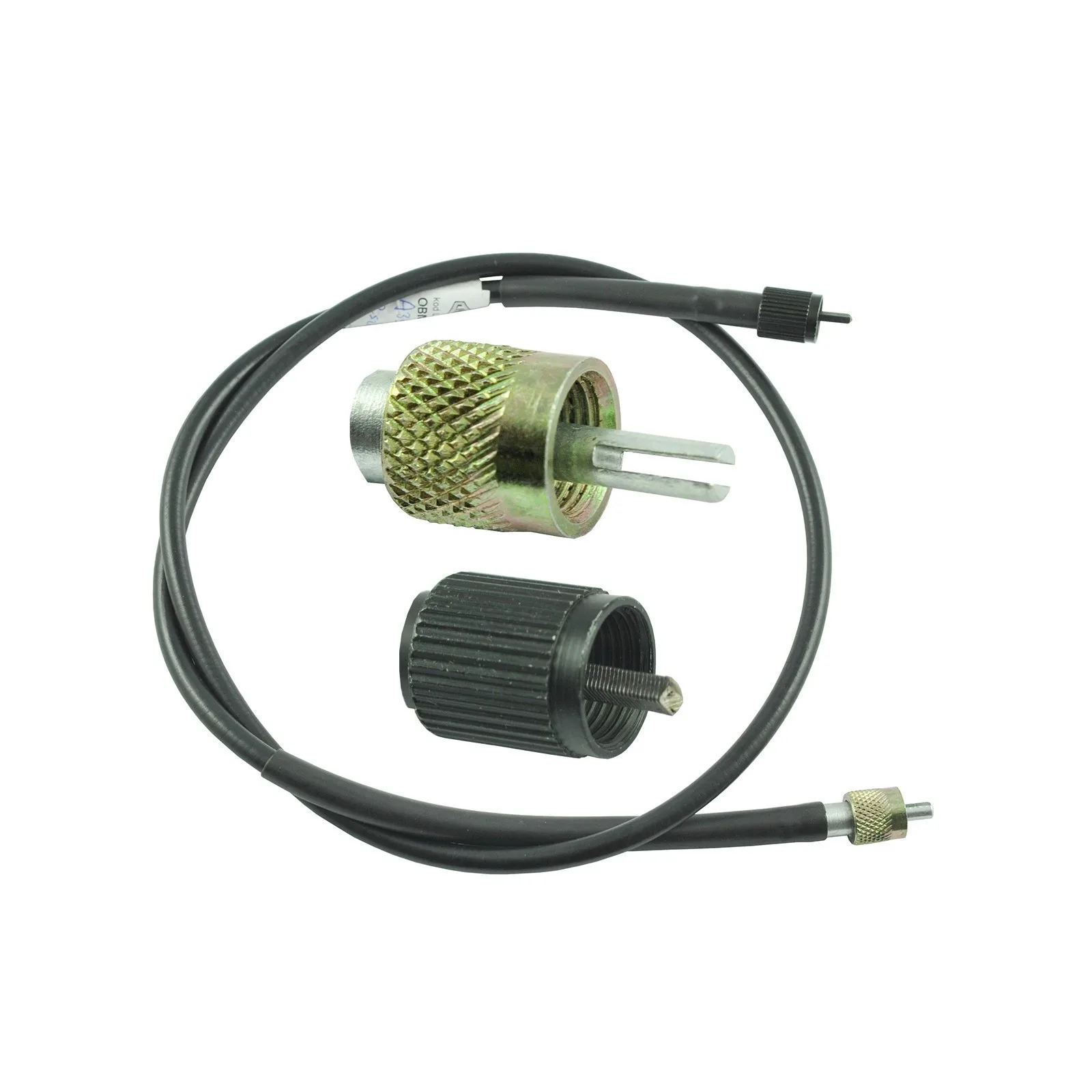

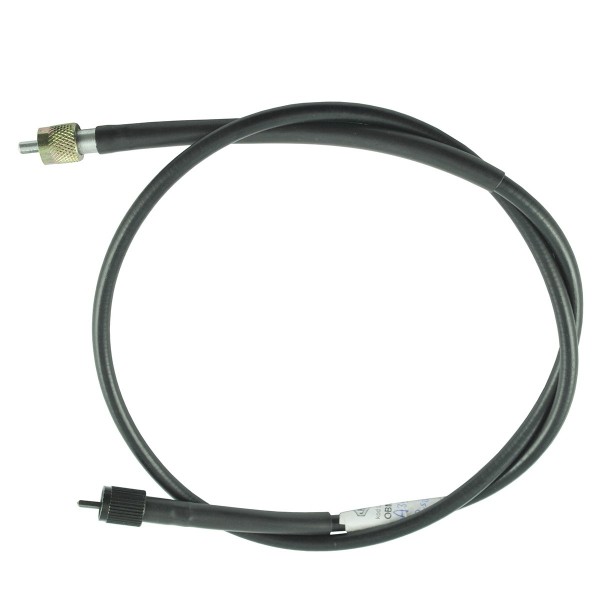

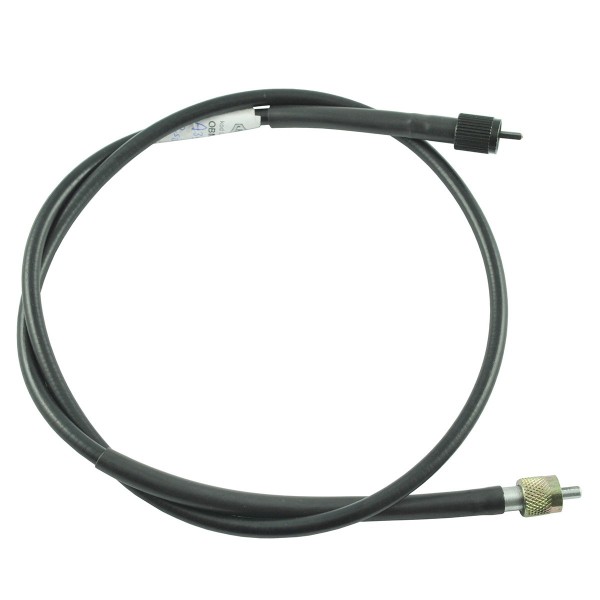

Tachometer cable 1150 mm - Kubota B2710 / L1802 / L2002 / L2202 / L2402 / L2602 / L2850 / L2900 / L3010 / L325 / L3300

Counter cable with a total length of 1150 mm with a "cut" end for Kubota tractors of the Kubota B2710, Kubota L1802, Kubota L2002, Kubota L2202, Kubota L2402, Kubota L2602, Kubota L2850, Kubota L2900, Kubota L3010, Kubota L3300, Kubota L3410, Kubota L3450, Kubota L3650, Kubota L4508 series and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

• total length: 1150 mm,
• rope length: 1150 mm,
• length of the armour with rivets: 1110 mm,
• armor diameter: 7 mm,
• rope diameter: 3.00 mm,
• cylindrical tip diameter: 4.50 mm,
• square tip: 2.50 x 2.50 mm,
• thread: M12 / M12,
• original part numbers: 38240-34650, 38240-34654, 38240-34655, 38180-12611, 38180-12612, 38180-12613,
• reference numbers: S.71981 , 5-25-123-14 ,
• part numbers: OBMT13.

Tractor models :

Kubota :

• Kubota B2710,
• Kubota L1802,
• Kubota L2002,
• Kubota L2202,
• Kubota L2402,
• Kubota L2602,
• Kubota L2850,
• Kubota L2900,
• Kubota L3010,
• Kubota L3300,
• Kubota L3410,
• Kubota L3450,
• Kubota L3650,
• Kubota L4508.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of damage to the cable is a lack of response, vibrations of the pointer while the engine is running.
