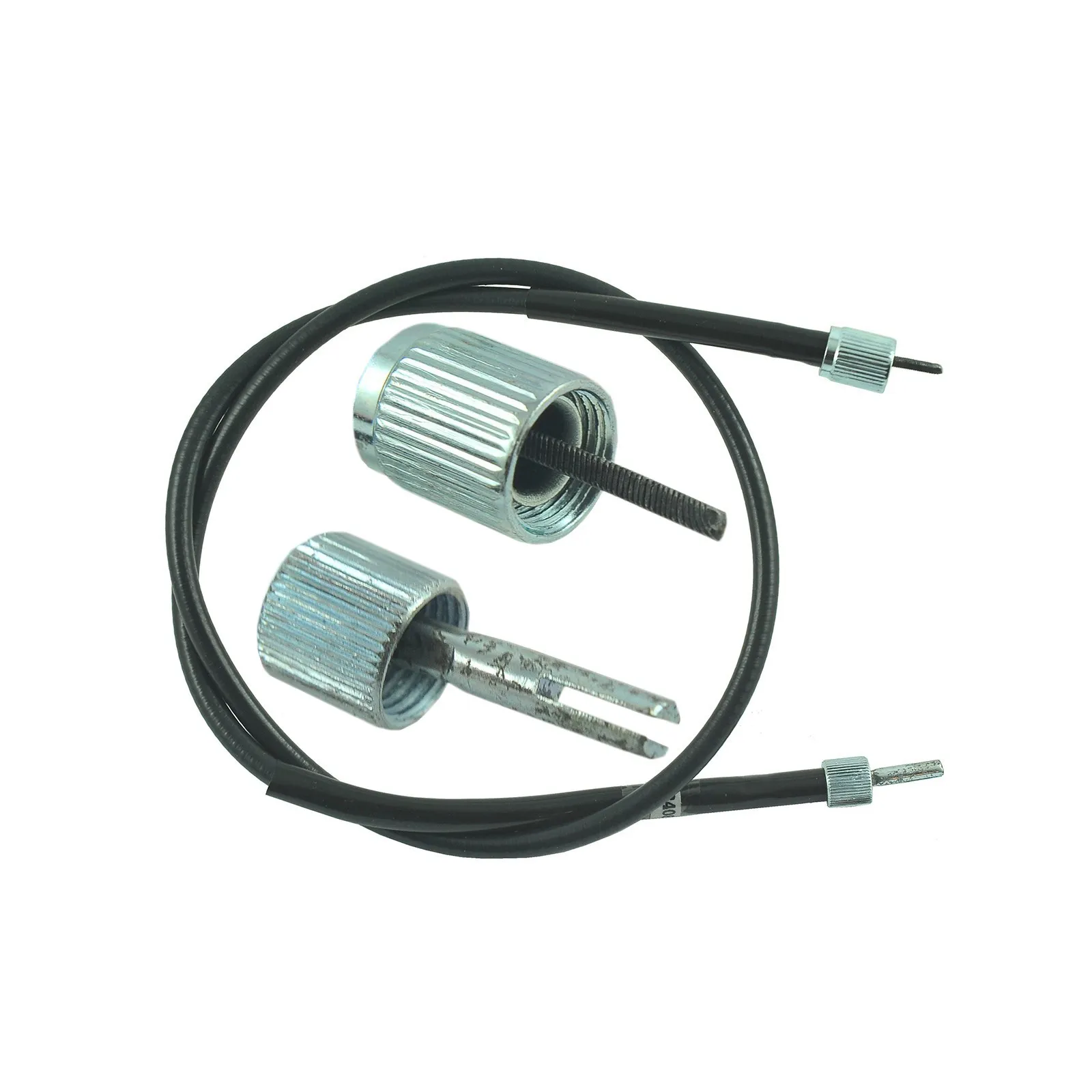

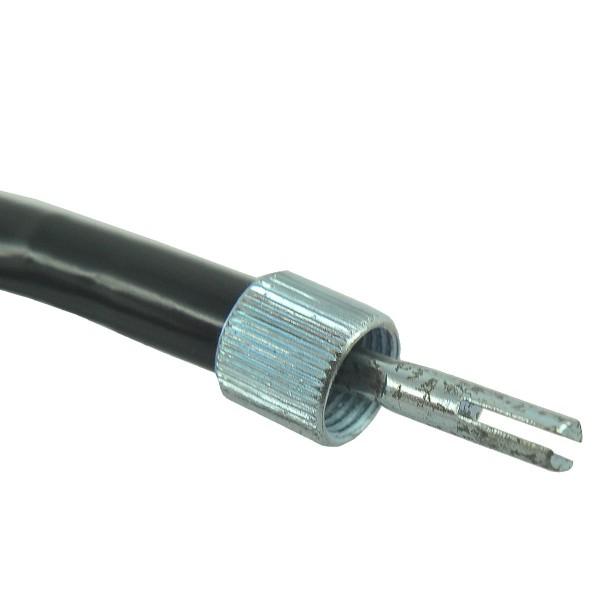

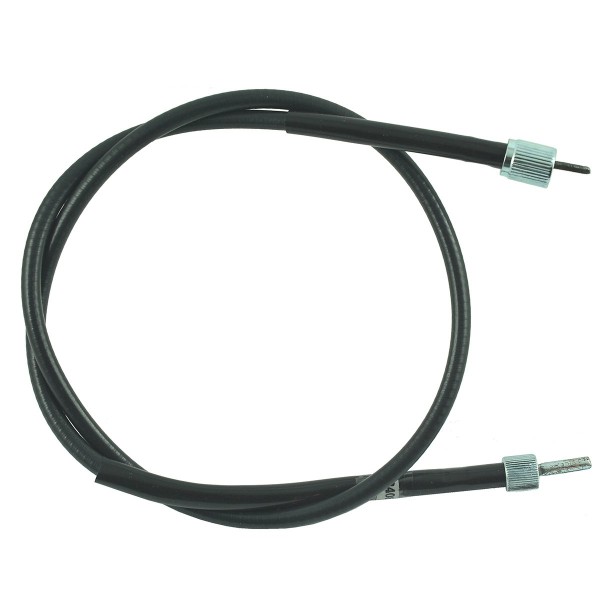

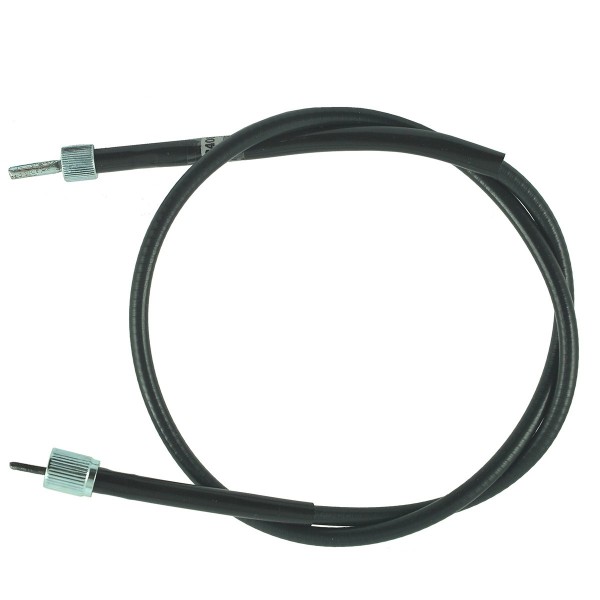

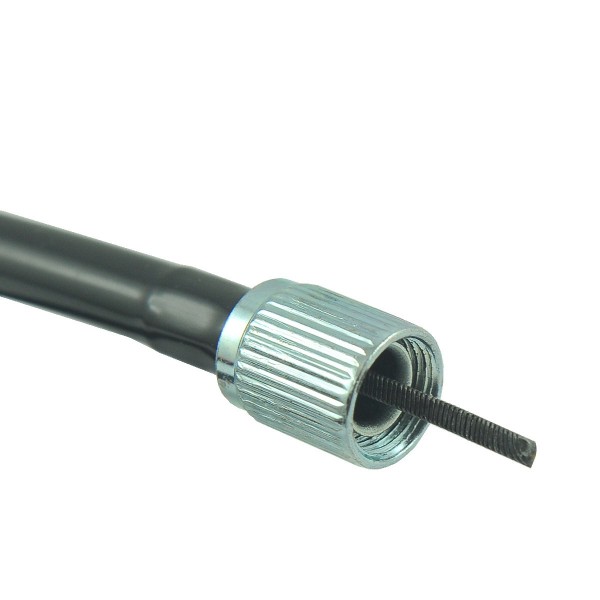

Tachometer cable 1019 mm - Kubota L2202/L2601
5-25-123-09
Do you have any questions?
Tachometer cable 1019 mm - Kubota L2202/L2601
Counter cable with a total length of 1060 mm with a "cut" end for Kubota tractors of the Kubota L2202, Kubota L2601 series and others.
The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.
Dimensions:
- total length: 1060 mm,
- rope length: 1060 mm,
- length of the armour with rivets: 1019 mm,
- armor diameter: 7 mm,
- rope diameter: 3.00 mm,
- cylindrical tip diameter: 4.50 mm,
- square tip: 2.30 x 2.30 mm,
- thread: M11 / M12,
- original part numbers: -,
- comparison numbers: -,
- part numbers: 5-25-123-09.
Tractor models :
Kubota :
- Kubota L2202,
- Kubota L2601.
The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.
Warehouse :
M01:A:34:S03
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
