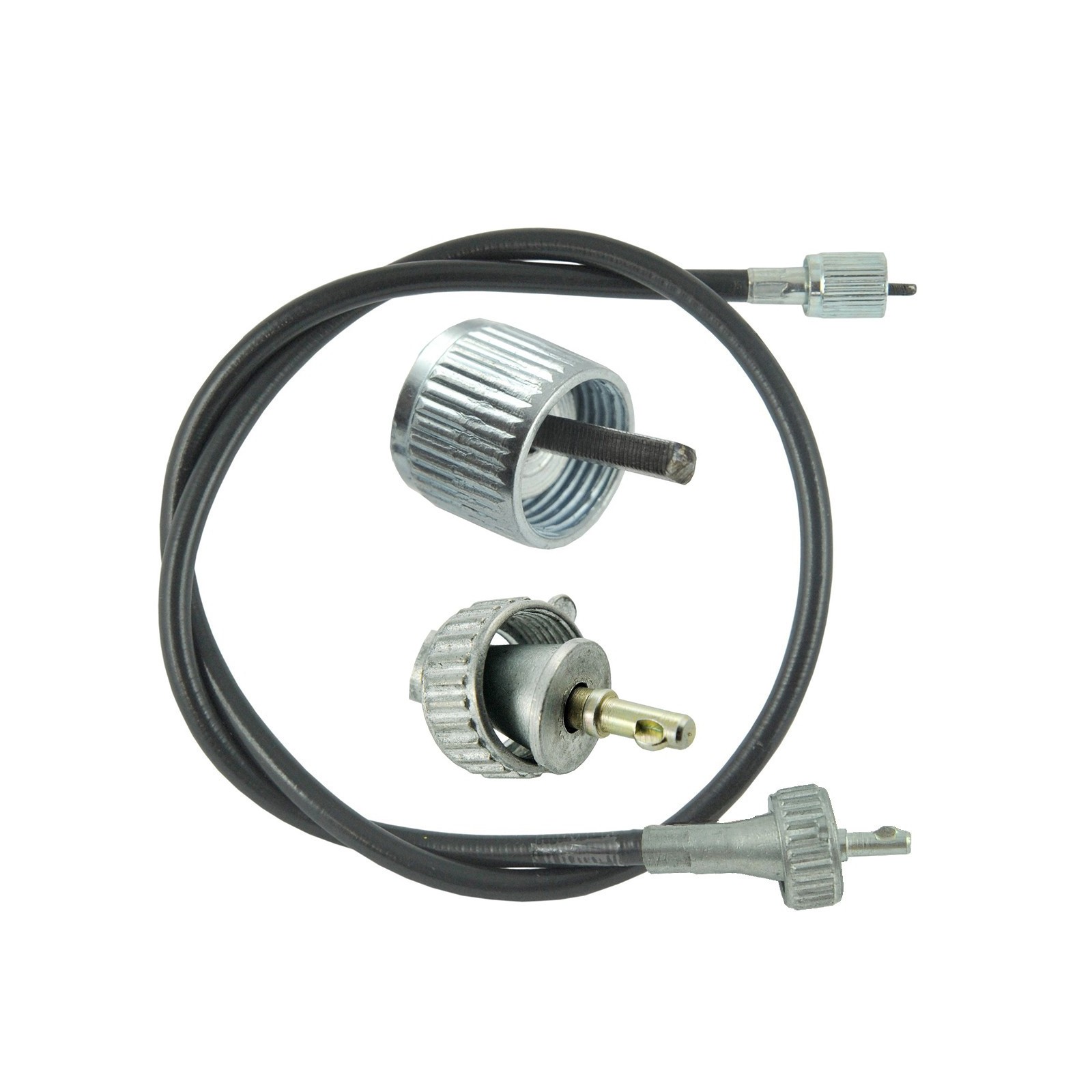

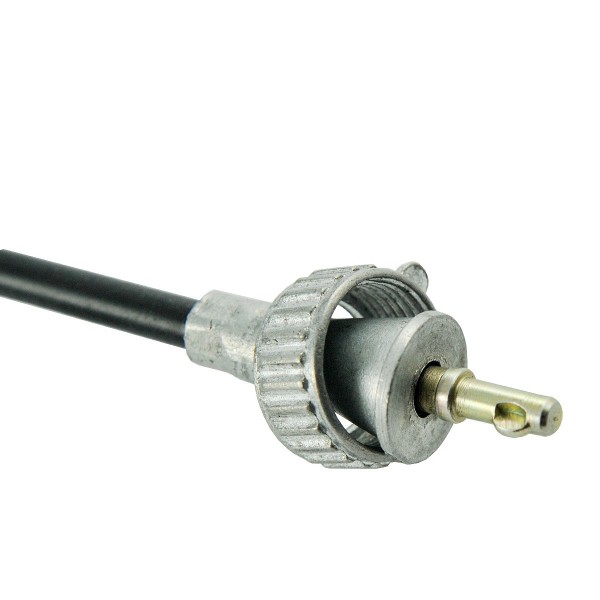

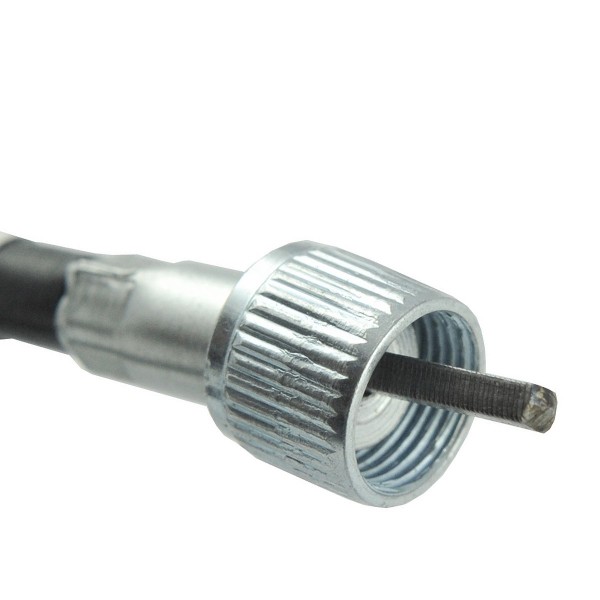

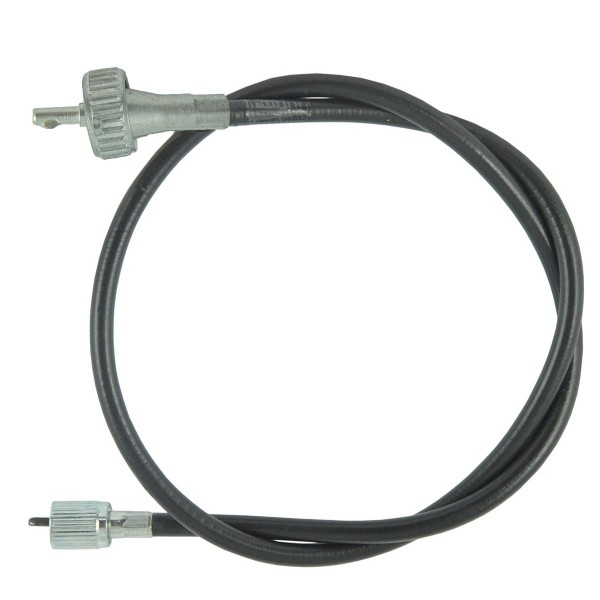

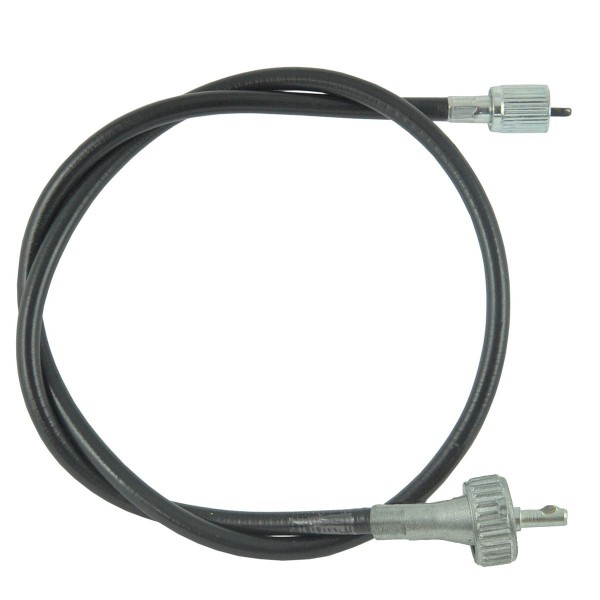

Tachometer cable 880 mm - Iseki TE/TL/TS/TU/TX

Counter cable with a total length of 880 mm with a spline for Iseki tractors of the Iseki TX145, Iseki TX155, Iseki TX1410, Iseki TX1510, Iseki TX2140, Iseki TX2160, Iseki TU1700, Iseki TU1701, Iseki TU190 series 0, Iseki TU1901, Iseki TU2100, Iseki TU2101, Iseki TL2300, Iseki TL2301, Iseki TL2500, Iseki TL2501, Iseki TS1610, Iseki TS1910, Iseki TE3210 , Iseki TE4270 and others.

The tachometer cable is designed to indicate the current engine speed, tractor speed and operating hour meter. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transmits the revolutions to the magnet counter, which also spins. The rotating magnet creates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

• total length: 880 mm,
• rope length: 880 mm,
• length of the armour with rivets: 845 mm,
• armor diameter: 7 mm,
• rope diameter: 3.00 mm,
• cylindrical tip diameter: 4.50 mm,
• square tip: 2.50 x 2.50 mm,
• thread: M12 / M22,
• original part numbers: 1444-621-003-001, 1480-621-001-00,
• comparison numbers: 9-25-107-04 , 9-25-107-13 ,
• part numbers: OBMT07B.

Tractor models :

Iseki :

• Iseki TX145,
• Iseki TX155,
• Iseki TX1410,
• Iseki TX1510,
• Iseki TX2140,
• Iseki TX2160,
• Iseki TU1700,
• Iseki TU1701,
• Iseki TU1900,
• Iseki TU1901,
• Iseki TU2100,
• Iseki TU2101,
• Iseki TL1900,
• Iseki TL1901,
• Iseki TL2100,
• Iseki TL2101,
• Iseki TL2300,
• Iseki TL2301,
• Iseki TL2500,
• Iseki TL2501,
• Iseki TS1610,
• Iseki TS1910,
• Iseki TE3210,
• Iseki TE4270.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.

Warehouse :
M01:A36:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
