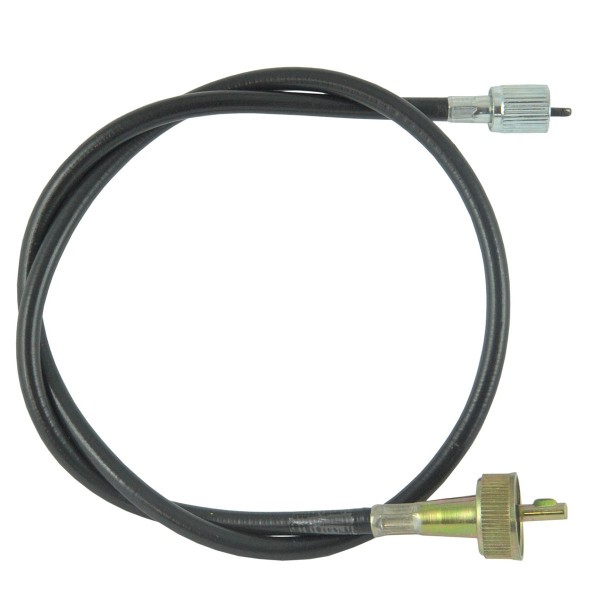

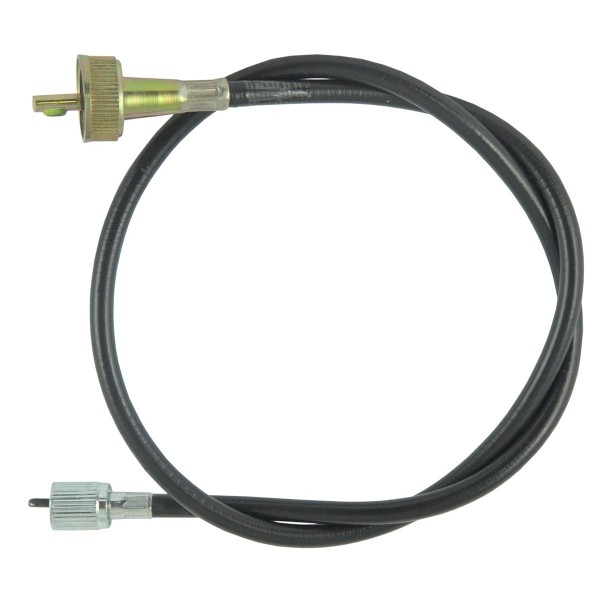

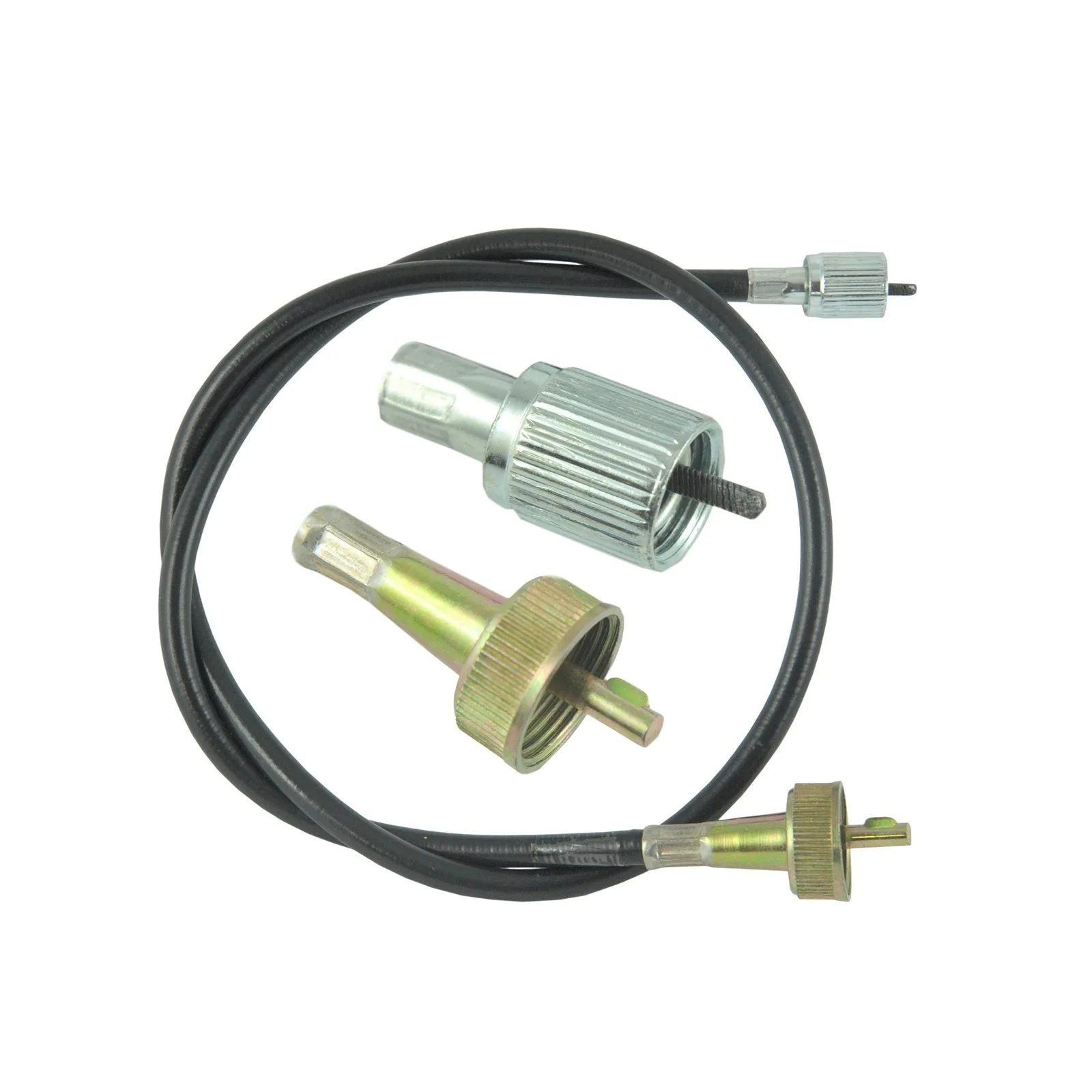

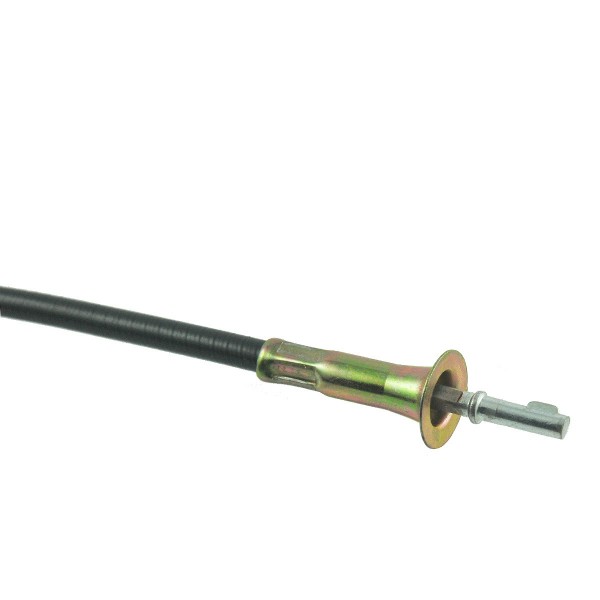

Tachometer cable 825 mm - Iseki TA230 / TE4350 / TE4270 / TS2205 / TU2300

Counter cable with a total length of 825 mm with a splined end for Iseki tractors of the Iseki TA230, Iseki TE4350, Iseki TE4270, Iseki TS2205, Isek TU2300 series and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

• total length: 825 mm,
• rope length: 825 mm,
• length of the armour with rivets: 783 mm,
• armor diameter: 7 mm,
• rope diameter: 3.00 mm,

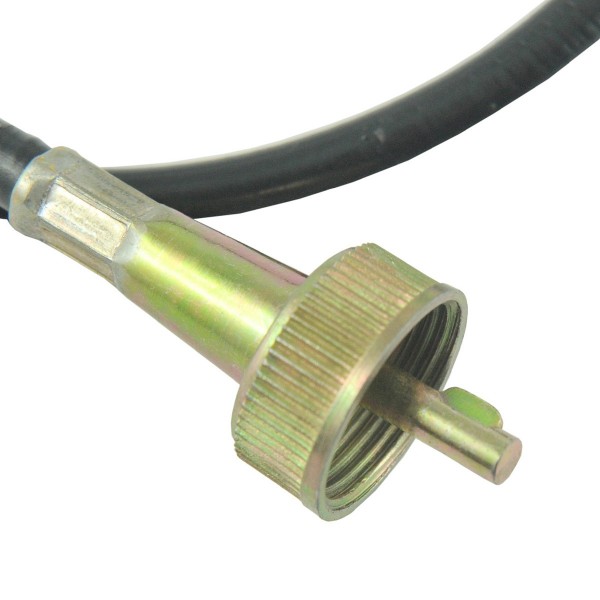

• cylindrical tip diameter: 4.50 mm,

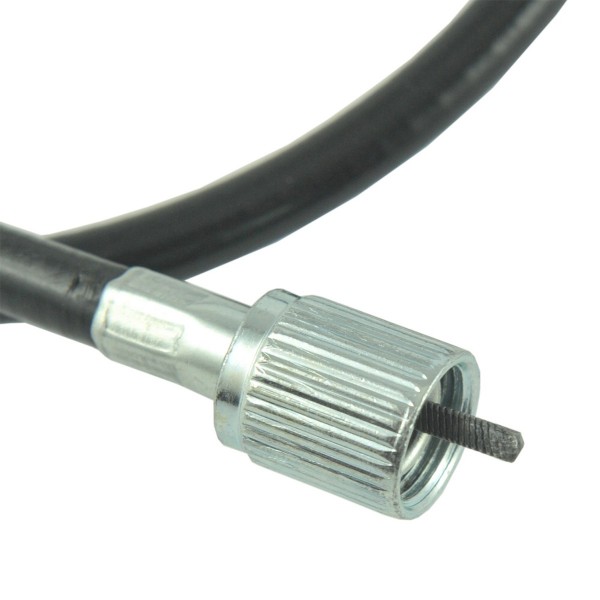

• square tip: 2.00 x 3.00 mm,
• thread: M12 / M22,
• original part numbers: 1444-621-003-00, 1480-621-001-00,
• reference numbers: OBMT07B , 9-25-107-13 ,
• part numbers: 9-25-107-04.

Tractor models :

• Iseki TA230,
• Iseki TE4350,
• Iseki TE4270,
• Iseki TS2205
• Iseki TU2300.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of damage to the cable is a lack of response, vibrations of the pointer while the engine is running.
