Radiator / Kubota L1-185 / L1-195 / L1-205 / L1-215 / L1-225 / L1-235 / L1-245 / L1-255 / L1-265 / L1-285 / L2650 / L2950

ARK3242/17331-72110
zł1,399.00
Tax included PL 23%

1137,4 netto

  • Dostępność (10 Quantity): stock

Do you have any questions?

Radiator / Kubota L1-185 / L1-195 / L1-205 / L1-215 / L1-225 / L1-235 / L1-245 / L1-255 / L1-265 / L1-285 / L2650 / L2950

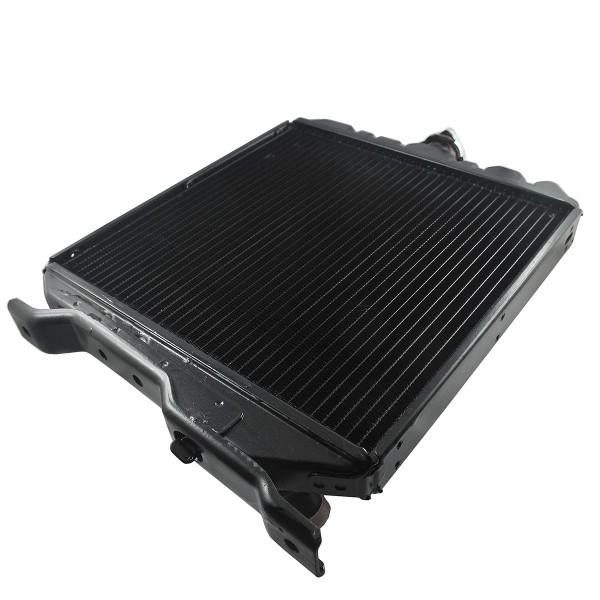

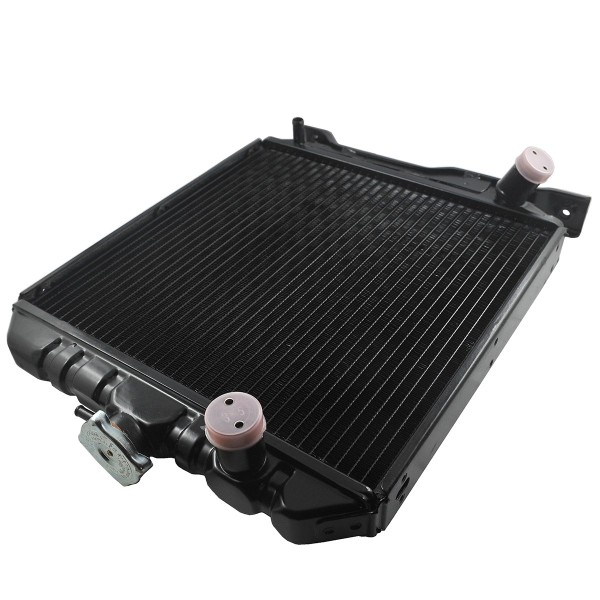

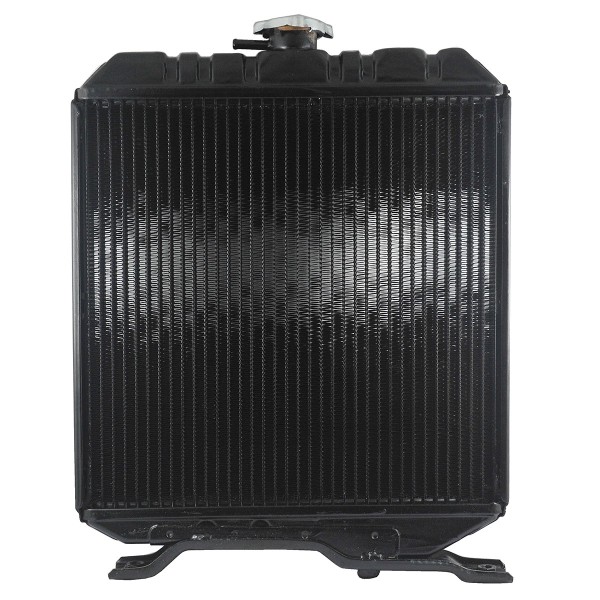

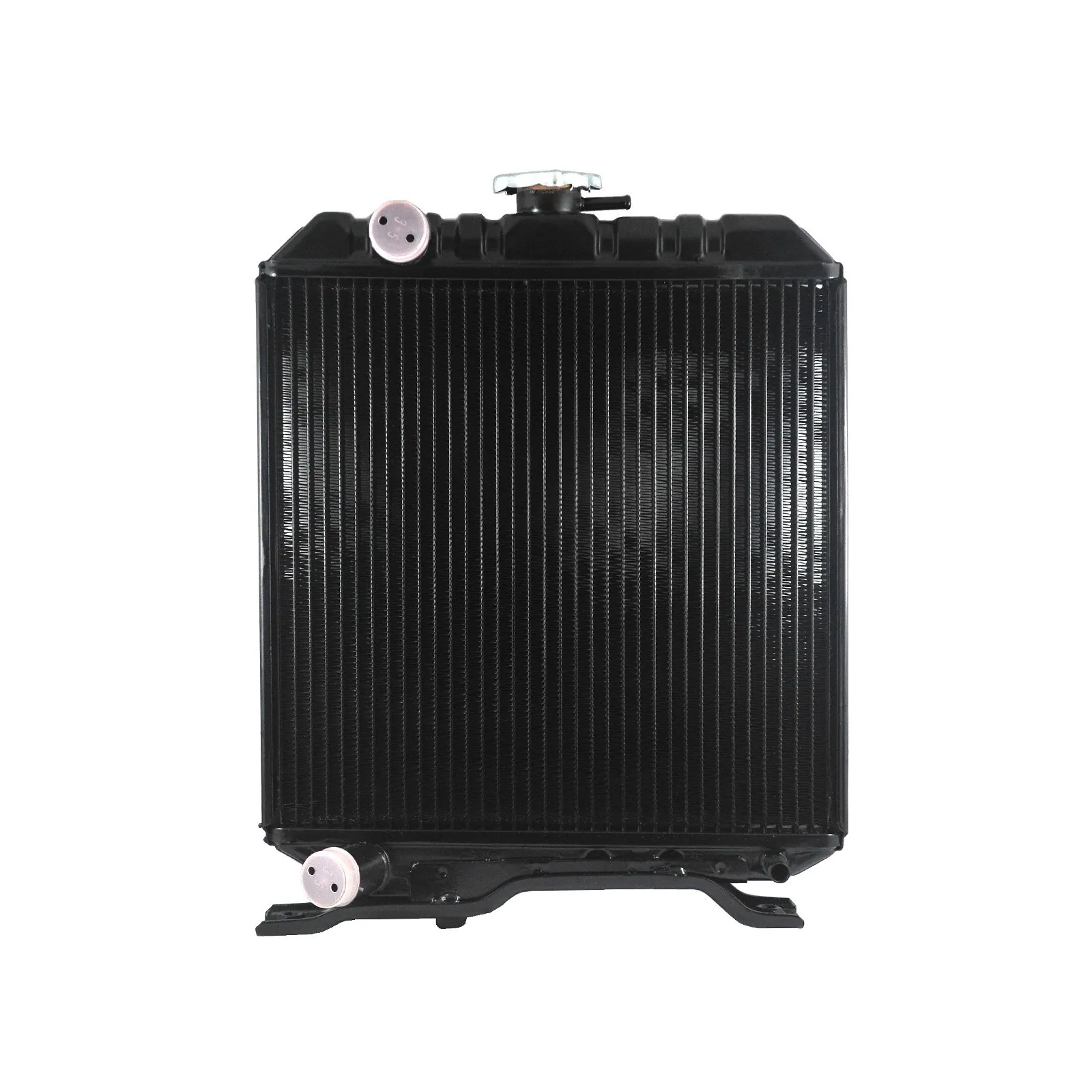

Radiator (hose 5-12-206-01 , 30400-88310, 5-12-206-02 , 31351-18570) with a total height of 520 mm , a width of 400 mm and a thickness of 50 mm for Kubota tractors of the Kubota L1-185, Kubota L1-195 , Kubota L1-205, Kubota L1-215, Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-265, Kubota L1-285, Kubota L2650, Kubota L2950 series and others.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

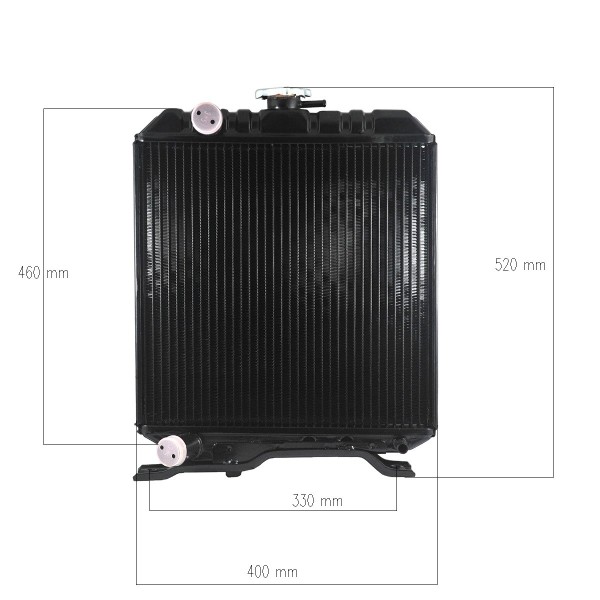

Dimensions :

  • total height: 520 mm,
  • height: 460 mm (measured without filler and mounting screws),
  • width: 400mm,
  • spacing of mounting screw holes: 330 mm,
  • original part numbers: 17331-72110,
  • part numbers: ARK3242.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Magazine : M01:K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K19:S2
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Kubota D1302
- Kubota D1402
Kubota D1462
Kubota V1512
Tractor models
- Kubota L2650
- Kubota L2950
Kubota L1-185
Kubota L1-195
Kubota L1-205
Kubota L1-215
Kubota L1-225
Kubota L1-235
Kubota L1-245
Kubota L1-255
Kubota L1-265
Kubota L1-275
Height (mm)
460
Width (mm)
400
Bolt hole spacing (mm)
330
Original Part Number (OEM)
17331-73410
Part number
ARK3242
Total height (mm)
520
