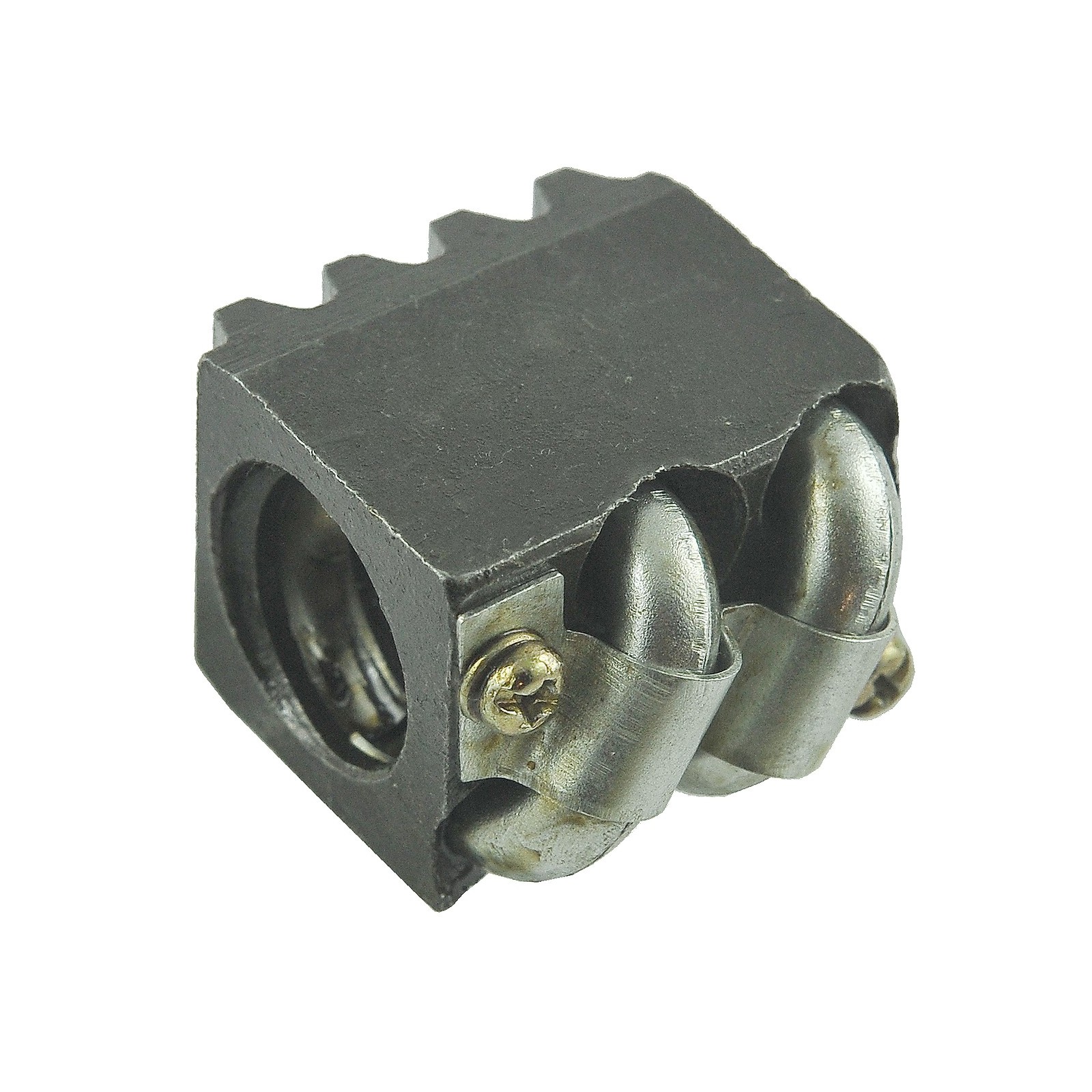

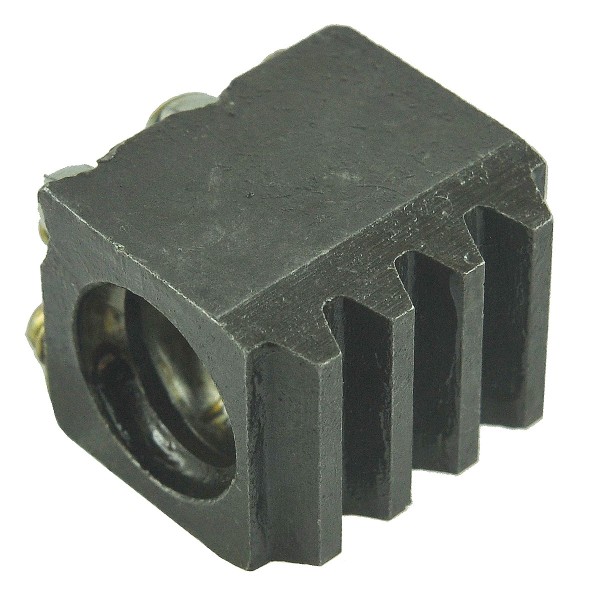

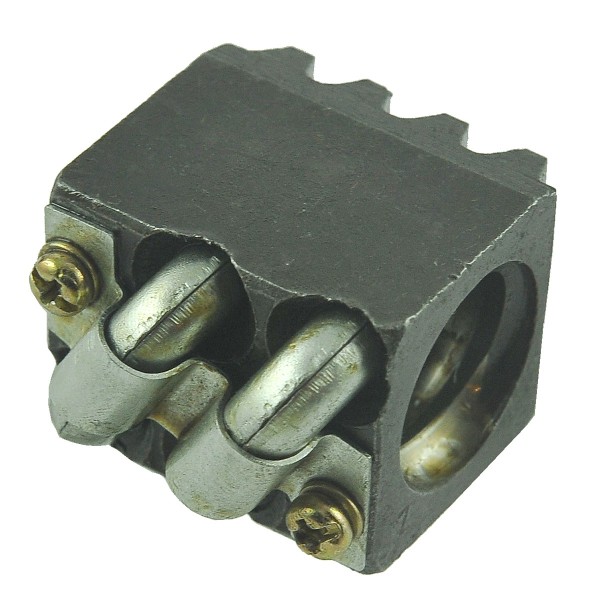

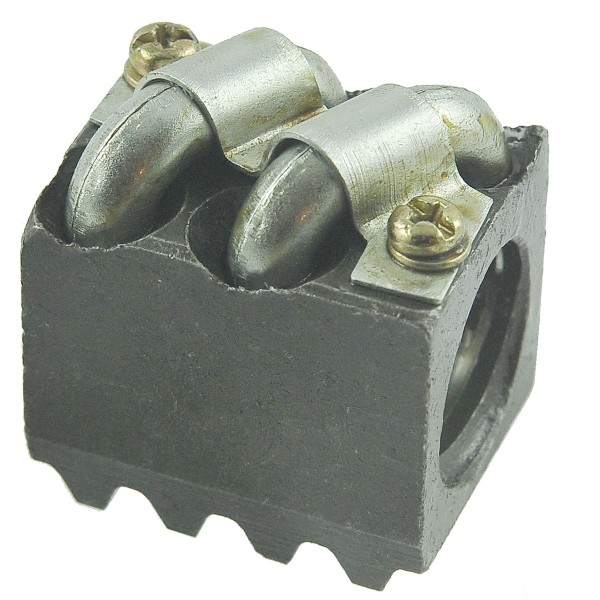

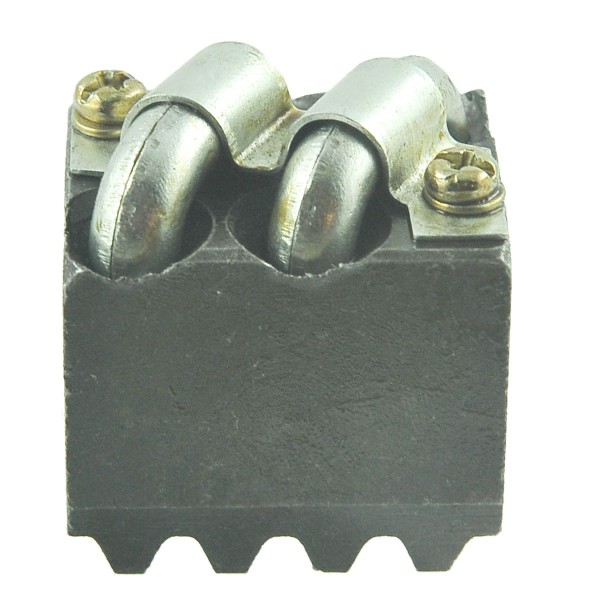

Steering Column Cube / Kubota / Yanmar / Case IH

Steering gear cube with dimensions 40 x 36 x 32 mm for Yanmar tractors series, Kubota L175, Kubota L185, Kubota L225 , Kubota L245, Kubota L1500, Kubota r L1501, Kubota L1511, Kubota r L1801, Kubota L1802, Kubota L2000, Kubota L2001, Kubota L2002, Kubota L2010, Kubota L2201, Kubota L2202, Kubota L2210, Yanmar YM195, Yanmar YM240, Yanmar YM1500, Yanmar YM1600, Yanmar YM1700, Yanmar YM1900, Yanmar YM2000, Yanmar YM2200, Yanmar YM2700, Case IH 235, and others.

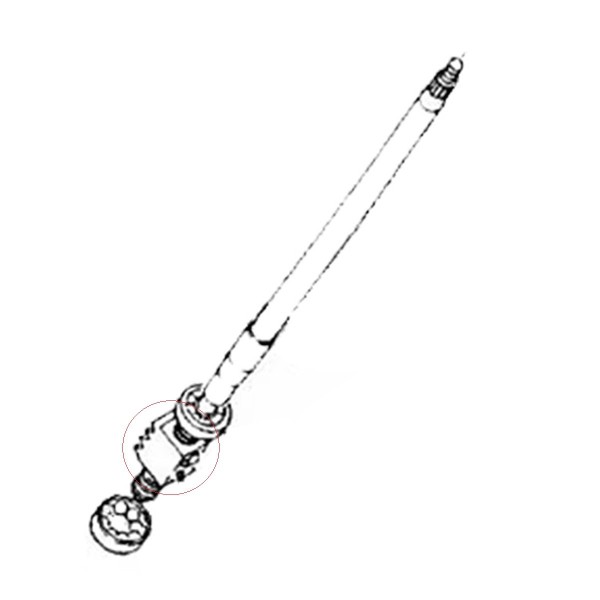

The steering column shaft is a component of the steering system, sometimes called the steering rack, and is responsible for steering the tractor. The steering column shaft transfers steering wheel movement to the tie rod ends and then to the steering wheels. The horizontal shaft interacts directly with the vertical worm shaft. The worm shaft is bolted directly to the steering wheel on one end, while its worm section on the other end drives the horizontal shaft and the subsequent steering column rods, which are connected to the front axle's steering rods.

Dimensions :

• dimensions: 40 x 36 x 32 mm,
• original part numbers: 194310-15411,
• comparative numbers: - ,
• part numbers: KUSS-410.

Tractor models :

• Kubota L175,
• Kubota L185,
• Kubota L225,
• Kubota L235
• Kubota L245,
• Kubota L1500,
• Kubota L1501,
• Kubota L1511,
• Kubota L1801,
• Kubota L1802,
• Kubota L2000,
• Kubota L2001,
• Kubota L2002,
• Kubota L2010,
• Kubota L2201,
• Kubota L2202,
• Kubota L2210,
• Yanmar YM195,
• Yanmar YM240,
• Yanmar YM1500,
• Yanmar YM1600,
• Yanmar YM1700,
• Yanmar YM1900,
• Yanmar YM2000,
• Yanmar YM2200,
• Yanmar YM2700,
• Case IH 235.

The gear shaft is responsible for transferring motion from the vertical shaft with the worm gear to the rod ends and then to the steering wheels. This connection should be as smooth and free of play as possible.

Warehouse: K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
