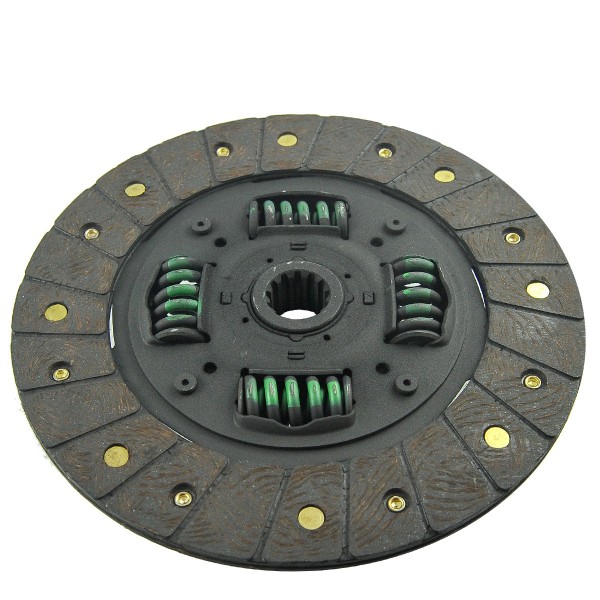

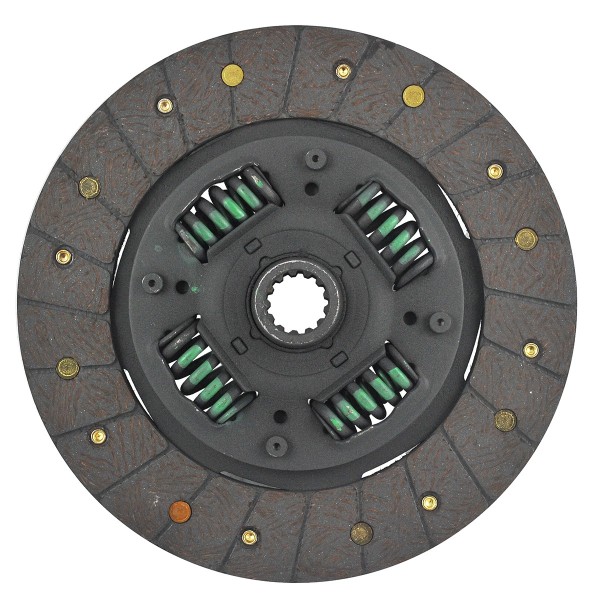

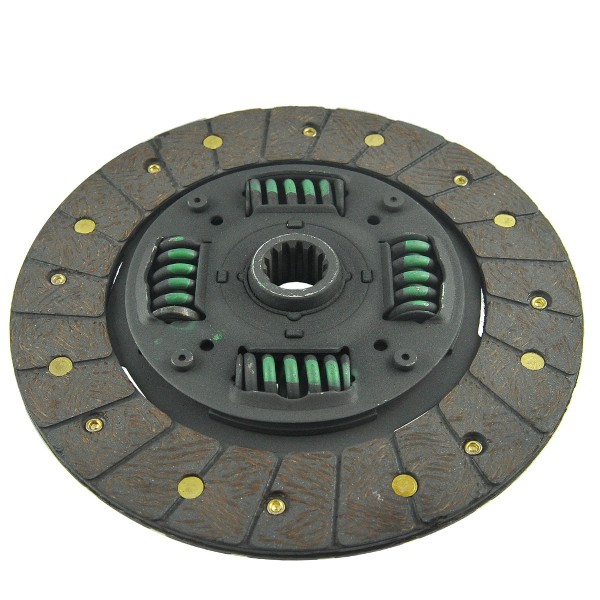

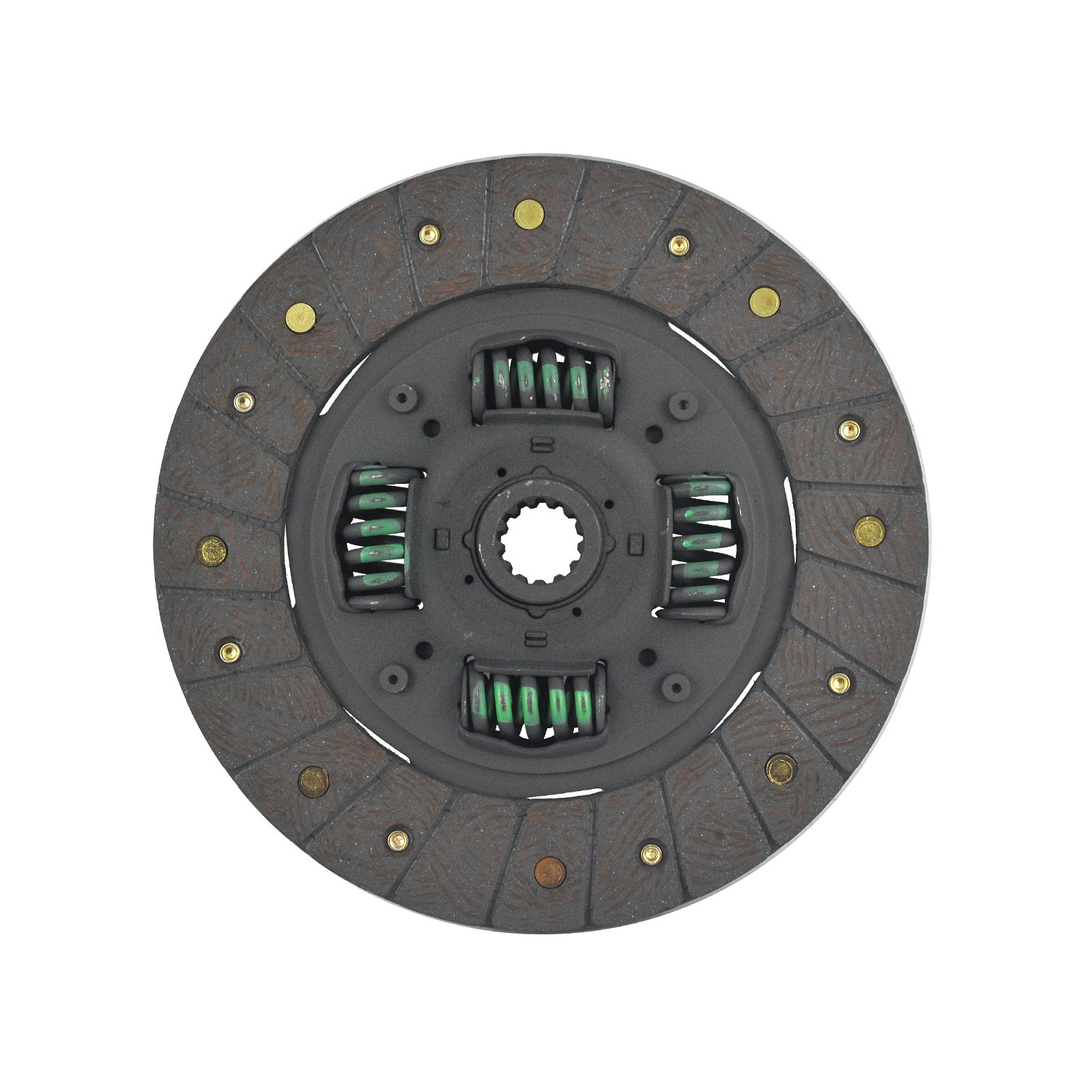

13T clutch disc with a diameter of 228 mm , hub height of 25 mm , internal diameter of 25 mm (measured between the cutter teeth), 22 mm (measured with the spline teeth) for Iseki tractors of the Iseki TS2210, Iseki TS2510, Iseki TS2810, Iseki TS3110, Iseki TS3510 series with Iseki 2AB1, Iseki 3AA1, Iseki 3AB1 engines, Yanmar of the Yanmar FX285, FX305, Yanmar FX335, Yanmar YM4220 series with Yanmar 3T84T engines and others.
The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.
Dimensions :
- Outer diameter: 228 mm,
- Inner diameter: 25 mm (measured between cutter teeth), 22 mm (measured together with cutter teeth),
- Number of teeth: 13T,
- Thickness: 8.30 mm,
- Hub height: 25 mm,
- Original part numbers: 194335-21400, 1415-121-2000-0,
- Comparison numbers: -,
- Part numbers: S.71995.
Tractor models :
Iseki :
- Iseki TS2210,
- Iseki TS2510,
- Iseki TS2810,
- Iseki TS3110,
- Iseki TS3510.
Yanmar :
- Yanmar FX285,
- Yanmar FX305,
- Yanmar FX335,
- Yanmar YM4220.
Engine models :
Isek and:
- Iseki 2AB1,
- Iseki 3AA1,
- Iseki 3AB1.
Yanmar :
The first signs of clutch disc wear (wear) are clutch slippage , which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.
Warehouse: K18 A28
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
