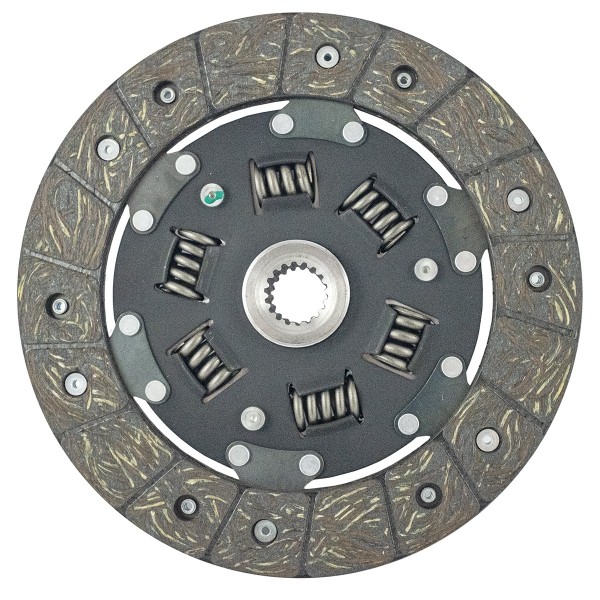

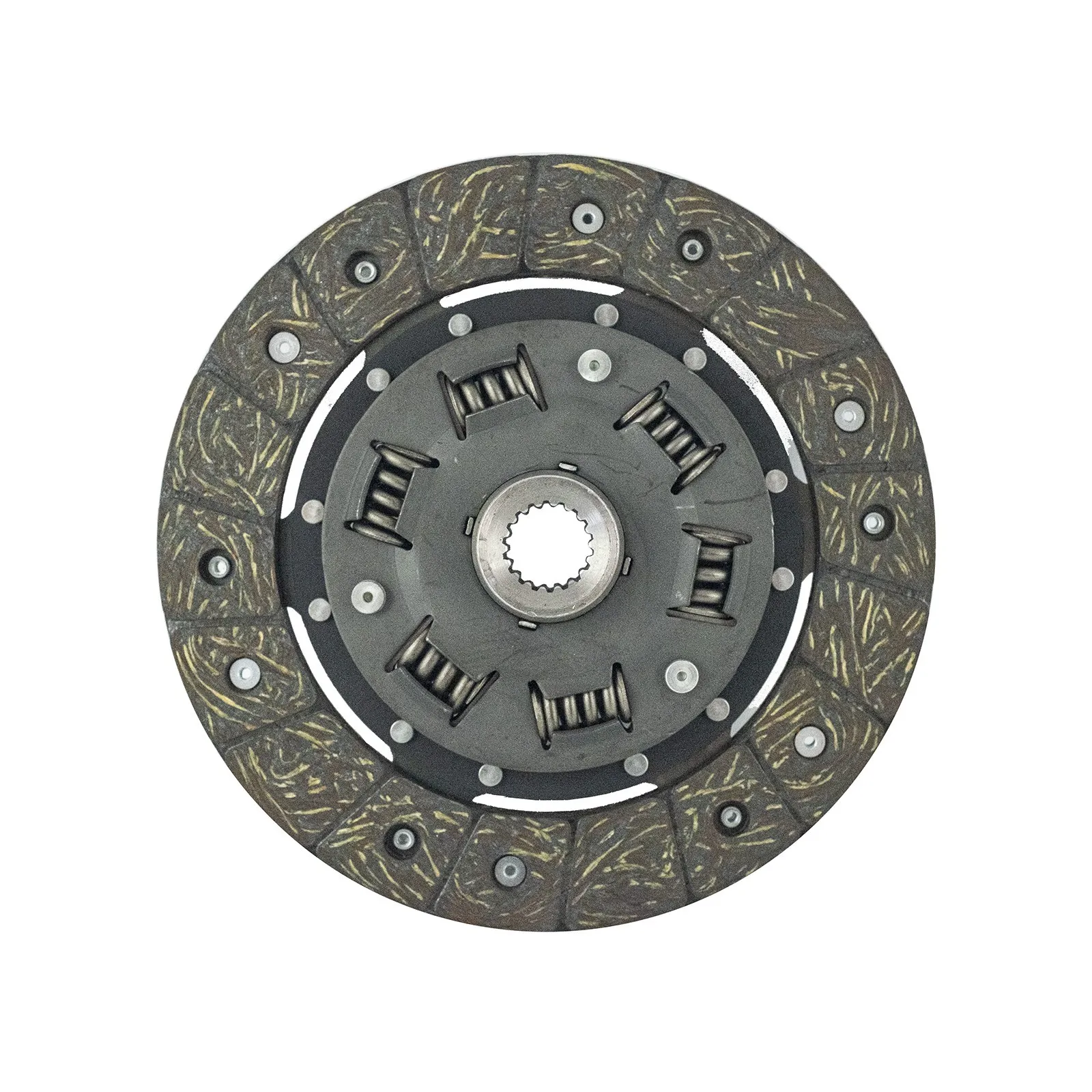

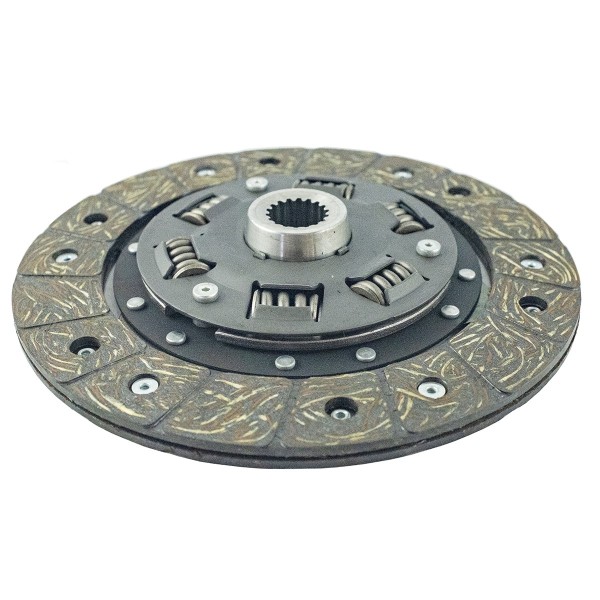

Clutch Disc / 18T / 20 x 184 mm / Iseki TX1510 / TU1500 / TU1400 / TM17 / Shibaura P15F / ANT-100873

Clutch disc with a diameter of 184 mm , a hub height of 26.50 mm , an internal diameter measured between the teeth of 20 mm and 18 spline teeth for Japanese tractors and mini tractors of the Isek brand and the TX, TU and other series.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• Outer diameter: 184 mm,
• Inner diameter: 20 mm (measured between cutter teeth),
• Height (hub): 26.50 mm,
• Number of teeth: 18T.

Tractor models:

Iseki:

• Iseki TM17,
• Iseki TX1510,
• iseki TU1400,
• Iseki TU1500.

Shibaura :

• Shibaura P15F.

The first signs of clutch disc wear (wear) are clutch slippage , which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.

Warehouse : K18 A28

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
