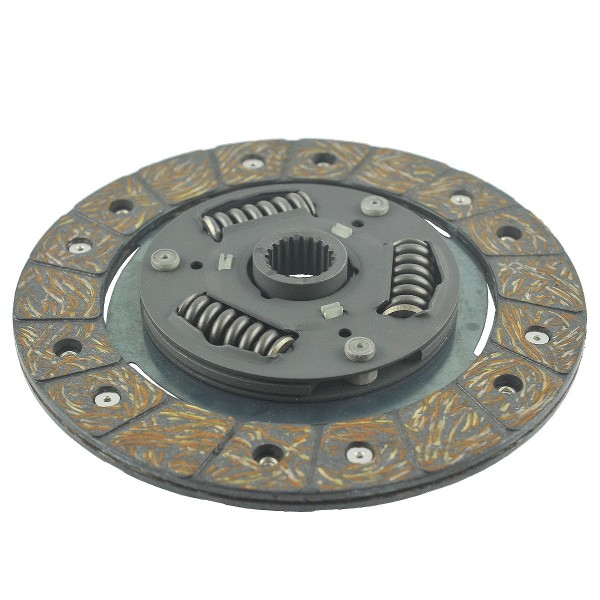

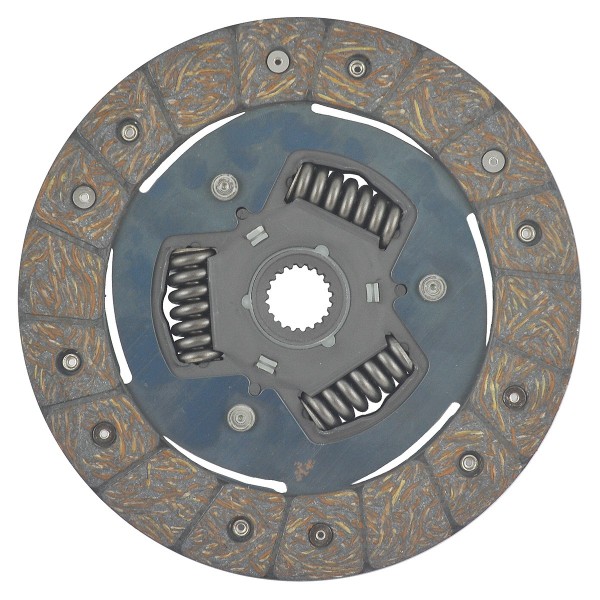

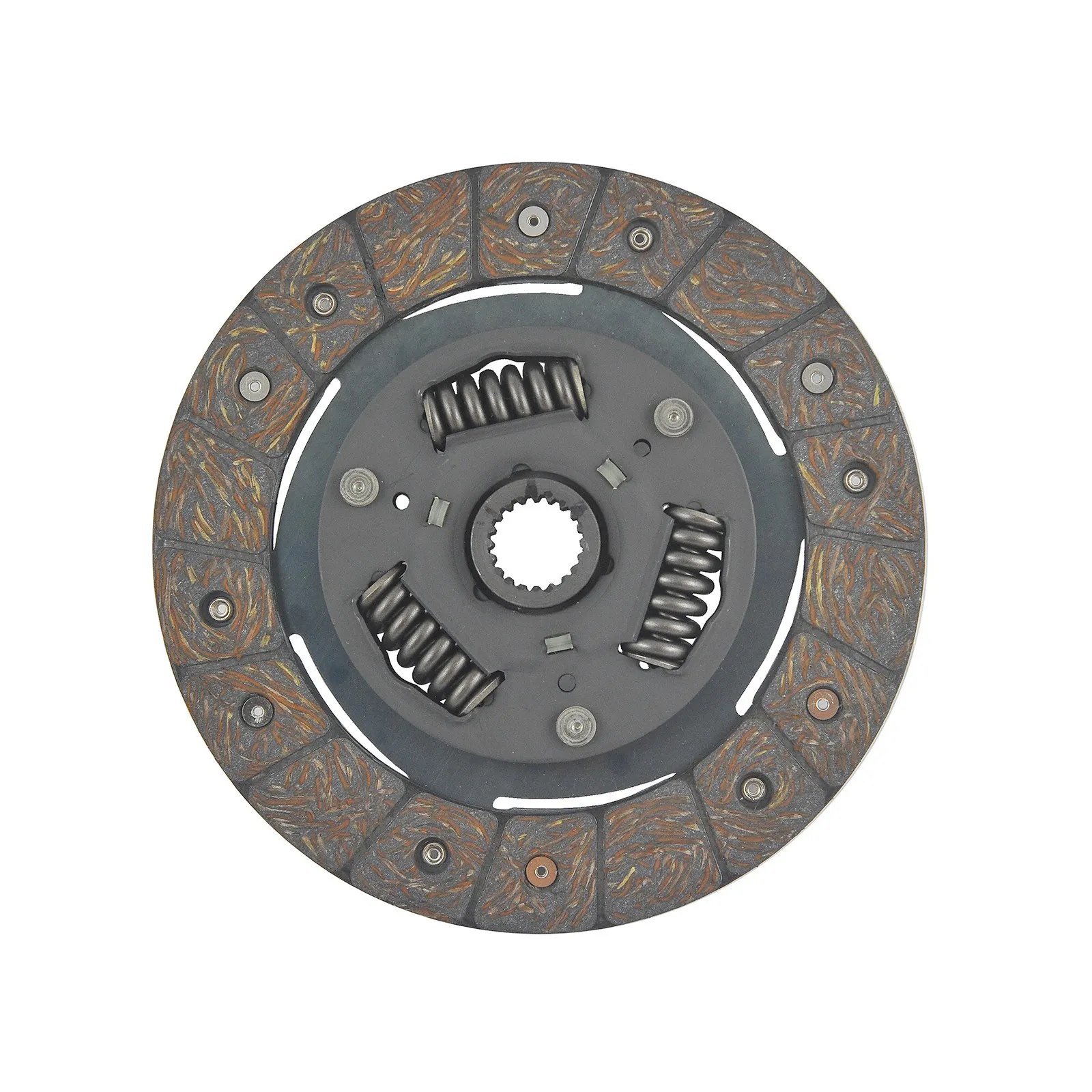

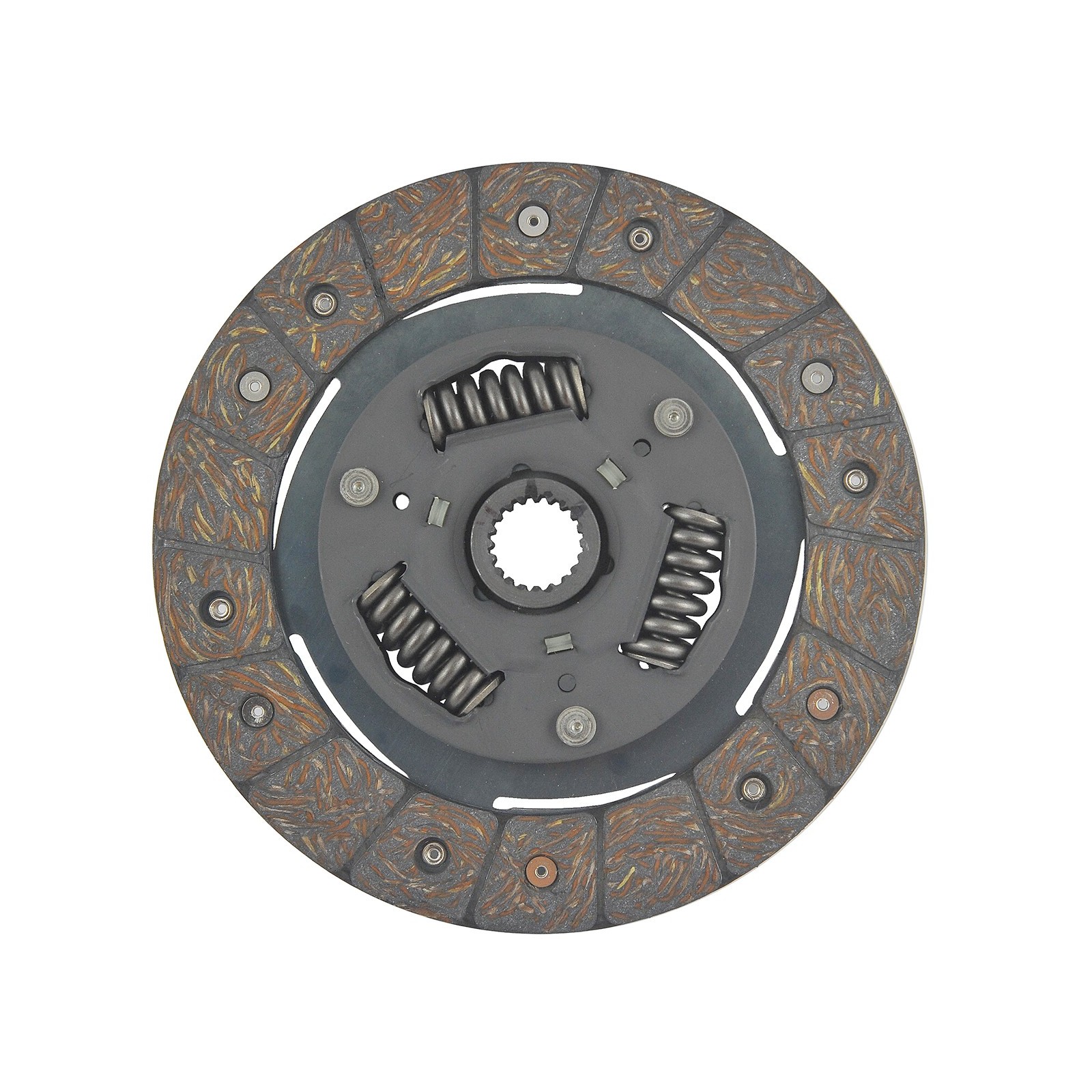

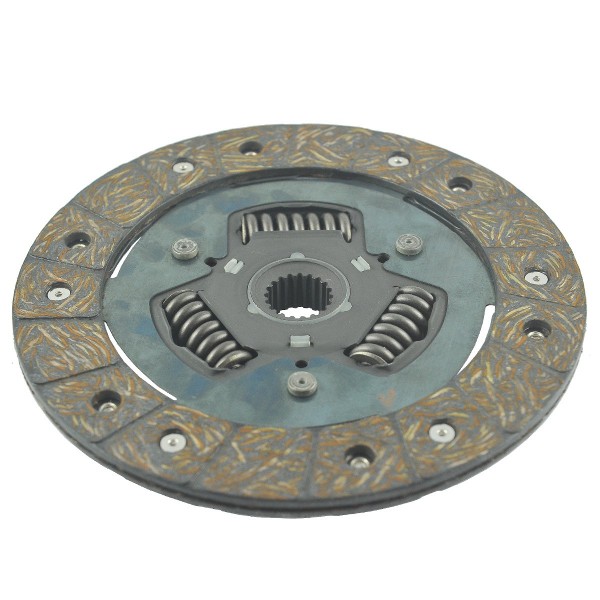

Clutch disc 20T (pressure plate %C5% 82a-kubota-l1500-7-7-cali-209-001501.html">6-26-102-03 , %C5% 9Bci-do-iseki/1055-pressure-clutch %C4% 99g %C5% 82a-iseki-tu1400-.html">33001 ,1600-120- 230-00, %C5% 9Bci-do-iseki/1055-pressure-clutch %C4% 99g %C5% 82a-iseki-tu1400-xl-023y.html">32001 , bearing %C5% 9Bci-do-kubota/92- %C5% 82o %C5% BCysko-trzymaowe-sprz %C4% 99g %C5% 82a-38-x-67-x-1525-mm-kubota-l-ct38-1l1-34150-14280-32150-14820-32270-14820-5-23-108-12.html">5-23-108-12 ) with a diameter of 184 mm , hub height of 21.50 mm , internal diameter of 22.50 mm (measured between the cutter teeth) and 20 mm (measured together with the cutter teeth) for Iseki tractors of the Iseki TU120, Iseki TU125, Iseki TU127, Iseki series TU130, Iseki TU135, Iseki TU137, Iseki TU140, Iseki TU145, Iseki TU147, Iseki TU150, Iseki TU155, Iseki TU157, Iseki TU160, Iseki TU165, Iseki TU167, Iseki TU170, Iseki TU175, Iseki TU177, Iseki TU1400, Iseki TU1500, Iseki TU1600 and others.
The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.
Dimensions :
- Outer diameter: 185 mm,
- Inner diameter: 22.20 mm (measured between cutter teeth), 19 mm (measured together with cutter),
- Number of teeth: 20T,
- Hub height: 21.50 mm,
- Thickness: 8 mm,
- Part numbers: 32006.
Tractor models :
- Iseki TU120,
- Iseki TU125,
- Iseki TU127,
- Iseki TU130,
- Iseki TU135,
- Iseki TU137,
- Iseki TU140,
- Iseki TU145,
- Iseki TU147,
- Iseki TU150,
- Iseki TU155,
- Iseki TU157,
- Iseki TU160,
- Iseki TU165,
- Iseki TU167,
- Iseki TU170,
- Iseki TU175,
- Iseki TU177,
- Iseki TU1400,
- Iseki TU1500,
- Iseki TU1600.
The above-mentioned tractors may have two types of clutch shafts: 18T (disc 18T, %C5% 9Bci-do-iseki/1050-disc-sprz %C4% 99g %C5% 82a-18t-72-cala-183-mm.html">32002 )) and 20T. Before purchasing, please carefully check the number of teeth on the disc or shaft cutter and the spacing of the holes for the clutch pressure plate mounting bolts (pressure plate %C5% 82a-kubota-l1500-7-7-cali-209-001501.html">6-26-102-03 , 1600-120- 230-00, %C5% 9Bci-do-iseki/1055-pressure-clutch %C4% 99g %C5% 82a-iseki-tu1400-xl-023y.html">32001 ).
Magazine: K18:H28
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
