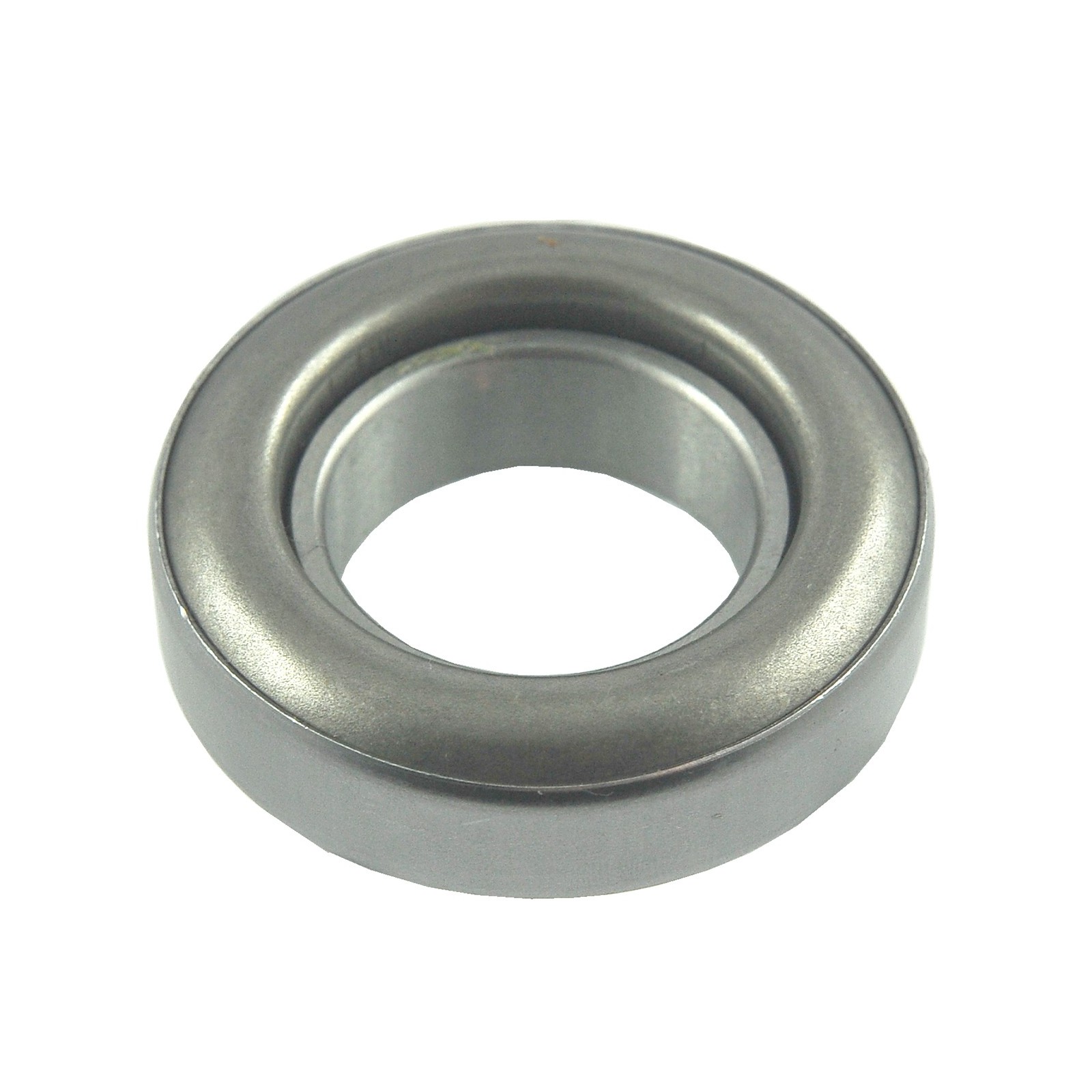

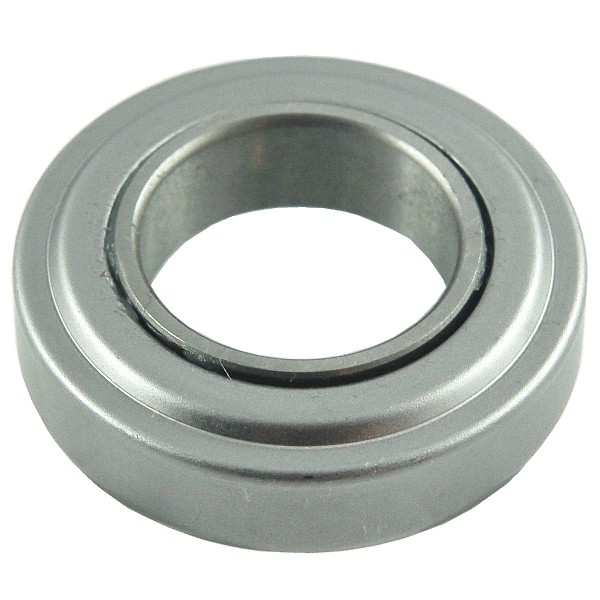

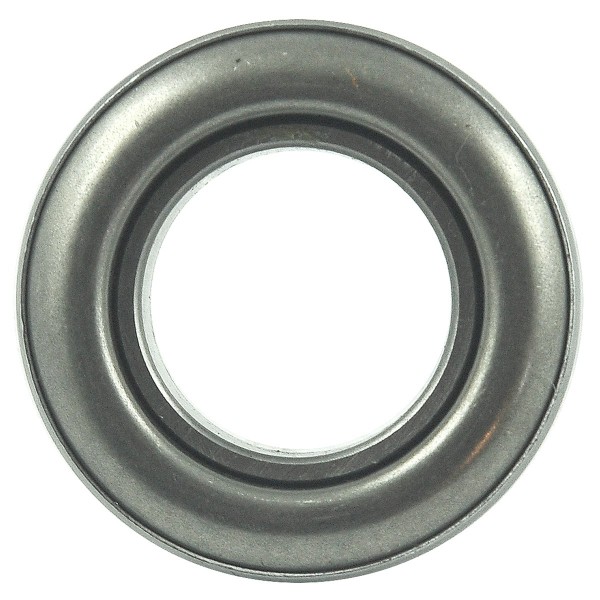

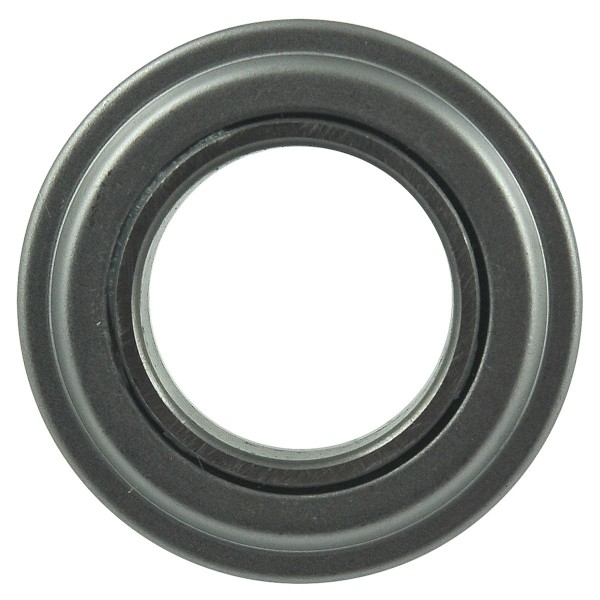

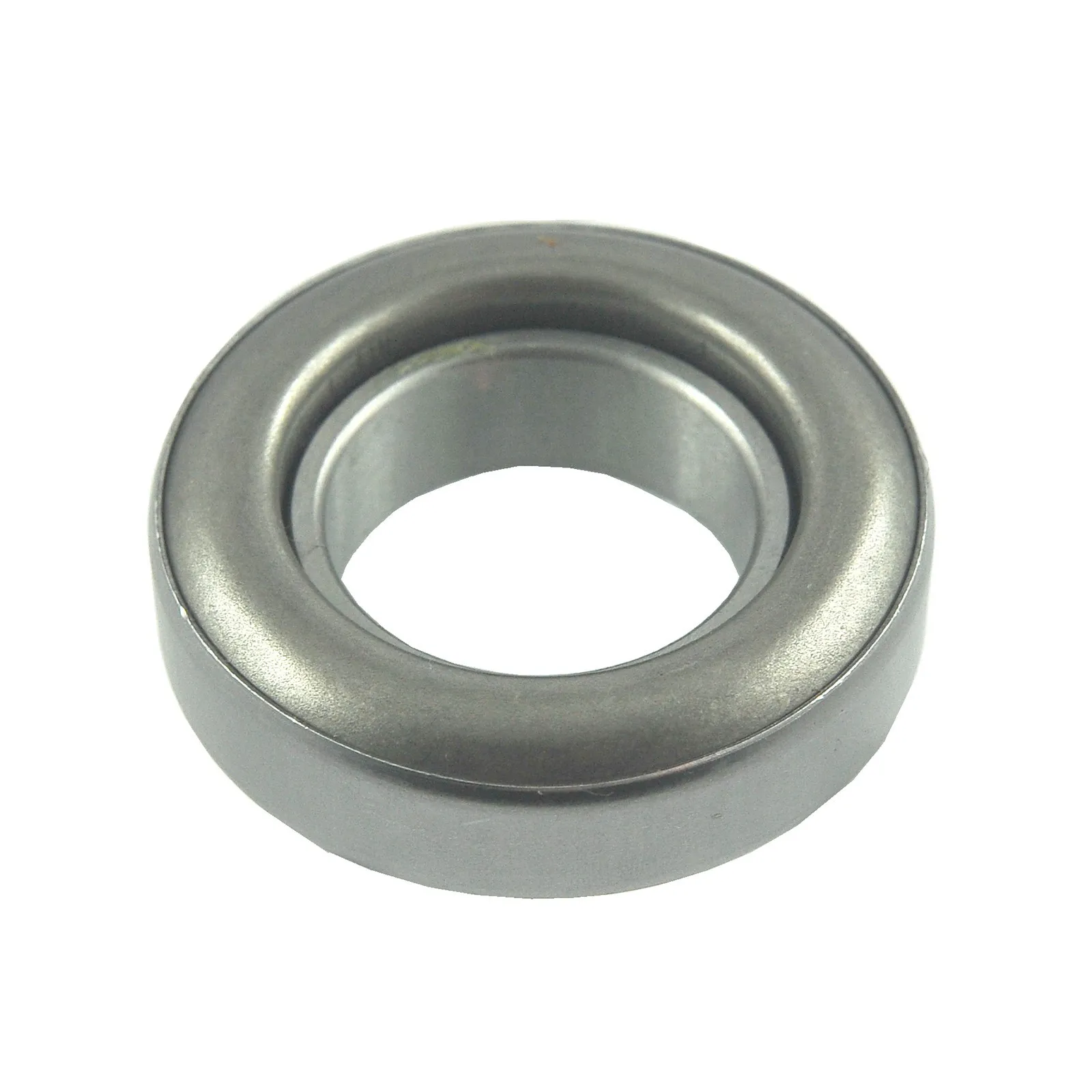

Clutch bearing / 33 x 60 x 17 mm / Kubota B1600 / TK33-1 / 44018

Clutch release bearing (Kubota pressure plate %C5% 9Bci-for-kubota/1060-pressure-disc-clutch %C4% 99g %C5% 82a-kubota-b10b4200b5000b5001b5100b6000b6001b6100b7000b7001b7100-66591-13400-33006.html">33006 , 66591-13400, Kubota disc %C5% 9Bci-for-kubota/1049-disc-clutch %C4% 99g %C5% 82a-14t-180-mm-kubota-aste-a-13a-14a-Kubota B10, Kubota B4200, Kubota B5000, Kubota B5001, Kubota B5100, Kubota B6000, Kubota B6001, Kubota B6100, Kubota B7000, Kubota B7001, Kubota B710015b52b1400b1550b1750b4200b5100b6000b6100b7100b7200l175l185.html">32001 , 66591-13300, Yanmar pressure plate %C5% 9Bci-do-yanmar/1058-pressure-coupling %C4% 99g %C5% 82a-yanmar-ym1401-xl593y-lf-ym1401.html">33004 , 794200-2170, Yanmar shield %C5% 9Bci-do-yanmar/1052-sprz-shield %C4% 99g %C5% 82a-19t-7-14180-mm-yanmar-ym1100ym1300ym1401ym1510ym1601ym1702ym1720-xl393ct-1-32004.html">32004 , %C5% 9Bci-do-yanmar/7770-sprz-disc %C4% 99g %C5% 82a-19t-7-14180-mm-yanmar-ym1100ym1300ym1401ym1510ym1601ym1702ym1720-794200-21400.html">794200-21400 ) with an inner diameter of 33 mm , an outer diameter of 60 mm , a height of 19 mm and the symbol TK33-1 for Kubota tractors of the Kubota B1600 series and others.

The clutch bearing , also known as a release bearing or thrust bearing , is the only moving component of the clutch system in a tractor engine. It moves along the axis of the drive shaft in a sliding motion. When the clutch pedal is depressed, the thrust bearing presses against the clutch pressure springs, causing the pressure plate to lift. The pressure plate moves away from the clutch disc's friction surface, allowing us to disengage the drive, transfer power from the engine (crankshaft) to the drive system (gearbox drive shaft), i.e., change gears or stop the tractor.

Dimensions :

• Inner diameter: 33 mm,
• Outer diameter: 60 mm,
• Height: 19 mm,
• Original part numbers: 194200-22180,
• Part numbers: TK33-1, 44018.

Tractor models :

Kubota:

• Kubota B1600.

Yanmar :

• Yanmar YM1100,
• Yanmar YM1300,
• Yanmar YM1301,
• Yanmar YM1401.

The first signs of bearing wear and the need for replacement include an unusual noise, such as a humming or buzzing sound coming from the clutch area, which usually disappears when the clutch pedal is depressed. In the case of severe damage or wear to the clutch bearing, difficulty engaging gears may occur. It is recommended to replace the bearing whenever one of the clutch pressure plate or disc components is replaced, as replacing each of these components requires splitting the tractor (separating the gearbox from the engine) and is a relatively expensive and time-consuming process.

Magazine: K18:H37

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
