zł45.00
To order
Condition
New
Production
Substitute
Parts
Electrician
Engine model
- Kubota D1403
Tractor models
Kubota L3408
Kubota L3608
Kubota L4508
Kubota L4708
Kubota M5000
Kubota L3608
Kubota L4508
Kubota L4708
Kubota M5000
Voltage (V)
12
Length (mm)
140
Alternator / Kubota L3408 / L3608 / L4508 / L4708 / M5000 / 45A / Kubota D1403 / T1060-34508
6-09-101-01
Do you have any questions?
Alternator / Kubota L3408 / L3608 / L4508 / L4708 / M5000 / 45A / Kubota D1403 / T1060-34508

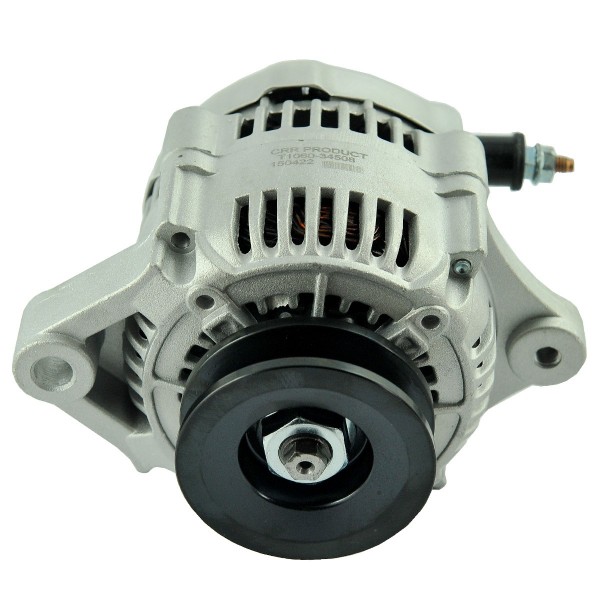

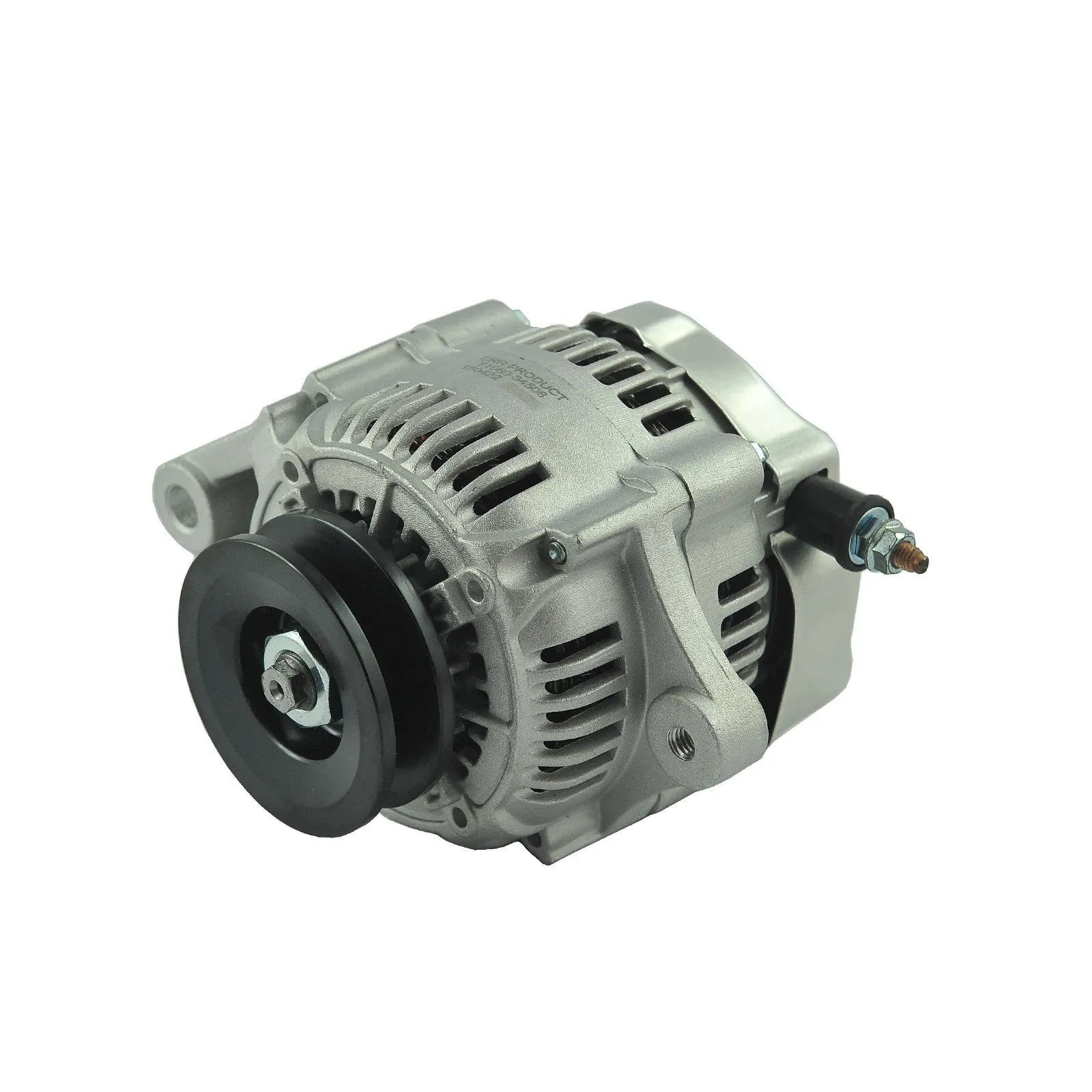

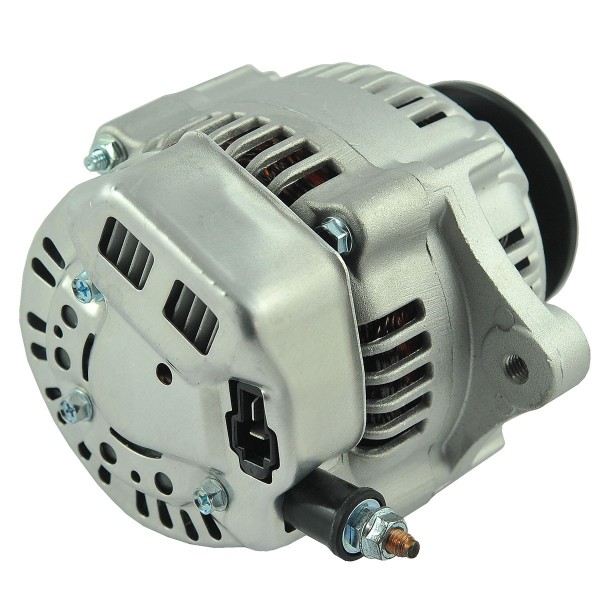

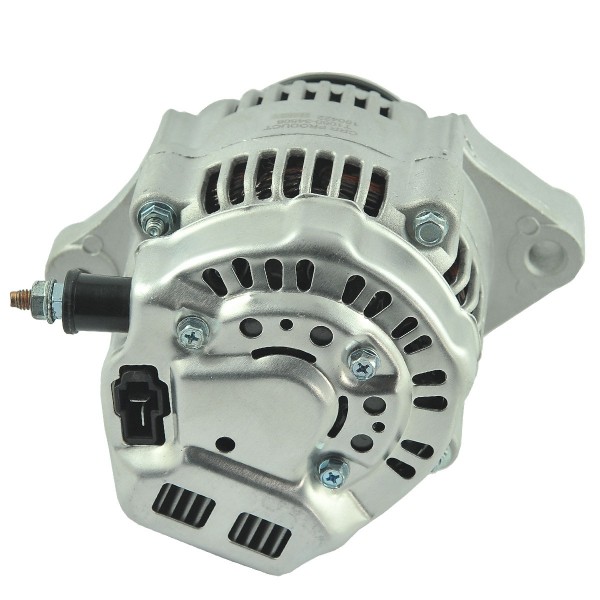

Alternator for Kubota L3408, Kubota L3608, Kubota L4508, Kubota L4708, Kubota M5000 tractors with a voltage of 12V and a generated power of 45A with Kubota D1403 engines and others.
An alternator is a device that converts mechanical energy into direct current, alternating current, thanks to which it powers the tractor's electrical system, including the battery. The alternator produces current only when the engine is running and is driven by a belt drive. The first signs of alternator damage are a control lamp that does not go out, flashes or does not light up at all, the so-called: battery charging lamp while the tractor's engine glow plugs are heating. On the other hand, the lamp lighting up while the tractor is running may indicate an incorrect voltage supplied by the alternator to the battery.
Dimensions :
- diameter: 100 mm,
- length: 140mm,
- wheel diameter: 69 mm,
- width at the strap: 6 / 14 mm,
- spacing of mounting screw holes: 135 mm,
- original part number: T1060-34508,
- part numbers: 6-09-101-01.
Magazine : M01:D74
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:D74
Condition
New
Production
Substitute
Parts
Electrician
Engine model
- Kubota D1403
Tractor models
Kubota L3408
Kubota L3608
Kubota L4508
Kubota L4708
Kubota M5000
Kubota L3608
Kubota L4508
Kubota L4708
Kubota M5000
Voltage (V)
12
Length (mm)
140
Diameter (mm)
110
Wheel diameter (mm)
69
Bolt hole spacing (mm)
135
Original Part Number (OEM)
T1060-34508
Part number
6-09-101-01
Generated power (A)
45
