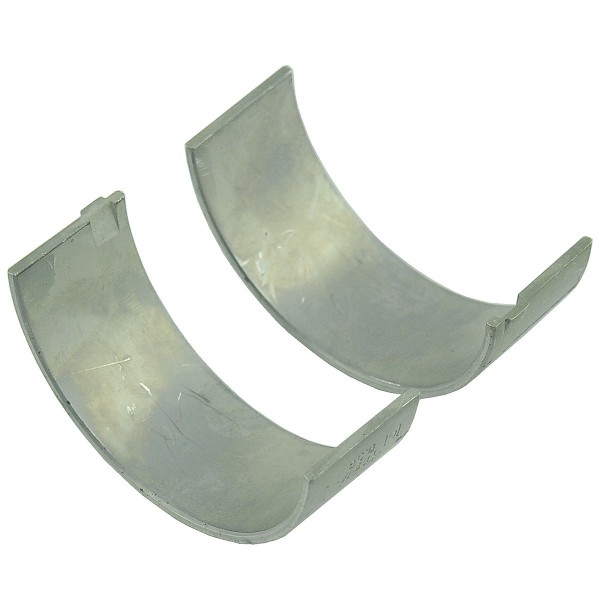

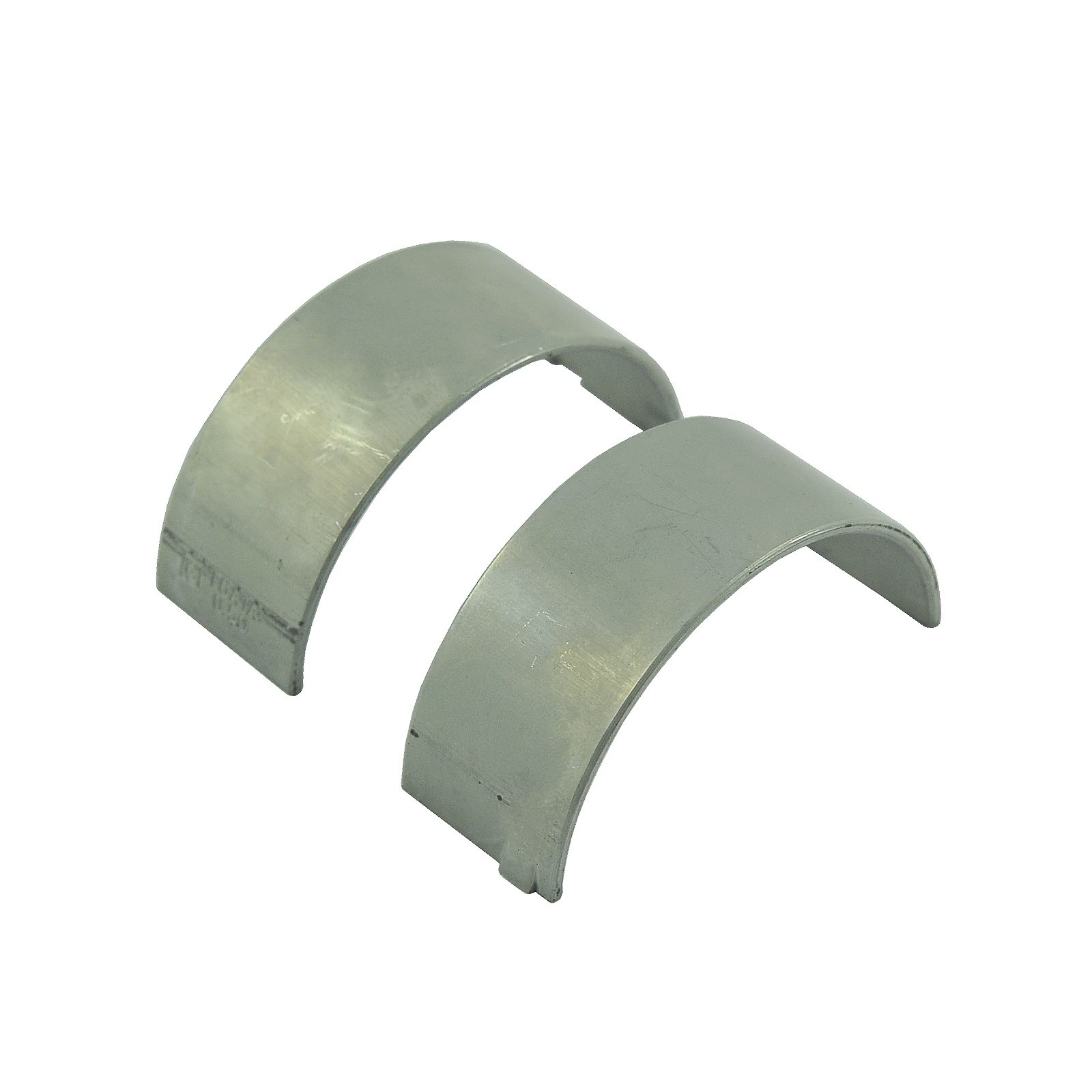

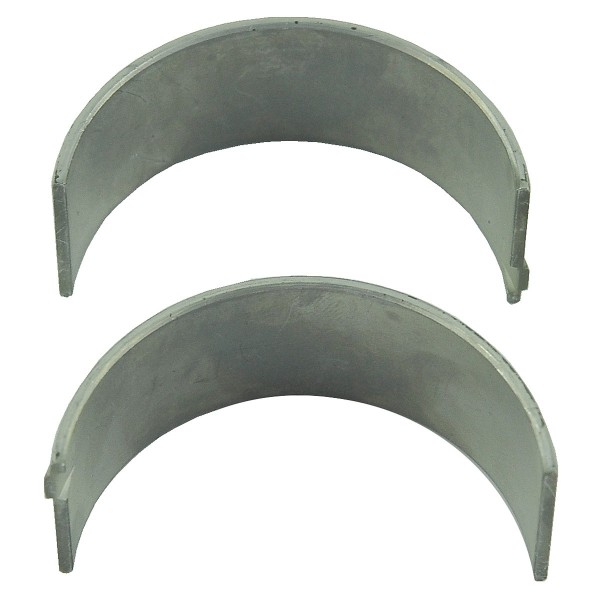

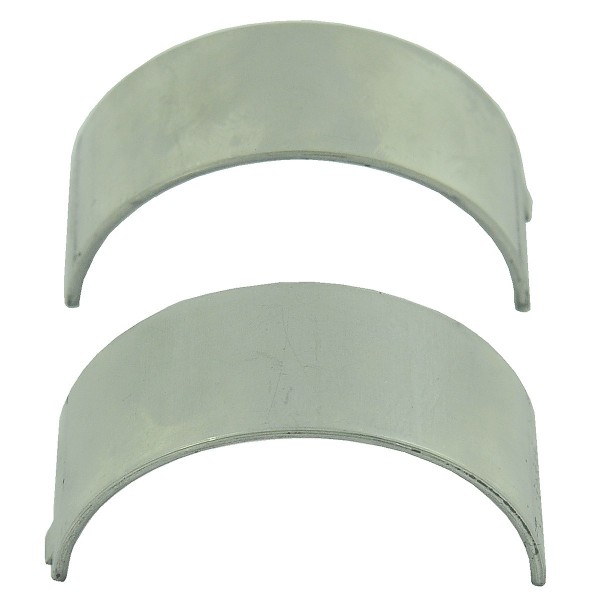

Connecting rod bearings with a standard size + 0.50 mm (so-called second-grind bearings 020), width 22.50 mm , thickness 1.80 mm and outer diameter after folding 57 mm , inner diameter 53.50 mm for Iseki tractors of the Iseki TS1610, Iseki TS1700, Iseki TS1910 , Iseki TS2000, Iseki TS2200, Iseki TS2202, Iseki TS2220, Iseki TS2205, Iseki TS2210, Iseki TS2400, Iseki TS2500, Iseki TS2510, Iseki TS2800, Iseki TS2810, Iseki series TS3110, Iseki TS3510, Iseki TS3910 with Iseki 2AA1, Iseki 2AB1, Iseki 3AA1, Iseki 3AB1 and other engines.
Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. Bearings are two separable, semicircular elements that, when installed, create a circle. Bearings (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:
- using oil with incorrect viscosity parameters,
- incorrect installation of bearing shells,
- failure to comply with oil change intervals,
- low engine oil level,
- overloading the engine, which has not reached the correct temperature,
Dimensions :
- outer diameter: 57 mm,
- inner diameter: 53.50 mm,
- width: 22.50 mm,
- thickness: 1.80 mm,
- original part numbers: 5681-227-1005-0,
- part numbers: 9-90-101-03.
Tractor models :
Iseki :
- Iseki TS1610,
- Iseki TS1700,
- Iseki TS1910,
- Iseki TS2000,
- Iseki TS2200,
- Iseki TS2202,
- Iseki TS2220,
- Iseki TS2205,
- Iseki TS2210,
- Iseki TS2400,
- Iseki TS2510,
- Iseki TS2500,
- Iseki TS2800,
- Iseki TS2810,
- Iseki TS3110,
- Iseki TS3510,
- Iseki TS3910.
Tractor models :
- Iseki 2AA1,
- Iseki 2AB1,
- Iseki 3AA1,
- Iseki 3AB1.
The first signs of wear of connecting rod bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.
Magazine : M01:A24:S02
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
